Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

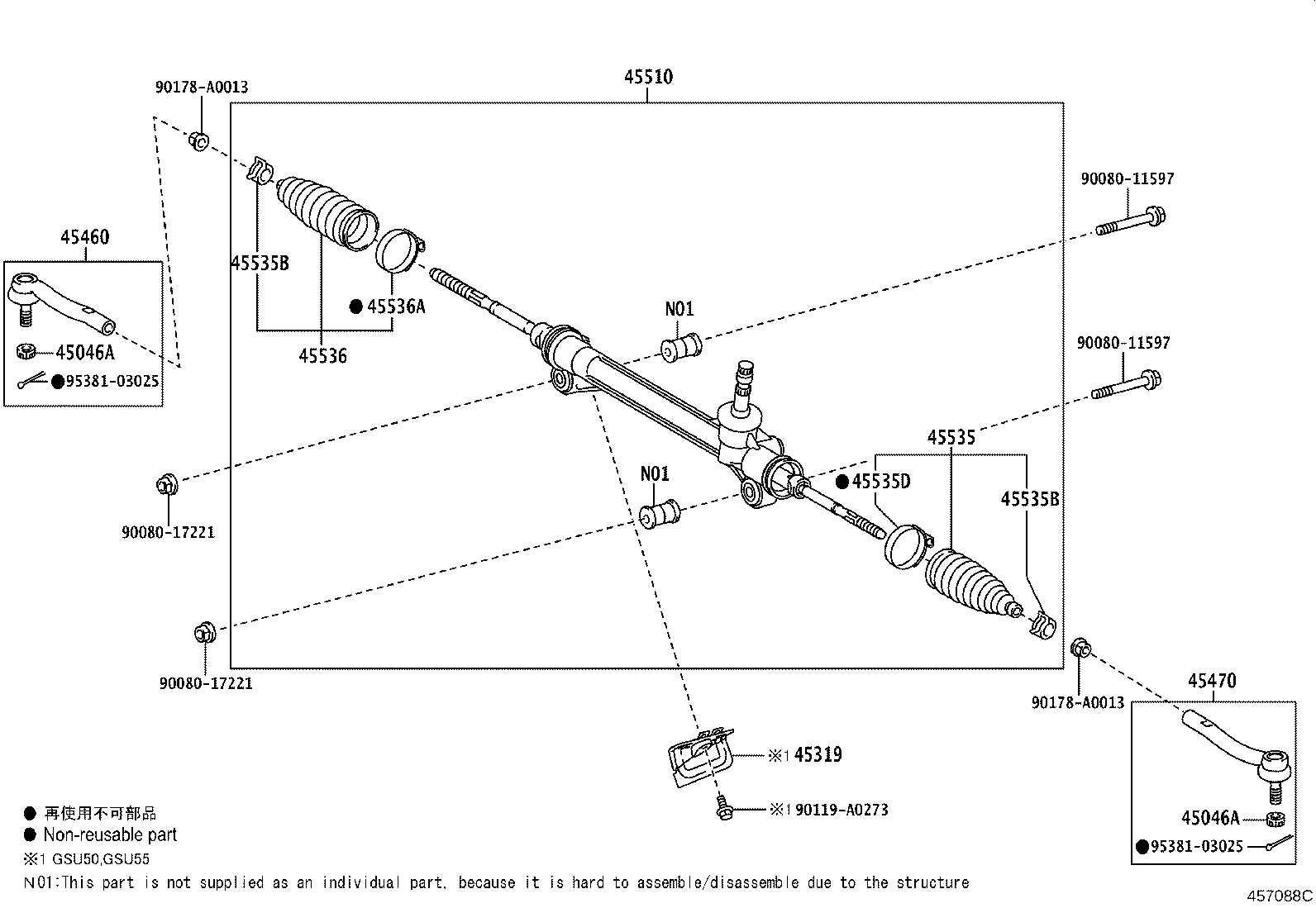

Front Steering Gear & Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45319 | Insulator, Steering Gear Heat |
| 45460 | Rod Assy, Tie, RH |
| 45470 | Rod Assy, Tie, LH |
| 45510 | Gear Assy, Steering |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
