Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

30 part groups · 5 illustrations

Illustrations

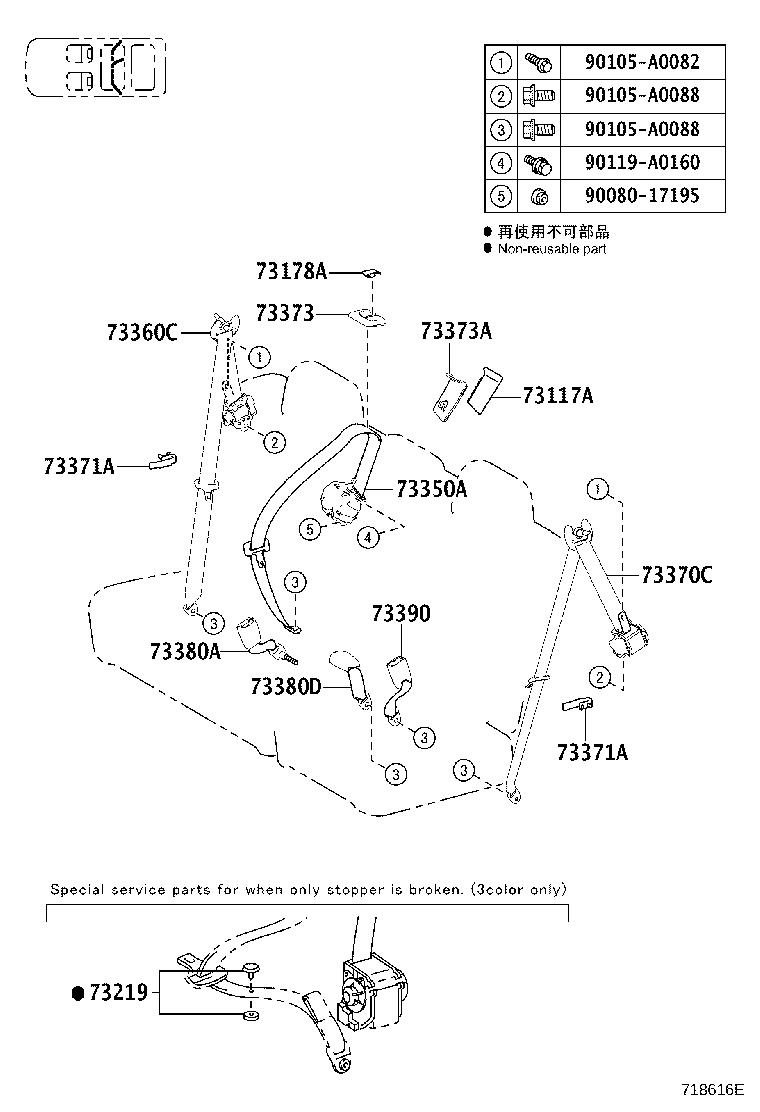

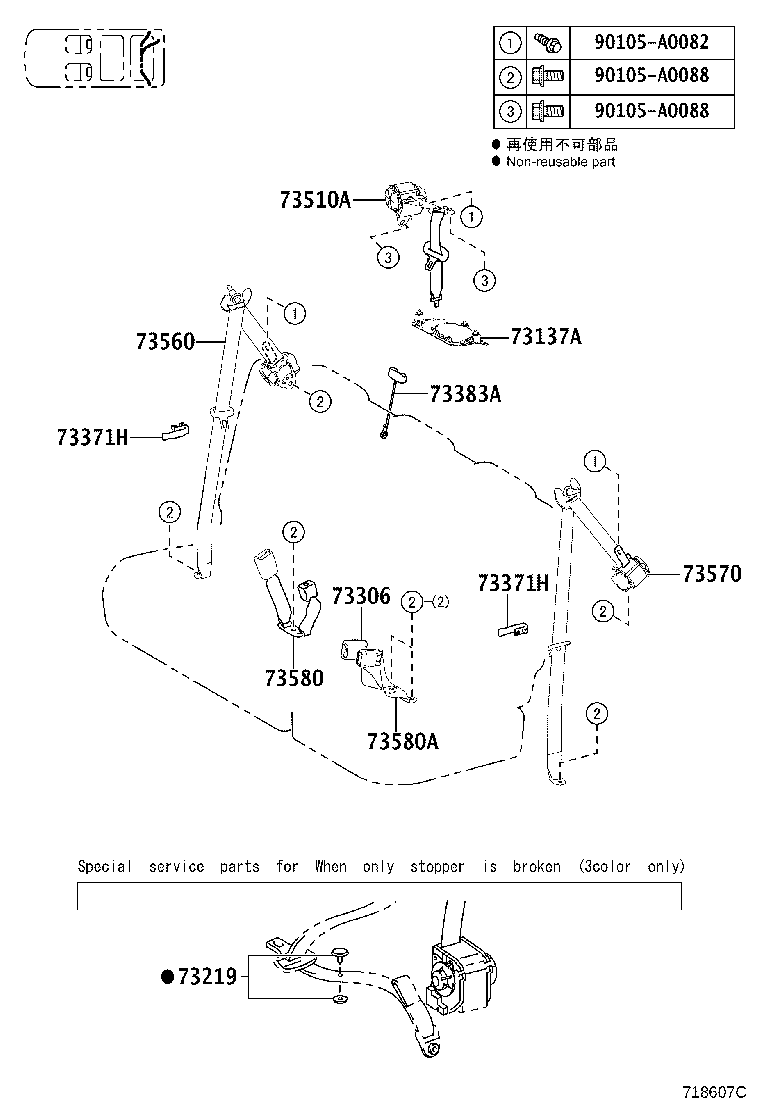

Figure 718603D 718603D 2003-12 → — Figure 718616E 718616E 2013-12 → — Figure 718616E 718616E 2016-11 → — Figure 718606D 718606D 2013-12 → — Figure 718607C 718607C 2013-12 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73117A Protector, Belt
73137A Cover, Shoulder Belt Anchor, Upr
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73306 Belt Sub-assy Seat, Inner
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73371H Hanger, Rear NO.2 Seat Shoulder Belt
73373 Cover, Rear Seat Shoulder Belt
73373A Cover, Rear Seat Shoulder Belt, RH
73380A Belt Assy, Rear Seat, Inner
73380D Belt Assy, Rear Seat, Inner
73383A Hook, RR Seat Belt
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
