Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

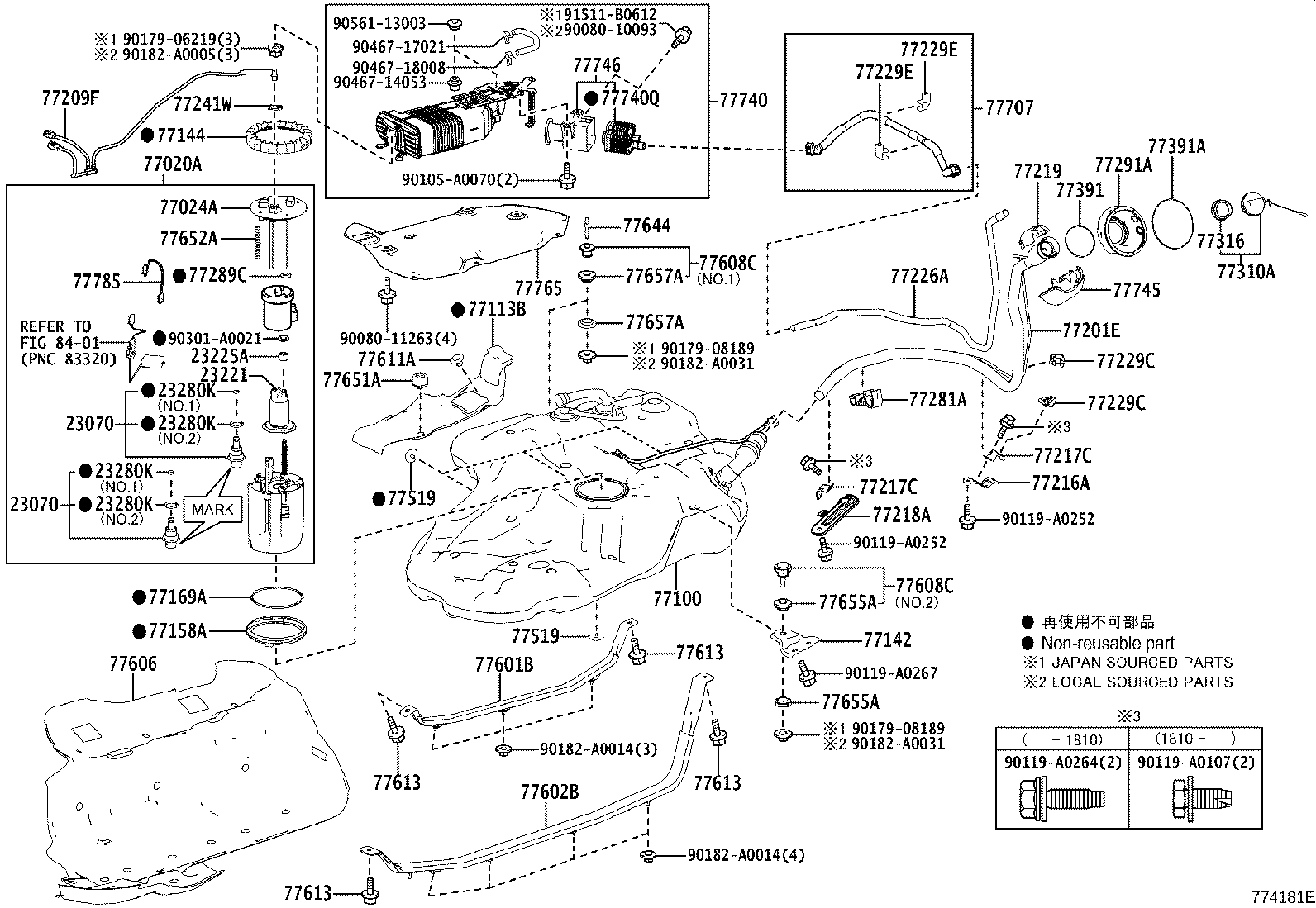

Fuel Tank & Tube

101 part groups · 13 illustrations

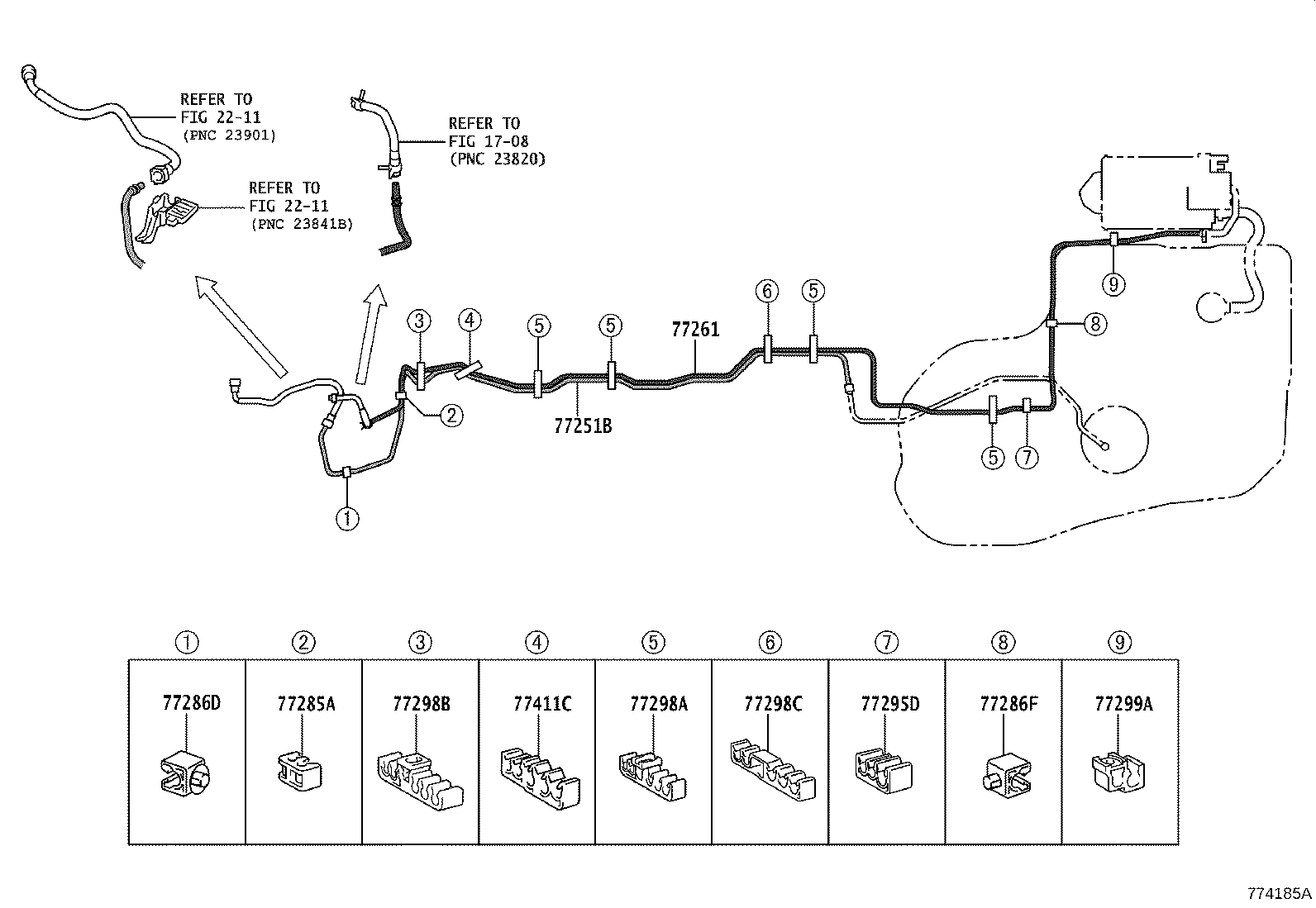

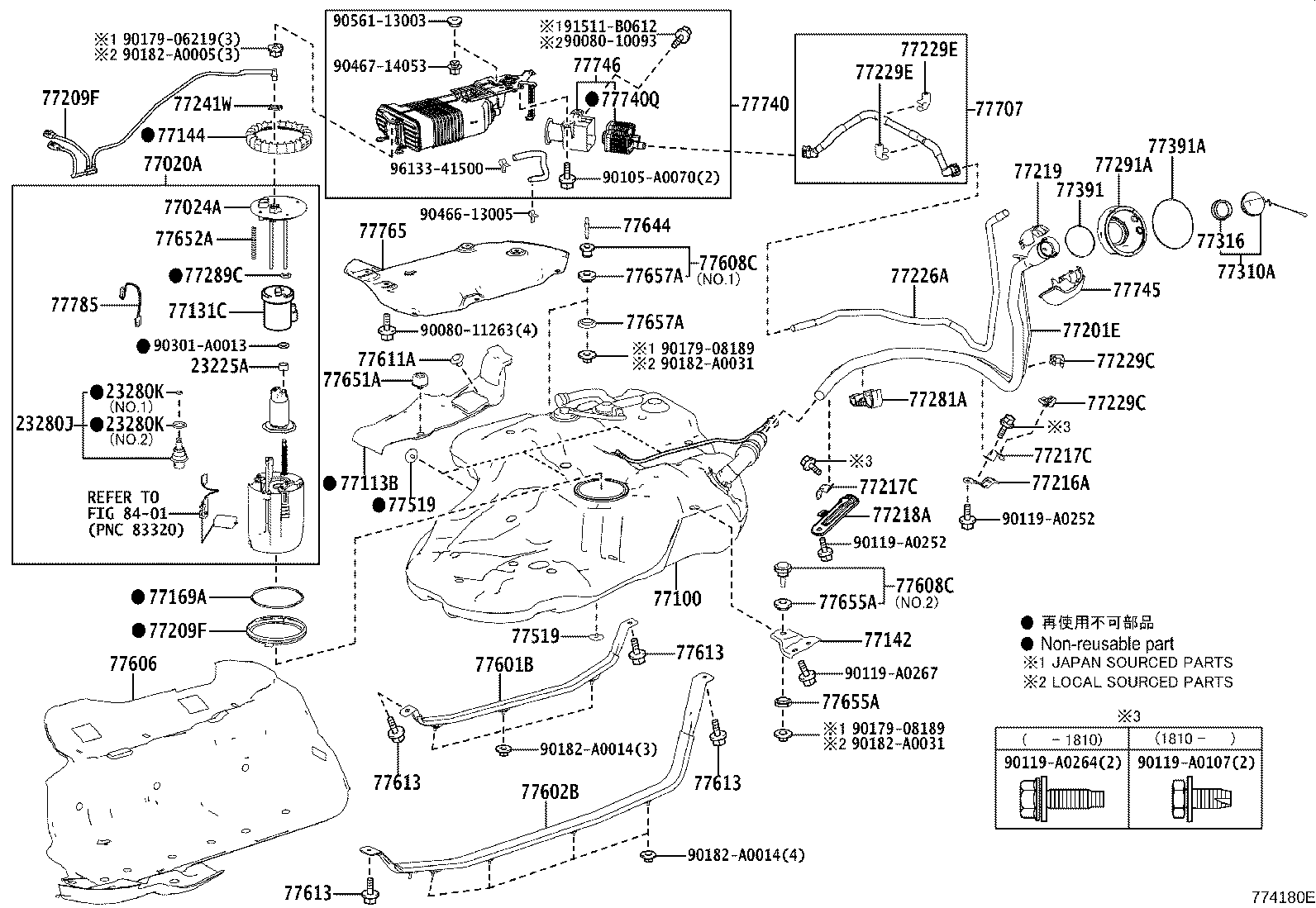

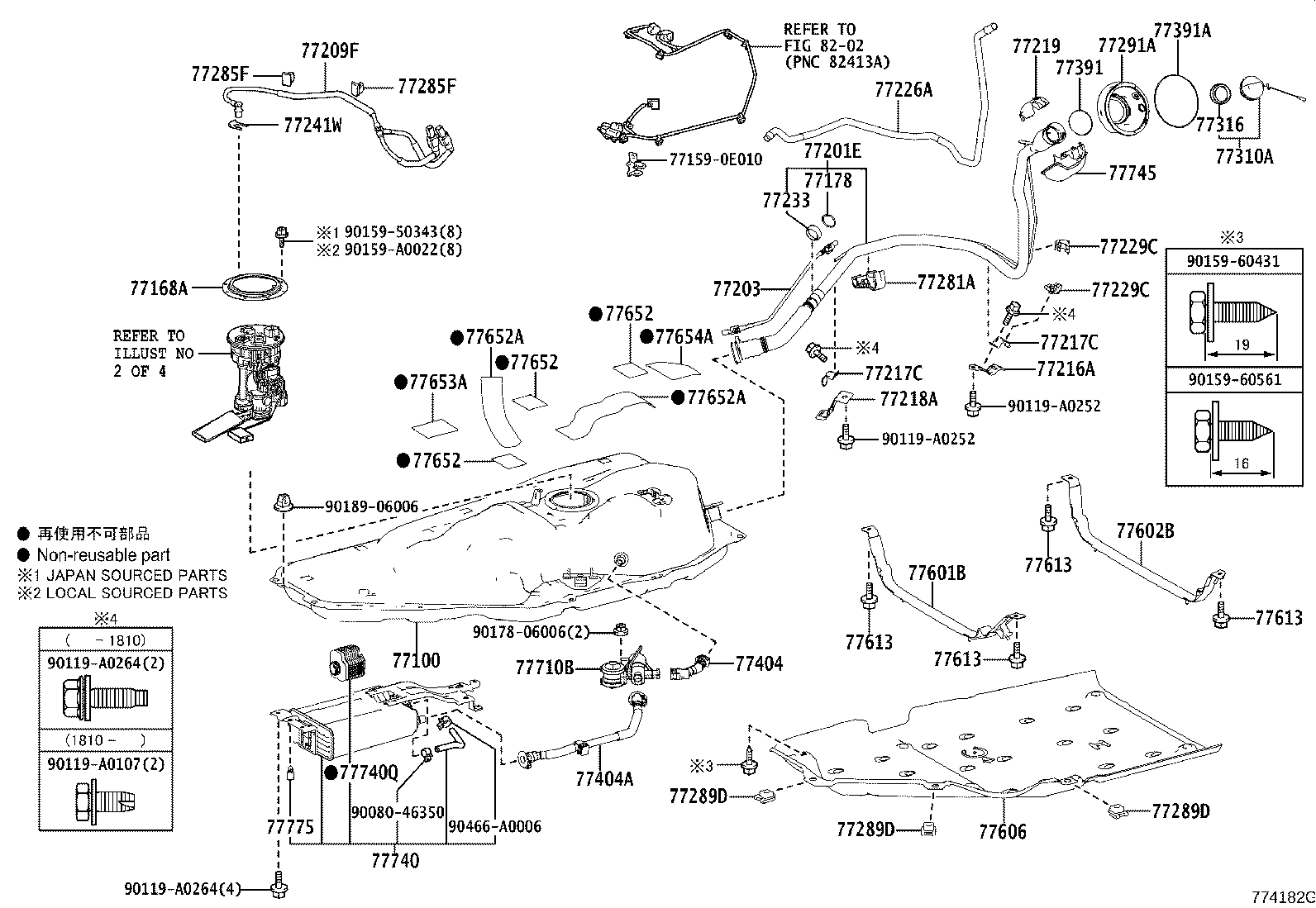

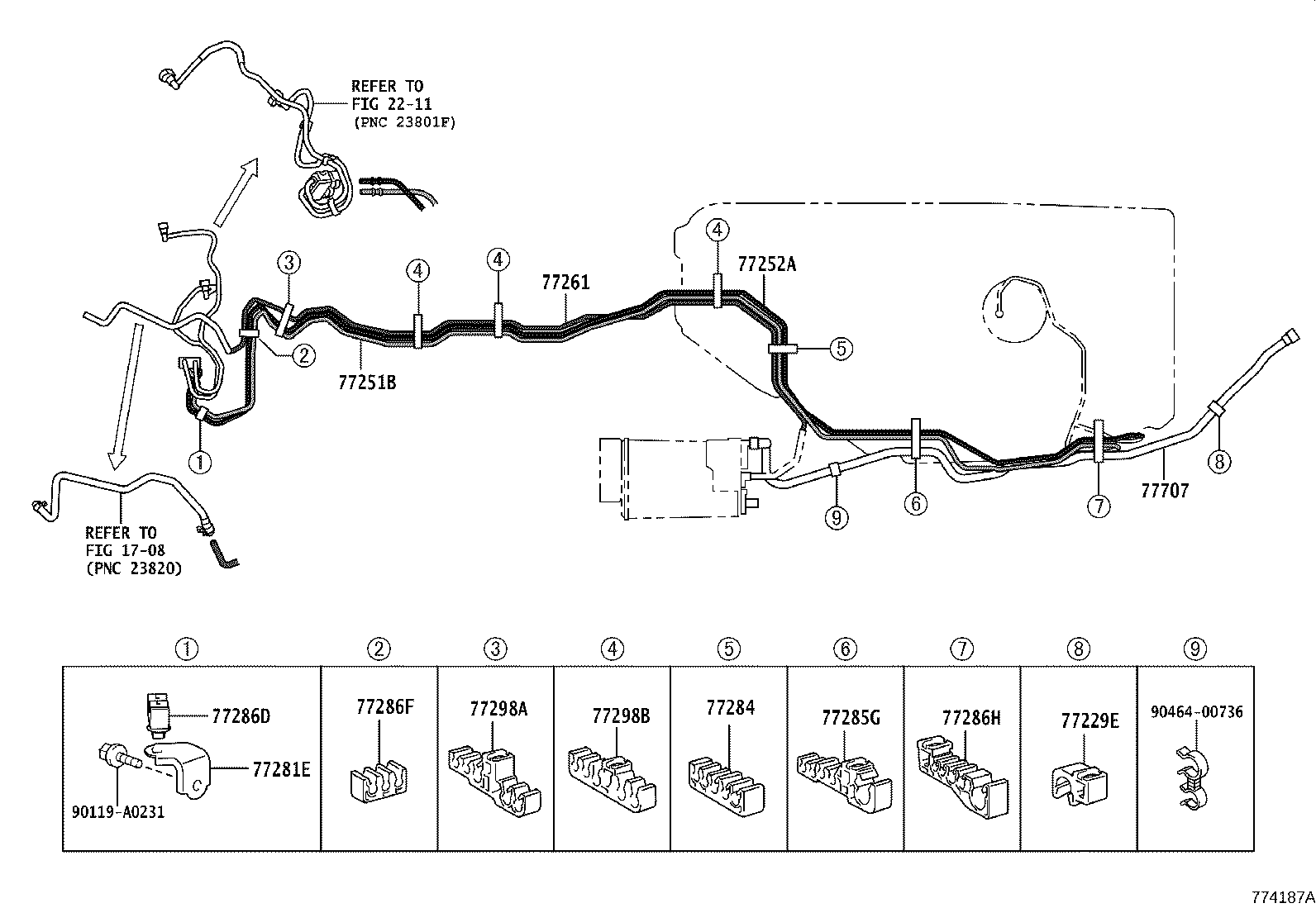

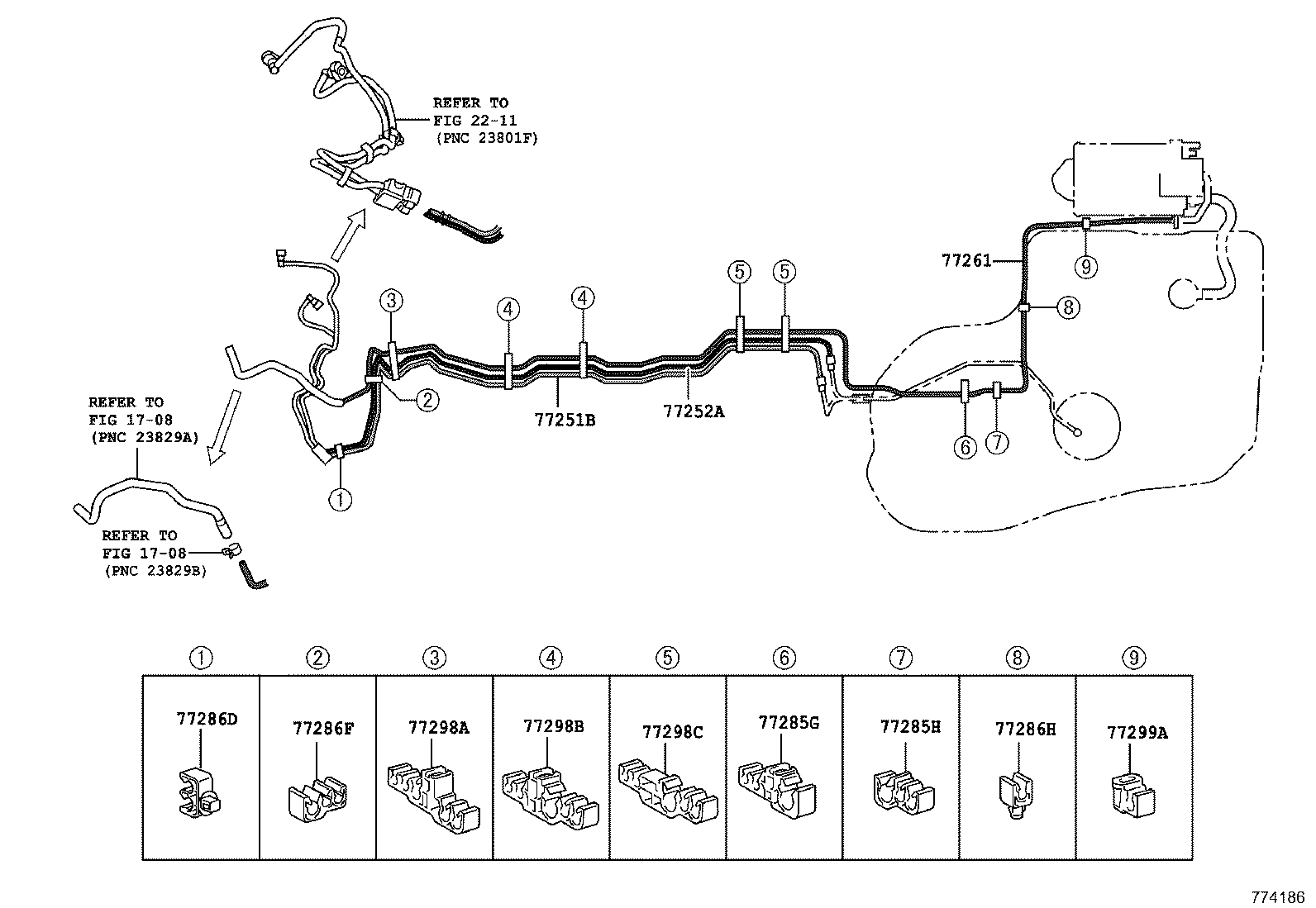

Illustrations

773550D 2013-12 → 2016-11

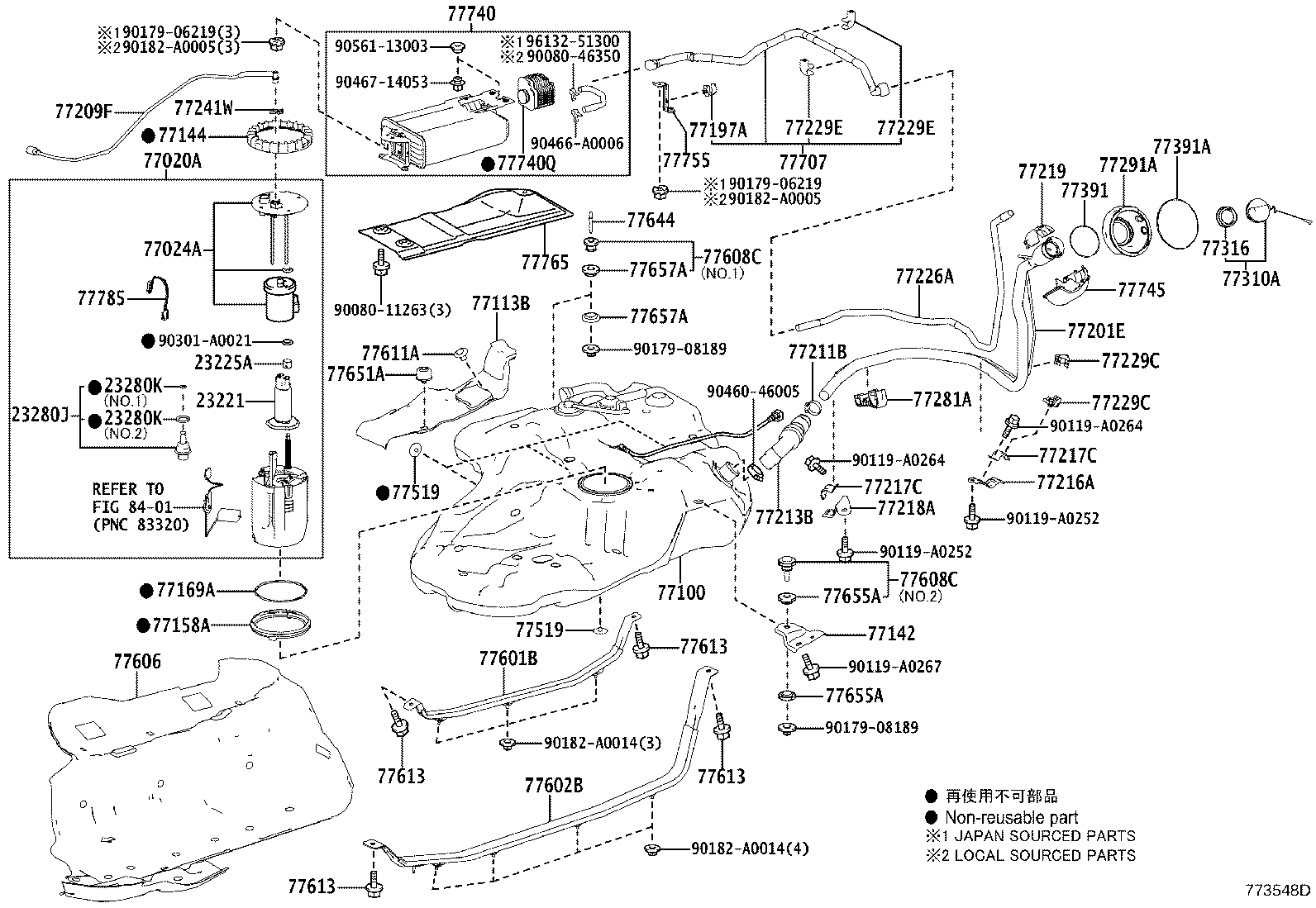

773548D 2013-12 → 2016-11

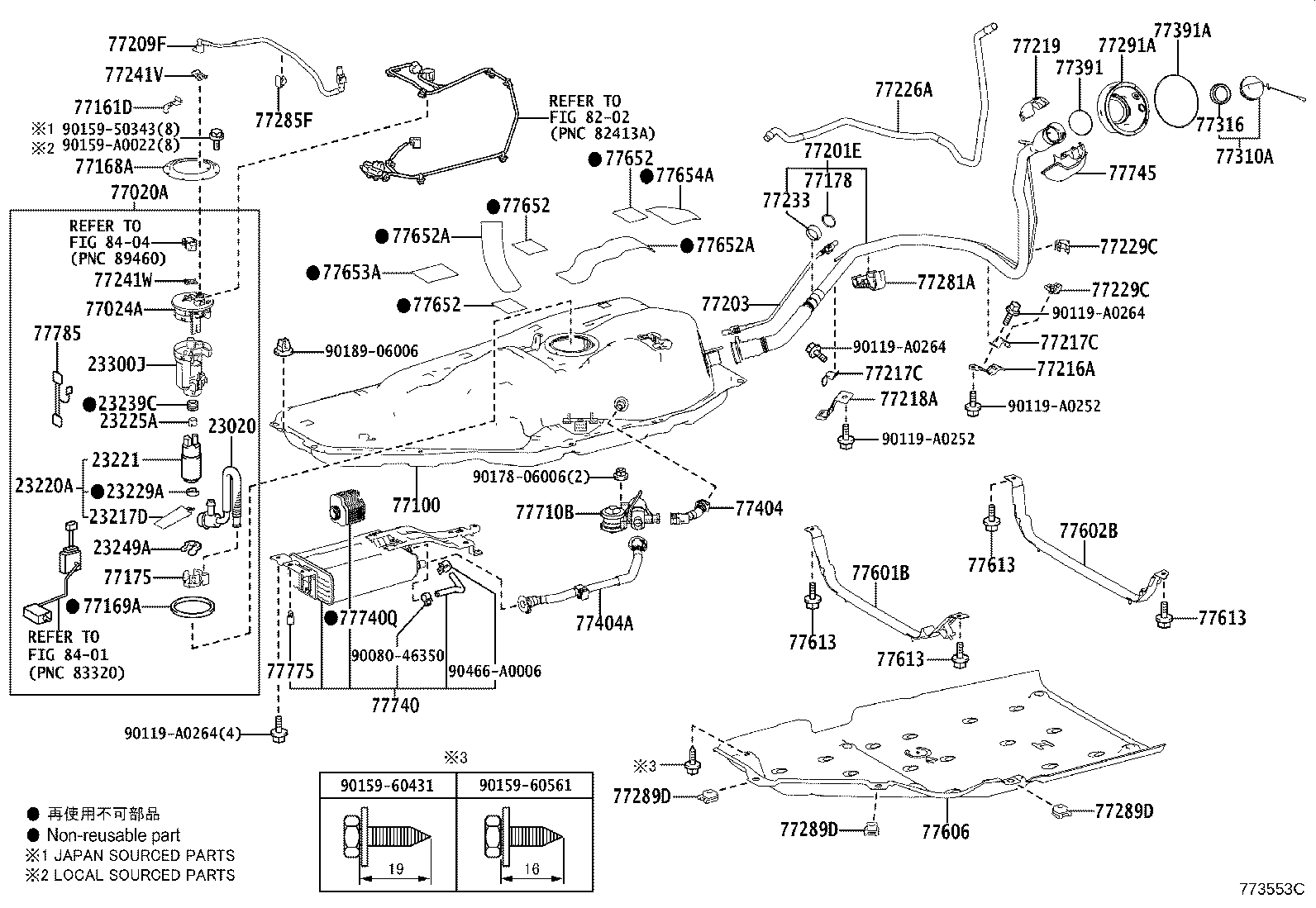

773553C 2014-01 → 2016-11

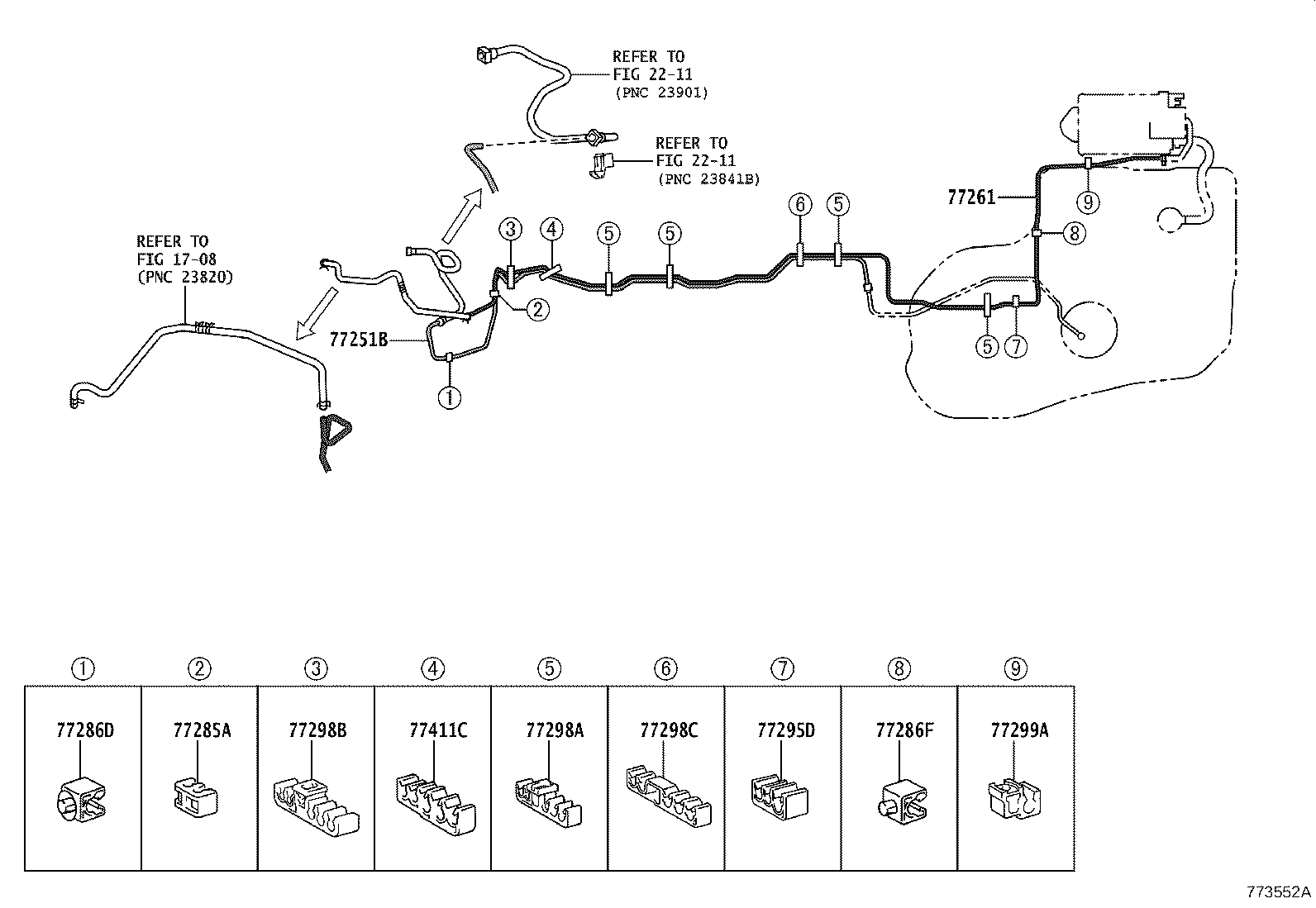

773552A 2013-12 → 2016-11

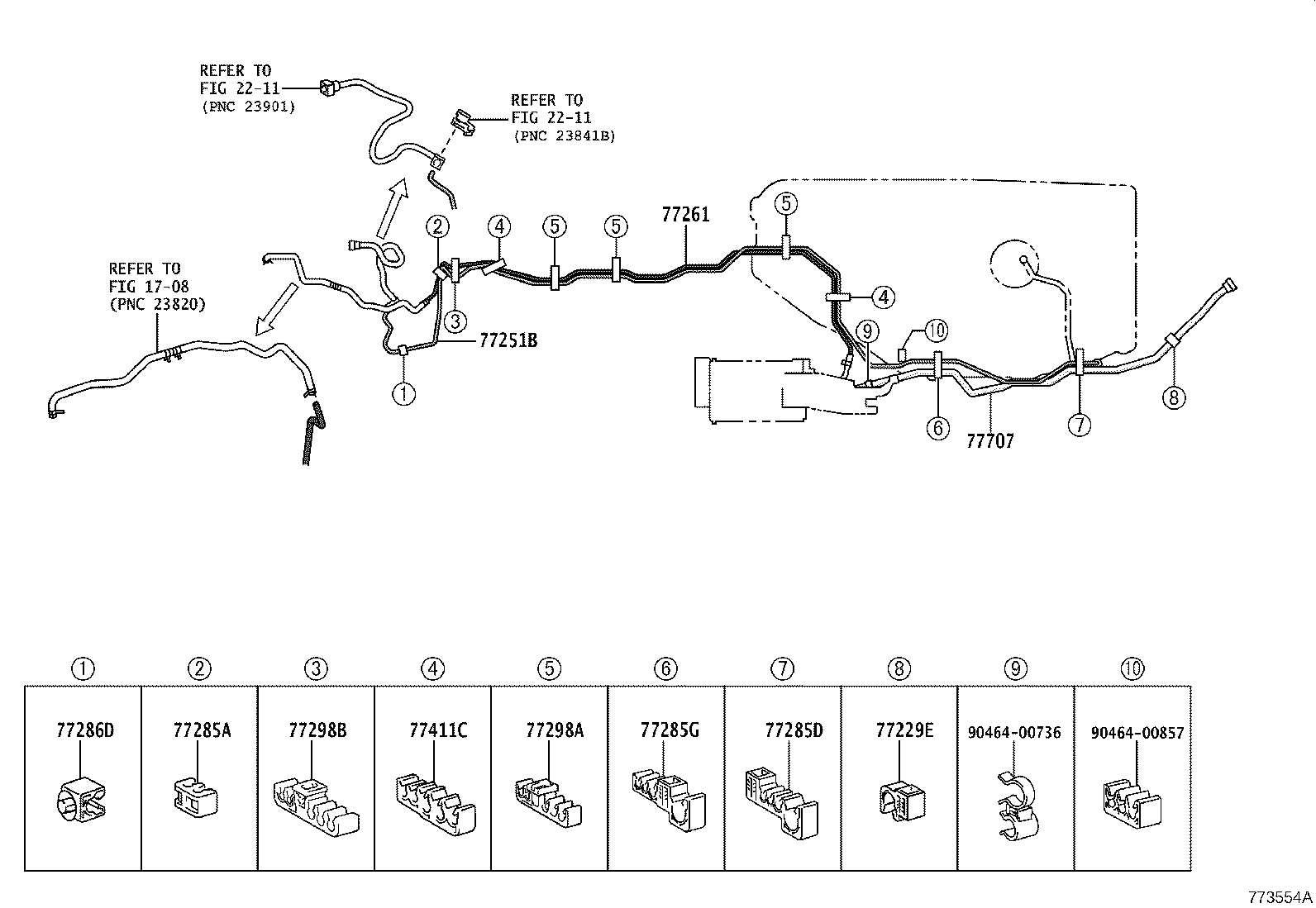

773554A 2014-01 → 2016-11

Part groups

PNC	Description
23020	Regulator Assy, Fuel Pressure W/Jet Pump
23070	Valve Assy, Fuel Main
23217D	Filter, Fuel Pump
23220A	Pump Assy, Fuel W/Filter
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23229A	Clip(FOR FUEL PUMP FILTER)
23239C	Seal, Fuel Pump Filter
23249A	Rubber, Cushion(FOR FUEL PUMP)
23280J	Regulator Assy, Fuel Pressure
23280K	Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J	Filter Assy, Fuel

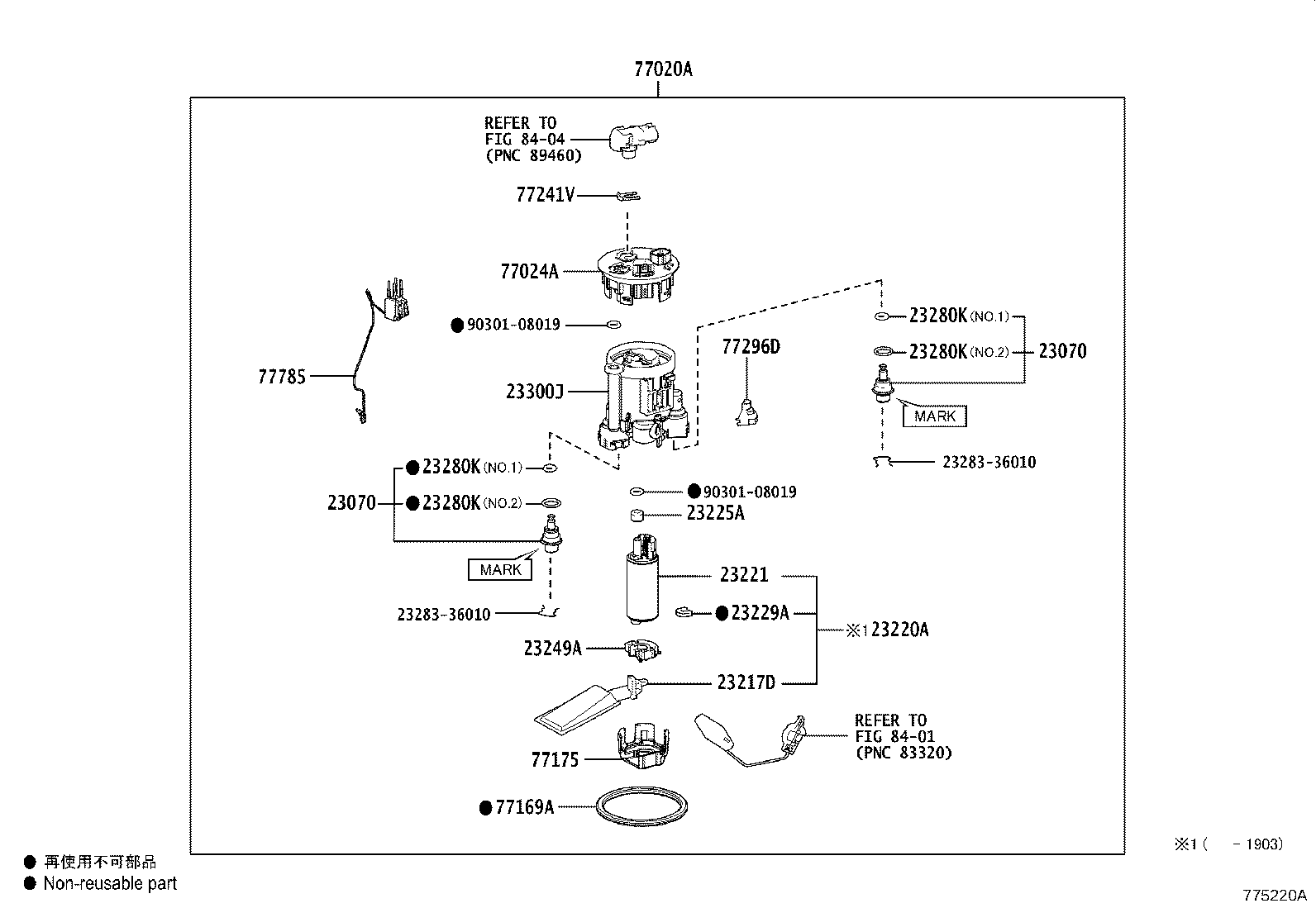

77020A	Tube Assy, Fuel Suction W/Pump & Gage
77024A	Plate Sub-assy, Fuel Suction
77030A	Lock Assy, Fuel Lid W/Motor
77037	Lock Sub-assy, Fuel Filler Opening Lid
77100	Tank Assy, Fuel
77113B	Plate, Fuel Tank Side
77131C	Sub-tank, Fuel, NO.1
77142	Bracket, Fuel Tank Mounting, Rear
77144	Retainer, Fuel Pump Gauge
77158A	Support, Tank Suction Tube
77161D	Plate, Fuel Tank Protector
77168A	Plate, Fuel Tank Vent Tube Set
77169A	Gasket, Fuel Suction Tube Set
77175	Support, Fuel Suction, NO.2
77178	Gasket, Fuel Tank Filler Pipe, Lower
77197A	Clamp, Evaporation Vent Tube, NO.2
77201E	Pipe Sub-assy, Fuel Tank Filler
77203	Tube Sub-assy, Fuel Tank Breather Elbow
77209F	Tube Sub-assy, Fuel Tank Main
77211B	Clamp (FOR FUEL FILLER PIPE)
77213B	Hose, Fuel Tank TO Filler Pipe
77216A	Support, Fuel Tank Filler Pipe, NO.1
77217C	Support, Fuel Tank Filler Pipe, NO.2
77218A	Support, Fuel Tank Filler Pipe, NO.3
77219	Cover, Fuel Tank Filler Pipe
77226A	Tube, Fuel Tank Breather, NO.6
77229C	Clamp, Breather Tube
77229E	Clamp, Breather Tube
77233	Joint, Fuel Hose
77241V	Clip, Tube Joint
77241W	Clip, Tube Joint
77251B	Tube, Fuel Main
77252A	Tube, Fuel Main, NO.2
77261	Tube Sub-assy, Fuel Emission
77281A	Clamp, Fuel Filler Pipe
77281E	Bracket, Fuel Main Tube, NO.1
77284	Clamp, Fuel Tube
77285A	Support, Fuel Return And Main Tube
77285D	Clamp, Fuel Tube, NO.1
77285F	Clamp, Fuel Tube, NO.1
77285G	Clamp, Fuel Tube, NO.1
77285H	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286H	Clamp, Fuel Tube, NO.3
77289C	Clamp, Fuel Tube, NO.4
77289D	Clamp, Fuel Tube, NO.5
77291A	Shield, Fuel Tank Filler Pipe
77295D	Grommet, Fuel Tube
77296D	Plate, Fuel Tube Support
77298A	Clamp, Fuel Tube, NO.4
77298B	Clamp, Fuel Tube, NO.4
77298C	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77391A	Ring, Fuel Inlet Box
77404	Hose Sub-assy, Fuel Tank Vent
77404A	Hose Sub-assy, Fuel Tank Vent
77411C	Support, Fuel Tube Grommet, NO.1
77519	Spacer, Fuel Tank Bracket
77601B	Band Sub-assy, Fuel Tank, NO.1 RH
77602B	Band Sub-assy, Fuel Tank, NO.1 LH
77606	Protector Sub-assy, Fuel Tank, NO.1
77608C	Cushion Set, Fuel Tank
77611A	Pin (FOR FUEL TANK BAND)
77613	Bolt, Fuel Tank Band Set
77644	Bolt, Fuel Tank
77651A	Cushion, Fuel Tank, NO.1
77652	Cushion, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77653A	Cushion, Fuel Tank, NO.3
77654A	Cushion, Fuel Tank, NO.4
77655A	Cushion, Fuel Tank, NO.5
77657A	Cushion, Fuel Tank, NO.5
77707	Tube Sub-assy, Charcoal Canister Outlet
77710B	Valve Assy, Fuel Tank Solenoid Main
77740	Canister Assy, Charcoal
77740Q	Leak Detection Pump Sub-assy, Charcoal Canister
77745	Filter, Charcoal Canister, NO.1
77746	Filter, Charcoal Canister, NO.2
77755	Bracket, Charcoal Canister Outlet Hose
77765	Protector, Charcoal Canister
77775	Guide, Charcoal Canister Outlet
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
