Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

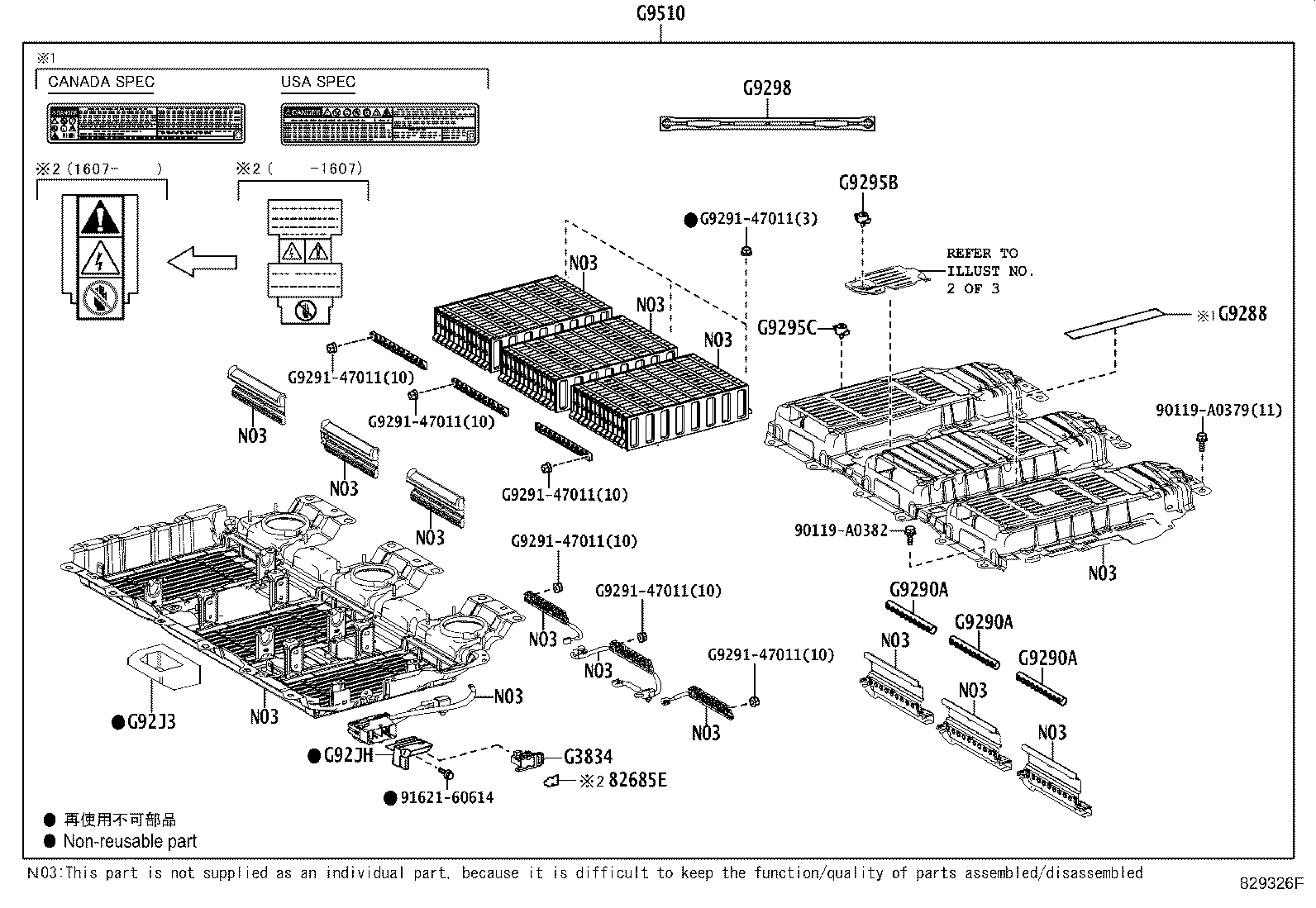

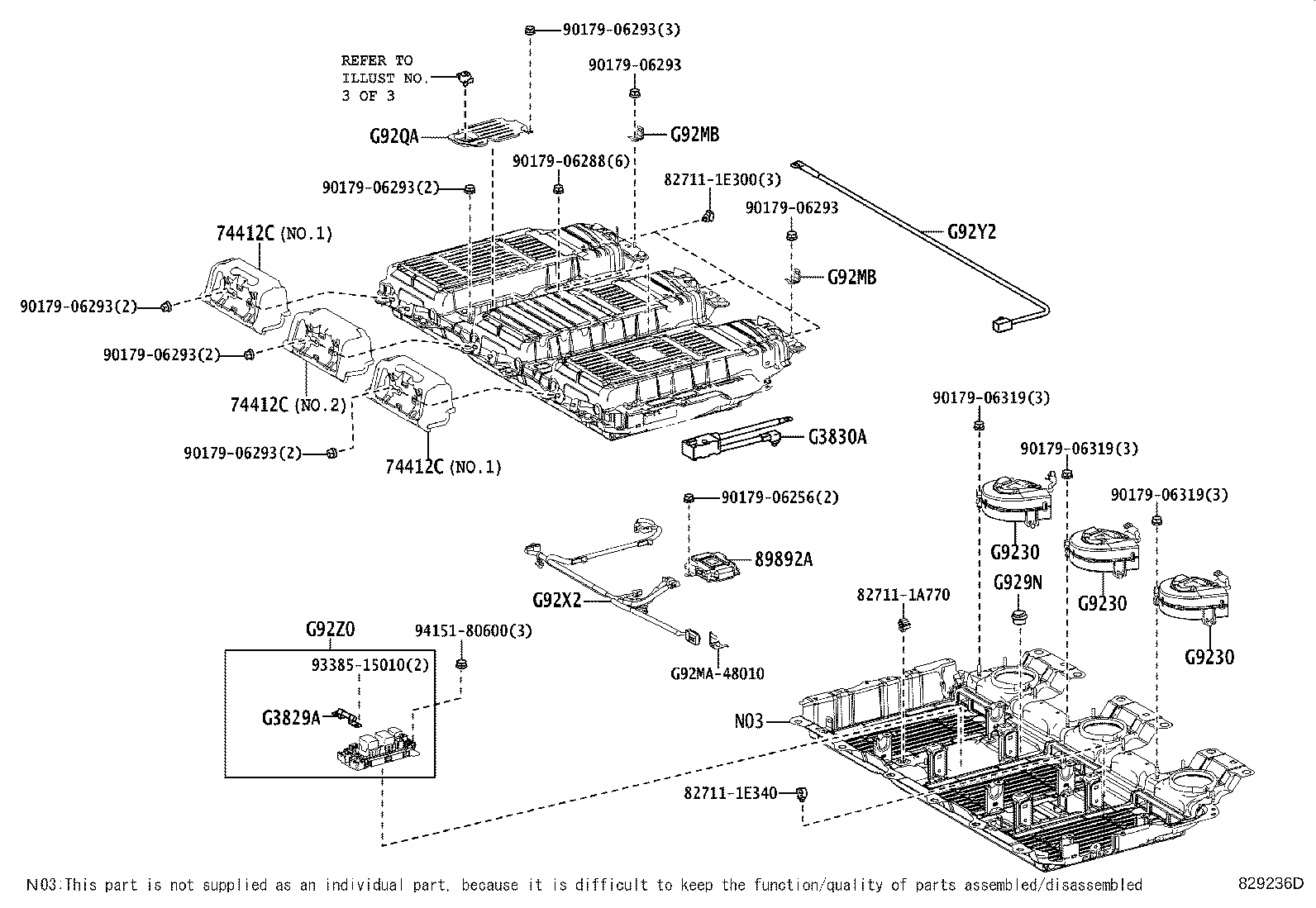

Battery & Battery Cable
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 28897 | Plate, Battery Caution |
| 28899 | Insulator, Battery |
| 74412C | Duct, Battery Carrier |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |
| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G9230 | Blower Assy, Battery Cooling |
| G9288 | Label, Battery Charging Notice |
| G9290A | Hose Assy, Hybrid Battery |
| G9295B | Striker, Battery Cover Lock |
| G9295C | Striker, Battery Cover Lock, NO.2 |
| G9298 | Clamp, HV Battery |
| G929N | Plug, Battery Drain |
| G92J3 | Sheet, HV Battery Carrier, NO.3 |
| G92JH | Sheet, Hybrid Battery Cover |
| G92MB | Bracket, HV Battery Upper Carrier, NO.5 |
| G92QA | Panel, HV Battery Shield, NO.8 |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Y2 | Cable, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
