Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

154 part groups · 22 illustrations

Illustrations

84E735 2013-12 → 2016-11

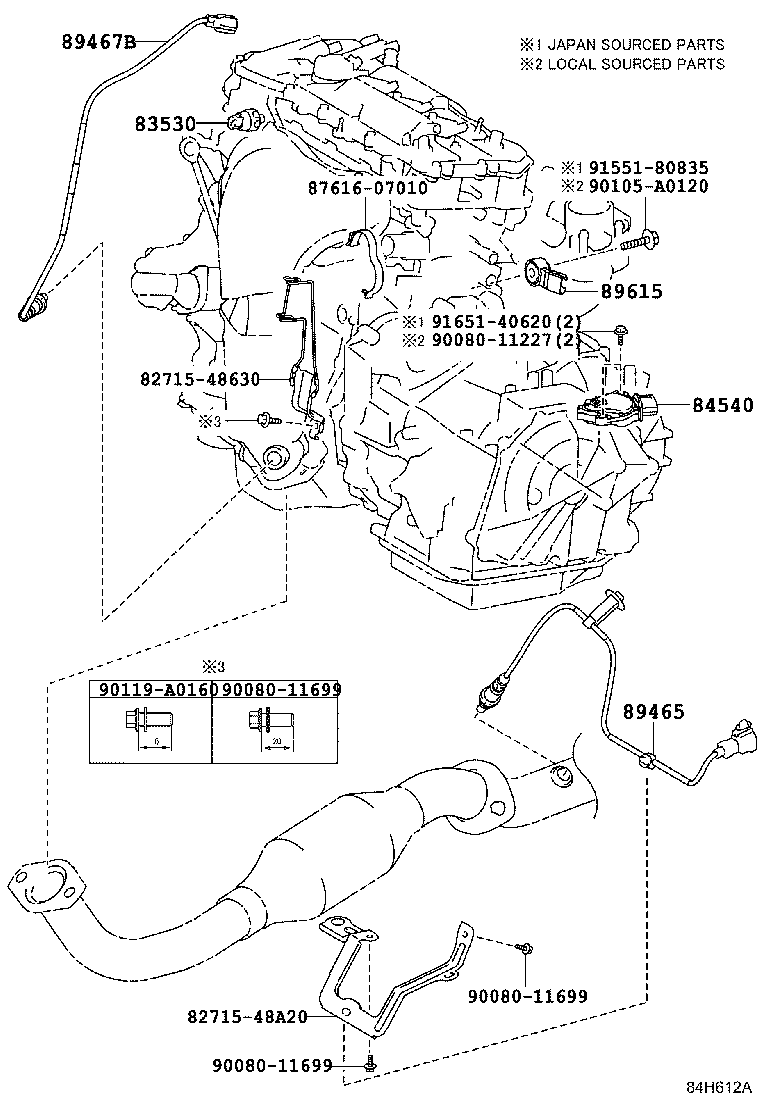

84H612A 2016-11 → —

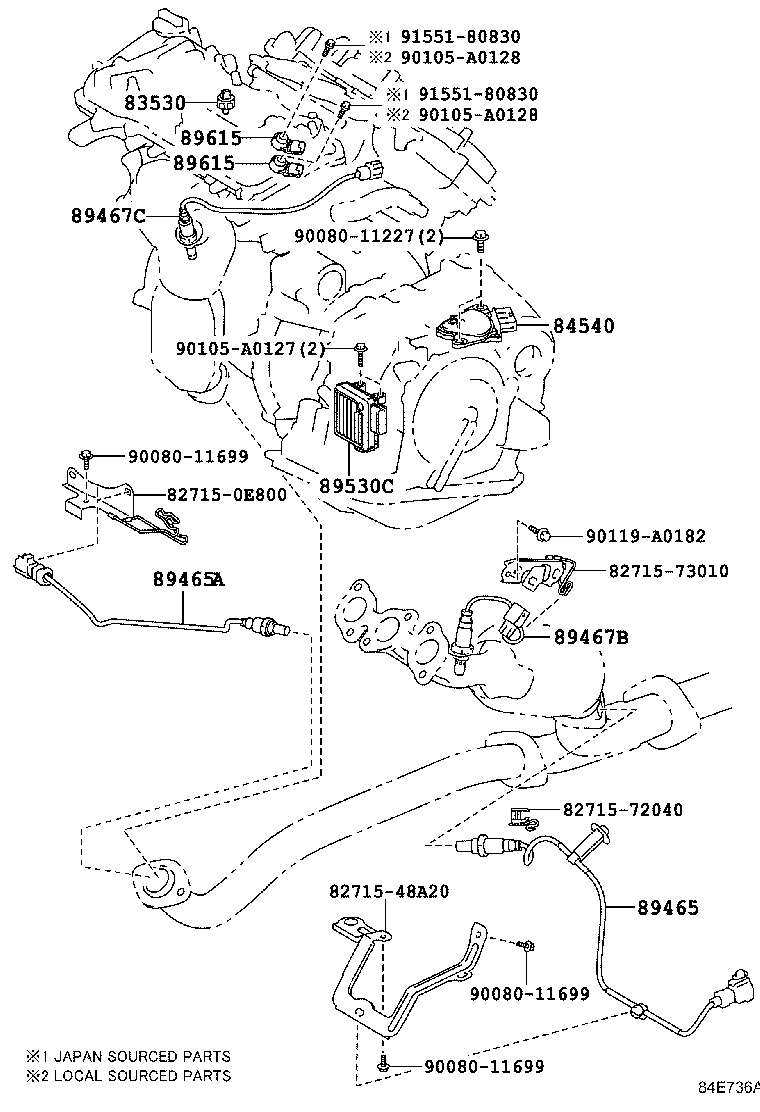

84E736A 2013-12 → 2016-11

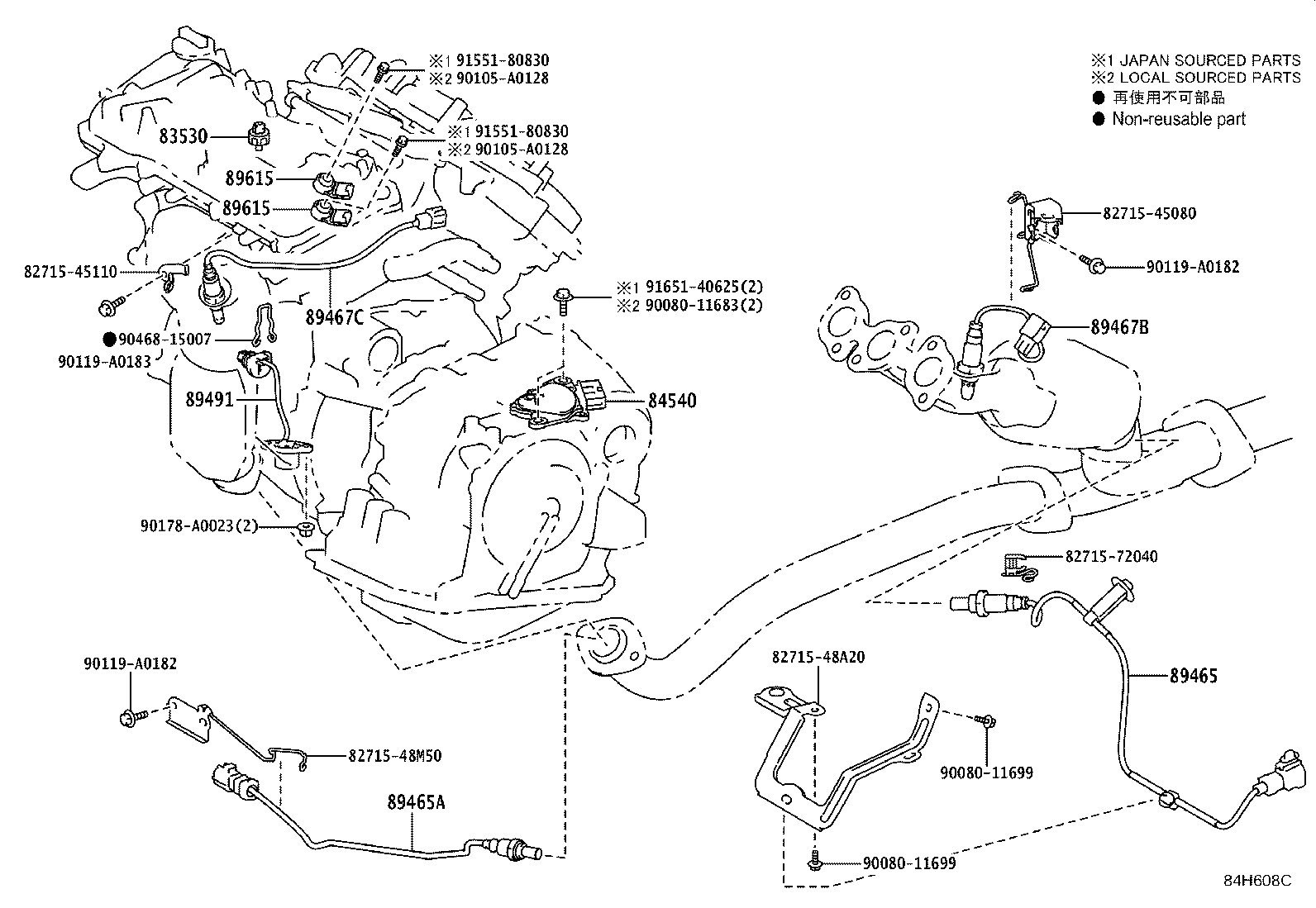

84H608C 2016-11 → —

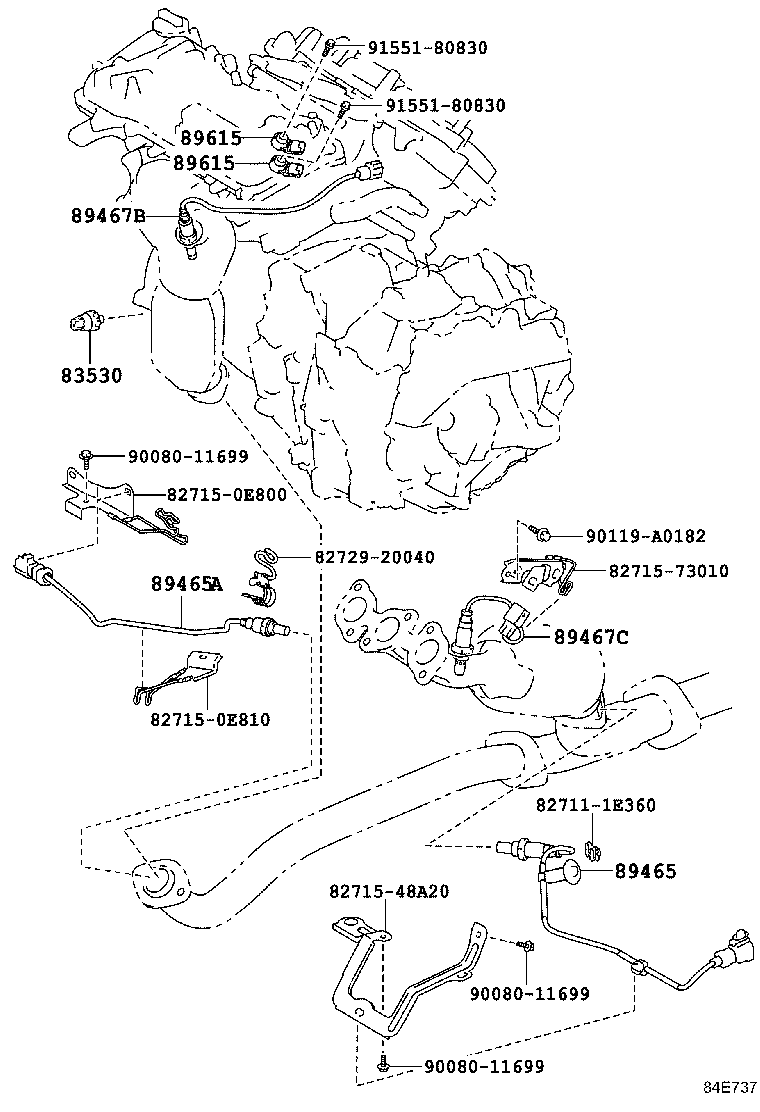

84E737 2014-01 → 2016-11

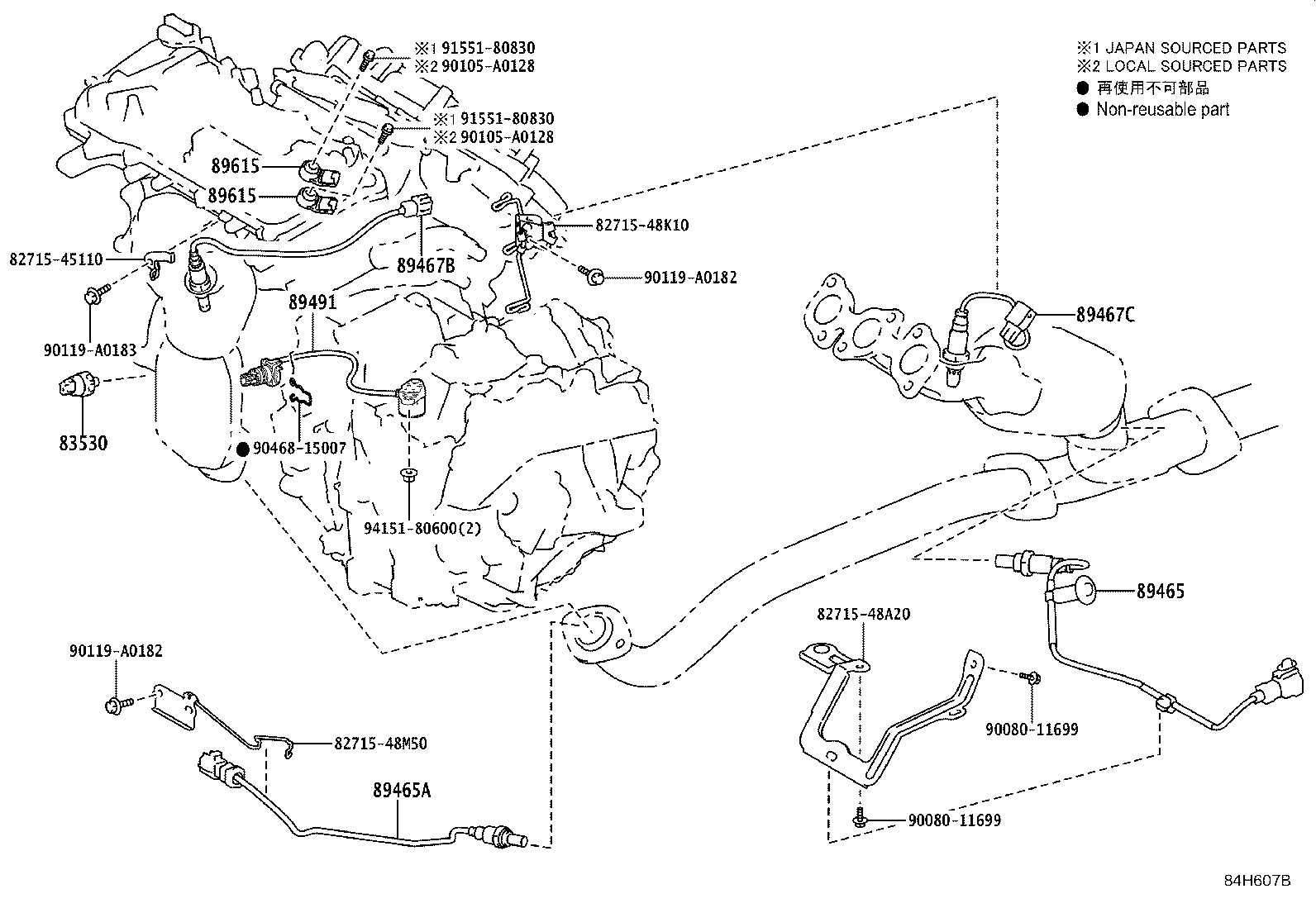

84H607B 2016-11 → —

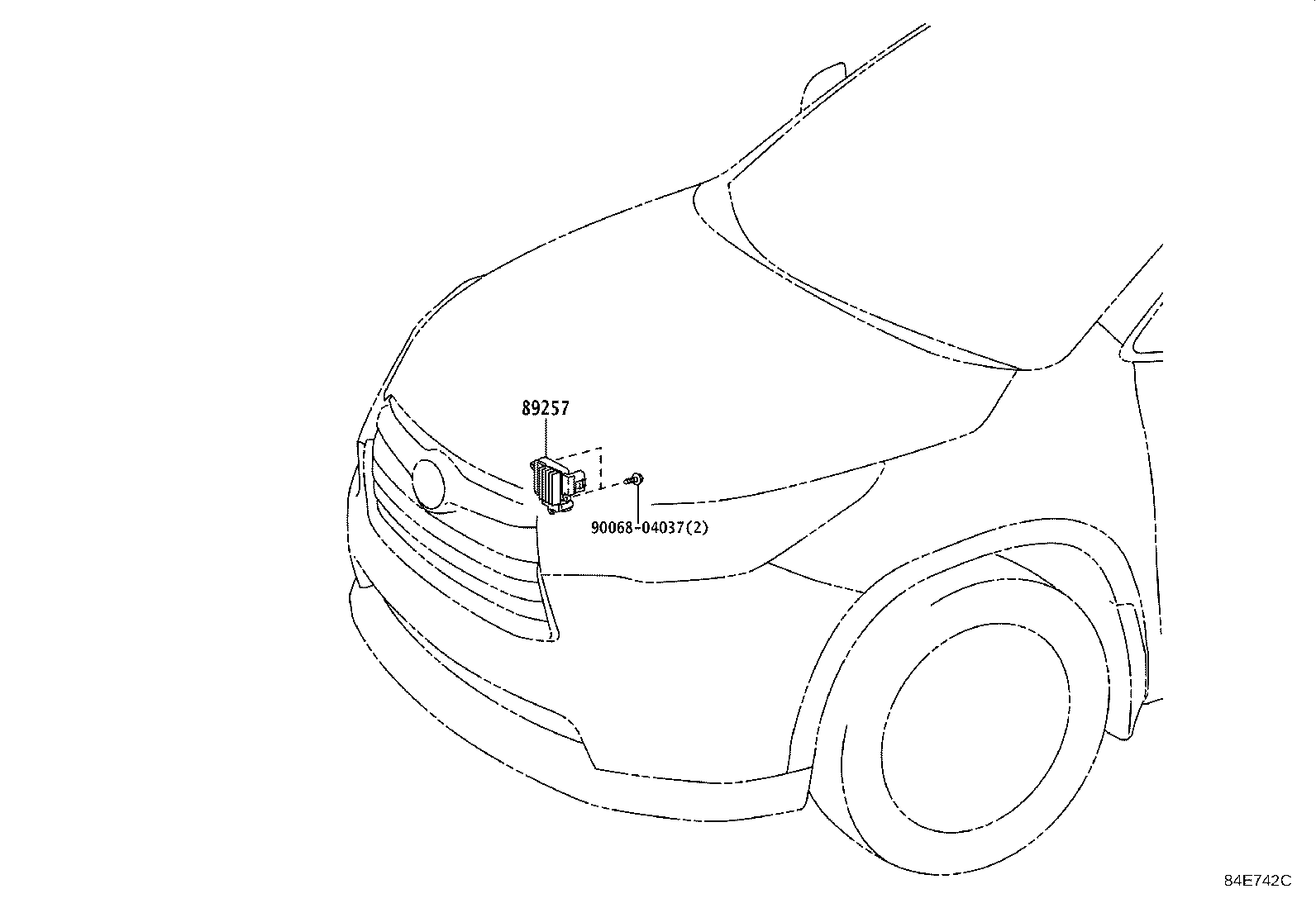

84E742C 2013-12 → 2016-11

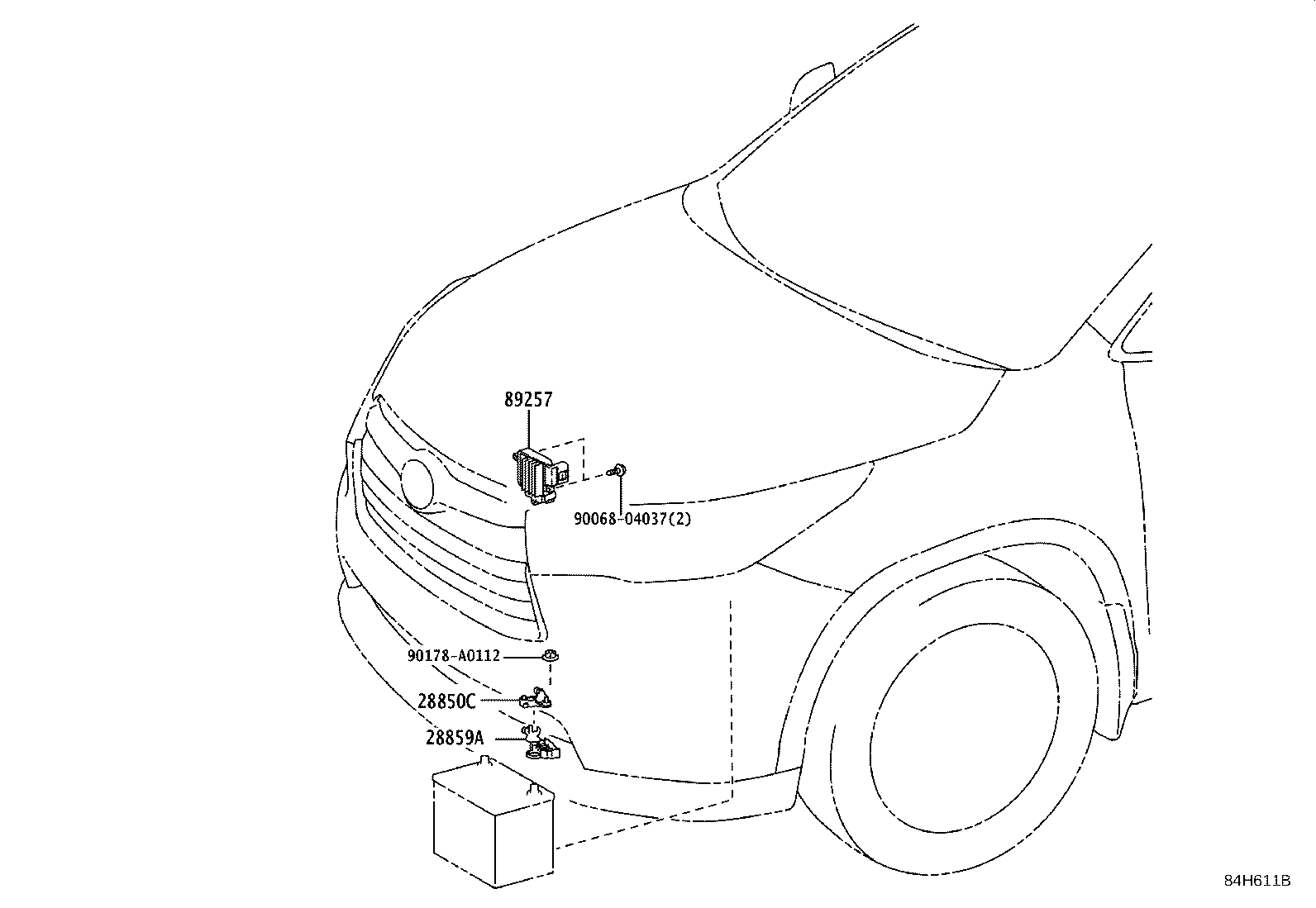

84H611B 2016-11 → —

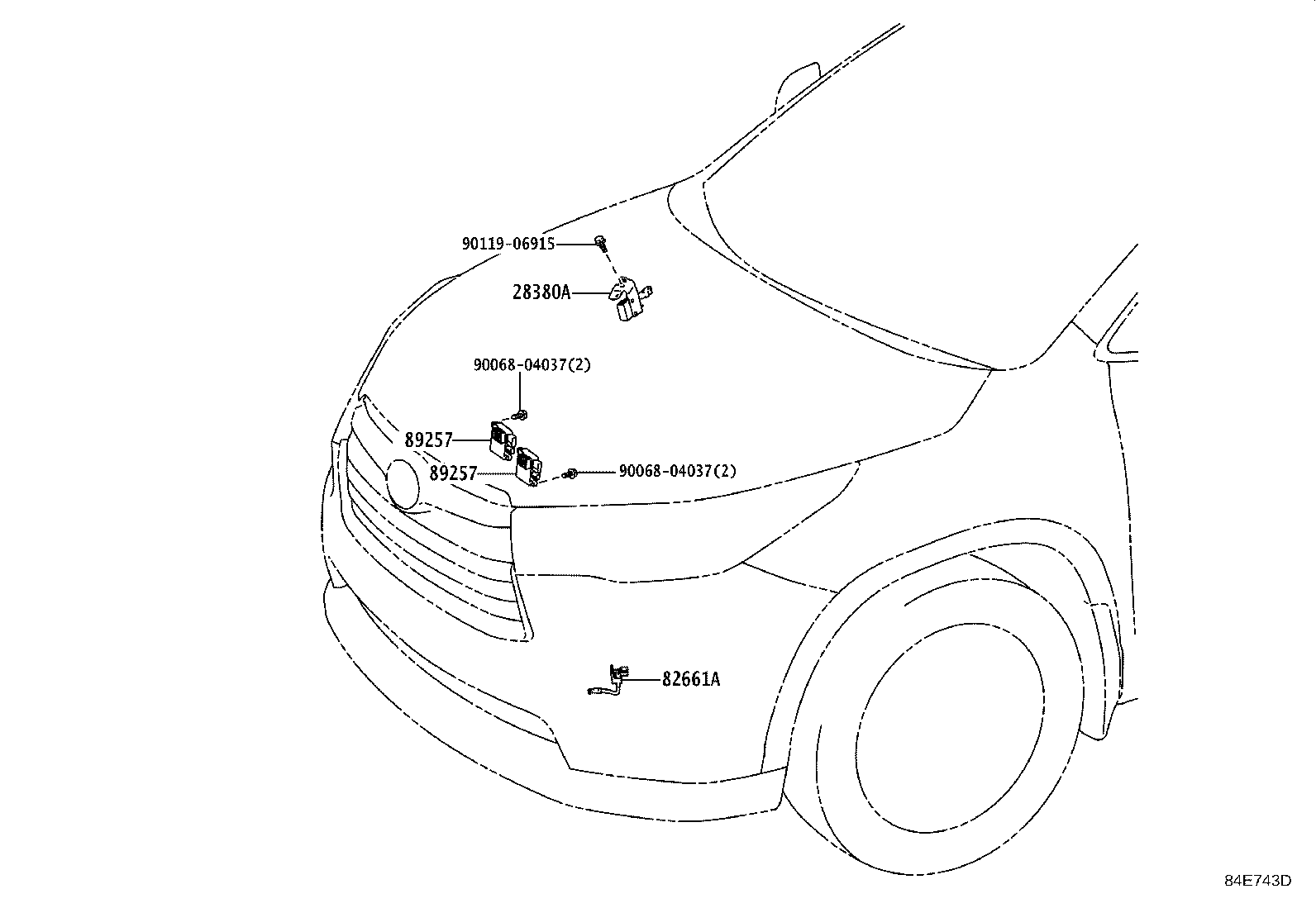

84E743D 2014-01 → 2016-11

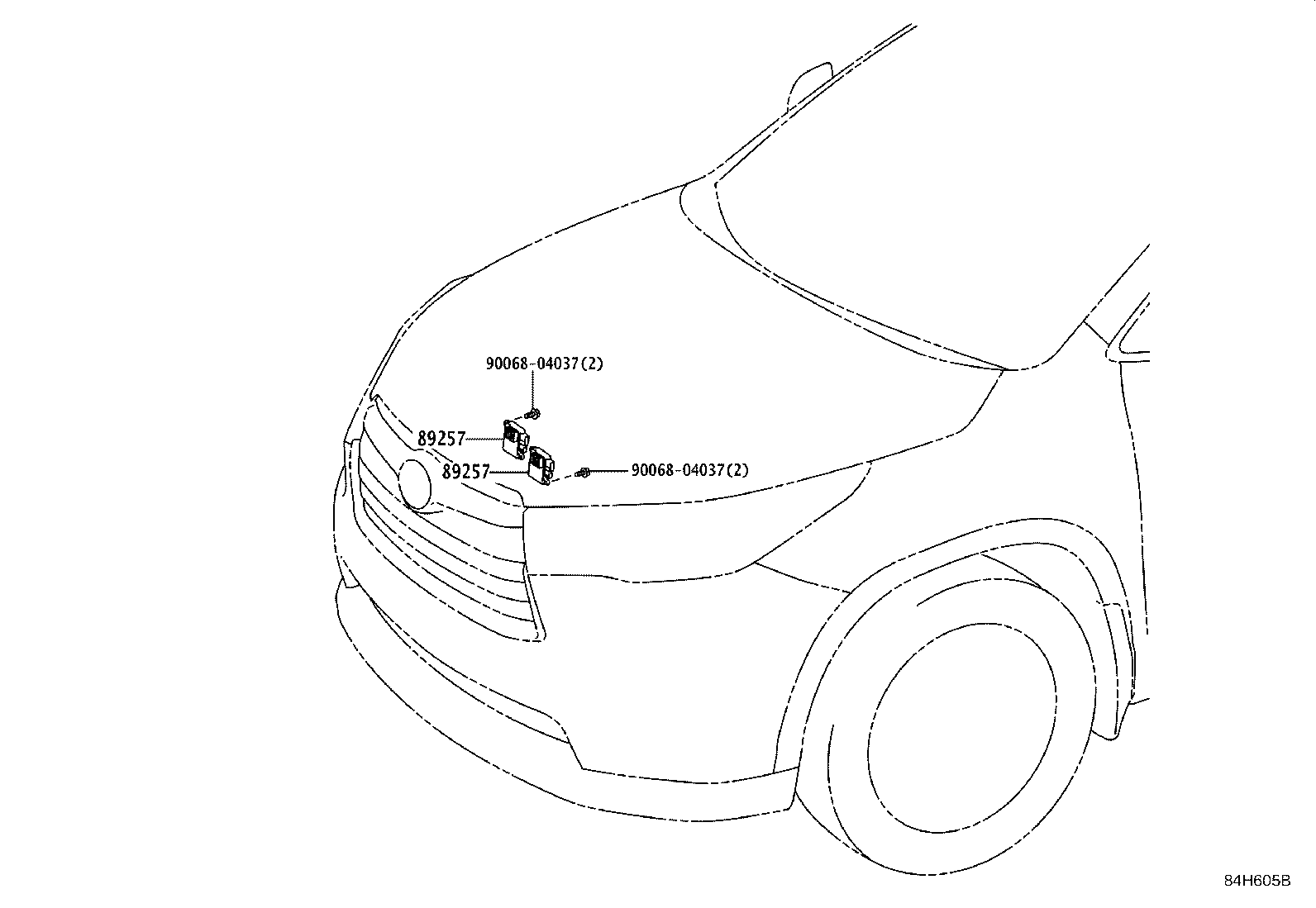

84H605B 2016-11 → —

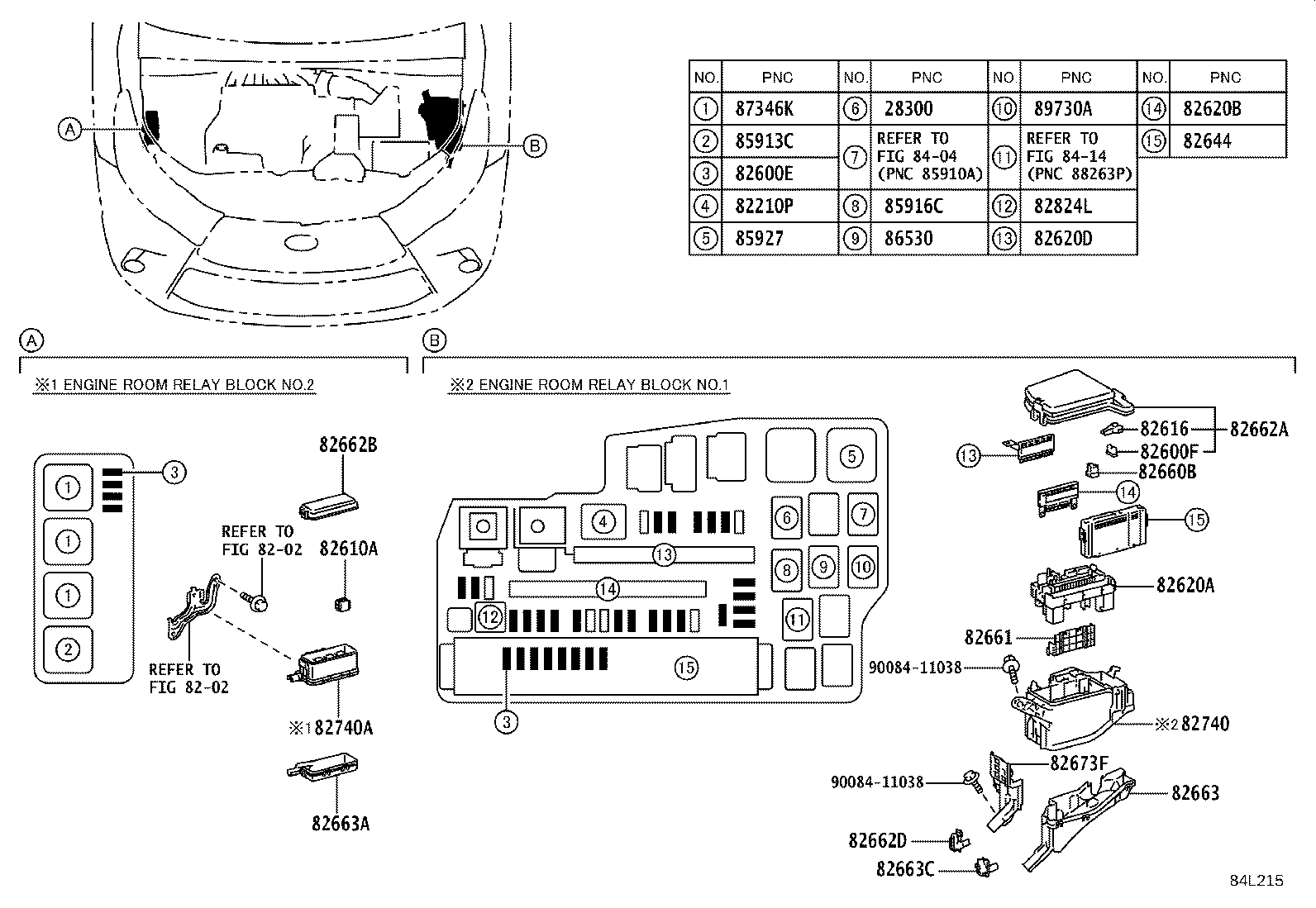

84L215 2013-12 → 2016-11

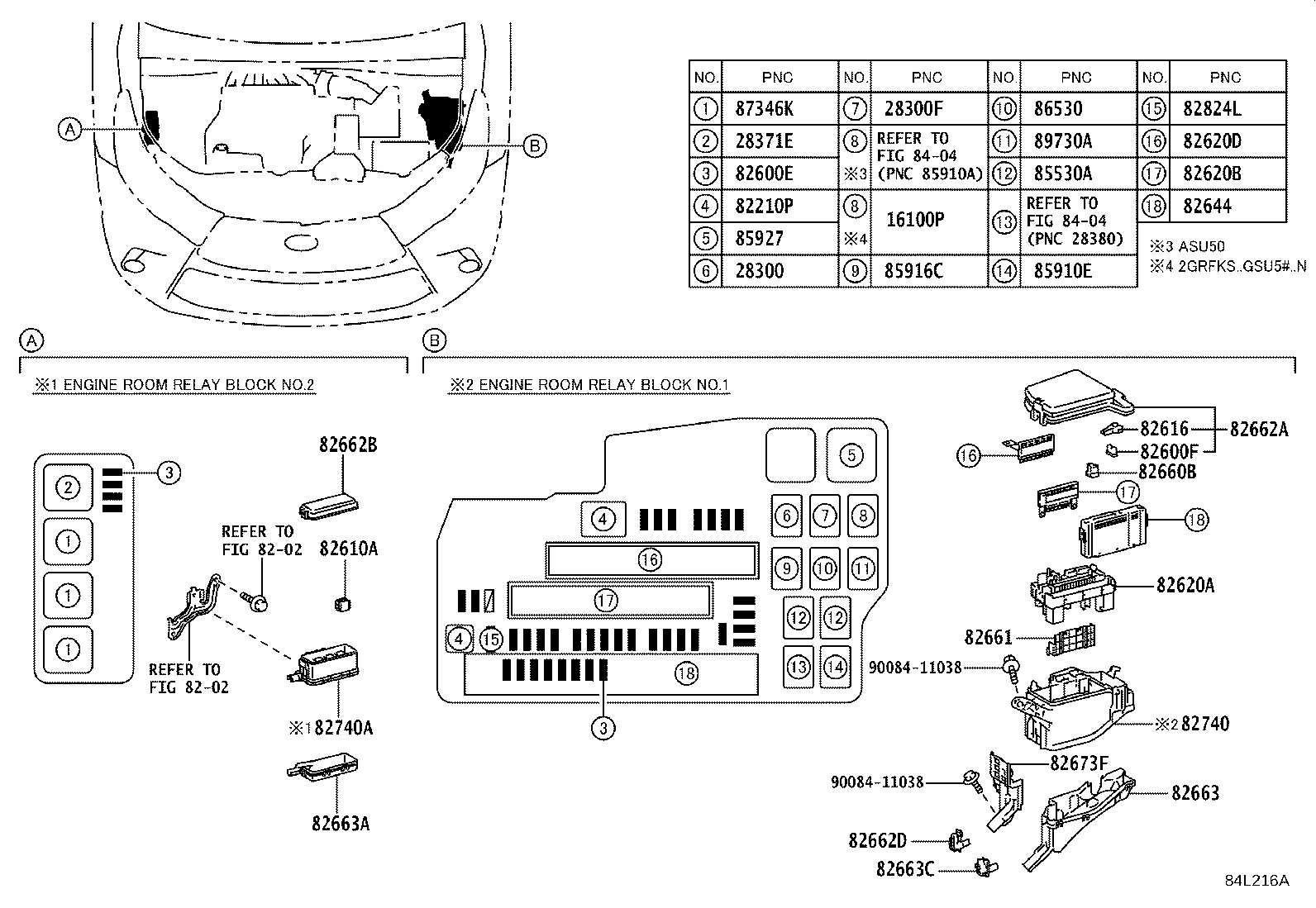

84L216A 2016-11 → —

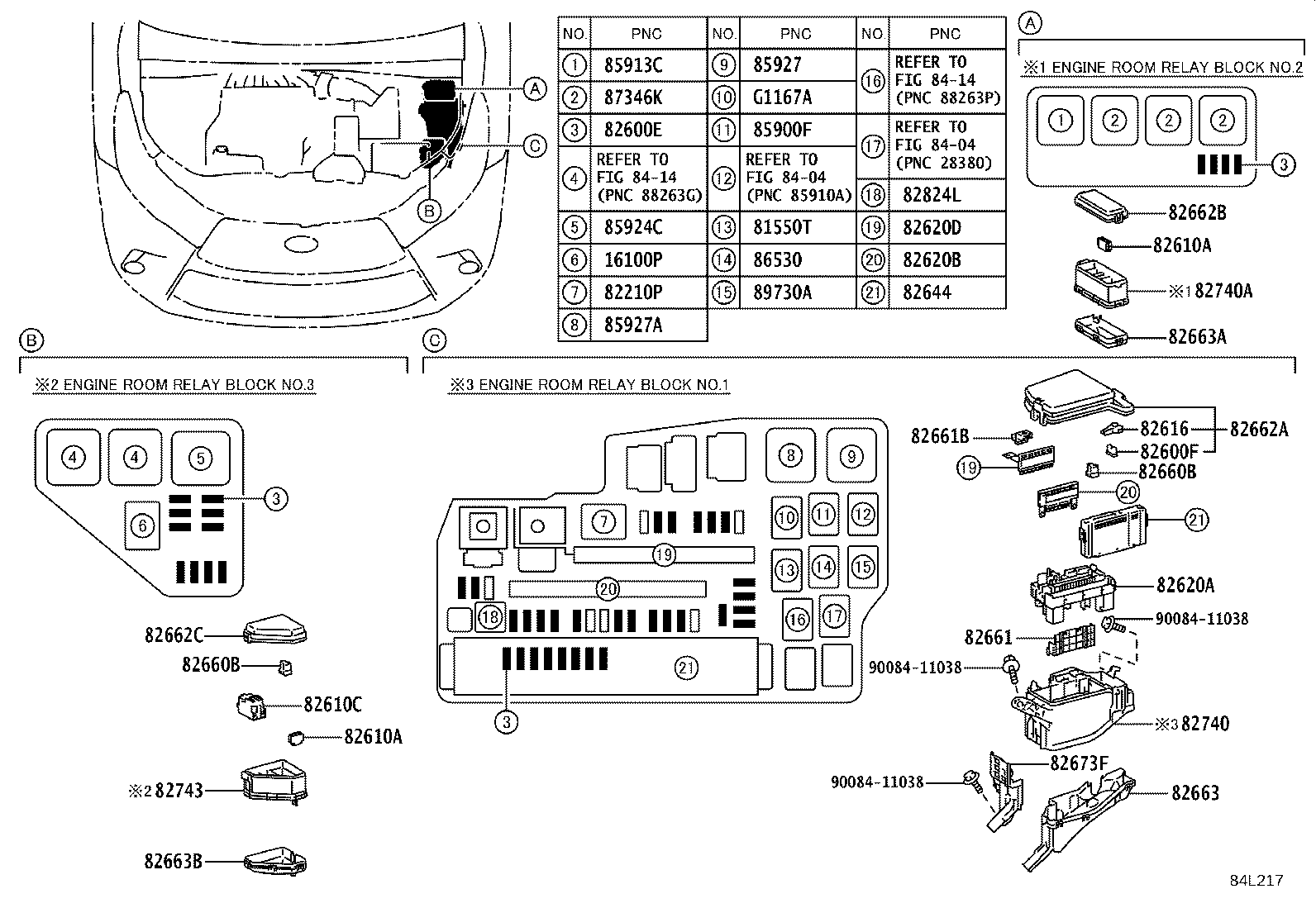

84L217 2014-10 → 2016-11

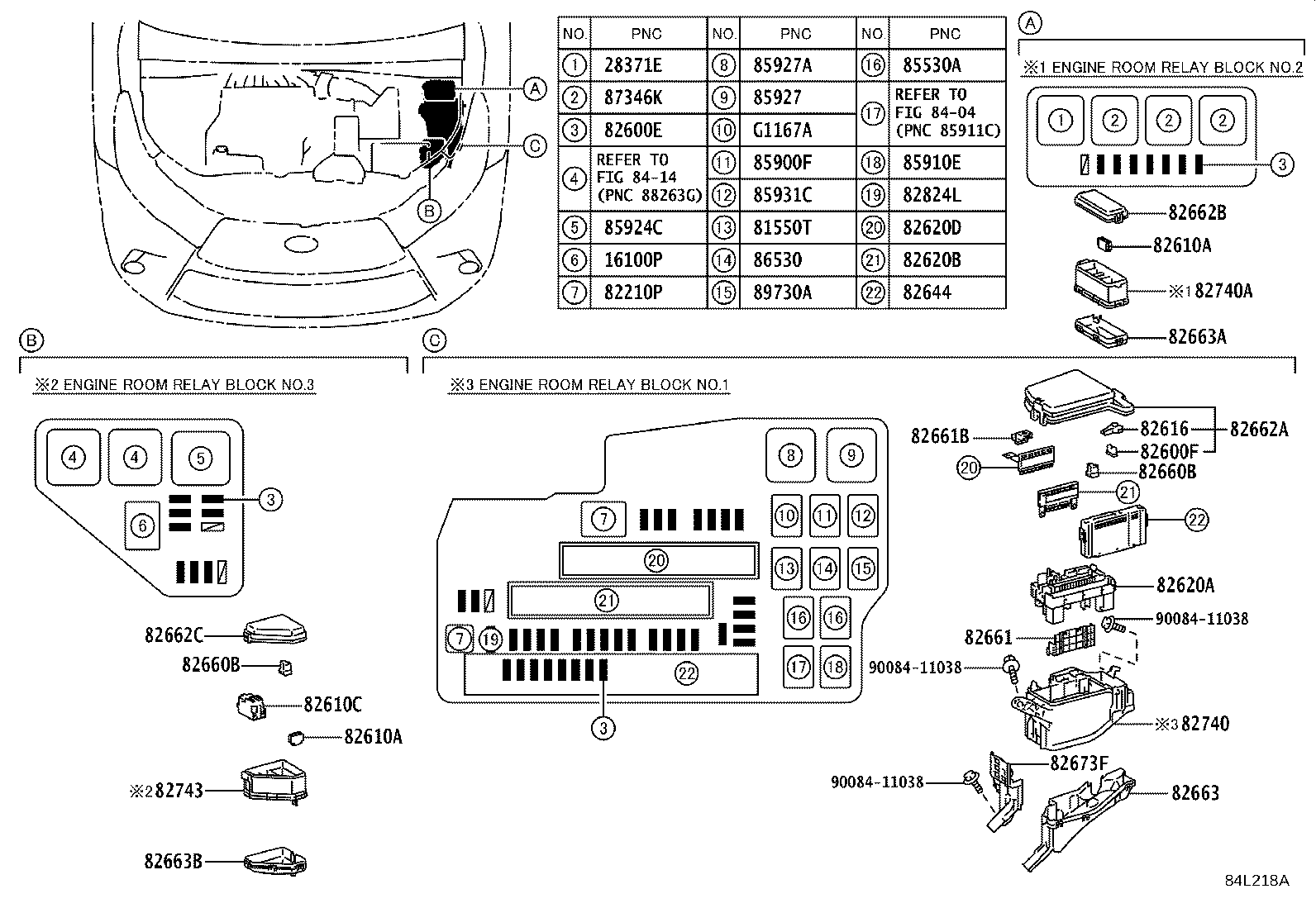

84L218A 2016-11 → —

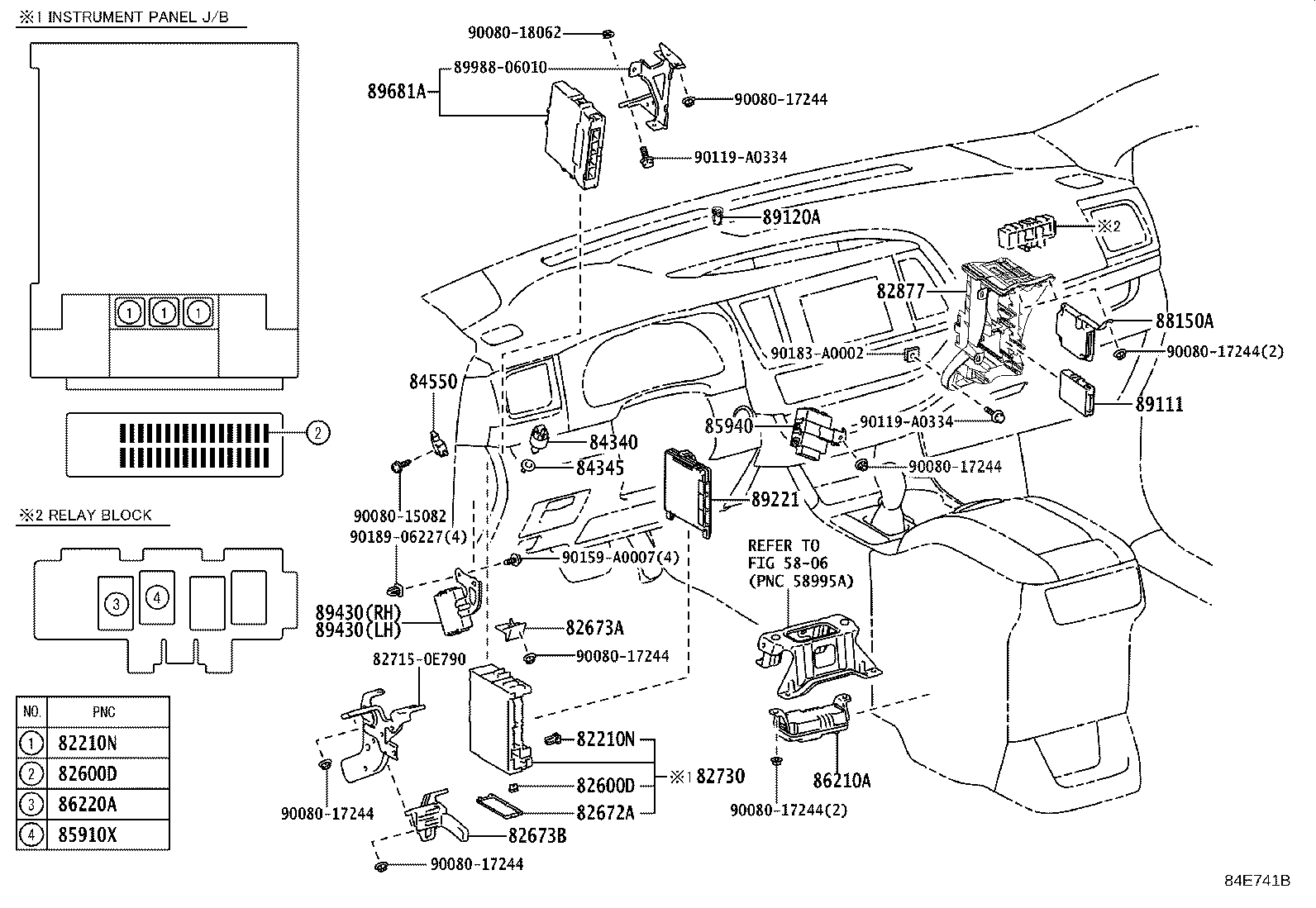

84E741B 2013-12 → 2016-11

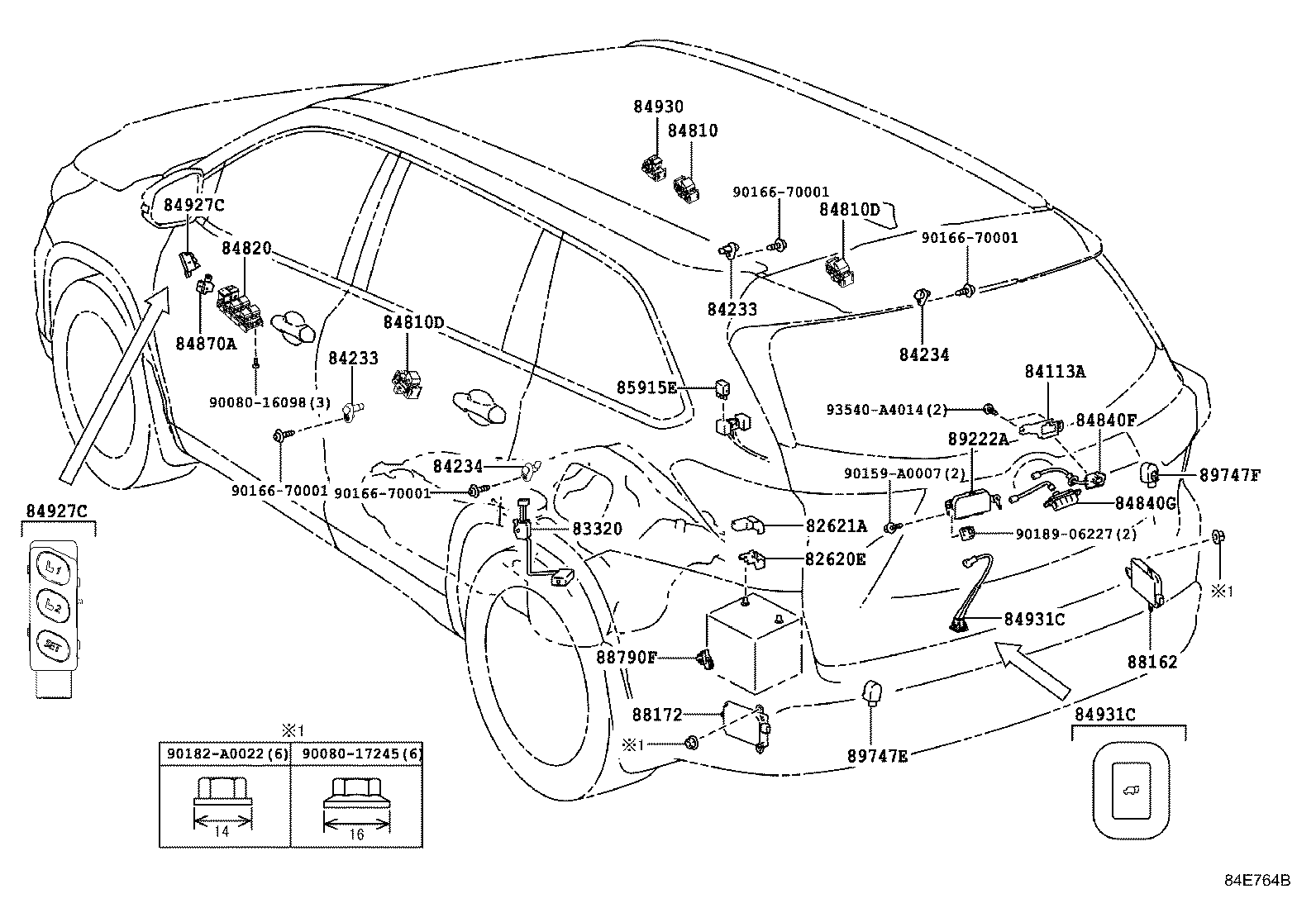

84E764B 2013-12 → 2016-11

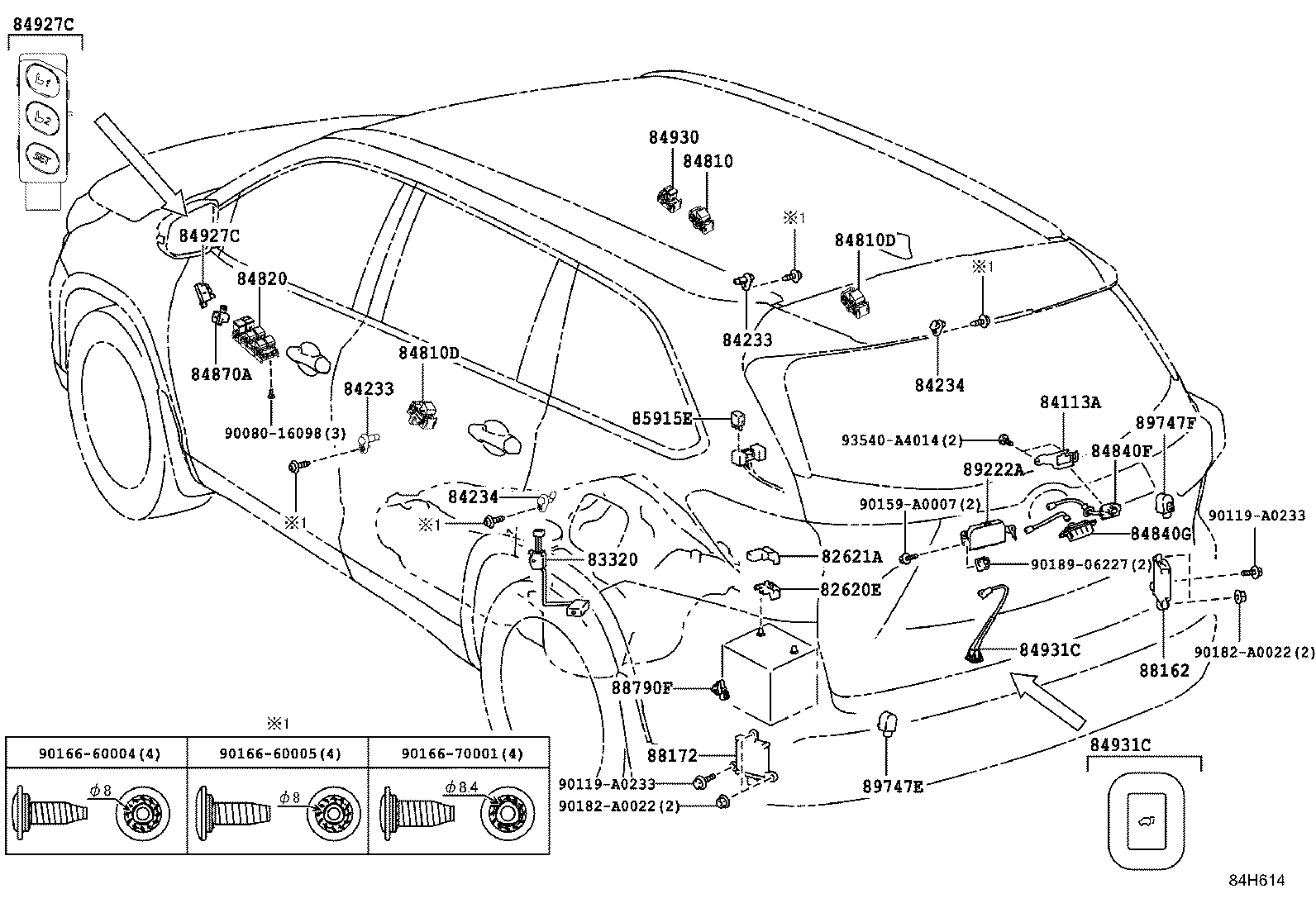

84H614 2016-11 → —

Part groups

PNC	Description
16100P	Relay, Water Pump
28300	Relay Assy, Starter
28300F	Relay Assy, Starter, NO.2
28371E	Relay, Ignition, NO.4
28380A	Resister, Fuel Pump
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
81550T	Relay, Back UP Lamp
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82610A	Block Assy, Fuse
82610C	Block Assy, Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82644	Computer, Semiconductor Power Integration
82660B	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82661B	Cover, Relay Block, NO.3
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673F	Bracket, Junction Block

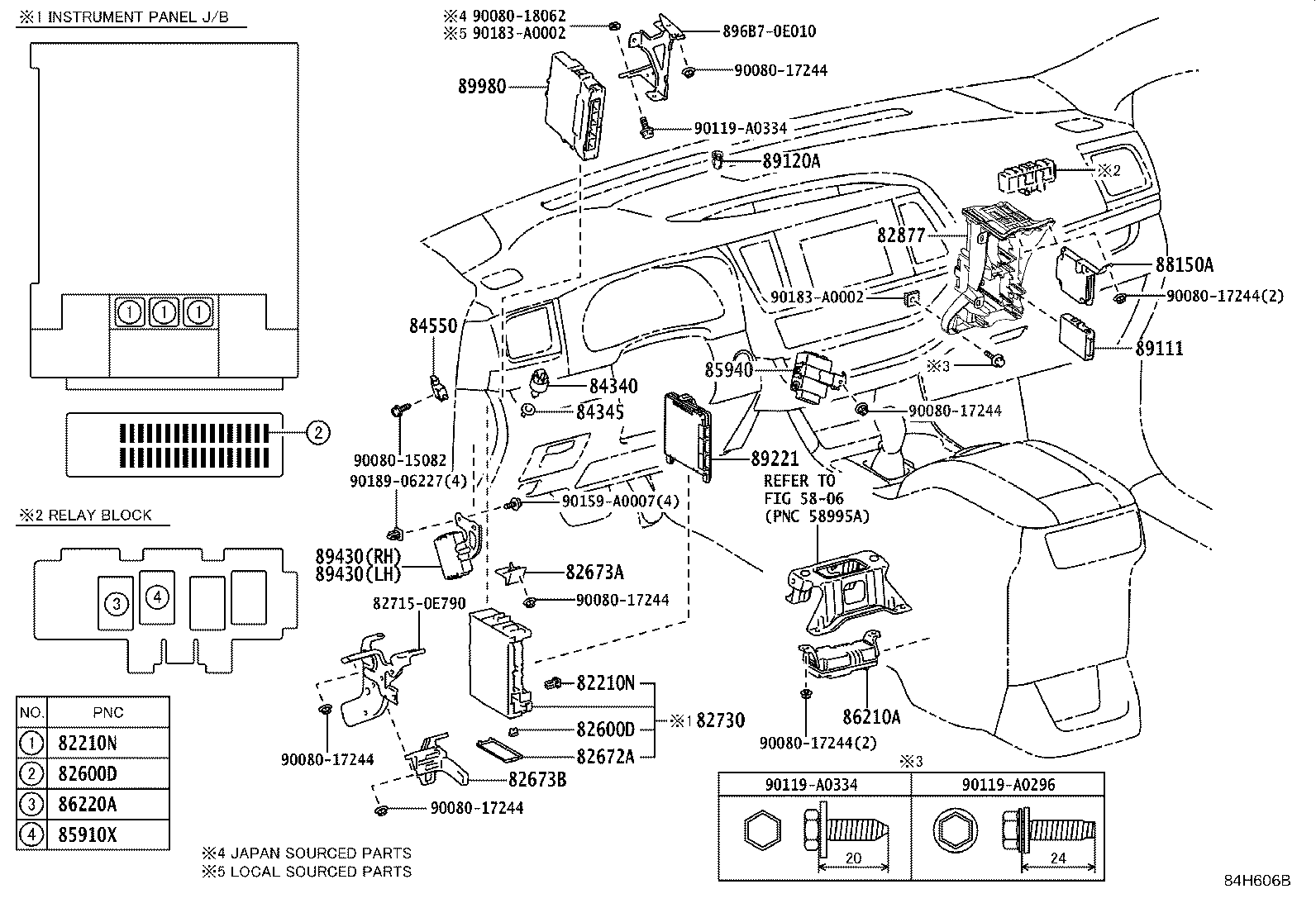

82730	Block Assy, Instrument Panel Junction
82740	Block Assy, Engine Room Relay
82740A	Block Assy, Engine Room Relay, NO.2
82743	Block, Engine Room Relay, NO.3
82824L	Pin, Short
82877	Box, Computer Integration, RH
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84052	Switch Assy, Un-lock Warning
84070	Computer & Switch Assy, Position Control
84113A	Bracket, Switch, NO.1
84140	Switch Assy, Headlamp Dimmer

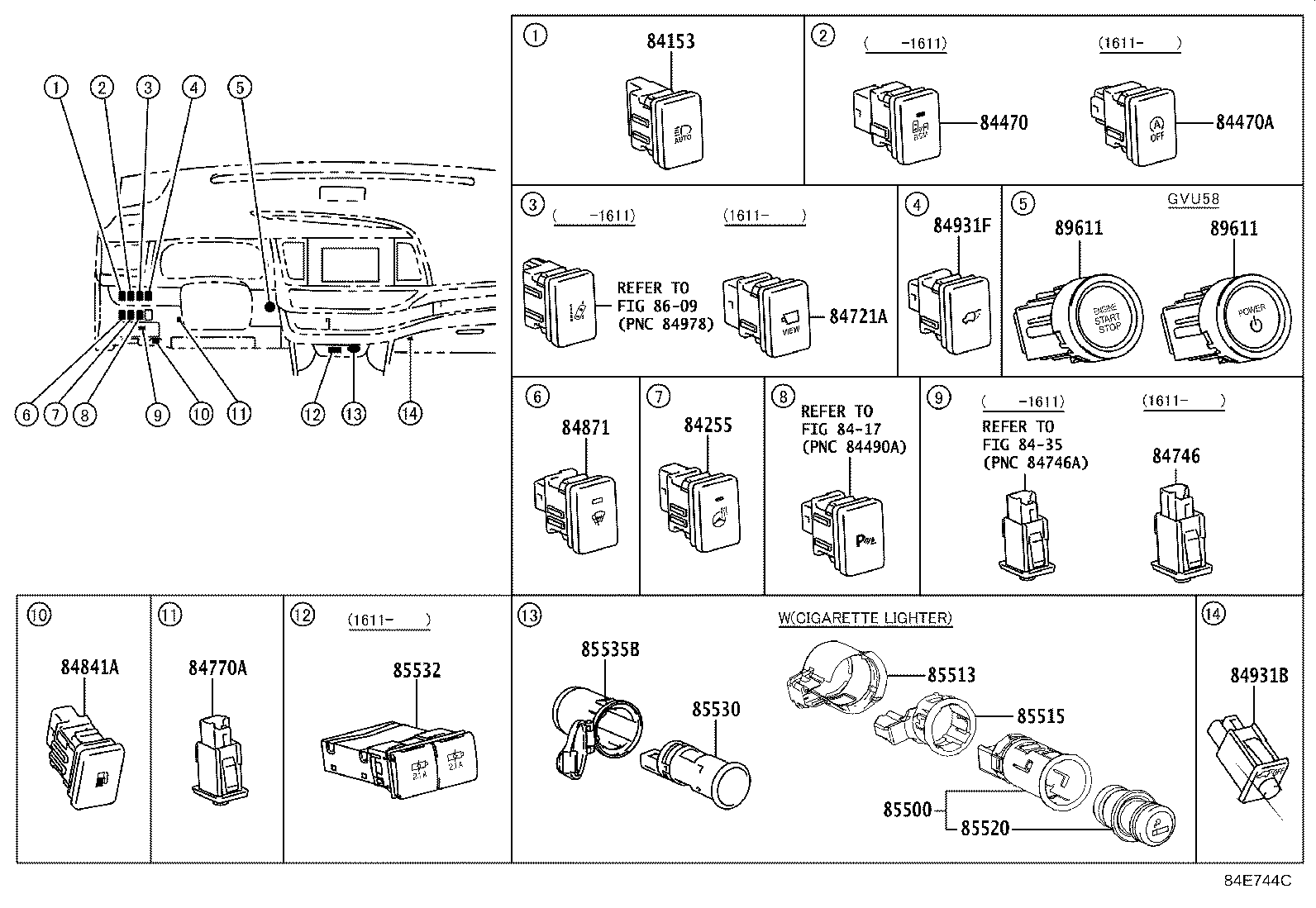

84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)

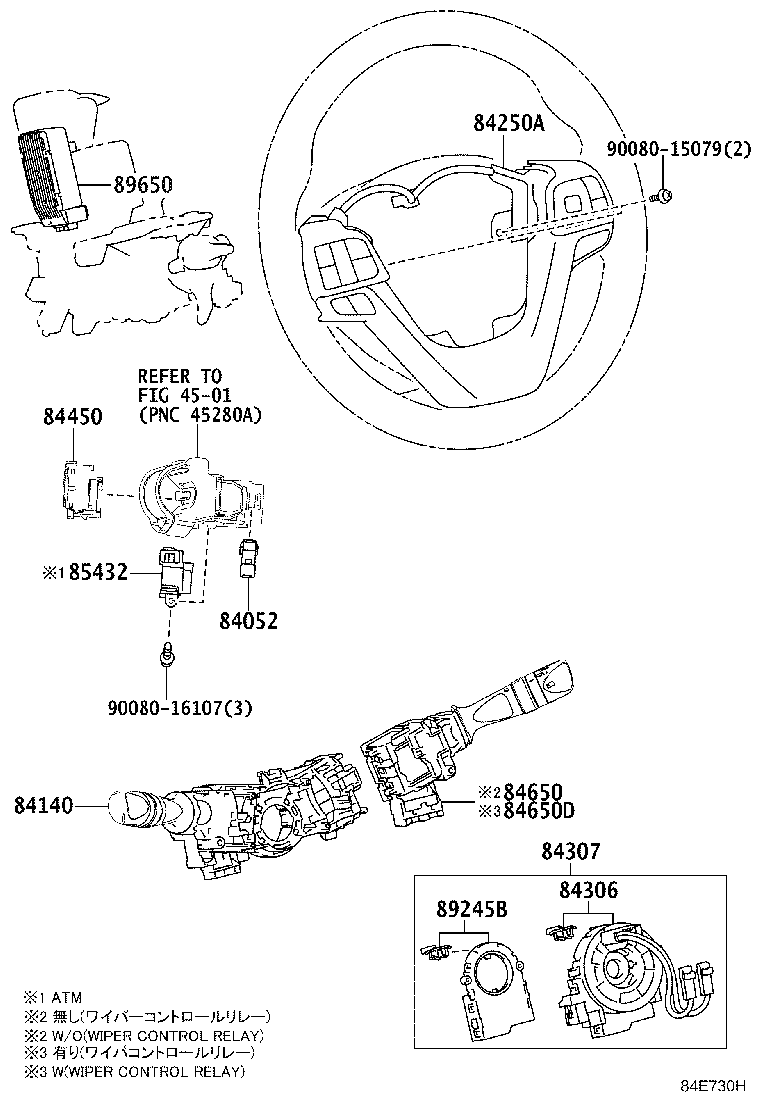

84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84470	Switch Assy, Warning Canceling
84470A	Switch Assy, Ecorun Cancel
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)

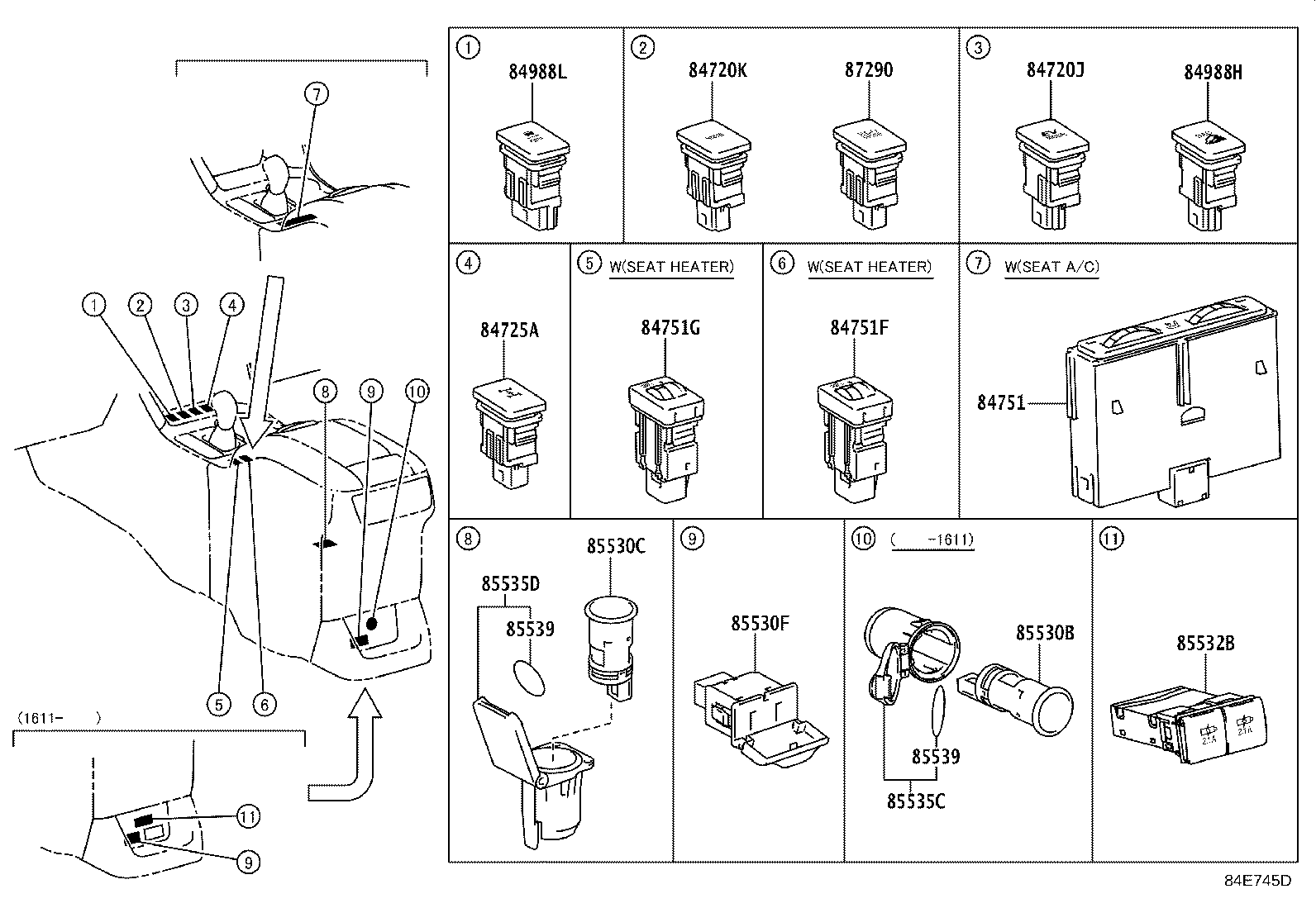

84720J	Switch Assy, Pattern Select
84720K	Switch Assy, Pattern Select
84721A	Switch, Front Wide View
84725A	Switch, Differential Lock
84746	Switch, Tire Pressure Warning
84751	Switch, Seat Heater
84751F	Switch, Seat Heater
84751G	Switch, Seat Heater
84770A	Switch Assy, Pre-collision System Cancel
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84820	Master Switch Assy, Power Window Regulator
84840F	Switch Assy, Glass Hatch Opener
84840G	Switch Assy, Back Door Opener
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84871	Switch Assy, Outer Mirror Heater

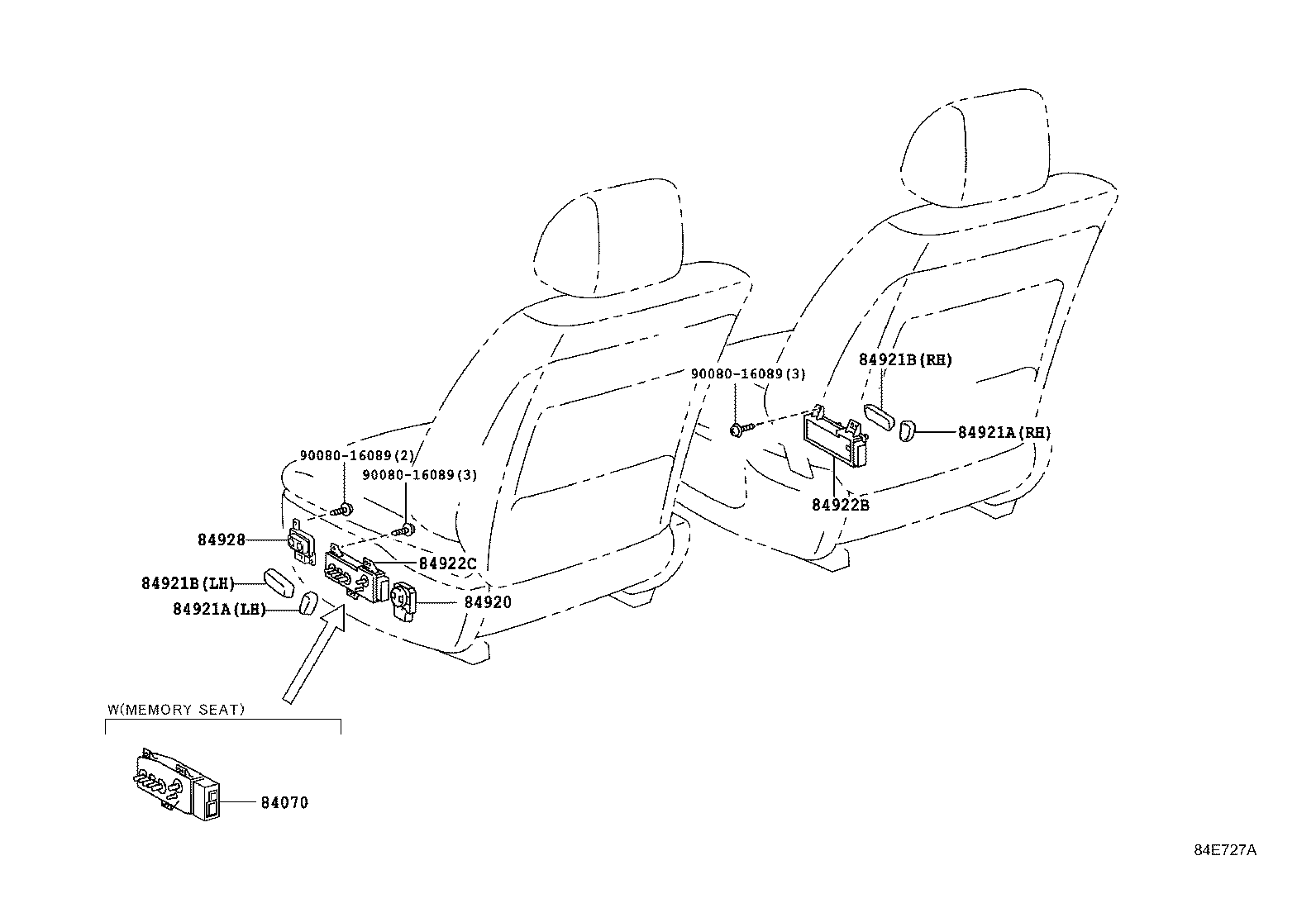

84920	Switch Assy, Power Seat
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84927C	Switch, Seat Memory, LH
84928	Switch, Seat Variable Cushion
84930	Switch Assy, Door Control
84931B	Switch, Door Control
84931C	Switch, Back Door Control
84931F	Switch, Rear Door Control
84988H	Switch, Downhill Assist Control
84988L	Switch, Vsc Off
85432	Solenoid, Key Interlock
85500	Lighter Assy, Cigarette
85513	Cover, Cigarette Lighter
85515	Stay, Cigarette Lighter Bezel
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85530B	Socket Assy, Power Outlet, Rear NO.1
85530C	Socket Assy, Power Outlet, Center
85530F	Socket Assy, Power Outlet, Rear NO.2
85532	Socket, Usb Charger
85532B	Socket, Usb Charger
85535B	Cover, Power Outlet Socket, NO.1
85535C	Cover, Power Outlet Socket, Rear
85535D	Cover, Power Outlet Socket, Center
85539	Label, Power Outlet Notice
85900F	Relay, Battery Switch
85910E	Relay, Injector
85910X	Relay, Heater Mirror
85913C	Relay, Heater, NO.1
85915E	Relay
85916C	Relay, Back UP Lamp
85924C	Relay, Igct
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85931C	Relay, Fuel Door Lock
85940	Relay Assy, Windshield Wiper
86210A	Inverter Assy, Voltage
86220A	Relay, Inverter
86530	Relay Assy, Horn
87290	Switch Assy, Heater
87346K	Relay, Ptc Heater
88150A	Computer Assy, Driving Support
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
88790F	Thermistor Assy
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89430	Computer Assy, Outer Mirror Control
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89491	Sensor, Engine Oil Level
89530C	Computer Assy, Transmission Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89681A	Computer, Power Management Control
89730A	Relay(FOR SECURITY WARNING)
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
89980	Computer Assy, Hybrid Vehicle Control
G1167A	Relay (FOR OIL PUMP MOTOR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
