Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

16 part groups · 7 illustrations

Illustrations

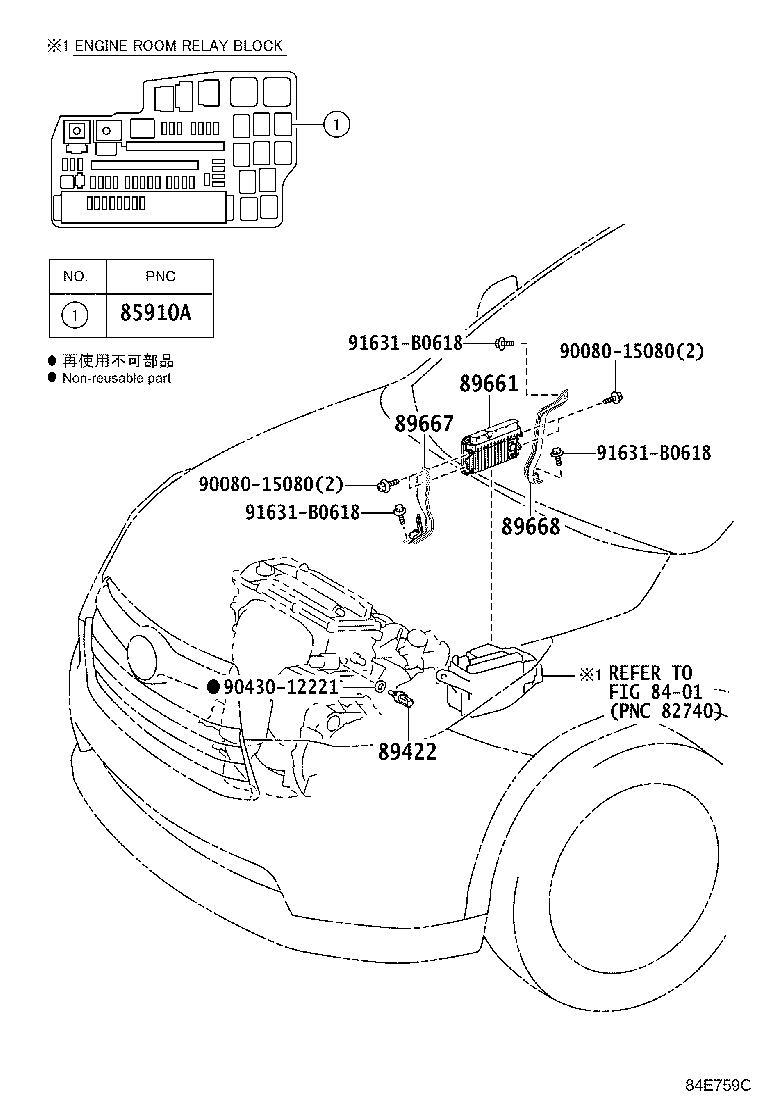

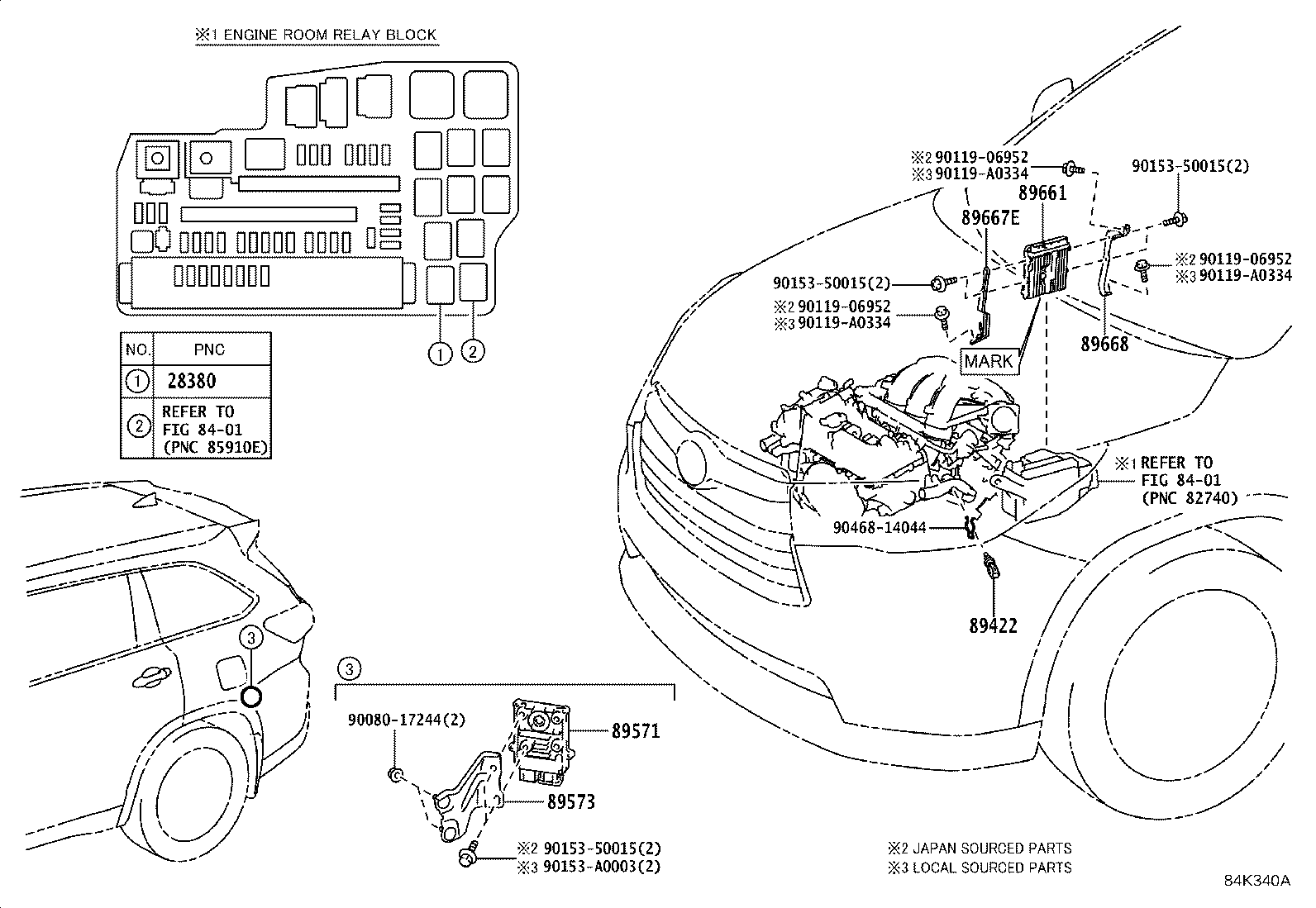

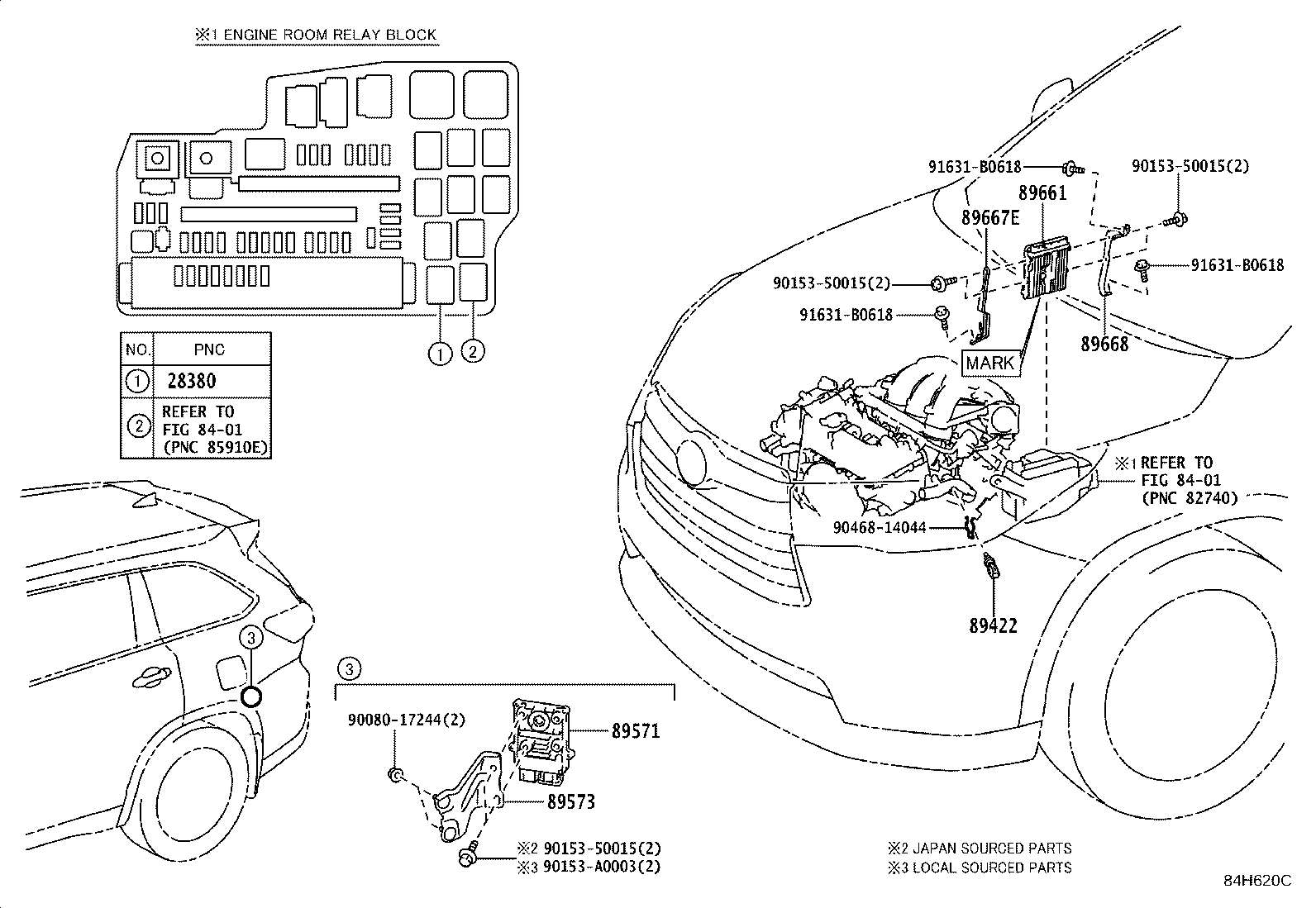

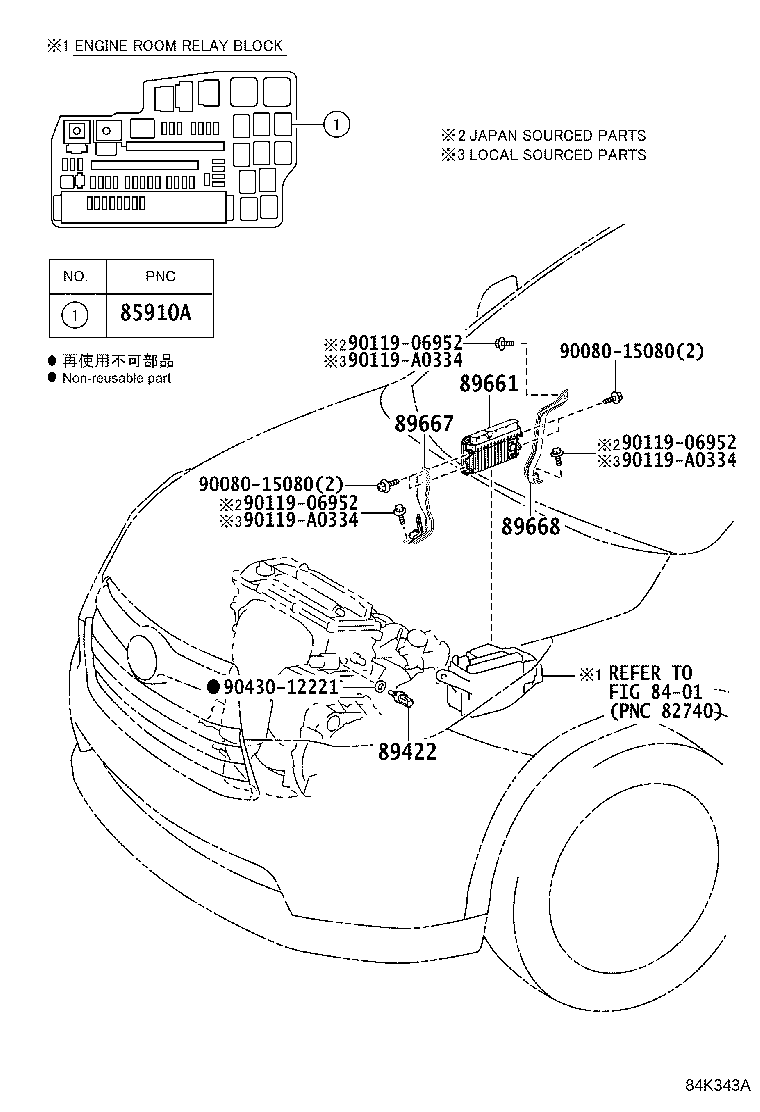

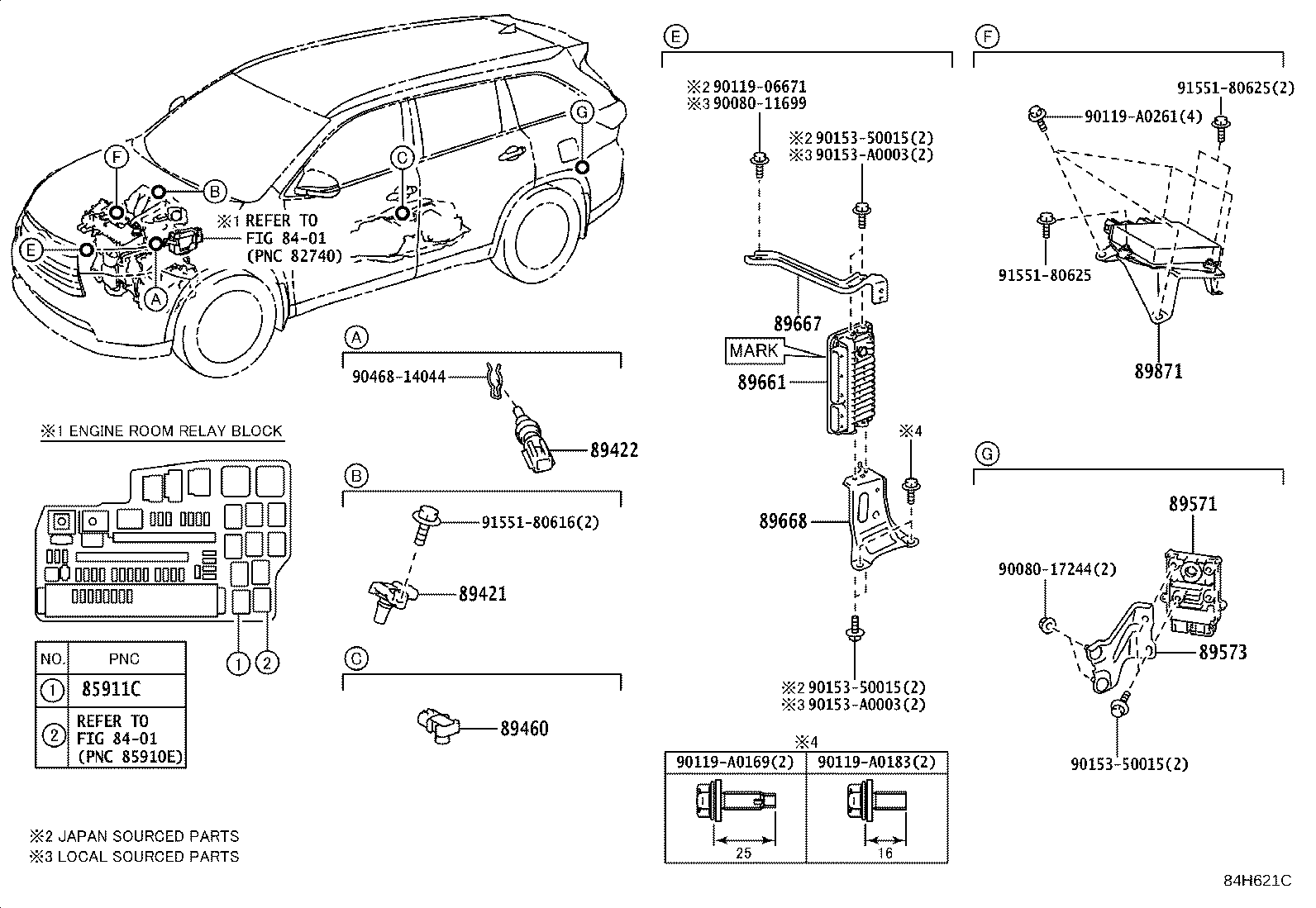

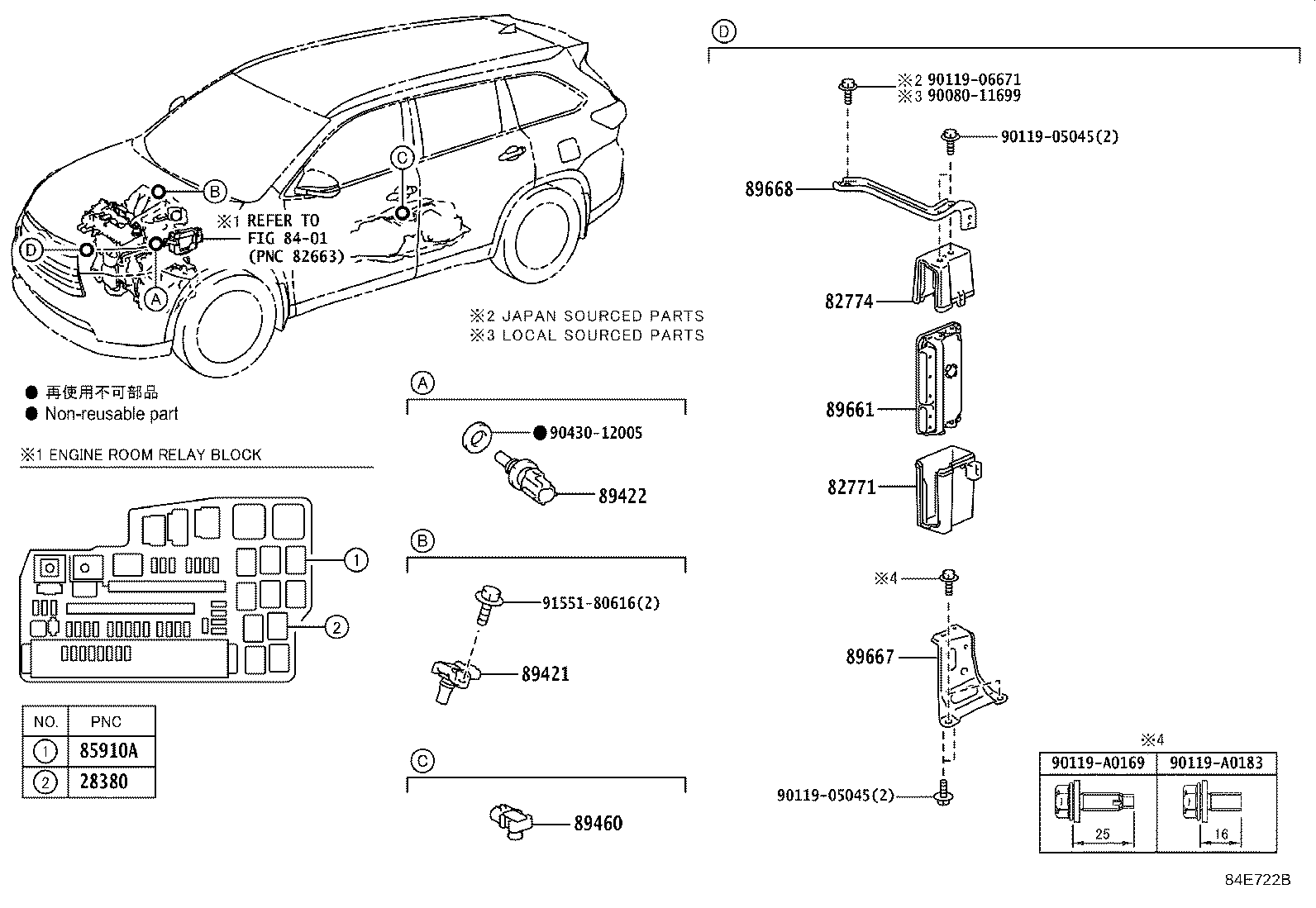

Figure 84E723B 84E723B 2013-12 → 2016-11 Figure 84H620C 84H620C 2016-11 → 2019-03 Figure 84K340A 84K340A 2019-04 → — Figure 84E759C 84E759C 2013-12 → 2019-03 Figure 84K343A 84K343A 2019-04 → — Figure 84E722B 84E722B 2014-01 → 2016-11 Figure 84H621C 84H621C 2016-11 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
85910A Relay Assy, Circuit Opening (FOR EFI)
85911C Relay, Efi 2
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89460 Sensor Assy, Vapor Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
