Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

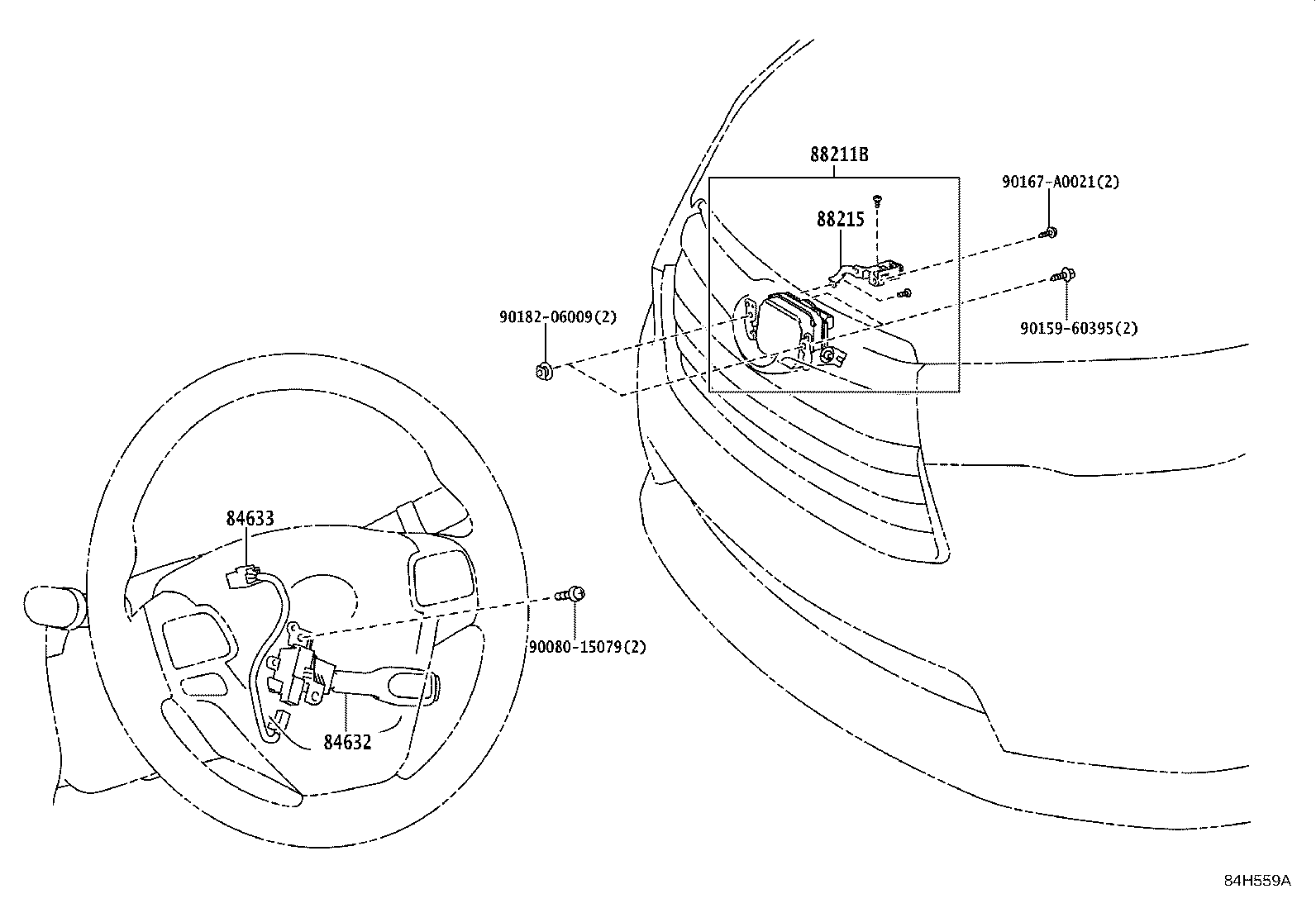

Figure 84E708 84E708 2013-12 → 2016-11 Figure 84H559A 84H559A 2016-11 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88215 Bracket, Millimeter Wave Radar Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
