Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

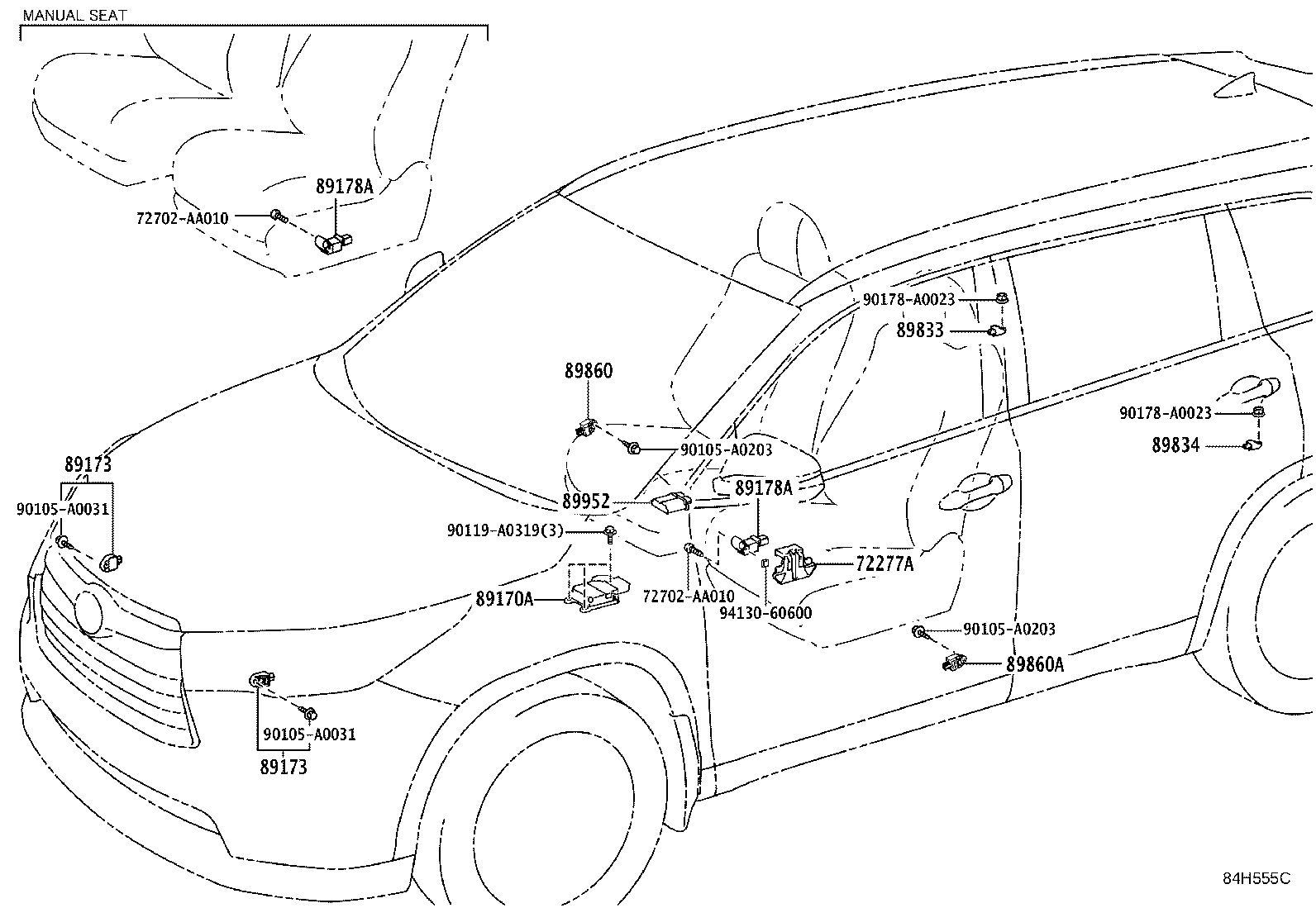

Air Bag
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 72277A | Protector, Seat Slide Position Sensor |
| 89170A | Computer Assy, Airbag |
| 89173 | Sensor, Airbag, Front |
| 89178A | Sensor, Seat Position Airbag |
| 89833 | Sensor, Airbag, Rear RH |
| 89834 | Sensor, Airbag, Rear LH |
| 89835 | Sensor, Door Side Airbag, LH |
| 89860 | Sensor Assy, Side Airbag, RH |
| 89860A | Sensor Assy, Side Airbag, LH |
| 89865 | Sensor, Door Side Airbag, RH |
| 89952 | Computer, Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
