Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11
Camera & Rear Monitor Display

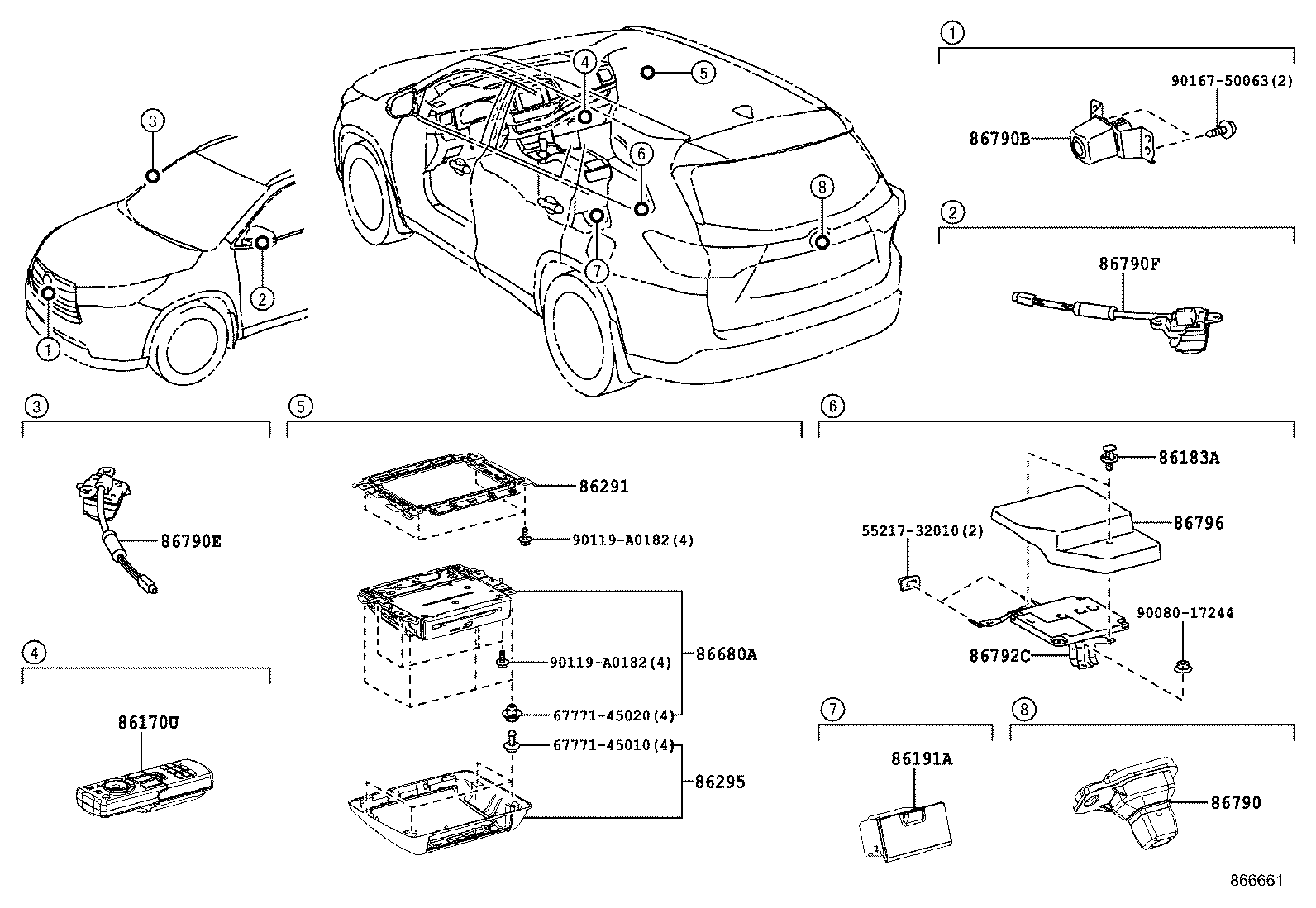

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86170U | Switch & Volume Assy, Rear |
| 86183A | Clip(FOR AUDIO RACK COVER) |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790 | Camera Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 86796 | Cover, Computer Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
