Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

34 part groups · 11 illustrations

Illustrations

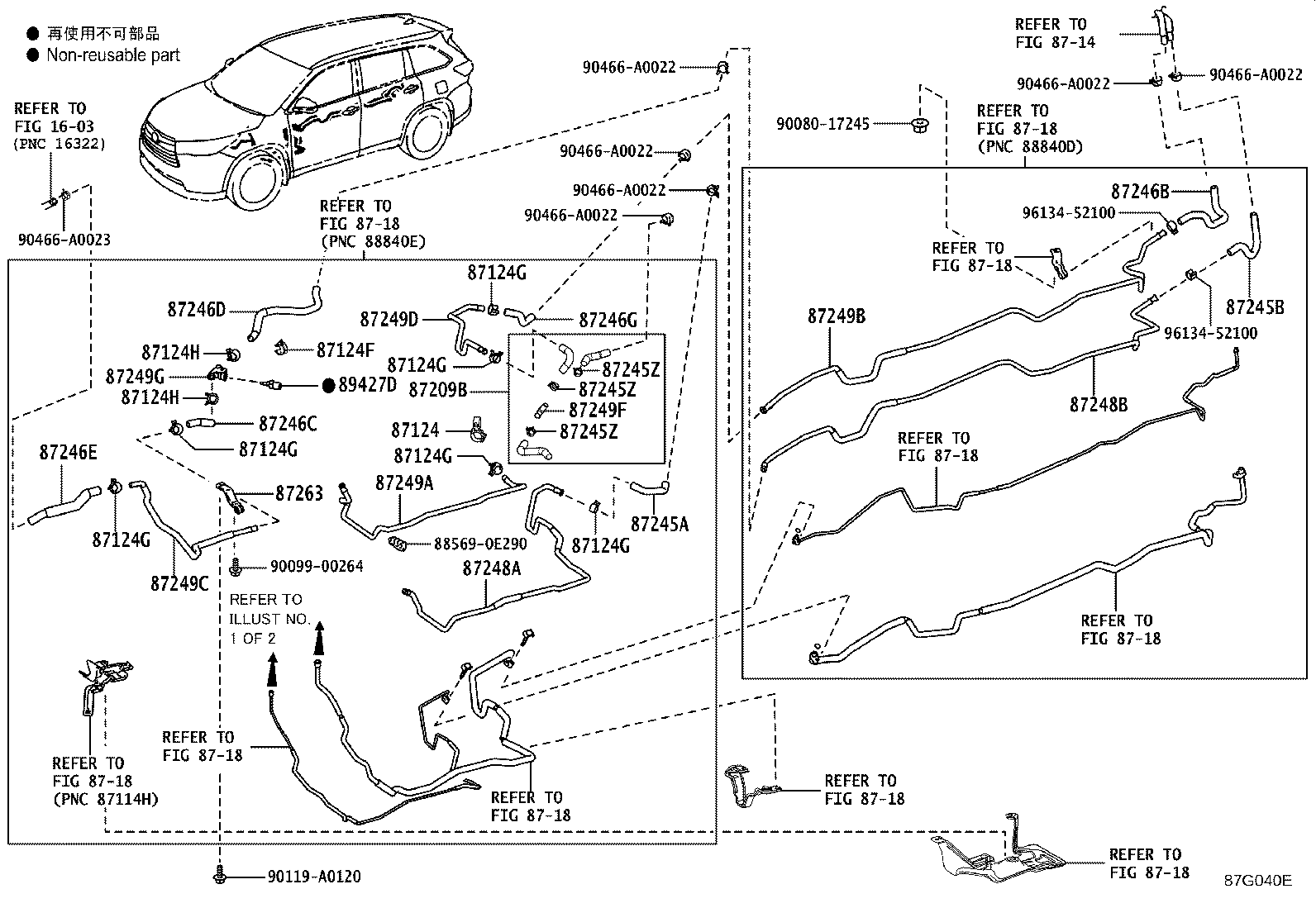

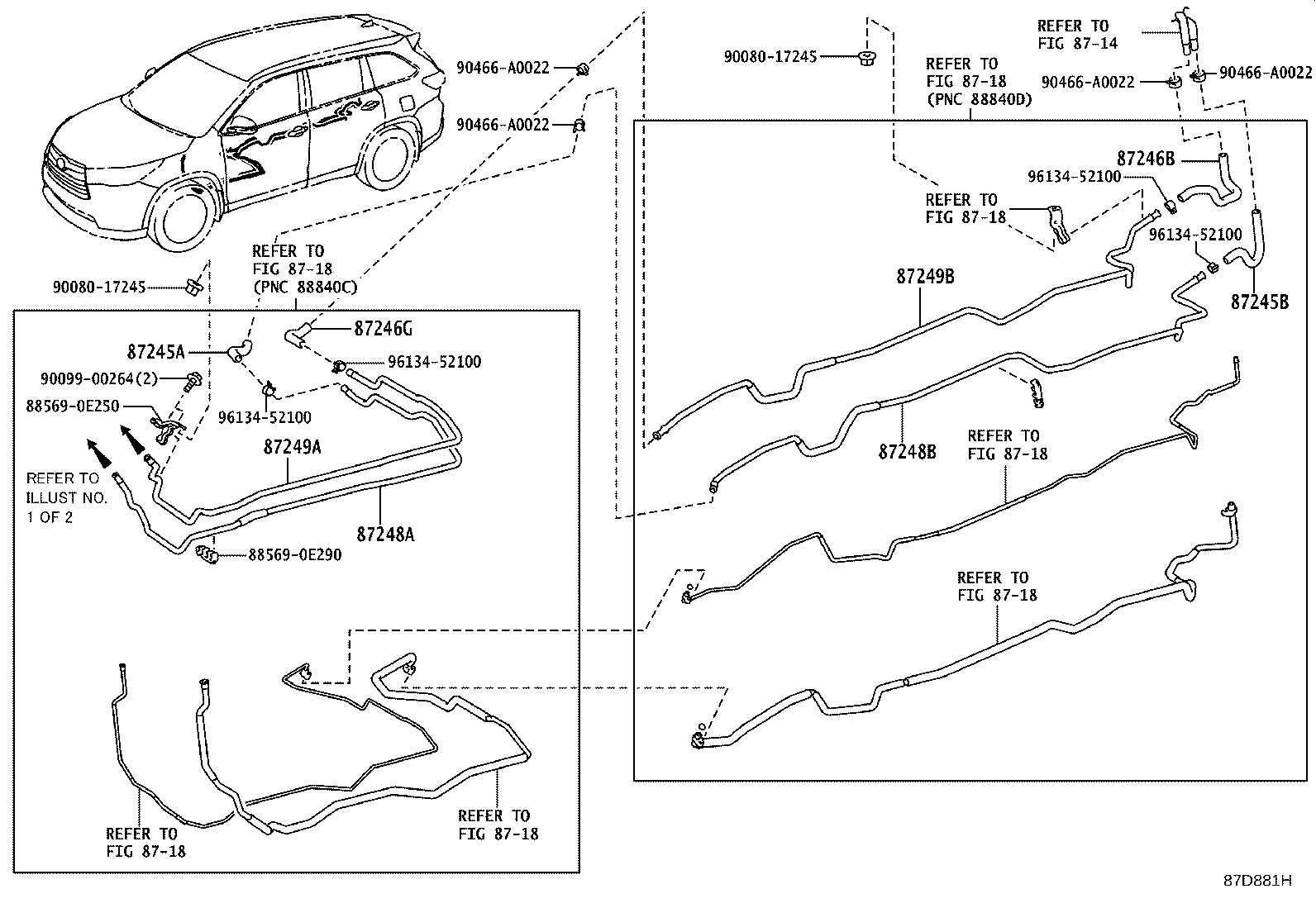

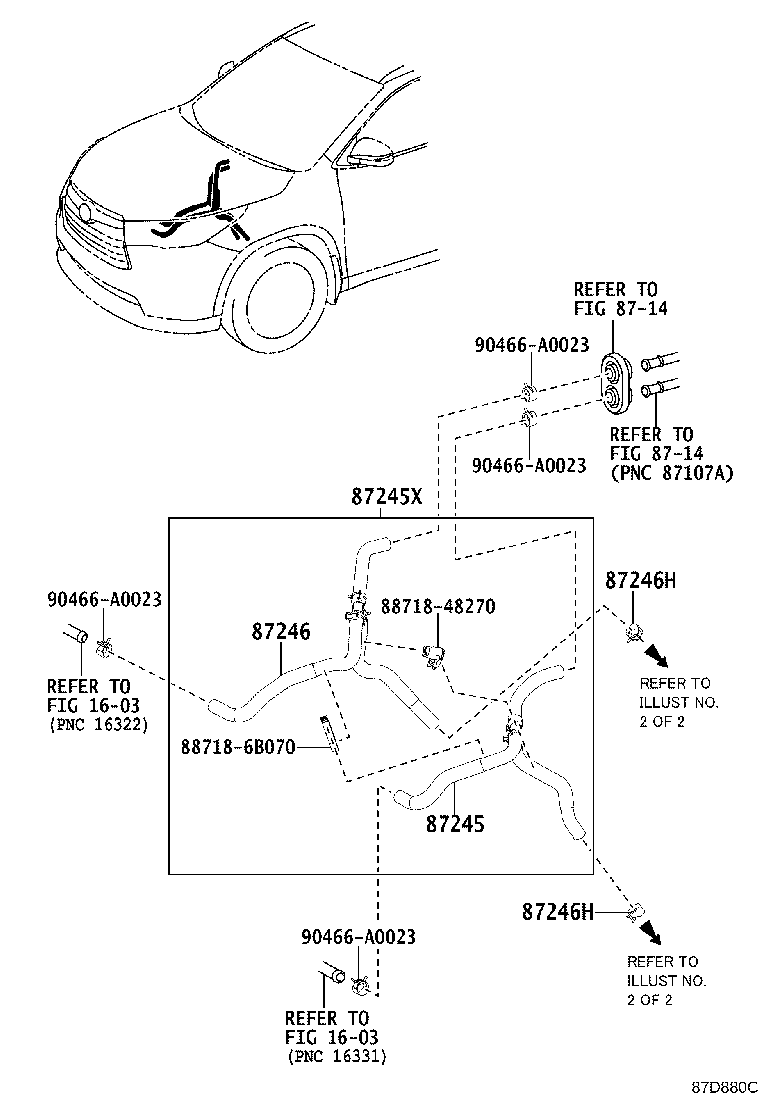

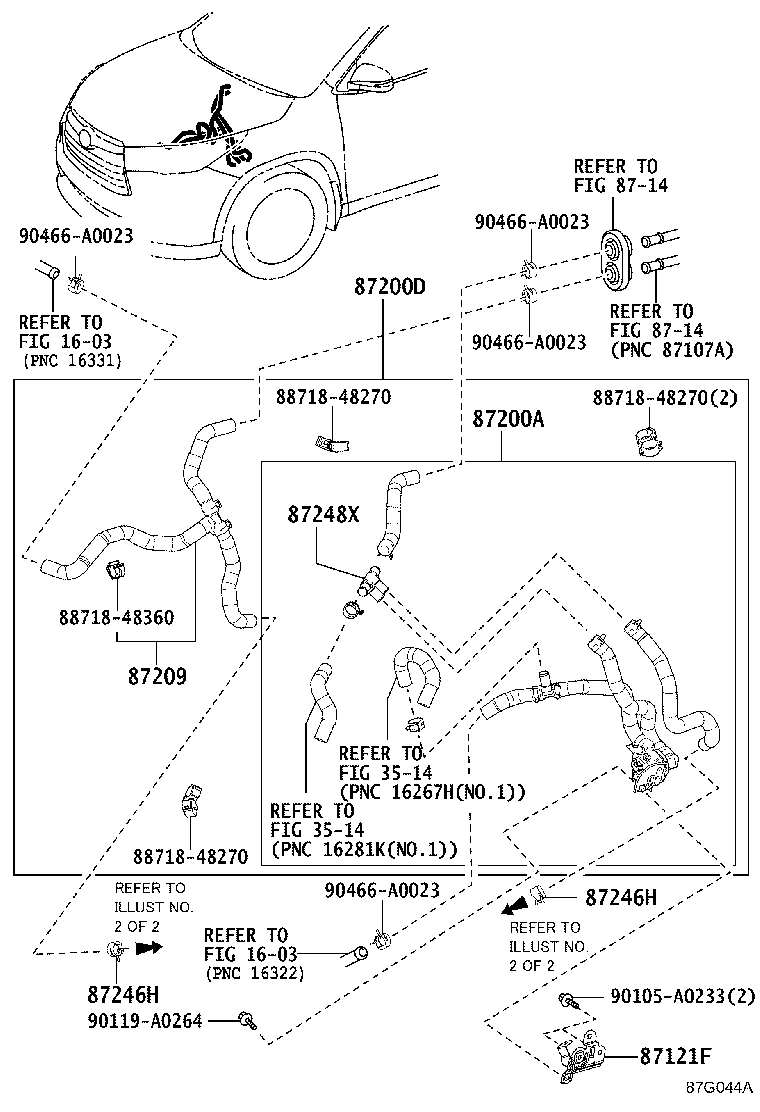

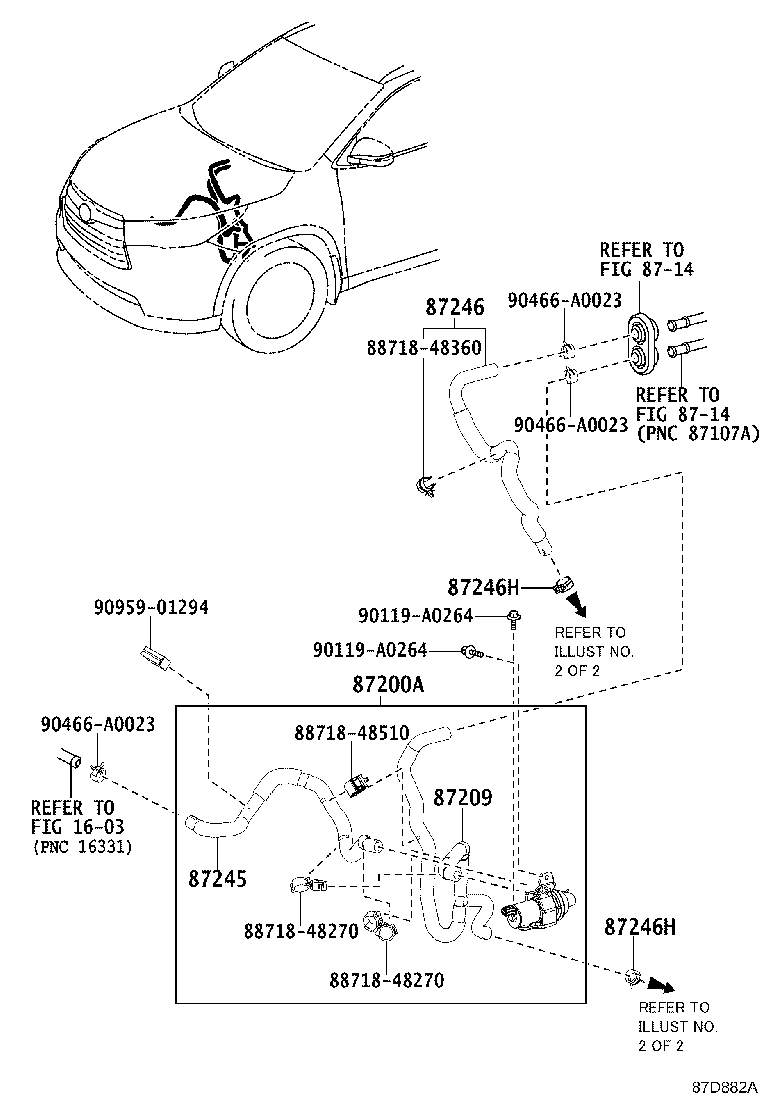

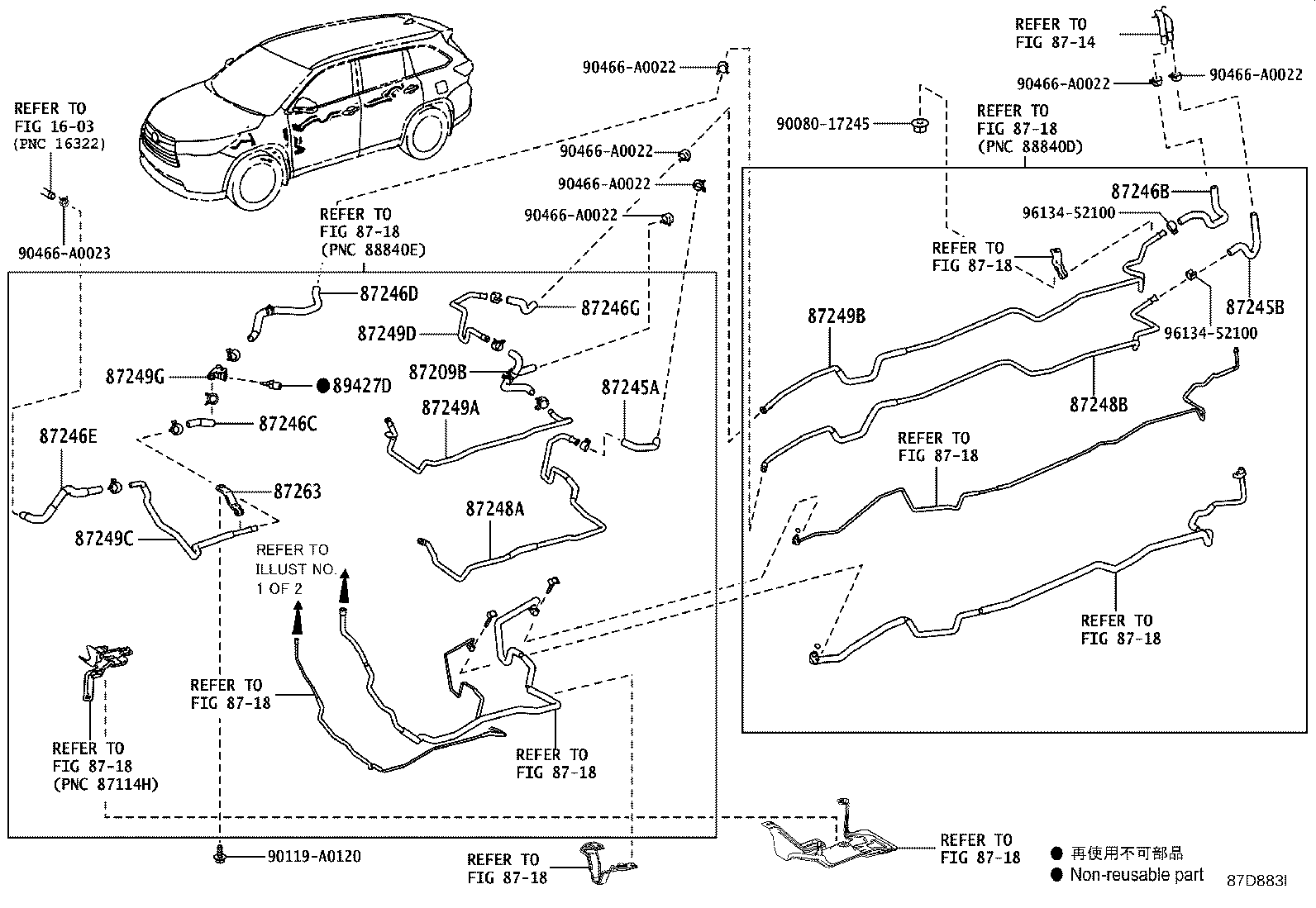

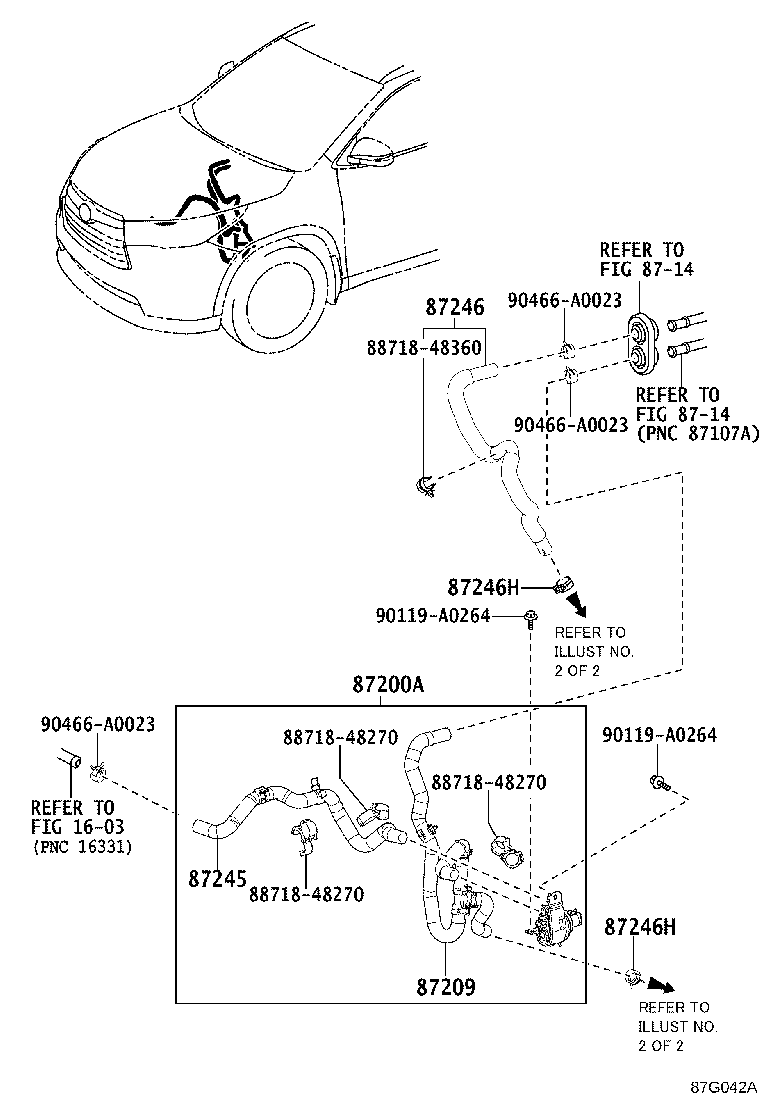

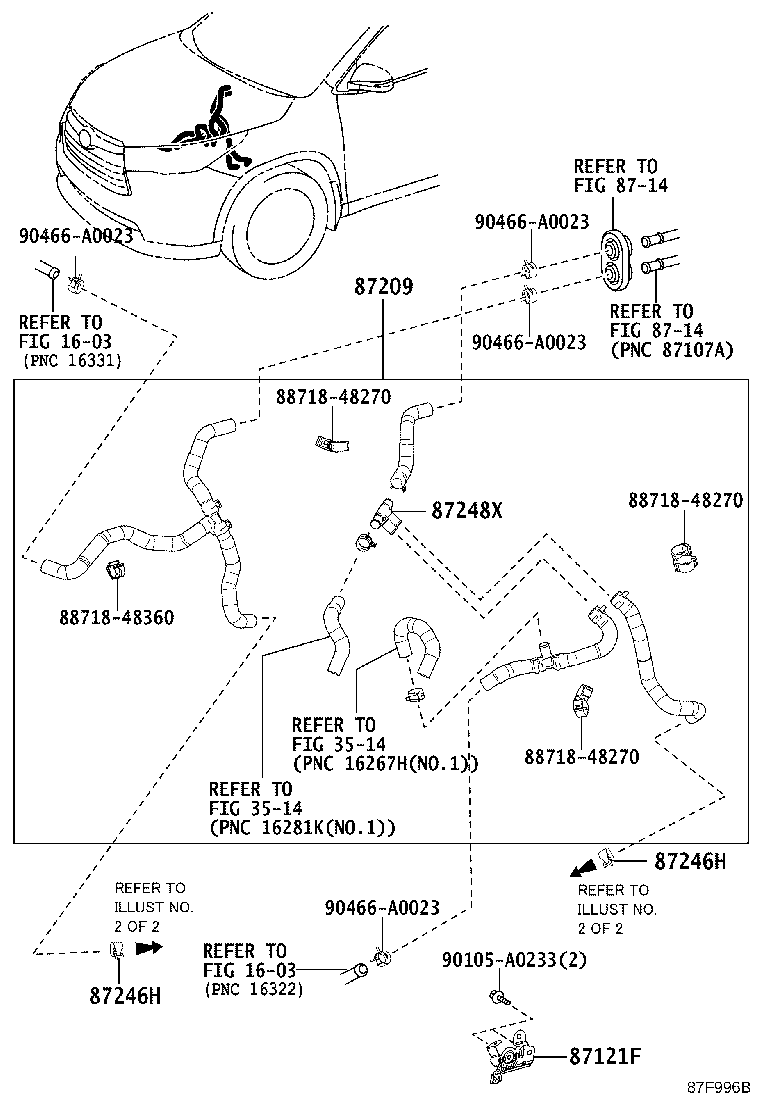

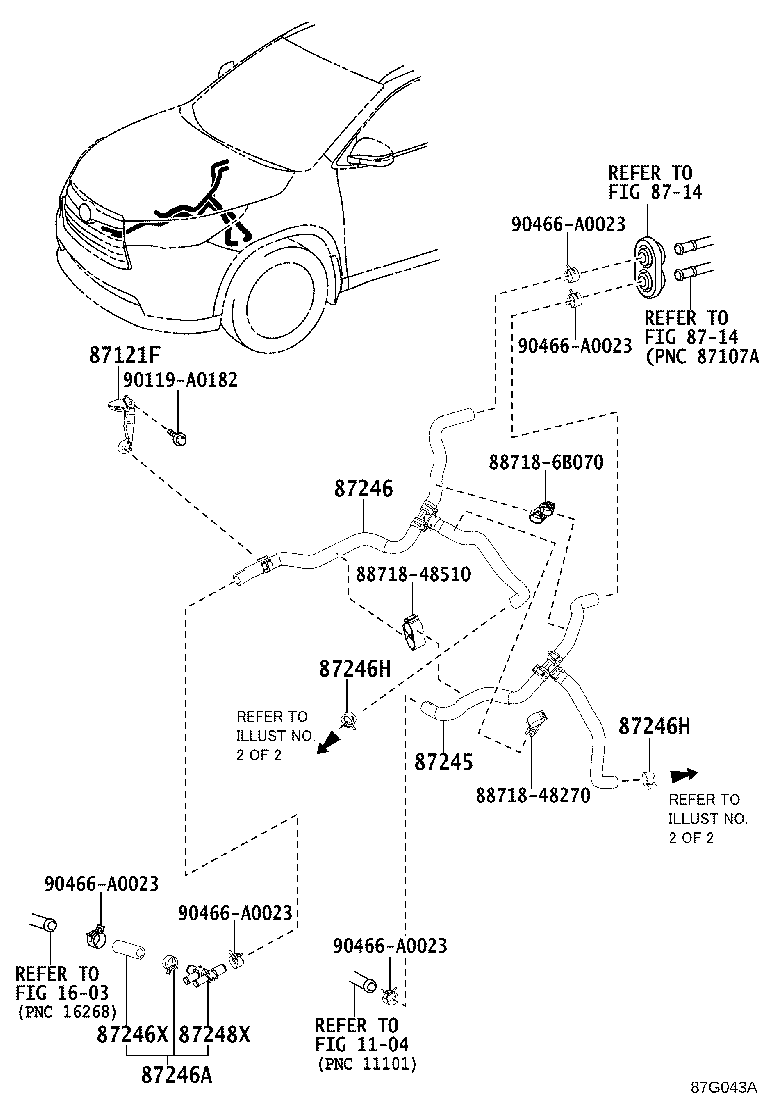

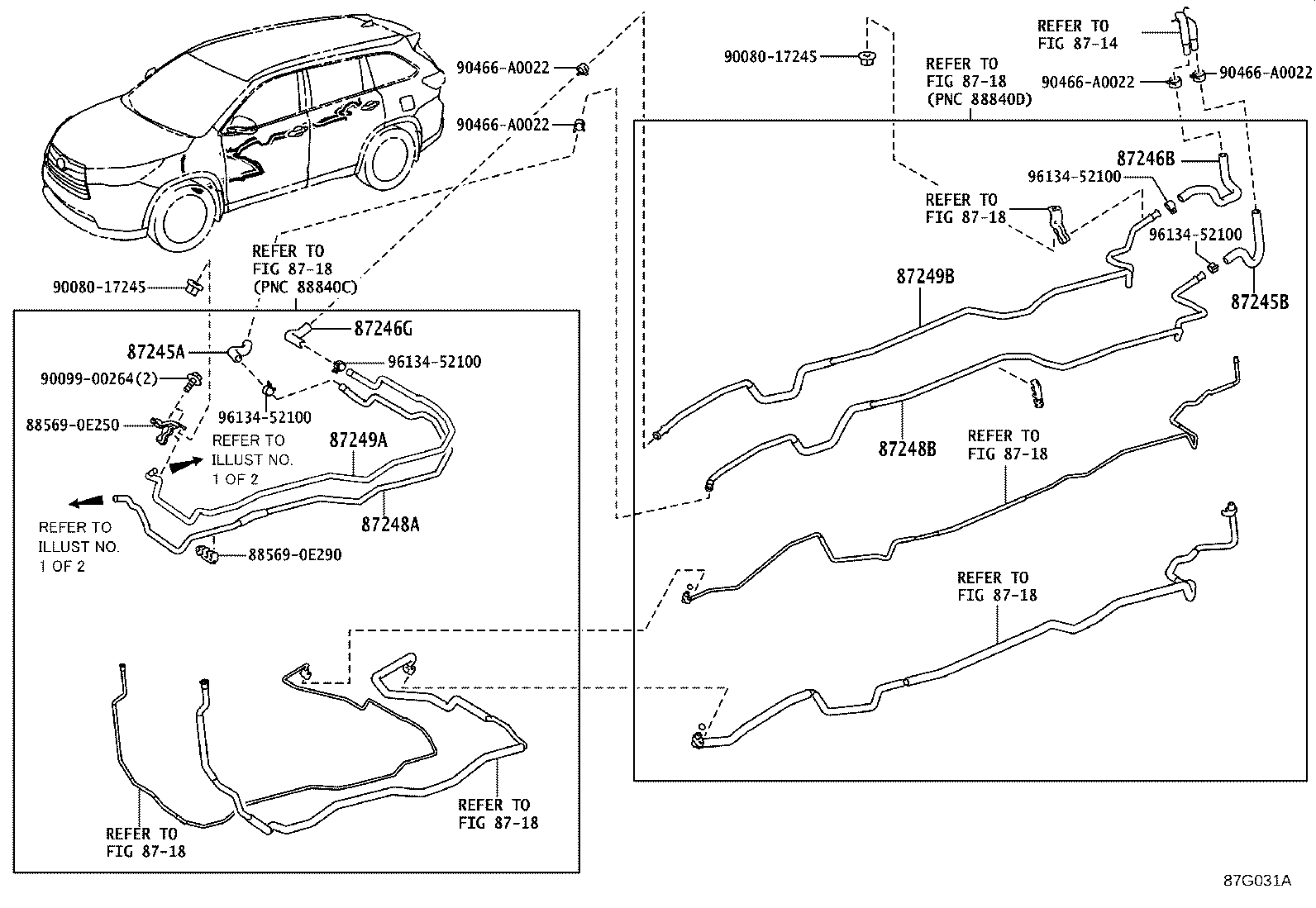

Figure 87D879D 87D879D 2013-12 → 2016-11 Figure 87G043A 87G043A 2016-11 → — Figure 87D880C 87D880C 2013-12 → 2016-11 Figure 87F996B 87F996B 2016-11 → — Figure 87G044A 87G044A 2016-11 → — Figure 87D882A 87D882A 2013-12 → 2016-11 Figure 87G042A 87G042A 2016-11 → — Figure 87D881H 87D881H 2013-12 → 2016-11 Figure 87G031A 87G031A 2016-11 → — Figure 87D883I 87D883I 2013-12 → 2016-11 Figure 87G040E 87G040E 2016-11 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124 Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87200A Pump Assy, Water(FOR HEATER)
87200D Accessory Assy, Heater
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245X Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246X Hose, Heater Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87263 Bracket, Heater Water Pipe, NO.1
89427D Switch, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
