Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 10 illustrations

Illustrations

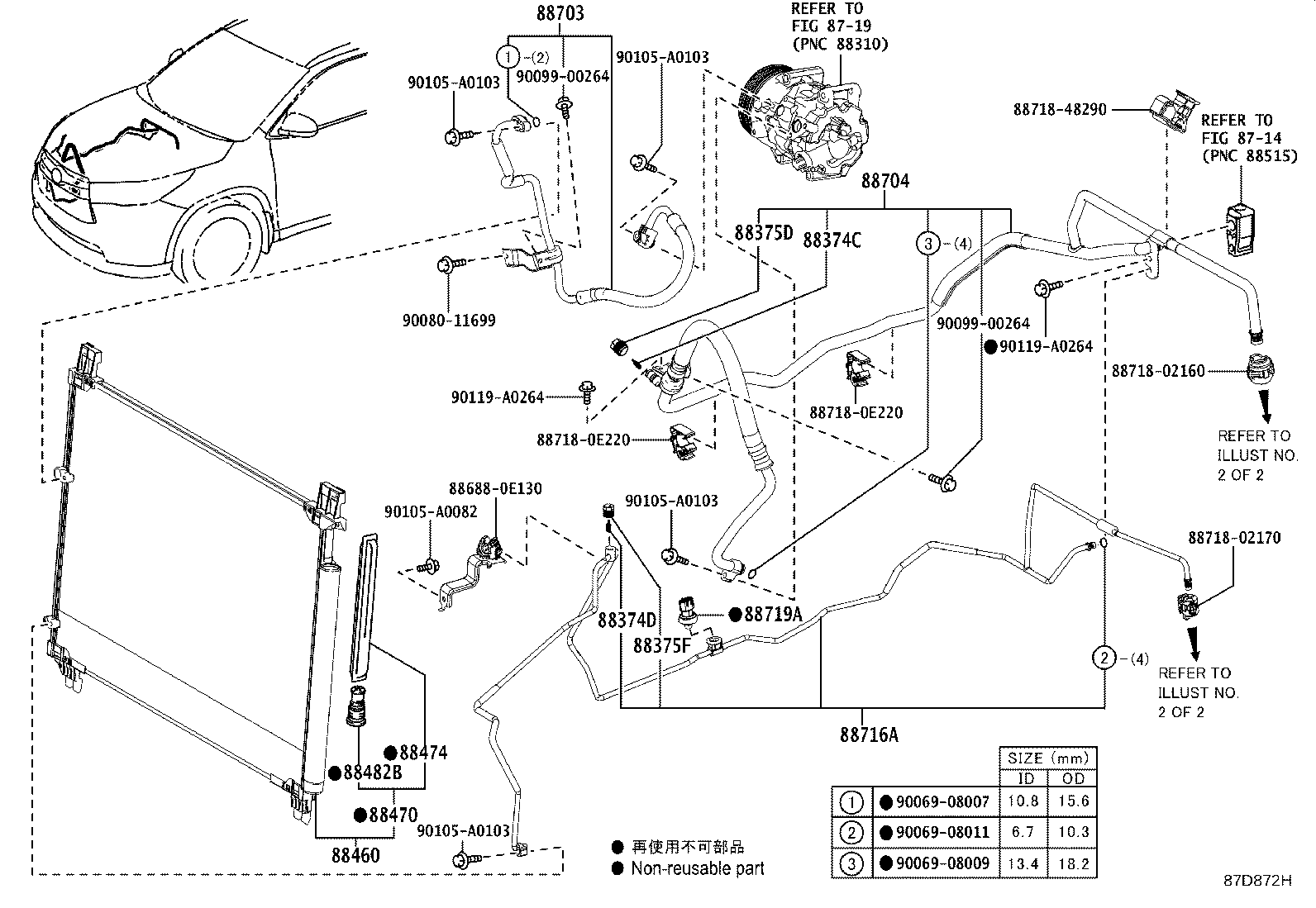

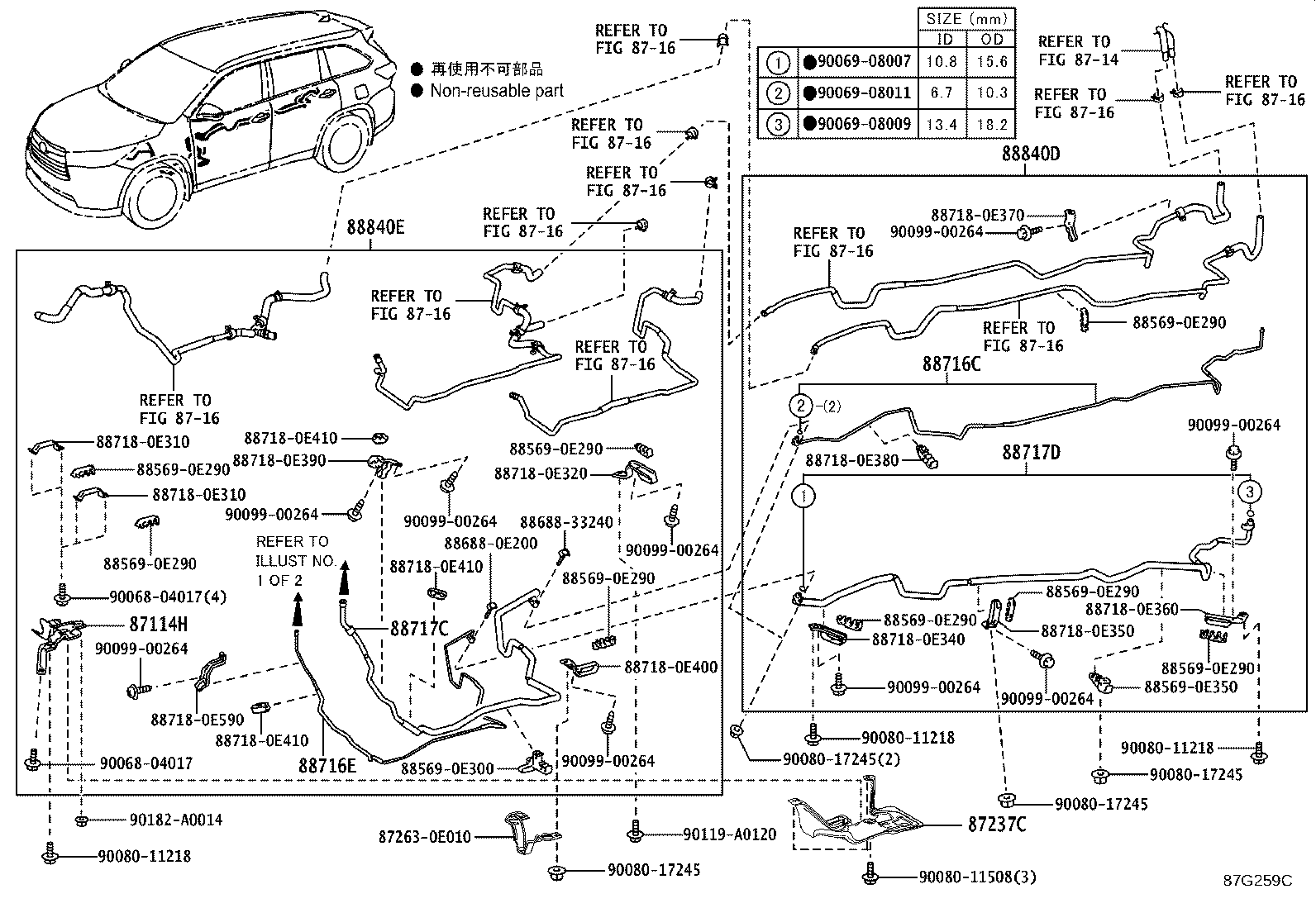

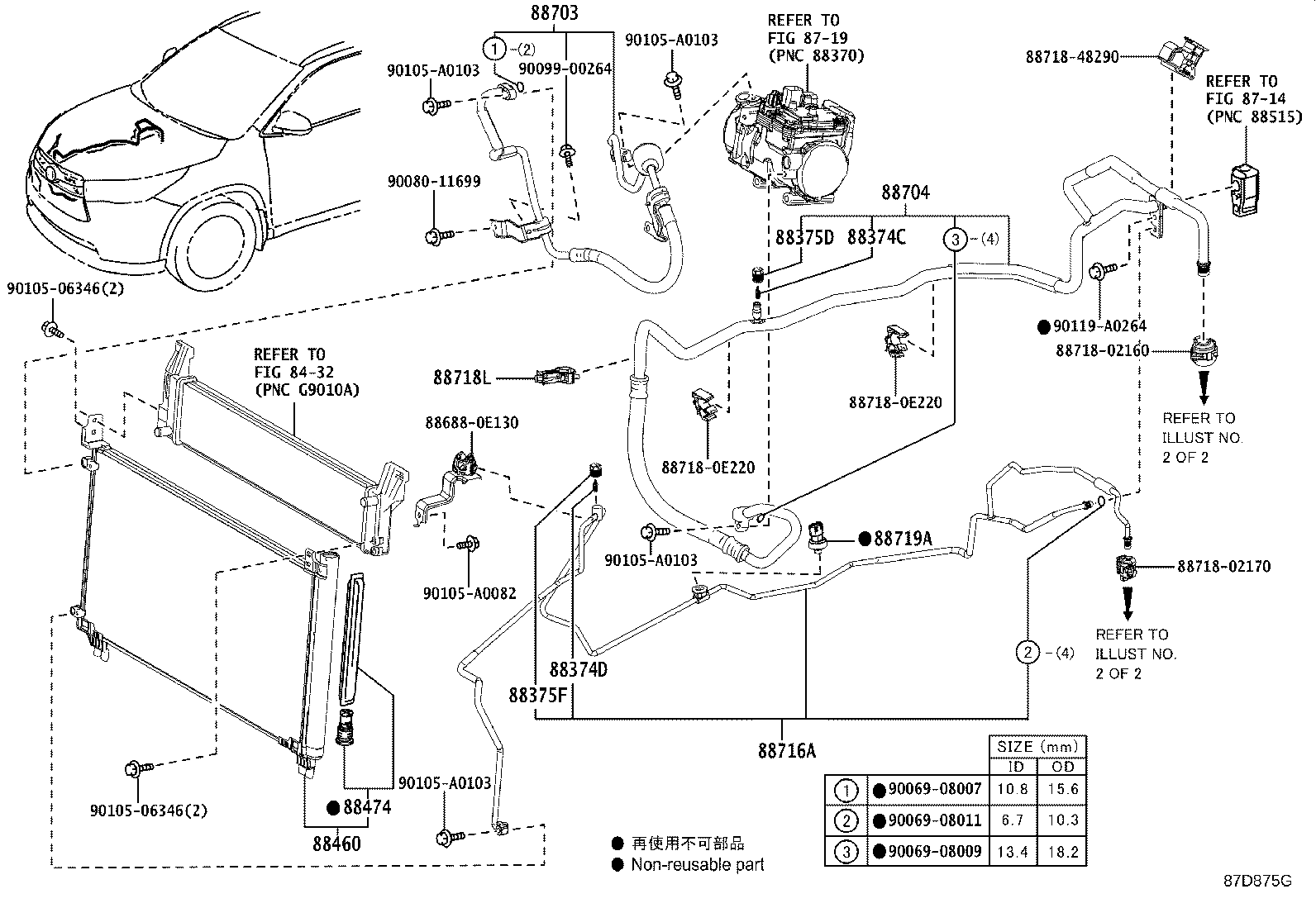

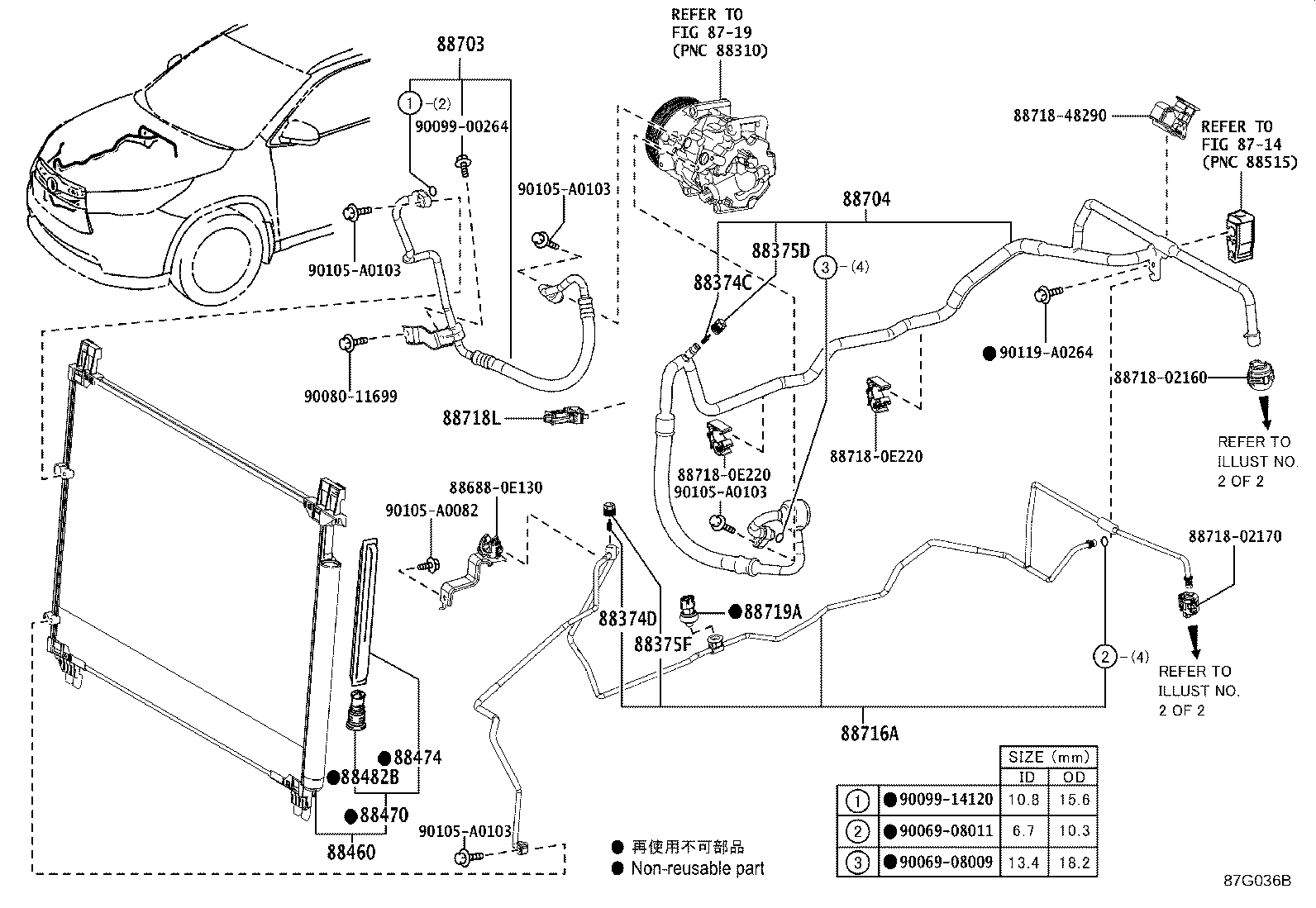

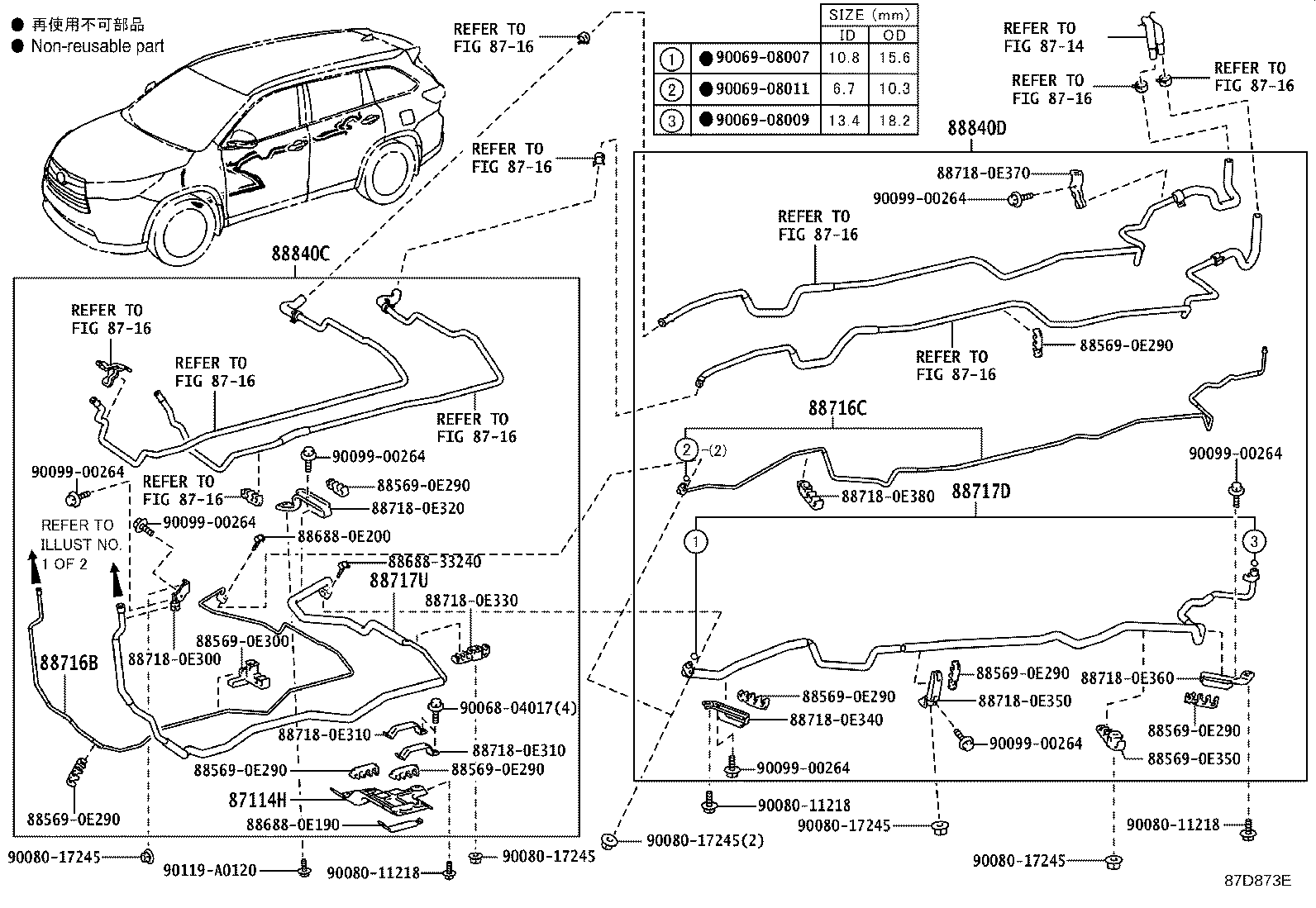

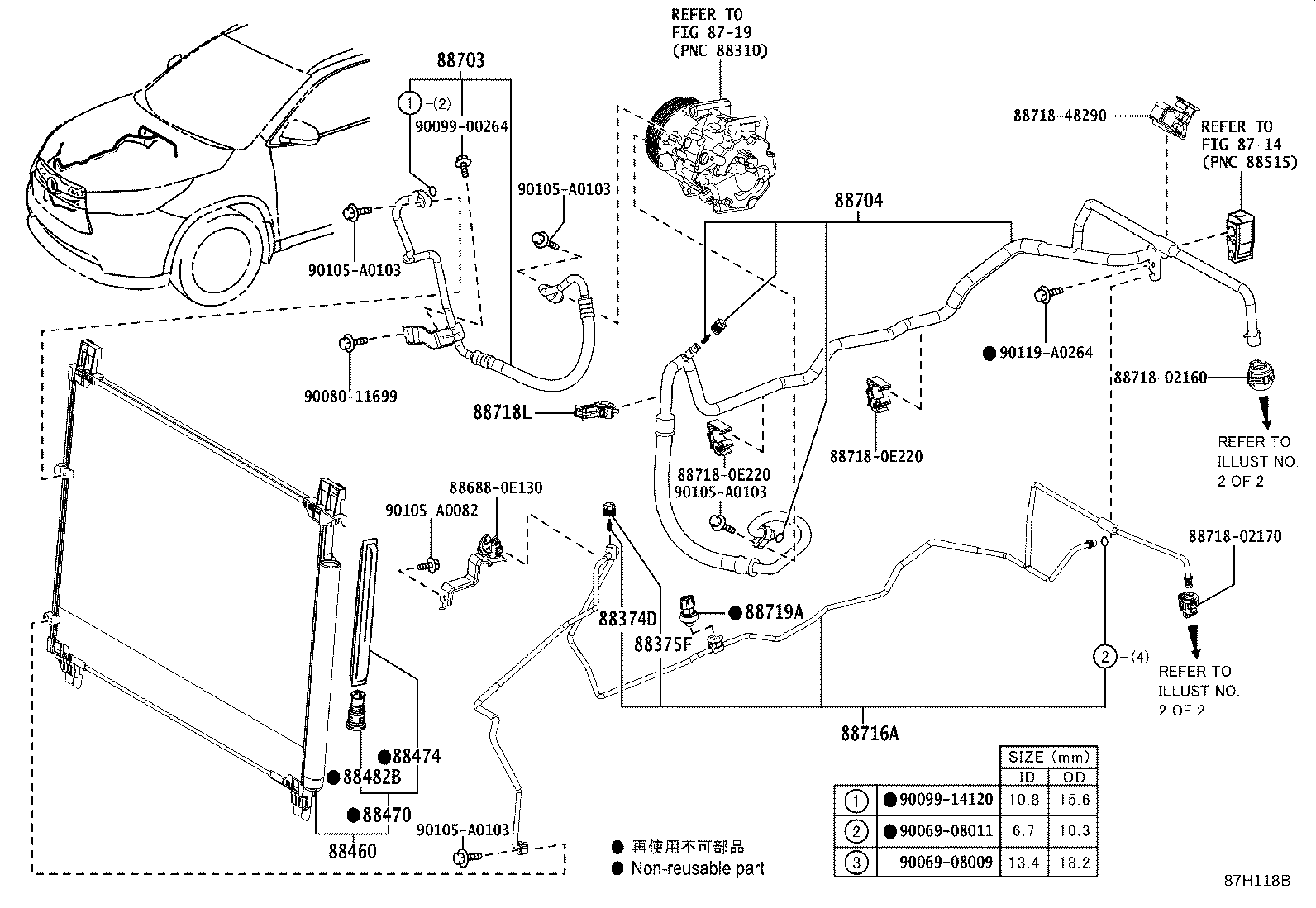

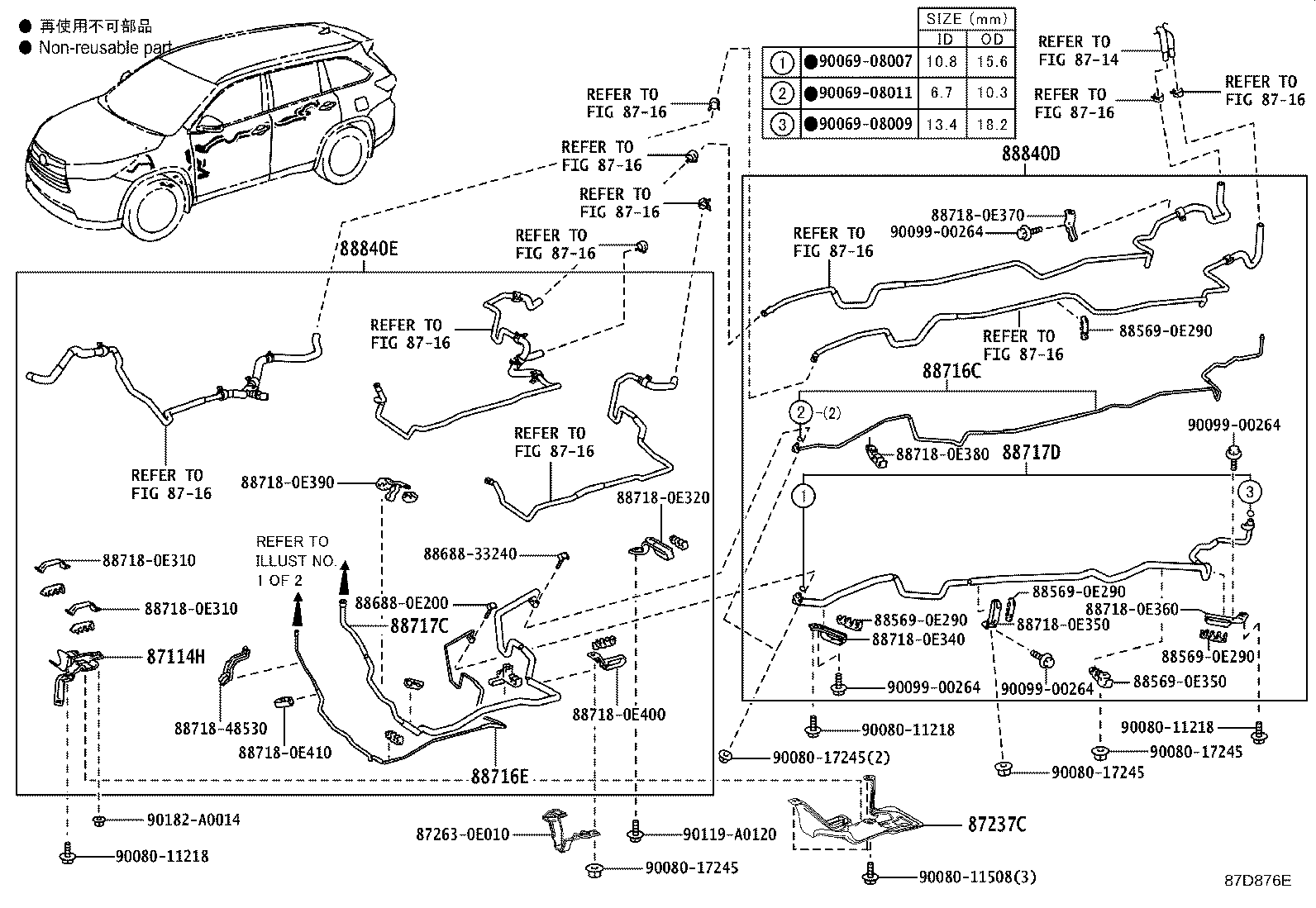

Figure 87D870G 87D870G 2013-12 → 2016-11 Figure 87G036B 87G036B 2016-11 → 2018-02 Figure 87H118B 87H118B 2018-02 → — Figure 87D872H 87D872H 2013-12 → — Figure 87D875G 87D875G 2013-12 → 2016-11 Figure 87G039B 87G039B 2016-11 → — Figure 87D873E 87D873E 2013-12 → 2016-11 Figure 87G038B 87G038B 2016-11 → — Figure 87D876E 87D876E 2013-12 → 2016-11 Figure 87G259C 87G259C 2016-11 → —

Part groups

PNCDescription
87114H Cover, Heater
87237C Cover, Heater Piping
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88474 Dryer, Cooler
88482B Cap, Cooler NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717U Tube, Suction, NO.1
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88840C Accessory Assy, Air Conditioner, NO.1
88840D Accessory Assy, Air Conditioner, NO.2
88840E Accessory Assy, Air Conditioner, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
