Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

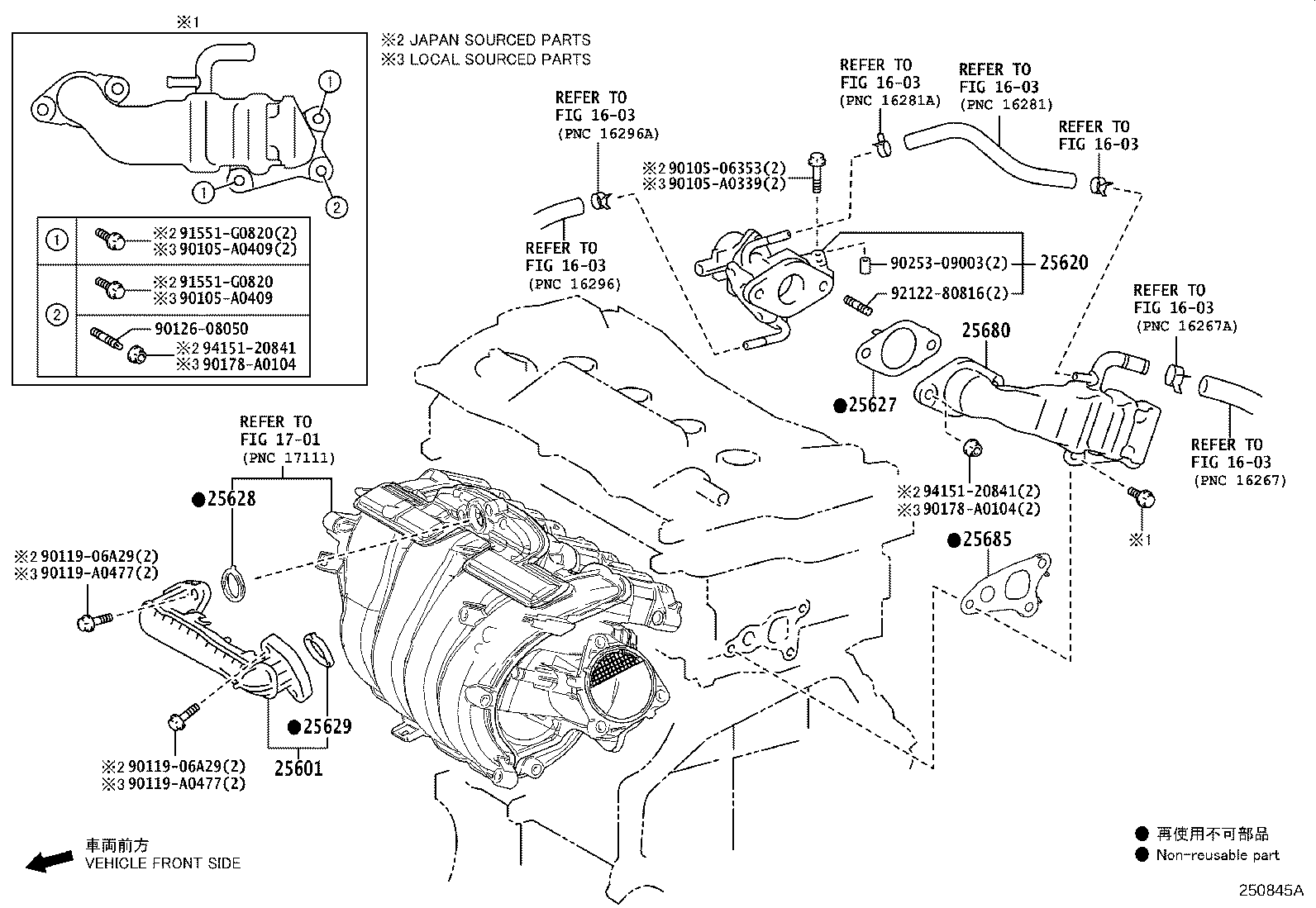

Exploded illustration 250845A 25620 — VALVE ASSY, EGR (8 parts) 1701 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 25627 — GASKET, EGR VALVE (8 parts) 25628 — GASKET, EGR INLET (3 parts) 25680 — COOLER ASSY, EGR (8 parts) 25685 — GASKET, EGR COOLER, NO.1 (3 parts) 91551G0820 — not listed in this catalogue 90105A0409 — not listed in this catalogue 91551G0820 — not listed in this catalogue 90105A0409 — not listed in this catalogue 9012608050 — not listed in this catalogue 9415120841 — not listed in this catalogue 90178A0104 — not listed in this catalogue 25601 — PIPE SUB-ASSY, EGR, NO.1 (8 parts) 25629 — GASKET, EGR VALVE ADAPTER (3 parts) 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 9011906A29 — not listed in this catalogue 90119A0477 — not listed in this catalogue 9011906A29 — not listed in this catalogue 90119A0477 — not listed in this catalogue 9025309003 — not listed in this catalogue 9010506353 — not listed in this catalogue 90105A0339 — not listed in this catalogue 9212280816 — not listed in this catalogue 9415120841 — not listed in this catalogue 90178A0104 — not listed in this catalogue
250845A · 7 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
25601 — Pipe Sub-assy, Egr, NO.1
25601-25011 note Pipe Sub-assy, Egr, NO.1
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25601-25030 note Pipe Sub-assy, Egr, NO.1
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25601-F0010 note Pipe Sub-assy, Egr, NO.1
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25601-F0020 note Pipe Sub-assy, Egr, NO.1
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25601-25030 note Pipe Sub-assy, Egr, NO.1
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25601-F0020 note Pipe Sub-assy, Egr, NO.1
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25601-25030 note Pipe Sub-assy, Egr, NO.1
2023-11 → —
A25AFXS AXUH7# —
25601-F0020 note Pipe Sub-assy, Egr, NO.1
2023-11 → —
A25AFXS AXUH7# —
25620 — Valve Assy, Egr
25620-24050 note Valve Assy, Egr
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25620-25040 note Valve Assy, Egr
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25620-F0020 note Valve Assy, Egr
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25620-F2010 note Valve Assy, Egr
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25620-24050 note Valve Assy, Egr
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25620-F2010 note Valve Assy, Egr
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25620-24050 note Valve Assy, Egr
2023-11 → —
A25AFXS AXUH7# —
25620-F2010 note Valve Assy, Egr
2023-11 → —
A25AFXS AXUH7# —
25627 — Gasket, Egr Valve
25627-24010 note Gasket, Egr Valve
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25627-25010 note Gasket, Egr Valve
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25627-F0010 note Gasket, Egr Valve
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25627-F2010 note Gasket, Egr Valve
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25627-24010 note Gasket, Egr Valve
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25627-F2010 note Gasket, Egr Valve
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25627-24010 note Gasket, Egr Valve
2023-11 → —
A25AFXS AXUH7# —
25627-F2010 note Gasket, Egr Valve
2023-11 → —
A25AFXS AXUH7# —
25628 — Gasket, Egr Inlet
25628-25010 note Gasket, Egr Inlet
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
25628-25010 note Gasket, Egr Inlet
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25628-25010 note Gasket, Egr Inlet
2023-11 → —
A25AFXS AXUH7# —
25629 — Gasket, Egr Valve Adapter
25629-25010 note Gasket, Egr Valve Adapter
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
25629-25010 note Gasket, Egr Valve Adapter
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25629-25010 note Gasket, Egr Valve Adapter
2023-11 → —
A25AFXS AXUH7# —
25680 — Cooler Assy, Egr
25680-25030 note Cooler Assy, Egr
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25680-25060 note Cooler Assy, Egr
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25680-F0020 note Cooler Assy, Egr
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
25680-F0030 note Cooler Assy, Egr
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
25680-25060 note Cooler Assy, Egr
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25680-F0030 note Cooler Assy, Egr
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25680-25060 note Cooler Assy, Egr
2023-11 → —
A25AFXS AXUH7# —
25680-F0030 note Cooler Assy, Egr
2023-11 → —
A25AFXS AXUH7# —
25685 — Gasket, Egr Cooler, NO.1
25685-25011 note Gasket, Egr Cooler, NO.1
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
25685-25011 note Gasket, Egr Cooler, NO.1
2022-10 → 2023-11 ended
A25AFXS AXUH7# —
25685-25011 note Gasket, Egr Cooler, NO.1
2023-11 → —
A25AFXS AXUH7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
