Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

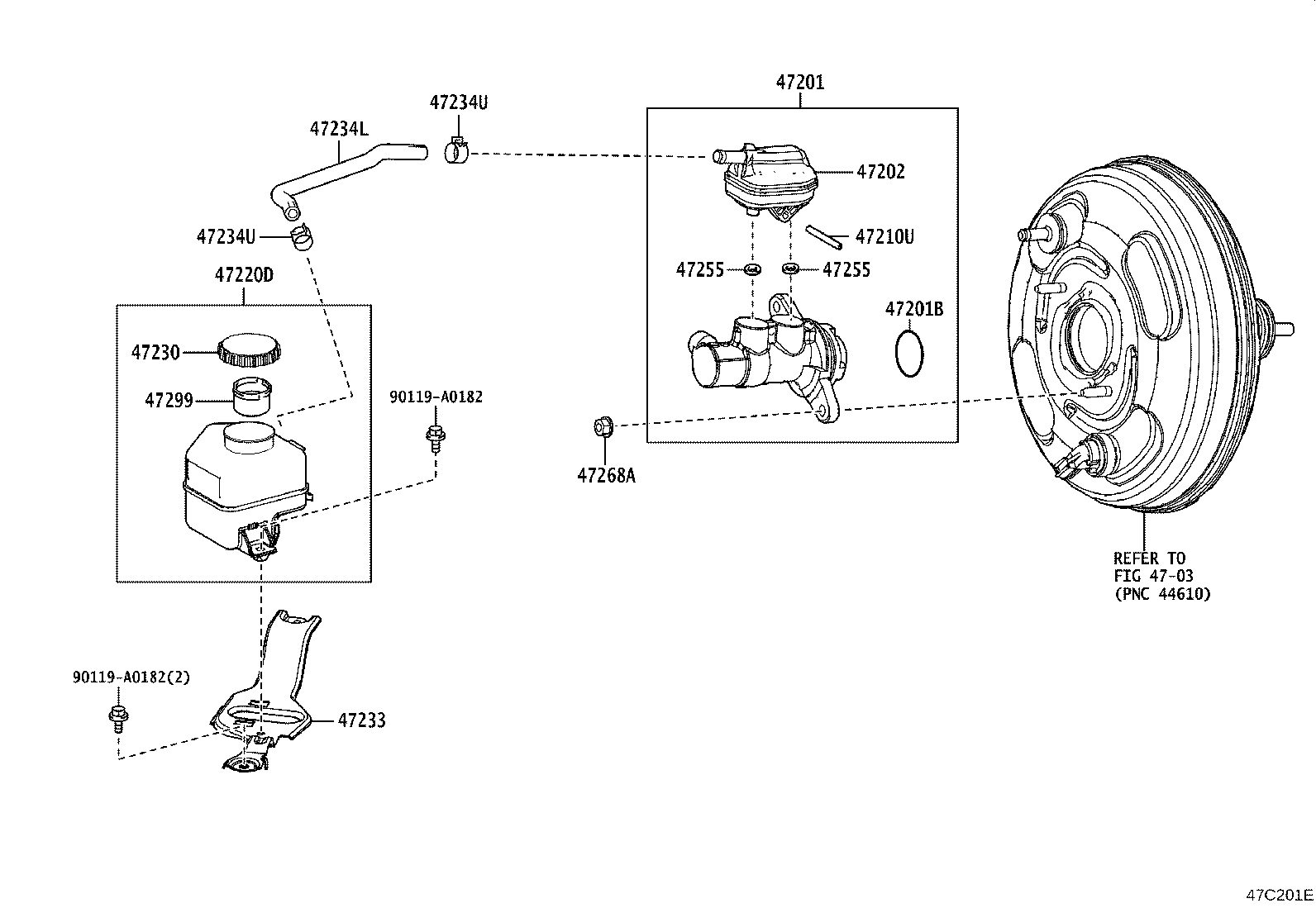

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-0E040 |
Cylinder Sub-assy, Brake Master
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47201-0E040 |
Cylinder Sub-assy, Brake Master
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47201-0E040 |
Cylinder Sub-assy, Brake Master
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47201-0E040 |
Cylinder Sub-assy, Brake Master
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-48200 |
Reservoir Sub-assy, Brake Master Cylinder
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47220-48200 |
Reservoir Sub-assy, Brake Master Cylinder
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47220-48200 |
Reservoir Sub-assy, Brake Master Cylinder
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47220-48200 |
Reservoir Sub-assy, Brake Master Cylinder
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47210U — Pin, Straight(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90029-15803 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 90029-15803 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90029-15803 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-0E140 |
Reservoir Assy, Brake Master Cylinder
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47220-48240 |
Reservoir Assy, Brake Master Cylinder
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 47220-0E140 |
Reservoir Assy, Brake Master Cylinder
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47220-48240 |
Reservoir Assy, Brake Master Cylinder
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 47220-0E140 |
Reservoir Assy, Brake Master Cylinder
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47220-0E140 |
Reservoir Assy, Brake Master Cylinder
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47220-48240 |
Reservoir Assy, Brake Master Cylinder
2023-11 → —
|
AXUH7# | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-02310 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2021-09 → 2022-10
ended
|
GSU7# | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2019-12 → 2021-09
ended
|
GSU7# | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2019-12 → 2022-10
ended
|
AXUH7# | — | |
| 47230-02310 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 47230-02310 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47230-02310 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2023-11 → —
|
AXUH7# | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-0E140 |
Bracket, Reservoir
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47233-0E160 |
Bracket, Reservoir
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 47233-0E140 |
Bracket, Reservoir
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47233-0E160 |
Bracket, Reservoir
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 47233-0E140 |
Bracket, Reservoir
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47233-0E140 |
Bracket, Reservoir
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47233-0E160 |
Bracket, Reservoir
2023-11 → —
|
AXUH7# | — | |
| 47234L — Hose, Reservoir, NO.1 | ||||
| 47234-0E120 |
Hose, Reservoir, NO.1
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 47234-0E140 |
Hose, Reservoir, NO.1
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47234-0E120 |
Hose, Reservoir, NO.1
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 47234-0E140 |
Hose, Reservoir, NO.1
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47234-0E120 |
Hose, Reservoir, NO.1
2023-11 → —
|
AXUH7# | — | |
| 47234-0E140 |
Hose, Reservoir, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47234-0E140 |
Hose, Reservoir, NO.1
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47234U — Clip(FOR RESERVOIR HOSE NO.1) | ||||
| 90466-A0017 |
Clip(FOR RESERVOIR HOSE NO.1)
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90466-A0017 |
Clip(FOR RESERVOIR HOSE NO.1)
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90466-A0017 |
Clip(FOR RESERVOIR HOSE NO.1)
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90466-A0017 |
Clip(FOR RESERVOIR HOSE NO.1)
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2023-11 → —
|
AXUH7# | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47268A — Nut, Brake Master Cylinder | ||||
| 90080-18070 |
Nut, Brake Master Cylinder
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90080-18070 |
Nut, Brake Master Cylinder
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 90080-18070 |
Nut, Brake Master Cylinder
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-18070 |
Nut, Brake Master Cylinder
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
