Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

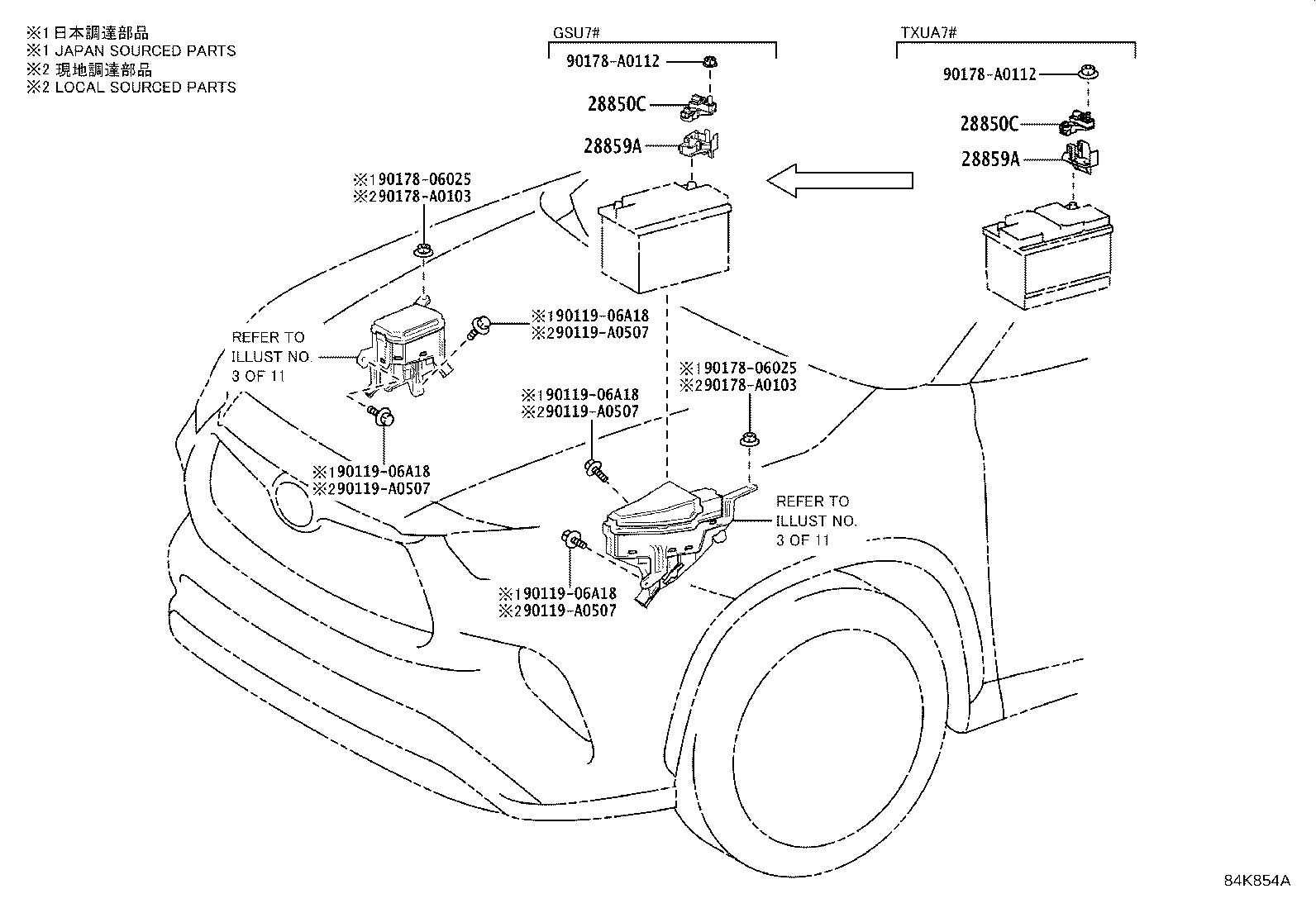

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 N | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-F0040 |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 28850-25020 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 G,N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 M,N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 N | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA7# | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2023-11 → 2024-10
ended
|
T24AFTS TXUA70 S | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 G,N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 M,N | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2023-11 → —
|
T24AFTS TXUA75;A25AFXS,T24AFTS AXUH7#,TXUA70 G,M,N | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-F0030 |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 N | — | |
| 28859-F0070 |
Holder, Battery Current Sensor
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 28859-F0070 |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA7# | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 N | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 G,N | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 M,N | — | |
| 28859-F0120 |
Holder, Battery Current Sensor
2023-11 → —
|
A25AFXS AXUH7# | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2023-11 → 2024-10
ended
|
T24AFTS TXUA70 S | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 G,N | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 M,N | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2023-11 → —
|
T24AFTS TXUA75;T24AFTS TXUA70 G,M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
