Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

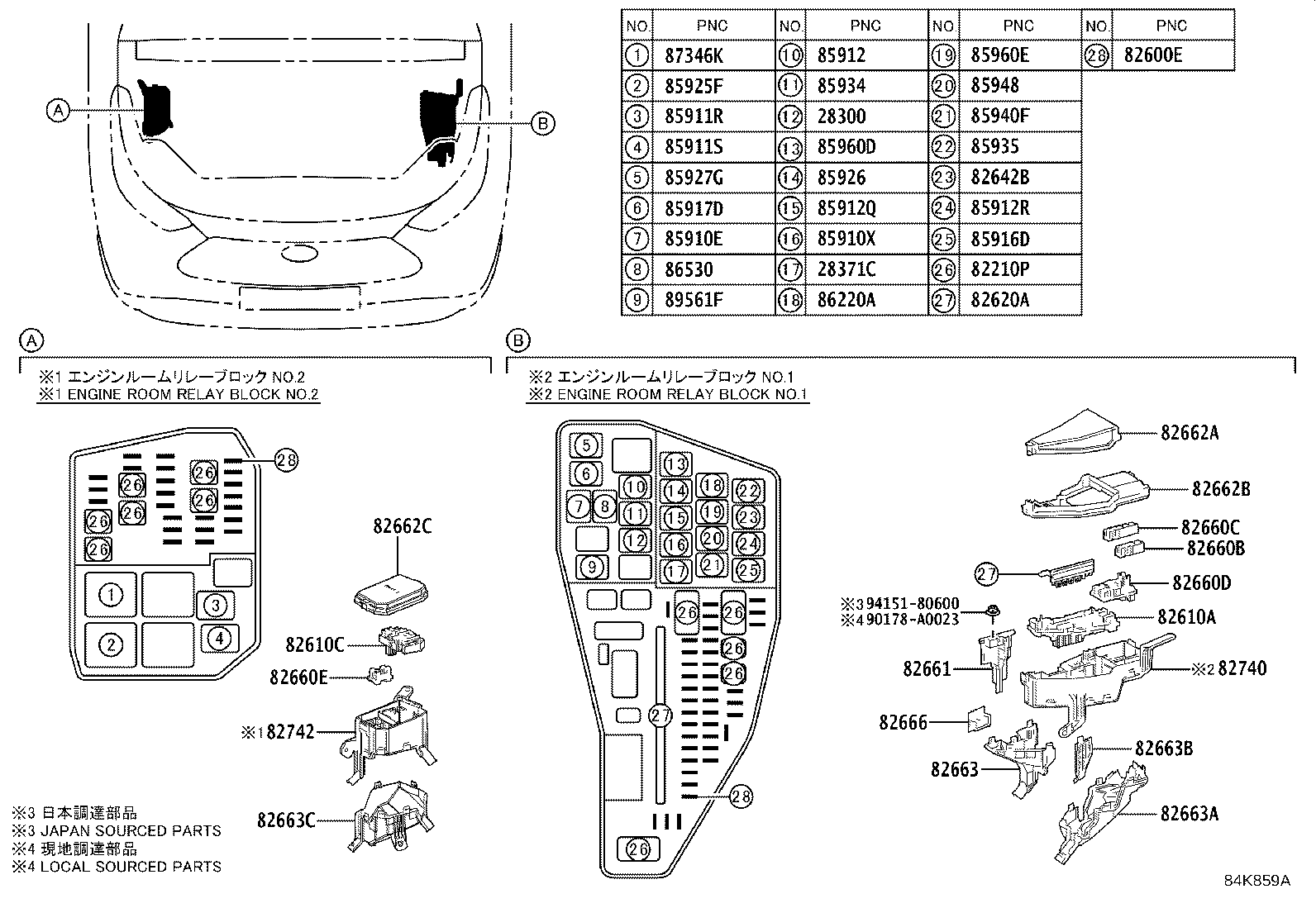

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300 — Relay Assy, Starter | ||||
| 28300-0A011 |
Relay Assy, Starter
2019-12 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 28300-0A011 |
Relay Assy, Starter
2022-10 → 2023-11
ended
|
T24AFTS TXUA7# | — | |
| 28300-0A011 |
Relay Assy, Starter
2023-11 → —
|
T24AFTS TXUA75;T24AFTS TXUA70 G,M,N | — | |
| 28300-0A011 |
Relay Assy, Starter
2023-11 → 2024-10
ended
|
T24AFTS TXUA70 S | — | |
| 28371C — Relay, Ignition, NO.2 | ||||
| 90080-87026 note |
Relay, Ignition, NO.2
2019-12 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 90987-02027 note |
Relay, Ignition, NO.2
2019-12 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 90080-87026 note |
Relay, Ignition, NO.2
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA7# | — | |
| 90987-02027 note |
Relay, Ignition, NO.2
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA7# | — | |
| 82210P — Engine Room Fusible Link | ||||
| 90982-08298 note |
Engine Room Fusible Link
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-08302 note |
Engine Room Fusible Link
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-08308 note |
Engine Room Fusible Link
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-08312 note |
Engine Room Fusible Link
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-08298 note |
Engine Room Fusible Link
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-08302 note |
Engine Room Fusible Link
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-08308 note |
Engine Room Fusible Link
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-08312 note |
Engine Room Fusible Link
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-08298 note |
Engine Room Fusible Link
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-08298 note |
Engine Room Fusible Link
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-08302 note |
Engine Room Fusible Link
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-08302 note |
Engine Room Fusible Link
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-08308 note |
Engine Room Fusible Link
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-08308 note |
Engine Room Fusible Link
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-08312 note |
Engine Room Fusible Link
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-08312 note |
Engine Room Fusible Link
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82600E — Engine Room Fuse | ||||
| 90982-09019 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09020 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09021 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09022 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09023 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09024 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09025 note |
Engine Room Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90982-09019 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09020 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09021 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09022 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09023 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09024 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09025 note |
Engine Room Fuse
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90982-09019 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09019 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09020 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09020 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09021 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09021 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09022 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09022 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09023 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09023 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09024 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09024 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90982-09025 note |
Engine Room Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90982-09025 note |
Engine Room Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82610A — Block Assy, Fuse | ||||
| 82610-0E040 |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82610-0E050 |
Block Assy, Fuse
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 82610-0E040 |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82610-0E040 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82610-0E040 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82610-0E040 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82610-0E040 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82610-0E050 |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82610-0E040 |
Block Assy, Fuse
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82610-0E040 |
Block Assy, Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82610-0E050 |
Block Assy, Fuse
2023-11 → —
|
AXUH7# | — | |
| 82610C — Block Assy, Fuse | ||||
| 82610-0E060 note |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82610-0E060 note |
Block Assy, Fuse
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2021-10 → 2022-10
ended
|
AXUH78 M | — | |
| 82610-0E060 note |
Block Assy, Fuse
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2021-10 → 2022-10
ended
|
AXUH78,GSU75 M,S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2020-09 → 2022-10
ended
|
GSU7# S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2020-09 → 2022-10
ended
|
GSU75 M,N | — | |
| 82610-0E060 note |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU7# M,N,S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82610-0E060 note |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82610-0E060 note |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 82610-0E060 |
Block Assy, Fuse
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82610-0E060 |
Block Assy, Fuse
2023-04 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82610-0E060 |
Block Assy, Fuse
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-04
ended
|
AXUH70 G | — | |
| 82610-0E060 note |
Block Assy, Fuse
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82610-0E060 |
Block Assy, Fuse
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82610-0E060 |
Block Assy, Fuse
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-0E060 |
Block Assy, Fusible Link
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82620-0E070 |
Block Assy, Fusible Link
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 82620-0E060 note |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82620-0E060 note |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82620-0E060 note |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82620-0E060 note |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82620-0E060 |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82620-0E070 |
Block Assy, Fusible Link
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82620-0E060 |
Block Assy, Fusible Link
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82620-0E060 |
Block Assy, Fusible Link
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82620-0E070 |
Block Assy, Fusible Link
2023-11 → —
|
AXUH7# | — | |
| 82642B — Relay, Day Time Running Light, NO.1 | ||||
| 90080-87026 |
Relay, Day Time Running Light, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,S | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 90080-87026 |
Relay, Day Time Running Light, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G,S | — | |
| 90080-87026 |
Relay, Day Time Running Light, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2023-11 → 2023-12
ended
|
AXUH70,TXUA70 G | — | |
| 90080-87026 note |
Relay, Day Time Running Light, NO.1
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 90080-87026 |
Relay, Day Time Running Light, NO.1
2023-11 → —
|
TXUA75 G,S;AXUH7#,TXUA70 G | — | |
| 82660B — Block Assy, Relay | ||||
| 82660-0E050 |
Block Assy, Relay
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82660-0E050 |
Block Assy, Relay
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82660-0E050 |
Block Assy, Relay
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82660-0E050 |
Block Assy, Relay
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82660C — Block Assy, Relay | ||||
| 82660-0E060 |
Block Assy, Relay
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82660-0E060 |
Block Assy, Relay
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82660-0E060 |
Block Assy, Relay
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82660-0E060 |
Block Assy, Relay
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82660D — Block Assy, Relay | ||||
| 82660-0E070 |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82660-0E080 |
Block Assy, Relay
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 82660-0E070 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82660-0E070 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82660-0E070 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82660-0E070 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82660-0E070 |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82660-0E080 |
Block Assy, Relay
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82660-0E070 |
Block Assy, Relay
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82660-0E070 |
Block Assy, Relay
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82660-0E080 |
Block Assy, Relay
2023-11 → —
|
AXUH7# | — | |
| 82660E — Block Assy, Relay | ||||
| 82660-0E090 note |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82660-0E090 note |
Block Assy, Relay
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82660-0E090 note |
Block Assy, Relay
2021-10 → 2022-10
ended
|
AXUH78 M | — | |
| 82660-0E090 note |
Block Assy, Relay
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82660-0E090 note |
Block Assy, Relay
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82660-0E090 note |
Block Assy, Relay
2021-10 → 2022-10
ended
|
AXUH78,GSU75 M,S | — | |
| 82660-0E090 note |
Block Assy, Relay
2020-09 → 2022-10
ended
|
GSU7# S | — | |
| 82660-0E090 note |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU7# M,N,S | — | |
| 82660-0E090 note |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82660-0E090 note |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82660-0E090 note |
Block Assy, Relay
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 82660-0E090 |
Block Assy, Relay
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 82660-0E090 note |
Block Assy, Relay
2020-09 → 2022-10
ended
|
GSU75 M,N | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82660-0E090 |
Block Assy, Relay
2023-04 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82660-0E090 |
Block Assy, Relay
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82660-0E090 note |
Block Assy, Relay
2022-10 → 2023-04
ended
|
AXUH70 G | — | |
| 82660-0E090 |
Block Assy, Relay
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82660-0E090 |
Block Assy, Relay
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82661-0E060 |
Cover, Relay Block, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82661-0E060 |
Cover, Relay Block, NO.1
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82661-0E060 |
Cover, Relay Block, NO.1
2023-11 → —
|
AXUH7# | — | |
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-0E360 |
Cover, Relay Block, Upper, NO.1
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82662-0E370 |
Cover, Relay Block, Upper, NO.1
2020-02 → 2021-10
ended
|
AXUH7# | — | |
| 82662-0E371 |
Cover, Relay Block, Upper, NO.1
2021-10 → 2022-10
ended
|
AXUH7# | — | |
| 82662-0E361 |
Cover, Relay Block, Upper, NO.1
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 82662-0E372 |
Cover, Relay Block, Upper, NO.1
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82662-0EB70 |
Cover, Relay Block, Upper, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82662-0EB70 |
Cover, Relay Block, Upper, NO.1
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82662-0EB80 |
Cover, Relay Block, Upper, NO.1
2023-11 → —
|
AXUH7# | — | |
| 82662B — Cover, Relay Block, Upper, NO.2 | ||||
| 82662-0E460 |
Cover, Relay Block, Upper, NO.2
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82662-0E460 |
Cover, Relay Block, Upper, NO.2
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82662-0E460 |
Cover, Relay Block, Upper, NO.2
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82662-0E460 |
Cover, Relay Block, Upper, NO.2
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82662C — Cover, Relay Block, Upper, NO.3 | ||||
| 82662-0E400 note |
Cover, Relay Block, Upper, NO.3
2019-12 → 2022-10
ended
|
GSU7# M,N,S | — | |
| 82662-0E400 note |
Cover, Relay Block, Upper, NO.3
2021-10 → 2022-10
ended
|
GSU75 M,S | — | |
| 82662-0E400 note |
Cover, Relay Block, Upper, NO.3
2021-10 → 2022-10
ended
|
AXUH78,GSU75 M,S | — | |
| 82662-0E400 |
Cover, Relay Block, Upper, NO.3
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 82662-0E401 |
Cover, Relay Block, Upper, NO.3
2022-10 → 2023-11
ended
|
TXUA7#;AXUH7# G | — | |
| 82662-0E401 note |
Cover, Relay Block, Upper, NO.3
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82662-0EC00 |
Cover, Relay Block, Upper, NO.3
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82662-0EC00 |
Cover, Relay Block, Upper, NO.3
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82663 — Cover, Relay Block, Lower | ||||
| 82663-0E110 |
Cover, Relay Block, Lower
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82663-0E110 |
Cover, Relay Block, Lower
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82663-0E110 |
Cover, Relay Block, Lower
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82663-0E110 |
Cover, Relay Block, Lower
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82663A — Cover, Relay Block, Lower, NO.2 | ||||
| 82663-0E070 |
Cover, Relay Block, Lower, NO.2
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82663-0E080 |
Cover, Relay Block, Lower, NO.2
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 82663-0E070 |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82663-0E070 note |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82663-0E070 note |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82663-0E070 note |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82663-0E070 note |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82663-0E080 |
Cover, Relay Block, Lower, NO.2
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82663-0E070 |
Cover, Relay Block, Lower, NO.2
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82663-0E070 |
Cover, Relay Block, Lower, NO.2
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82663-0E080 |
Cover, Relay Block, Lower, NO.2
2023-11 → —
|
AXUH7# | — | |
| 82663B — Cover, Relay Block, Lower, NO.3 | ||||
| 82663-0E120 |
Cover, Relay Block, Lower, NO.3
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 82663-0E130 |
Cover, Relay Block, Lower, NO.3
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 82663-0E120 |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82663-0E120 note |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82663-0E120 note |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 82663-0E120 note |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82663-0E120 note |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
TXUA70 G | — | |
| 82663-0E130 |
Cover, Relay Block, Lower, NO.3
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 82663-0E120 |
Cover, Relay Block, Lower, NO.3
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82663-0E120 |
Cover, Relay Block, Lower, NO.3
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 82663-0E130 |
Cover, Relay Block, Lower, NO.3
2023-11 → —
|
AXUH7# | — | |
| 82663C — Cover, Relay Block Lower, NO.4 | ||||
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2021-10 → 2022-10
ended
|
AXUH78,GSU75 M,S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2020-09 → 2022-10
ended
|
GSU7# S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2021-10 → 2022-10
ended
|
AXUH78 M | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
GSU7# M,N,S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2020-09 → 2022-10
ended
|
GSU75 M,N | — | |
| 82663-0E090 |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82663-0E090 |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82663-0E090 |
Cover, Relay Block Lower, NO.4
2023-04 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 82663-0E090 note |
Cover, Relay Block Lower, NO.4
2022-10 → 2023-04
ended
|
AXUH70 G | — | |
| 82663-0E090 |
Cover, Relay Block Lower, NO.4
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82663-0E090 |
Cover, Relay Block Lower, NO.4
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82666 — Holder, Connector | ||||
| 82666-0E240 |
Holder, Connector
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82666-0E240 |
Holder, Connector
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82666-0E240 |
Holder, Connector
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82666-0E240 |
Holder, Connector
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82740 — Block Assy, Engine Room Relay | ||||
| 82740-0E070 |
Block Assy, Engine Room Relay
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 82740-0E070 |
Block Assy, Engine Room Relay
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 82740-0E070 |
Block Assy, Engine Room Relay
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82740-0E070 |
Block Assy, Engine Room Relay
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 82742 — Block, Engine Room Relay, NO.2 | ||||
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2021-10 → 2022-10
ended
|
AXUH78 M | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2021-10 → 2022-10
ended
|
GSU75 S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2021-10 → 2022-10
ended
|
AXUH78,GSU75 M,S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2020-09 → 2022-10
ended
|
GSU7# S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
GSU7# M,N,S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
GSU70 M,N | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 82742-0E010 |
Block, Engine Room Relay, NO.2
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2020-09 → 2022-10
ended
|
GSU75 M,N | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82742-0E010 |
Block, Engine Room Relay, NO.2
2023-04 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-11
ended
|
AXUH78 M | — | |
| 82742-0E010 |
Block, Engine Room Relay, NO.2
2022-10 → 2023-11
ended
|
TXUA7# M,N,S | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-04
ended
|
AXUH7#,TXUA7# G | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-04
ended
|
TXUA70 G | — | |
| 82742-0E010 note |
Block, Engine Room Relay, NO.2
2022-10 → 2023-04
ended
|
AXUH70 G | — | |
| 82742-0E010 |
Block, Engine Room Relay, NO.2
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82742-0E010 |
Block, Engine Room Relay, NO.2
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 85910E — Relay, Injector | ||||
| 90080-87026 note |
Relay, Injector
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90987-02027 note |
Relay, Injector
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 note |
Relay, Injector
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90987-02027 note |
Relay, Injector
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 note |
Relay, Injector
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90080-87026 note |
Relay, Injector
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90987-02027 note |
Relay, Injector
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90987-02027 note |
Relay, Injector
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 85910X — Relay, Heater Mirror | ||||
| 90080-87026 |
Relay, Heater Mirror
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# M,N,S | — | |
| 90080-87026 note |
Relay, Heater Mirror
2020-02 → 2022-10
ended
|
AXUH7# M | — | |
| 90080-87026 |
Relay, Heater Mirror
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# M,N,S | — | |
| 90080-87026 note |
Relay, Heater Mirror
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 85911R — Relay, Rear Seat Heater, RH | ||||
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2023-11 → 2024-11
ended
|
AXUH70,TXUA70 G | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, RH
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, RH
2023-11 → 2024-11
ended
|
AXUH70,TXUA70 G | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, RH
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 85911S — Relay, Rear Seat Heater, LH | ||||
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G,M,S | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH78,TXUA7# N | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G,M,S | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH78,TXUA7# N | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 90080-87026 note |
Relay, Rear Seat Heater, LH
2023-11 → —
|
AXUH78,TXUA75 N | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2023-11 → —
|
AXUH78,TXUA75 N | — | |
| 90987-02027 note |
Relay, Rear Seat Heater, LH
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 85912 — Relay, Defogger | ||||
| 90084-98032 |
Relay, Defogger
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90084-98032 |
Relay, Defogger
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 85912Q — Relay, Front Seat Heater, RH | ||||
| 90080-87026 note |
Relay, Front Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,M,S | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH78,GSU7# N | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,M,S | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2019-12 → 2022-10
ended
|
AXUH78,GSU7# N | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G,M,S | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH78,TXUA7# N | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH78,TXUA7# N | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G,M,S | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 90080-87026 note |
Relay, Front Seat Heater, RH
2023-11 → —
|
AXUH78,TXUA75 N | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 90987-02027 note |
Relay, Front Seat Heater, RH
2023-11 → —
|
AXUH78,TXUA75 N | — | |
| 85912R — Relay, Front Seat Heater, LH | ||||
| 90080-87026 note |
Relay, Front Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,M,S | — | |
| 90080-87026 note |
Relay, Front Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH78,GSU7# N | — | |
| 90987-02027 note |
Relay, Front Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,M,S | — | |
| 90987-02027 note |
Relay, Front Seat Heater, LH
2019-12 → 2022-10
ended
|
AXUH78,GSU7# N | — | |
| 90080-87026 note |
Relay, Front Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90987-02027 note |
Relay, Front Seat Heater, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90080-87026 note |
Relay, Front Seat Heater, LH
2023-11 → 2024-11
ended
|
AXUH70,TXUA70 G | — | |
| 90080-87026 note |
Relay, Front Seat Heater, LH
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 90987-02027 note |
Relay, Front Seat Heater, LH
2023-11 → 2024-11
ended
|
AXUH70,TXUA70 G | — | |
| 90987-02027 note |
Relay, Front Seat Heater, LH
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90080-87026 |
Relay, Fog Lamp
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 note |
Relay, Fog Lamp
2019-12 → 2022-10
ended
|
GSU7# N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2019-12 → 2022-10
ended
|
GSU7# N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2022-10 → 2023-11
ended
|
AXUH70 N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 90080-87026 |
Relay, Fog Lamp
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 note |
Relay, Fog Lamp
2023-11 → 2023-12
ended
|
TXUA7# N | — | |
| 90080-87026 |
Relay, Fog Lamp
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay, Fog Lamp
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2023-11 → —
|
TXUA75 N | — | |
| 90080-87026 note |
Relay, Fog Lamp
2023-11 → —
|
AXUH70 N | — | |
| 85917D — Relay, Heater(FOR AIR FUEL RATIO SENSOR) | ||||
| 90080-87026 note |
Relay, Heater(FOR AIR FUEL RATIO SENSOR)
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90987-02027 note |
Relay, Heater(FOR AIR FUEL RATIO SENSOR)
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 85925F — Relay, Ptc Heater NO.2 | ||||
| 90080-87024 note |
Relay, Ptc Heater NO.2
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2022-10 → 2023-11
ended
|
TXUA70 N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2022-10 → 2023-11
ended
|
TXUA70 G,N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2022-10 → 2023-11
ended
|
TXUA70 M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater NO.2
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 90080-87026 note |
Relay, Headlamp Dimmer
2020-09 → 2021-05
ended
|
AXUH78 M | — | |
| 90080-87026 |
Relay, Headlamp Dimmer
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G,S | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 90080-87026 |
Relay, Headlamp Dimmer
2020-09 → 2022-10
ended
|
AXUH7#,GSU7# M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2020-09 → 2022-10
ended
|
GSU70 N;AXUH78,GSU75 M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2020-09 → 2022-10
ended
|
GSU70 M,N | — | |
| 90080-87026 |
Relay, Headlamp Dimmer
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2022-10 → 2023-11
ended
|
AXUH70 M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2022-10 → 2023-11
ended
|
TXUA70 N;AXUH78,TXUA75 M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2023-11 → 2023-12
ended
|
AXUH70,TXUA70 G | — | |
| 90080-87026 |
Relay, Headlamp Dimmer
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay, Headlamp Dimmer
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2023-11 → —
|
AXUH78,TXUA75 M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2023-11 → —
|
AXUH70 M,N | — | |
| 90080-87026 note |
Relay, Headlamp Dimmer
2023-11 → —
|
AXUH78,TXUA75 G | — | |
| 85927G — Relay, Air Conditioner Water Pump | ||||
| 90987-02028 |
Relay, Air Conditioner Water Pump
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90987-02028 note |
Relay, Air Conditioner Water Pump
2022-10 → 2023-11
ended
|
TXUA70 M,N | — | |
| 90987-02028 note |
Relay, Air Conditioner Water Pump
2022-10 → 2023-11
ended
|
TXUA70 N | — | |
| 90987-02028 |
Relay, Air Conditioner Water Pump
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 90987-02028 note |
Relay, Air Conditioner Water Pump
2022-10 → 2023-11
ended
|
TXUA70 G,N | — | |
| 90987-02028 |
Relay, Air Conditioner Water Pump
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 90987-02028 note |
Relay, Air Conditioner Water Pump
2023-11 → —
|
TXUA70 G,N | — | |
| 90987-02028 note |
Relay, Air Conditioner Water Pump
2023-11 → —
|
TXUA70 M,N | — | |
| 90987-02028 |
Relay, Air Conditioner Water Pump
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 85934 — Relay, Magnet-clutch | ||||
| 90080-87026 |
Relay, Magnet-clutch
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 85935 — Relay, Fuel Pump | ||||
| 90080-87026 note |
Relay, Fuel Pump
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90987-02027 note |
Relay, Fuel Pump
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 85940F — Relay Assy, Windshield Deicer | ||||
| 90080-87026 |
Relay Assy, Windshield Deicer
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 |
Relay Assy, Windshield Deicer
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 |
Relay Assy, Windshield Deicer
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay Assy, Windshield Deicer
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 85948 — Relay, Windshield Wiper | ||||
| 90080-87026 |
Relay, Windshield Wiper
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 |
Relay, Windshield Wiper
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 |
Relay, Windshield Wiper
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay, Windshield Wiper
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 85960D — Relay, Headlamp, RH | ||||
| 90080-87026 |
Relay, Headlamp, RH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 |
Relay, Headlamp, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 |
Relay, Headlamp, RH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay, Headlamp, RH
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 85960E — Relay, Headlamp, LH | ||||
| 90080-87026 |
Relay, Headlamp, LH
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 |
Relay, Headlamp, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 |
Relay, Headlamp, LH
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90080-87026 |
Relay, Headlamp, LH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 86220A — Relay, Inverter | ||||
| 90080-87026 |
Relay, Inverter
2019-12 → 2022-10
ended
|
GSU7# G | — | |
| 90080-87026 |
Relay, Inverter
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 90080-87026 |
Relay, Inverter
2023-11 → —
|
TXUA7# G | — | |
| 86530 — Relay Assy, Horn | ||||
| 90080-87026 |
Relay Assy, Horn
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 |
Relay Assy, Horn
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 |
Relay Assy, Horn
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 |
Relay Assy, Horn
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 87346K — Relay, Ptc Heater | ||||
| 90080-87024 note |
Relay, Ptc Heater
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 90080-87024 note |
Relay, Ptc Heater
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2019-12 → 2022-10
ended
|
GSU70 G,M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2022-10 → 2023-11
ended
|
TXUA70 N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2022-10 → 2023-11
ended
|
TXUA70 G,N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2022-10 → 2023-11
ended
|
TXUA70 M,N | — | |
| 90080-87024 note |
Relay, Ptc Heater
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 89561F — Relay, Electronic Fuel Injection Main, NO.1 | ||||
| 90080-87026 note |
Relay, Electronic Fuel Injection Main, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90987-02027 note |
Relay, Electronic Fuel Injection Main, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90080-87026 note |
Relay, Electronic Fuel Injection Main, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90987-02027 note |
Relay, Electronic Fuel Injection Main, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 90080-87026 note |
Relay, Electronic Fuel Injection Main, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90080-87026 note |
Relay, Electronic Fuel Injection Main, NO.1
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 90987-02027 note |
Relay, Electronic Fuel Injection Main, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 90987-02027 note |
Relay, Electronic Fuel Injection Main, NO.1
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
