Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

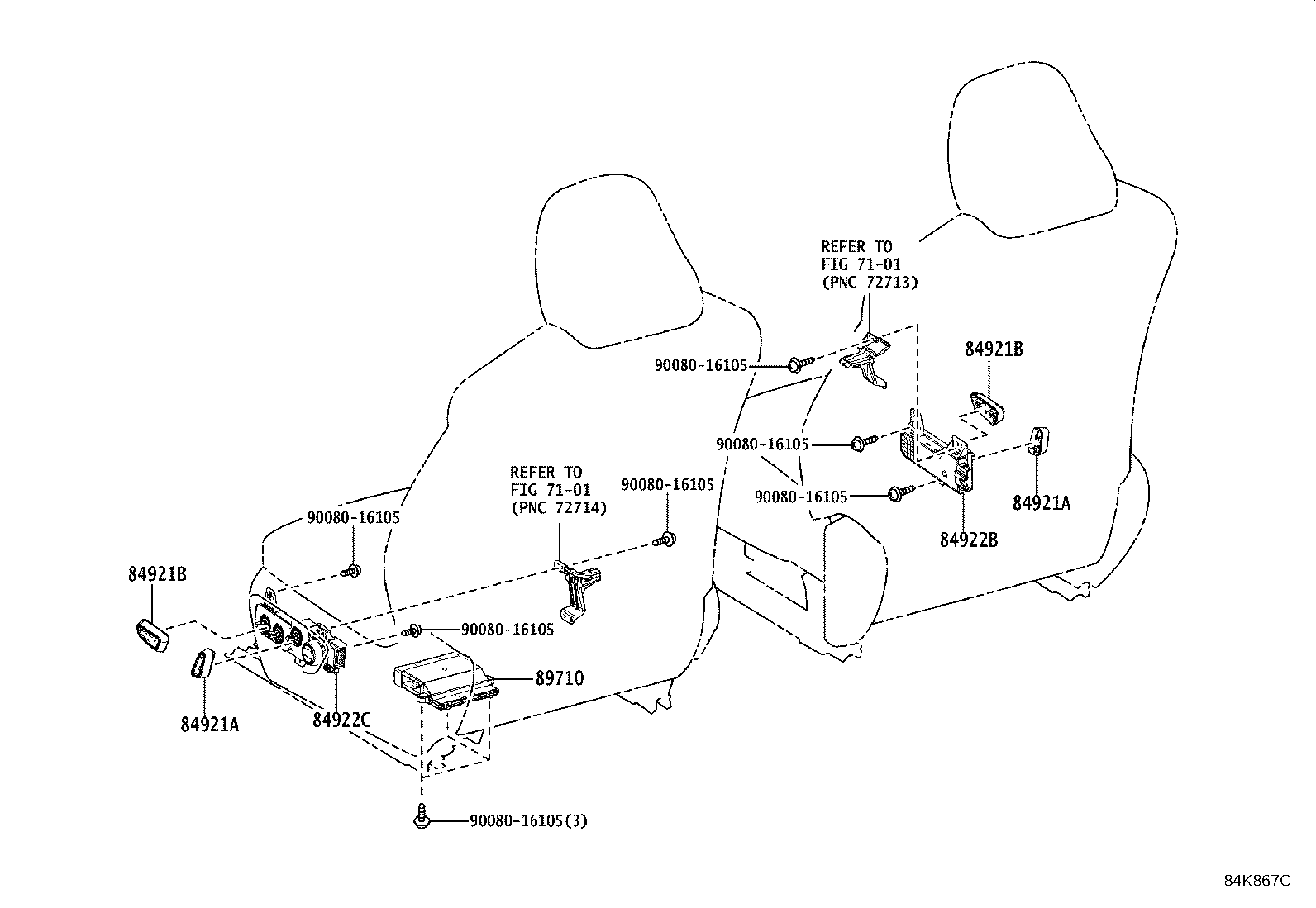

Exploded illustration 84K867C 9008016105 — not listed in this catalogue 84921B — KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) (46 parts) 84921A — KNOB, POWER SEAT SWITCH (FOR RECLINING) (46 parts) 84921B — KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) (46 parts) 84921A — KNOB, POWER SEAT SWITCH (FOR RECLINING) (46 parts) 84922B — SWITCH, FRONT POWER SEAT, RH (5 parts) 84922C — SWITCH, FRONT POWER SEAT, LH (32 parts) 89710 — COMPUTER ASSY, POSITION CONTROL (5 parts) 9008016105 — not listed in this catalogue 9008016105 — not listed in this catalogue 9008016105 — not listed in this catalogue 7101 — not listed in this catalogue 7101 — not listed in this catalogue 9008016105 — not listed in this catalogue 9008016105 — not listed in this catalogue 9008016105 — not listed in this catalogue
84K867C · 7 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
134 parts on this figure
Part number Description Fitment Price
84921A — Knob, Power Seat Switch (FOR RECLINING)
84921-06190-B1 note Knob, Power Seat Switch (FOR RECLINING)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06190-B1 note Knob, Power Seat Switch (FOR RECLINING)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06190-B1 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7# G,N;GSU7# G,M,N —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7# N;GSU7# M,N —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2020-09 → 2022-10 ended
GSU7# S —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# M —
84921-06210-B1 note Knob, Power Seat Switch (FOR RECLINING)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06210-B1 note Knob, Power Seat Switch (FOR RECLINING)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06210-B1 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7# G;GSU7# G,M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
GSU7# M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2020-09 → 2022-10 ended
GSU7# S —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2019-12 → 2022-10 ended
AXUH7#,GSU7# M —
84921-06190-B1 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,M,N —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
TXUA7# S —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M,N —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06210-B1 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
TXUA7# S —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06190-B1 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G,M,N —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → 2024-10 ended
TXUA70 S —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
TXUA75 S —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06190-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# M,N —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06190-E0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# M —
84921-06210-B1 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G,M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → 2024-10 ended
TXUA70 S —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# M —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
TXUA75 S —
84921-06210-C0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06210-E0 note Knob, Power Seat Switch (FOR RECLINING)
2023-11 → —
AXUH7#,TXUA7# M —
84921B — Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84921-06100-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06100-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7# G,N;GSU7# G,M,N —
84921-06100-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7# N;GSU7# M,N —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-09 → 2022-10 ended
GSU7# S —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# M —
84921-06200-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7# G;GSU7# G,M —
84921-06200-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06200-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
GSU7# M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-09 → 2022-10 ended
GSU7# S —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2020-02 → 2021-10 ended
AXUH7# M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2021-10 → 2022-10 ended
AXUH7# M —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2019-12 → 2022-10 ended
AXUH7#,GSU7# M —
84921-06100-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,M,N —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M,N —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
TXUA7# S —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06200-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
TXUA7# S —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84921-06100-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G,M,N —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → 2024-10 ended
TXUA70 S —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
TXUA75 S —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# M,N —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06100-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# M —
84921-06200-B1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G,M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
TXUA75 S —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# M —
84921-06200-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → 2024-10 ended
TXUA70 S —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# G —
84921-06200-E0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2023-11 → —
AXUH7#,TXUA7# M —
84922B — Switch, Front Power Seat, RH
84922-06190 Switch, Front Power Seat, RH
2021-10 → 2022-10 ended
AXUH7#,GSU7# G,M,S —
84922-0E100 Switch, Front Power Seat, RH
2019-12 → 2021-10 ended
AXUH7#,GSU7# G,M,S —
84922-06190 Switch, Front Power Seat, RH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,M,S —
84922-06190 Switch, Front Power Seat, RH
2023-11 → 2024-10 ended
TXUA70 S —
84922-06190 Switch, Front Power Seat, RH
2023-11 → —
TXUA75 G,M,S;AXUH7#,TXUA70 G,M —
84922C — Switch, Front Power Seat, LH
84922-06180-B1 note Switch, Front Power Seat, LH
2020-02 → 2021-10 ended
AXUH7# M —
84922-06180-B1 note Switch, Front Power Seat, LH
2021-10 → 2022-10 ended
AXUH7# M —
84922-06180-B1 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
GSU7# M —
84922-06180-C0 note Switch, Front Power Seat, LH
2021-10 → 2022-10 ended
AXUH7# M —
84922-06180-C0 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
GSU7# M —
84922-06180-C0 note Switch, Front Power Seat, LH
2020-09 → 2022-10 ended
GSU7# S —
84922-06180-C0 note Switch, Front Power Seat, LH
2020-02 → 2021-10 ended
AXUH7# M —
84922-06180-E0 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
AXUH7#,GSU7# M —
84922-0R010-B0 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84922-0R010-C0 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84922-0R010-C0 note Switch, Front Power Seat, LH
2021-10 → 2022-10 ended
AXUH7# M —
84922-0R010-E0 note Switch, Front Power Seat, LH
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84922-0R030 Switch, Front Power Seat, LH
2020-07 → 2022-10 ended
AXUH7#,GSU7# N —
84922-0R030-C0 note Switch, Front Power Seat, LH
2019-12 → 2020-07 ended
AXUH7#,GSU7# N —
84922-06180-B1 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84922-06180-C0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
TXUA7# S —
84922-06180-C0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84922-06180-E0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M —
84922-0R010-B0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84922-0R010-C0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84922-0R010-C0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7# M —
84922-0R010-E0 note Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84922-0R030 Switch, Front Power Seat, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA7# N —
84922-06180-B1 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# M —
84922-06180-C0 note Switch, Front Power Seat, LH
2023-11 → 2024-10 ended
TXUA70 S —
84922-06180-C0 note Switch, Front Power Seat, LH
2023-11 → —
TXUA75 S —
84922-06180-C0 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# M —
84922-06180-E0 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# M —
84922-0R010-B0 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# G —
84922-0R010-C0 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# G —
84922-0R010-E0 note Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# G —
84922-0R030 Switch, Front Power Seat, LH
2023-11 → —
AXUH7#,TXUA7# N —
89710 — Computer Assy, Position Control
89710-0E010 Computer Assy, Position Control
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
89710-0E010 note Computer Assy, Position Control
2021-10 → 2022-10 ended
AXUH7# M —
89710-0E010 Computer Assy, Position Control
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
89710-0E010 note Computer Assy, Position Control
2022-10 → 2023-11 ended
AXUH7# M —
89710-0E040 Computer Assy, Position Control
2023-11 → —
AXUH7#,TXUA7# G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
