Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

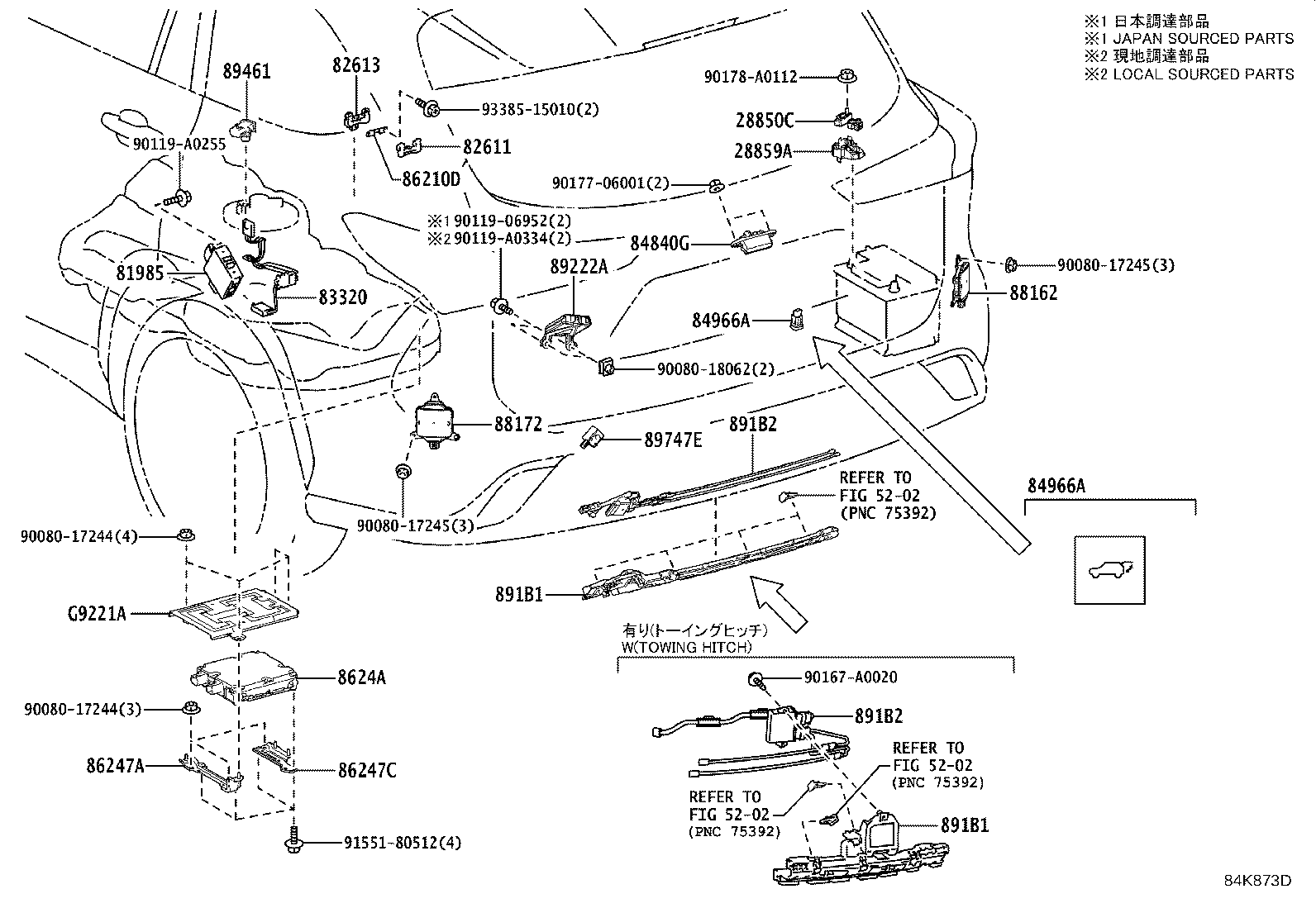

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 N | — | |
| 28850-F0040 |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28850-25020 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28850-F0040 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 G,N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 M,N | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2022-10 → 2023-11
ended
|
T24AFTS TXUA7# | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2023-11 → 2024-10
ended
|
T24AFTS TXUA70 S | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 G,N | — | |
| 28850-F0090 note |
Sensor Assy, Battery State
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 M,N | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2023-11 → —
|
T24AFTS TXUA75;A25AFXS,T24AFTS AXUH7#,TXUA70 G,M,N | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-F0030 |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 G,M,N | — | |
| 28859-F0030 note |
Holder, Battery Current Sensor
2019-12 → 2022-10
ended
|
2GRFKS GSU70 N | — | |
| 28859-F0070 |
Holder, Battery Current Sensor
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 28859-F0070 |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 M,N | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 N | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA7# | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2022-10 → 2023-11
ended
|
T24AFTS TXUA70 G,N | — | |
| 28859-F0120 |
Holder, Battery Current Sensor
2023-11 → —
|
A25AFXS AXUH7# | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2023-11 → 2024-10
ended
|
T24AFTS TXUA70 S | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 G,N | — | |
| 28859-F0240 note |
Holder, Battery Current Sensor
2023-11 → 2024-12
ended
|
T24AFTS TXUA70 M,N | — | |
| 28859-F0240 |
Holder, Battery Current Sensor
2023-11 → —
|
T24AFTS TXUA75;T24AFTS TXUA70 G,M,N | — | |
| 81985 — Relay, Towing Converter | ||||
| 81985-YY040 note |
Relay, Towing Converter
2023-11 → —
|
AXUH7# | — | |
| 81985-YY040 note |
Relay, Towing Converter
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 81985-YY040 note |
Relay, Towing Converter
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-47060 |
Cover, Fuse Block
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 82611-47060 note |
Cover, Fuse Block
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 82611-47060 |
Cover, Fuse Block
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 82611-47060 note |
Cover, Fuse Block
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 82611-47060 |
Cover, Fuse Block
2023-11 → —
|
AXUH7# G | — | |
| 82613 — Cover, Fuse Block | ||||
| 82613-47020 |
Cover, Fuse Block
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 82613-47020 note |
Cover, Fuse Block
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 82613-47020 |
Cover, Fuse Block
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 82613-47020 note |
Cover, Fuse Block
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 82613-47020 |
Cover, Fuse Block
2023-11 → —
|
AXUH7# G | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-0E050 |
Gage Assy, Fuel Sender
2019-12 → 2022-10
ended
|
GSU7# | — | |
| 83320-0E060 |
Gage Assy, Fuel Sender
2020-02 → 2021-09
ended
|
AXUH7# | — | |
| 83320-0E061 |
Gage Assy, Fuel Sender
2021-10 → 2022-10
ended
|
AXUH7# | — | |
| 83320-0E050 |
Gage Assy, Fuel Sender
2022-10 → 2023-11
ended
|
TXUA7# | — | |
| 83320-0E061 |
Gage Assy, Fuel Sender
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 83320-0E050 |
Gage Assy, Fuel Sender
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 83320-0E050 |
Gage Assy, Fuel Sender
2023-11 → —
|
TXUA75;TXUA70 G,M,N | — | |
| 83320-0E061 |
Gage Assy, Fuel Sender
2023-11 → —
|
AXUH7# | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-47060 |
Switch Assy, Back Door Opener
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 84840-47060 |
Switch Assy, Back Door Opener
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 84840-47060 |
Switch Assy, Back Door Opener
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 84840-47060 |
Switch Assy, Back Door Opener
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 84966A — Switch, Power Back Door Control, NO.1 | ||||
| 84966-0R010 |
Switch, Power Back Door Control, NO.1
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 84966-0R010 note |
Switch, Power Back Door Control, NO.1
2019-12 → 2022-10
ended
|
GSU7# N | — | |
| 84966-0R010 note |
Switch, Power Back Door Control, NO.1
2019-12 → 2022-10
ended
|
GSU70 N | — | |
| 84966-0R010 note |
Switch, Power Back Door Control, NO.1
2019-12 → 2022-10
ended
|
GSU7# N | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 84966-0A030 |
Switch, Power Back Door Control, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2022-10 → 2023-11
ended
|
AXUH70 N | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2023-11 → 2023-12
ended
|
TXUA7# N | — | |
| 84966-0A030 |
Switch, Power Back Door Control, NO.1
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 84966-0A030 |
Switch, Power Back Door Control, NO.1
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2023-11 → —
|
TXUA75 N | — | |
| 84966-0A030 note |
Switch, Power Back Door Control, NO.1
2023-11 → —
|
AXUH70 N | — | |
| 86210D — Fuse, High Voltage | ||||
| 90982-11051 |
Fuse, High Voltage
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 90982-11051 note |
Fuse, High Voltage
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 90982-11051 |
Fuse, High Voltage
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 90982-11051 note |
Fuse, High Voltage
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 90982-11051 |
Fuse, High Voltage
2023-11 → —
|
AXUH7# G | — | |
| 86247A — Bracket, Voltage Inverter | ||||
| 86247-48010 |
Bracket, Voltage Inverter
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 86247-48010 note |
Bracket, Voltage Inverter
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 86247-48010 |
Bracket, Voltage Inverter
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 86247-48010 note |
Bracket, Voltage Inverter
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 86247-48010 |
Bracket, Voltage Inverter
2023-11 → —
|
AXUH7# G | — | |
| 86247C — Bracket, Voltage Inverter, NO.2 | ||||
| 86247-48020 note |
Bracket, Voltage Inverter, NO.2
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 86247-48020 |
Bracket, Voltage Inverter, NO.2
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 86247-48020 |
Bracket, Voltage Inverter, NO.2
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 86247-48020 note |
Bracket, Voltage Inverter, NO.2
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 86247-48020 |
Bracket, Voltage Inverter, NO.2
2023-11 → —
|
AXUH7# G | — | |
| 8624A — Inverter, Voltage | ||||
| 8624A-48010 |
Inverter, Voltage
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| 8624A-48010 note |
Inverter, Voltage
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 8624A-48010 |
Inverter, Voltage
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 8624A-48010 note |
Inverter, Voltage
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 8624A-48010 |
Inverter, Voltage
2023-11 → —
|
AXUH7# G | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-0E080 note |
Sensor, Blind Spot Monitor, RH
2019-12 → 2020-04
ended
|
GSU7# N | — | |
| 88162-0E080 note |
Sensor, Blind Spot Monitor, RH
2019-12 → 2020-04
ended
|
GSU70 N | — | |
| 88162-0E080 |
Sensor, Blind Spot Monitor, RH
2019-12 → 2020-04
ended
|
AXUH7#,GSU7# | — | |
| 88162-0E081 |
Sensor, Blind Spot Monitor, RH
2020-05 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 88162-0E081 note |
Sensor, Blind Spot Monitor, RH
2020-05 → 2022-10
ended
|
GSU70 N | — | |
| 88162-0E081 note |
Sensor, Blind Spot Monitor, RH
2020-05 → 2022-10
ended
|
GSU7# N | — | |
| 88162-0E082 |
Sensor, Blind Spot Monitor, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 88162-0E082 note |
Sensor, Blind Spot Monitor, RH
2022-10 → 2023-11
ended
|
AXUH70 N | — | |
| 88162-0E082 note |
Sensor, Blind Spot Monitor, RH
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 88162-0E191 note |
Sensor, Blind Spot Monitor, RH
2023-11 → —
|
AXUH70 N | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, RH
2023-11 → —
|
AXUH78 G,M;AXUH70,TXUA75 | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, RH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, RH
2023-11 → 2025-10
ended
|
AXUH78 N;TXUA70 G,M,N | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-0E080 |
Sensor, Blind Spot Monitor, LH
2019-12 → 2020-04
ended
|
AXUH7#,GSU7# | — | |
| 88162-0E080 note |
Sensor, Blind Spot Monitor, LH
2019-12 → 2020-04
ended
|
GSU70 N | — | |
| 88162-0E080 note |
Sensor, Blind Spot Monitor, LH
2019-12 → 2020-04
ended
|
GSU7# N | — | |
| 88162-0E081 |
Sensor, Blind Spot Monitor, LH
2020-05 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 88162-0E081 note |
Sensor, Blind Spot Monitor, LH
2020-05 → 2022-10
ended
|
GSU70 N | — | |
| 88162-0E081 note |
Sensor, Blind Spot Monitor, LH
2020-05 → 2022-10
ended
|
GSU7# N | — | |
| 88162-0E082 note |
Sensor, Blind Spot Monitor, LH
2022-10 → 2023-11
ended
|
TXUA7# N | — | |
| 88162-0E082 note |
Sensor, Blind Spot Monitor, LH
2022-10 → 2023-11
ended
|
AXUH70 N | — | |
| 88162-0E082 |
Sensor, Blind Spot Monitor, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, LH
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, LH
2023-11 → 2025-10
ended
|
AXUH78 N;TXUA70 G,M,N | — | |
| 88162-0E191 |
Sensor, Blind Spot Monitor, LH
2023-11 → —
|
AXUH78 G,M;AXUH70,TXUA75 | — | |
| 88162-0E191 note |
Sensor, Blind Spot Monitor, LH
2023-11 → —
|
AXUH70 N | — | |
| 891B1 — Bracket, Kick Door Control | ||||
| 891B1-0E010 |
Bracket, Kick Door Control
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 891B1-0E010 note |
Bracket, Kick Door Control
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2020-09 → 2022-10
ended
|
GSU7# G | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2020-09 → 2022-10
ended
|
AXUH7# G | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 891B1-0E010 |
Bracket, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 891B1-0E010 note |
Bracket, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 891B1-0E010 |
Bracket, Kick Door Control
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 891B1-0E010 |
Bracket, Kick Door Control
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2023-11 → —
|
TXUA70 G,M;TXUA75 G,M,S | — | |
| 891B1-YY010 note |
Bracket, Kick Door Control
2023-11 → —
|
AXUH7# G,M | — | |
| 891B2 — Sensor, Kick Door Control | ||||
| 891B2-0W110 |
Sensor, Kick Door Control
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# G | — | |
| 891B2-0W110 note |
Sensor, Kick Door Control
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2020-09 → 2022-10
ended
|
AXUH7# G | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2020-09 → 2022-10
ended
|
GSU7# G | — | |
| 891B2-0W110 |
Sensor, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# G | — | |
| 891B2-0W110 note |
Sensor, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2022-10 → 2023-11
ended
|
TXUA7# G | — | |
| 891B2-YY010 note |
Sensor, Kick Door Control
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| 891B2-0E040 |
Sensor, Kick Door Control
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 891B2-0E040 |
Sensor, Kick Door Control
2023-11 → —
|
TXUA75 G,M,S;AXUH7#,TXUA70 G,M | — | |
| 891B2-YY040 note |
Sensor, Kick Door Control
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 891B2-YY040 note |
Sensor, Kick Door Control
2023-11 → —
|
AXUH7# G,M | — | |
| 891B2-YY040 note |
Sensor, Kick Door Control
2023-11 → —
|
TXUA70 G,M;TXUA75 G,M,S | — | |
| 89222A — Computer, Multiplex Network Door | ||||
| 89222-0E130 |
Computer, Multiplex Network Door
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 89222-0E130 |
Computer, Multiplex Network Door
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 89222-0E250 |
Computer, Multiplex Network Door
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 89222-0E250 |
Computer, Multiplex Network Door
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| 89461 — Sensor, Vapor Pressure | ||||
| 89461-48020 |
Sensor, Vapor Pressure
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 89461-48020 |
Sensor, Vapor Pressure
2022-10 → 2023-11
ended
|
AXUH7# | — | |
| 89461-47010 |
Sensor, Vapor Pressure
2023-11 → —
|
AXUH7# | — | |
| 89747E — Buzzer, Power Back Door Warning | ||||
| 89747-0R020 |
Buzzer, Power Back Door Warning
2019-12 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 89747-0R020 |
Buzzer, Power Back Door Warning
2022-10 → 2023-11
ended
|
AXUH7#,TXUA7# | — | |
| 89747-0R020 |
Buzzer, Power Back Door Warning
2023-11 → 2024-10
ended
|
TXUA70 S | — | |
| 89747-0R020 |
Buzzer, Power Back Door Warning
2023-11 → —
|
TXUA75;AXUH7#,TXUA70 G,M,N | — | |
| G9221A — Cover, Inverter, Upper | ||||
| G9221-48050 |
Cover, Inverter, Upper
2020-02 → 2022-10
ended
|
AXUH7# G | — | |
| G9221-48050 note |
Cover, Inverter, Upper
2021-10 → 2022-10
ended
|
AXUH7# M | — | |
| G9221-48050 |
Cover, Inverter, Upper
2022-10 → 2023-11
ended
|
AXUH7# G | — | |
| G9221-48050 note |
Cover, Inverter, Upper
2022-10 → 2023-11
ended
|
AXUH7# M | — | |
| G9221-48050 |
Cover, Inverter, Upper
2023-11 → —
|
AXUH7# G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
