Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

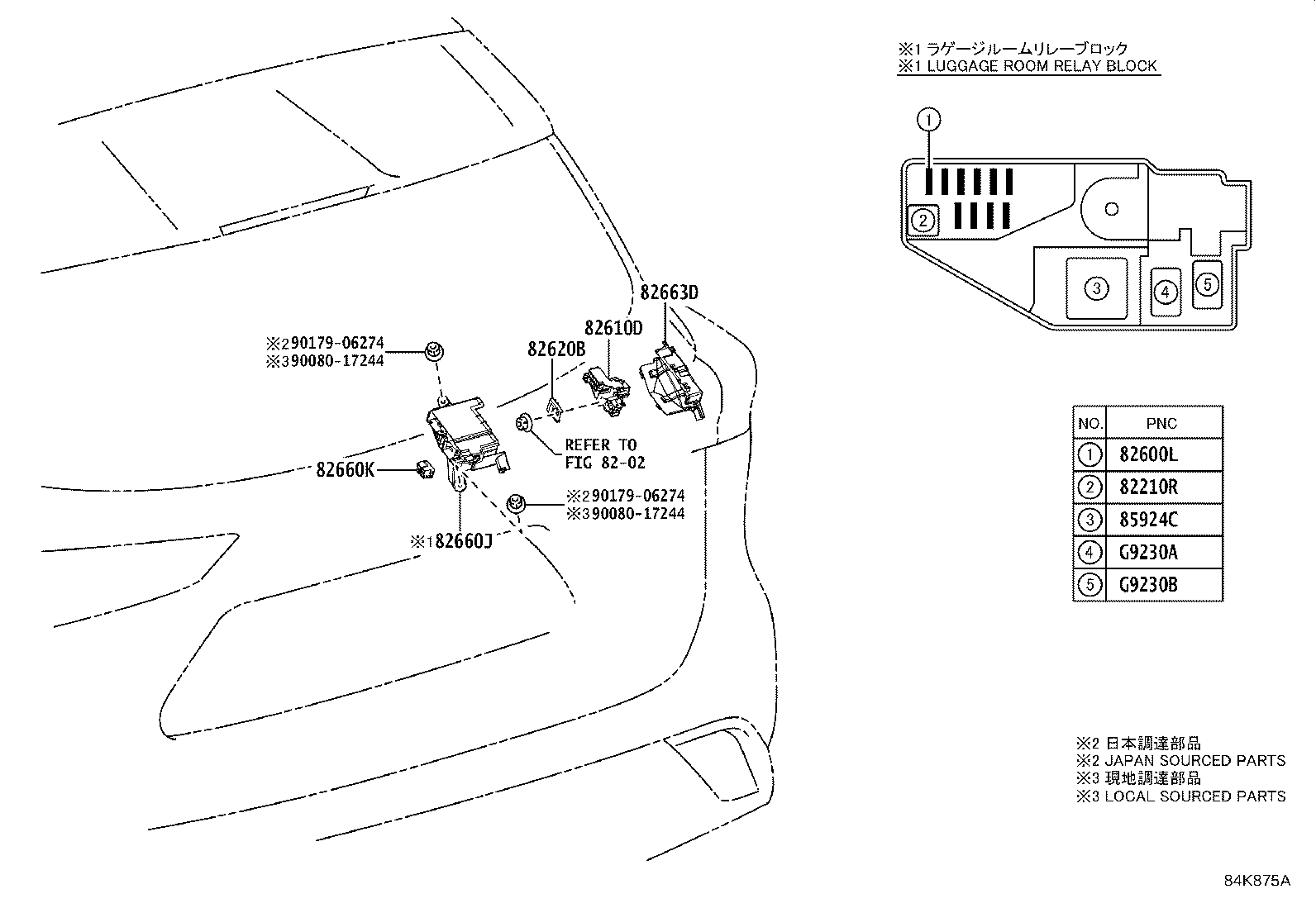

Exploded illustration 84K875A 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue 9017906274 — not listed in this catalogue 9008017244 — not listed in this catalogue 82610D — BLOCK ASSY, FUSE (3 parts) 82660J — BLOCK ASSY, RELAY (3 parts) 82620B — BLOCK ASSY, FUSIBLE LINK (3 parts) 82660K — BLOCK ASSY, RELAY (3 parts) 82663D — COVER, RELAY BLOCK, LOWER, NO.5 (3 parts) 82600L — LUGGAGE ROOM FUSE (13 parts) 82210R — LUGGAGE ROOM FUSIBLE LINK (4 parts) 85924C — RELAY, IGCT (3 parts) G9230A — RELAY, BATTERY FAN, NO.1 (4 parts) G9230B — RELAY, BATTERY FAN, NO.2 (4 parts) 8202 — not listed in this catalogue
84K875A · 10 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
82210R — Luggage Room Fusible Link
90982-08298 Luggage Room Fusible Link
2020-02 → 2022-10 ended
AXUH7# —
90982-08298 Luggage Room Fusible Link
2022-10 → 2023-11 ended
AXUH7# M —
90982-08298 Luggage Room Fusible Link
2022-10 → 2023-11 ended
AXUH7# G,N —
90982-08298 Luggage Room Fusible Link
2023-11 → —
AXUH7# —
82600L — Luggage Room Fuse
90982-09020 note Luggage Room Fuse
2020-02 → 2022-10 ended
AXUH7# —
90982-09021 note Luggage Room Fuse
2020-02 → 2022-10 ended
AXUH7# —
90982-09022 note Luggage Room Fuse
2020-02 → 2022-10 ended
AXUH7# —
90982-09020 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# M —
90982-09020 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# G,N —
90982-09021 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# M —
90982-09021 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# G,N —
90982-09021 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# M —
90982-09022 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# M —
90982-09022 note Luggage Room Fuse
2022-10 → 2023-11 ended
AXUH7# G,N —
90982-09020 note Luggage Room Fuse
2023-11 → —
AXUH7# —
90982-09021 note Luggage Room Fuse
2023-11 → —
AXUH7# —
90982-09022 note Luggage Room Fuse
2023-11 → —
AXUH7# —
82610D — Block Assy, Fuse
82610-0E030 Block Assy, Fuse
2020-02 → 2022-10 ended
AXUH7# —
82610-0E030 Block Assy, Fuse
2022-10 → 2023-11 ended
AXUH7# —
82610-0E030 Block Assy, Fuse
2023-11 → —
AXUH7# —
82620B — Block Assy, Fusible Link
82620-0E050 Block Assy, Fusible Link
2020-02 → 2022-10 ended
AXUH7# —
82620-0E050 Block Assy, Fusible Link
2022-10 → 2023-11 ended
AXUH7# —
82620-0E050 Block Assy, Fusible Link
2023-11 → —
AXUH7# —
82660J — Block Assy, Relay
82660-0E030 Block Assy, Relay
2020-02 → 2022-10 ended
AXUH7# —
82660-0E030 Block Assy, Relay
2022-10 → 2023-11 ended
AXUH7# —
82660-0E030 Block Assy, Relay
2023-11 → —
AXUH7# —
82660K — Block Assy, Relay
82660-48020 Block Assy, Relay
2020-02 → 2022-10 ended
AXUH7# —
82660-48020 Block Assy, Relay
2022-10 → 2023-11 ended
AXUH7# —
82660-48020 Block Assy, Relay
2023-11 → —
AXUH7# —
82663D — Cover, Relay Block, Lower, NO.5
82663-0E100 Cover, Relay Block, Lower, NO.5
2020-02 → 2022-10 ended
AXUH7# —
82663-0E100 Cover, Relay Block, Lower, NO.5
2022-10 → 2023-11 ended
AXUH7# —
82663-0E100 Cover, Relay Block, Lower, NO.5
2023-11 → —
AXUH7# —
85924C — Relay, Igct
90987-02031 Relay, Igct
2020-02 → 2022-10 ended
AXUH7# —
90987-02031 Relay, Igct
2022-10 → 2023-11 ended
AXUH7# —
90987-02031 Relay, Igct
2023-11 → —
AXUH7# —
G9230A — Relay, Battery Fan, NO.1
90080-87026 Relay, Battery Fan, NO.1
2020-02 → 2022-10 ended
AXUH7# —
90080-87026 Relay, Battery Fan, NO.1
2022-10 → 2023-11 ended
AXUH7# —
90080-87026 Relay, Battery Fan, NO.1
2023-11 → 2025-10 ended
AXUH78 N —
90080-87026 Relay, Battery Fan, NO.1
2023-11 → —
AXUH70;AXUH78 G,M —
G9230B — Relay, Battery Fan, NO.2
90080-87026 Relay, Battery Fan, NO.2
2020-02 → 2022-10 ended
AXUH7# —
90080-87026 Relay, Battery Fan, NO.2
2022-10 → 2023-11 ended
AXUH7# —
90080-87026 Relay, Battery Fan, NO.2
2023-11 → 2025-10 ended
AXUH78 N —
90080-87026 Relay, Battery Fan, NO.2
2023-11 → —
AXUH70;AXUH78 G,M —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
