Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

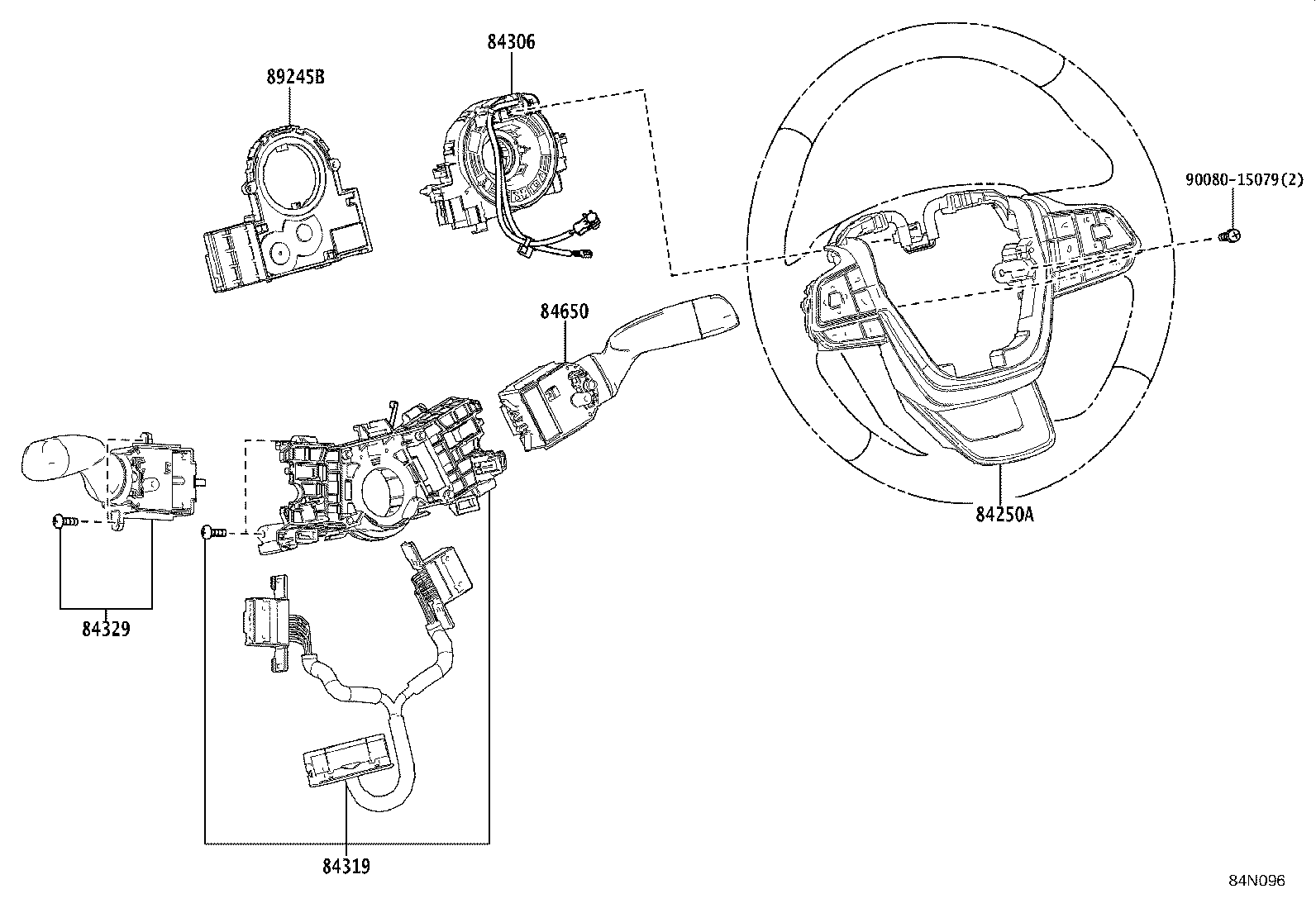

Exploded illustration 84N096 9008015079 — not listed in this catalogue 84250A — SWITCH ASSY, STEERING PAD (8 parts) 84319 — HOUSING, STEERING WHEEL SWITCH (4 parts) 84650 — SWITCH ASSY, WINDSHIELD WIPER (18 parts) 84306 — CABLE SUB-ASSY, SPIRAL (10 parts) 84329 — SWITCH, TURN SIGNAL (18 parts) 89245B — SENSOR, STEERING (4 parts)
84N096 · 6 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
84250A — Switch Assy, Steering Pad
84250-0E470 Switch Assy, Steering Pad
2019-12 → 2021-10 ended
AXUH7#,GSU7# —
84250-0E590 Switch Assy, Steering Pad
2021-10 → 2022-10 ended
AXUH7#,GSU7# M,N —
84250-0E600 Switch Assy, Steering Pad
2021-10 → 2022-10 ended
AXUH7#,GSU7# G,S —
84250-0E630 Switch Assy, Steering Pad
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M,N —
84250-0E640 Switch Assy, Steering Pad
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G,S —
84250-0E630 Switch Assy, Steering Pad
2023-11 → —
AXUH7#,TXUA7# M,N —
84250-0E640 Switch Assy, Steering Pad
2023-11 → 2024-10 ended
TXUA70 S —
84250-0E640 Switch Assy, Steering Pad
2023-11 → —
TXUA75 G,S;AXUH7#,TXUA70 G —
84306 — Cable Sub-assy, Spiral
84308-02130 Cable Sub-assy, Spiral
2019-12 → 2022-10 ended
AXUH7#,GSU7# M,N,S —
84308-0R030 Cable Sub-assy, Spiral
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84308-0R030 note Cable Sub-assy, Spiral
2021-10 → 2022-10 ended
AXUH78,GSU75 M,S —
84308-02130 Cable Sub-assy, Spiral
2022-10 → 2023-11 ended
AXUH7#,TXUA7# M,N,S —
84308-0R030 Cable Sub-assy, Spiral
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84308-0R030 note Cable Sub-assy, Spiral
2022-10 → 2023-11 ended
AXUH78,TXUA75 M,S —
84308-02130 Cable Sub-assy, Spiral
2023-11 → 2024-10 ended
TXUA70 S —
84308-02130 Cable Sub-assy, Spiral
2023-11 → —
TXUA75 M,N,S;AXUH7#,TXUA70 M,N —
84308-0R030 note Cable Sub-assy, Spiral
2023-11 → —
AXUH78,TXUA75 M,S —
84308-0R030 Cable Sub-assy, Spiral
2023-11 → —
AXUH7#,TXUA7# G —
84319 — Housing, Steering Wheel Switch
84319-02020 Housing, Steering Wheel Switch
2019-12 → 2022-10 ended
AXUH7#,GSU7# —
84319-02020 Housing, Steering Wheel Switch
2022-10 → 2023-11 ended
AXUH7#,TXUA7# —
84319-02020 Housing, Steering Wheel Switch
2023-11 → 2024-10 ended
TXUA70 S —
84319-02020 Housing, Steering Wheel Switch
2023-11 → —
TXUA75;AXUH7#,TXUA70 G,M,N —
84329 — Switch, Turn Signal
84329-02050 note Switch, Turn Signal
2019-12 → 2022-10 ended
GSU70 N —
84329-02050 note Switch, Turn Signal
2019-12 → 2022-10 ended
GSU7# N —
84329-0E020 note Switch, Turn Signal
2019-12 → 2022-10 ended
GSU7# N —
84329-0E030 note Switch, Turn Signal
2019-12 → 2022-10 ended
AXUH78;GSU75 G,M,S —
84329-0R020 Switch, Turn Signal
2019-12 → 2022-10 ended
AXUH7#,GSU7# —
84329-02050 note Switch, Turn Signal
2022-10 → 2023-11 ended
AXUH70 N —
84329-02050 note Switch, Turn Signal
2022-10 → 2023-11 ended
AXUH78 G —
84329-02050 note Switch, Turn Signal
2022-10 → 2023-11 ended
TXUA7# N —
84329-0E020 note Switch, Turn Signal
2022-10 → 2023-11 ended
TXUA7# N —
84329-0E030 note Switch, Turn Signal
2022-10 → 2023-11 ended
AXUH78;TXUA75 G,M,S —
84329-0R020 Switch, Turn Signal
2022-10 → 2023-11 ended
AXUH7#,TXUA7# —
84329-02050 note Switch, Turn Signal
2023-11 → 2024-11 ended
TXUA7# N —
84329-02050 note Switch, Turn Signal
2023-11 → —
AXUH70 N —
84329-02050 note Switch, Turn Signal
2023-11 → —
AXUH78 G —
84329-0E020 note Switch, Turn Signal
2023-11 → —
TXUA75 N —
84329-0E030 note Switch, Turn Signal
2023-11 → —
AXUH78;TXUA75 G,M,S —
84329-0R020 Switch, Turn Signal
2023-11 → 2024-10 ended
TXUA70 S —
84329-0R020 Switch, Turn Signal
2023-11 → —
TXUA75;AXUH7#,TXUA70 G,M,N —
84650 — Switch Assy, Windshield Wiper
84652-0R100 Switch Assy, Windshield Wiper
2019-12 → 2022-10 ended
AXUH7#,GSU7# —
84652-0R110 note Switch Assy, Windshield Wiper
2019-12 → 2022-10 ended
AXUH7#,GSU7# G —
84652-0R110 note Switch Assy, Windshield Wiper
2021-10 → 2022-10 ended
AXUH7# M —
84652-0R120 note Switch Assy, Windshield Wiper
2019-12 → 2022-10 ended
GSU70 N;AXUH78,GSU75 —
84652-0R130 note Switch Assy, Windshield Wiper
2019-12 → 2022-10 ended
AXUH78,GSU75 G —
84652-0R130 note Switch Assy, Windshield Wiper
2021-10 → 2022-10 ended
AXUH78 M —
84652-0R100 Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
AXUH7#,TXUA7# —
84652-0R110 note Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
AXUH7#,TXUA7# G —
84652-0R110 note Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
AXUH7# M —
84652-0R120 note Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
TXUA70 N;AXUH78,TXUA75 —
84652-0R130 note Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
AXUH78,TXUA75 G —
84652-0R130 note Switch Assy, Windshield Wiper
2022-10 → 2023-11 ended
AXUH78 M —
84652-0R100 Switch Assy, Windshield Wiper
2023-11 → 2024-10 ended
TXUA70 S —
84652-0R100 Switch Assy, Windshield Wiper
2023-11 → —
TXUA75;AXUH7#,TXUA70 G,M,N —
84652-0R110 note Switch Assy, Windshield Wiper
2023-11 → 2024-11 ended
AXUH70,TXUA70 G —
84652-0R110 note Switch Assy, Windshield Wiper
2023-11 → —
AXUH78,TXUA75 G —
84652-0R120 note Switch Assy, Windshield Wiper
2023-11 → —
AXUH78,TXUA75 —
84652-0R130 note Switch Assy, Windshield Wiper
2023-11 → —
AXUH78,TXUA75 G —
89245B — Sensor, Steering
8924B-06170 Sensor, Steering
2019-12 → 2022-10 ended
AXUH7#,GSU7# —
8924B-06170 Sensor, Steering
2022-10 → 2023-11 ended
AXUH7#,TXUA7# —
8924B-08010 note Sensor, Steering
2023-11 → 2024-10 ended
TXUA70 S —
8924B-08010 note Sensor, Steering
2023-11 → —
TXUA75;AXUH7#,TXUA70 G,M,N —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
