Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

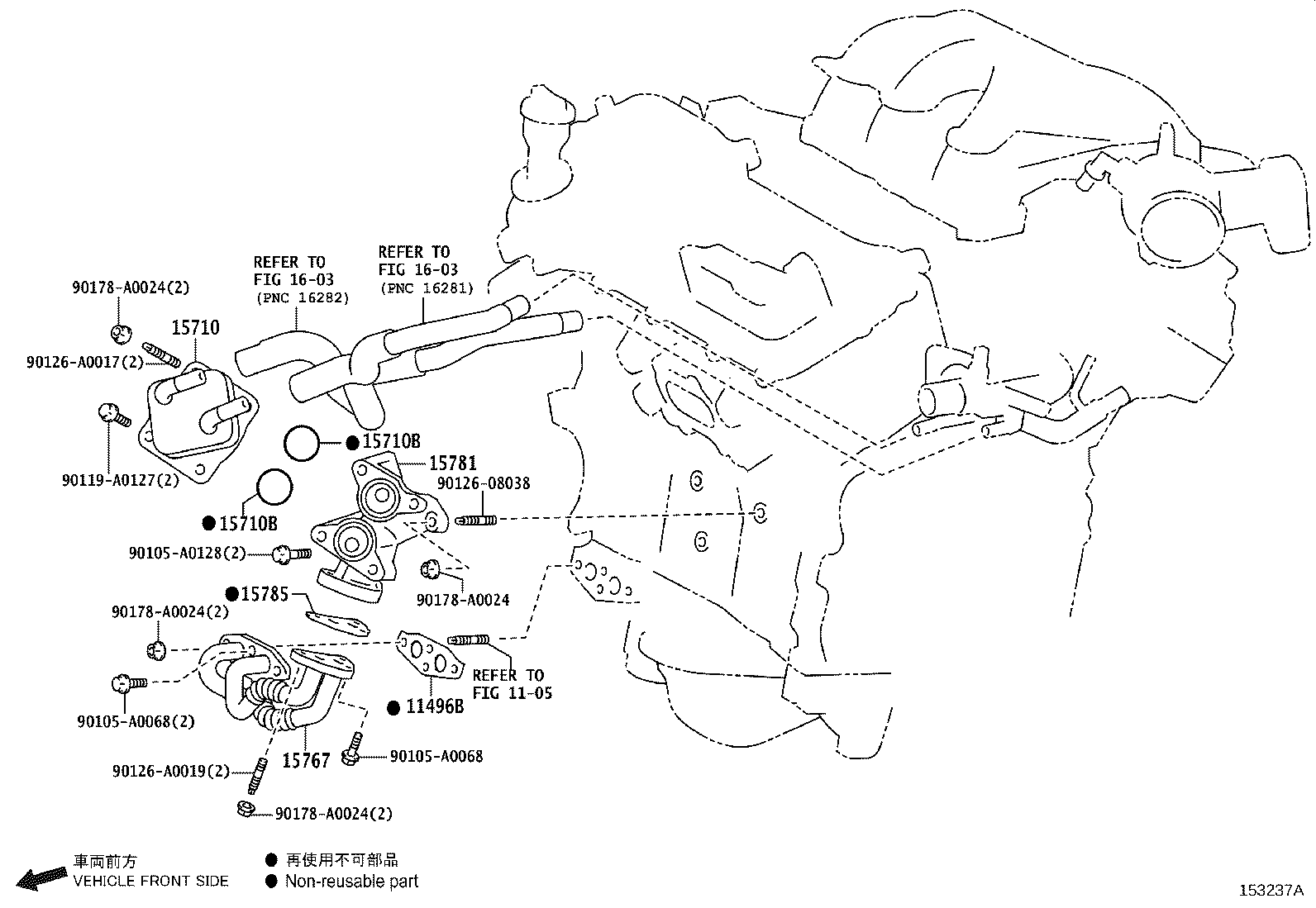

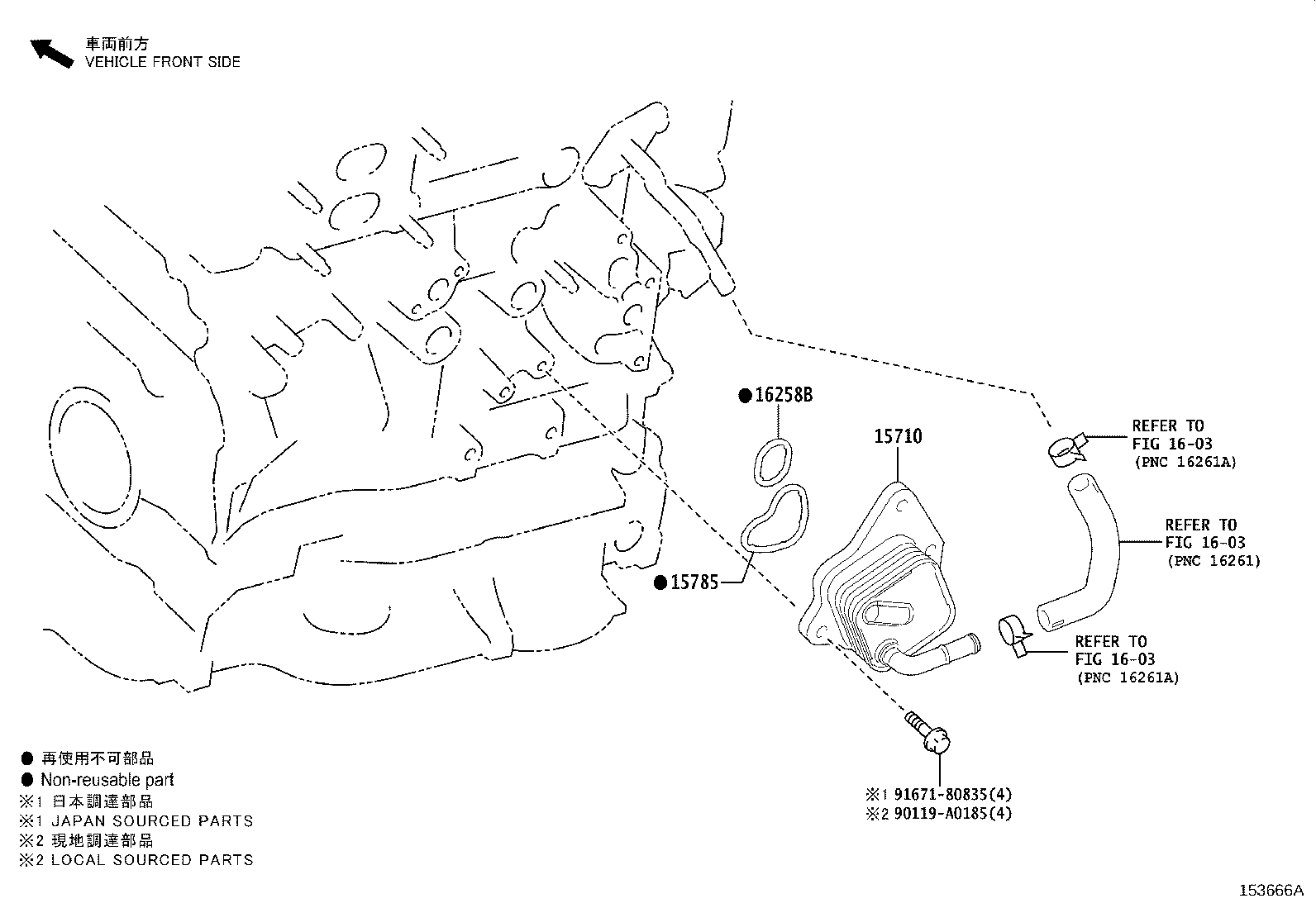

Engine Oil Cooler
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11496B | Gasket, Oil Hole Cover |
| 15678 | Filter, Oil Control Valve |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15767 | Pipe, Oil Cooler |
| 15781 | Bracket, Oil Cooler, NO.1 |
| 15785 | Gasket, Oil Cooler |
| 16258B | Gasket, Oil Cooler Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
