Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

38 part groups · 7 illustrations

Illustrations

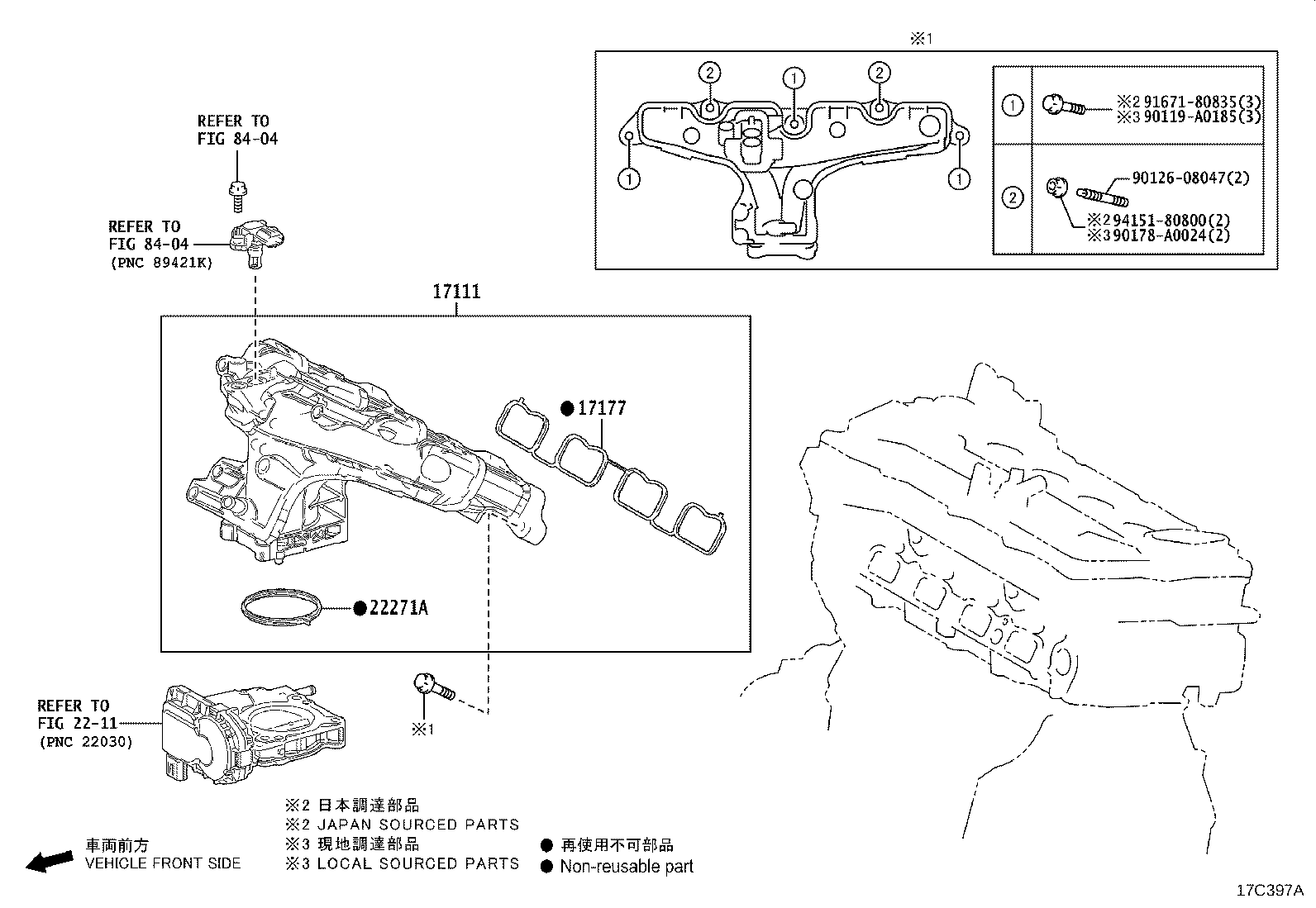

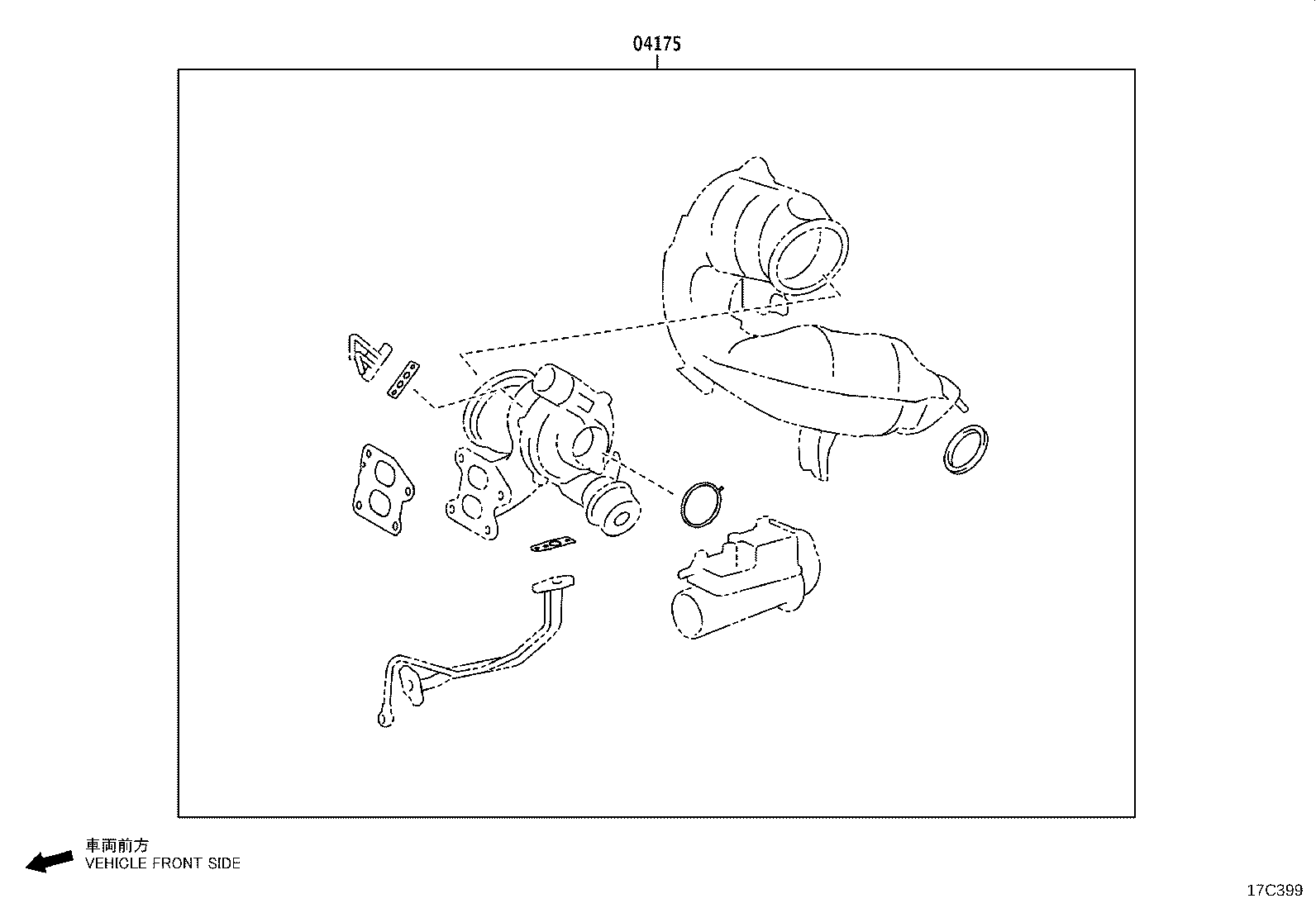

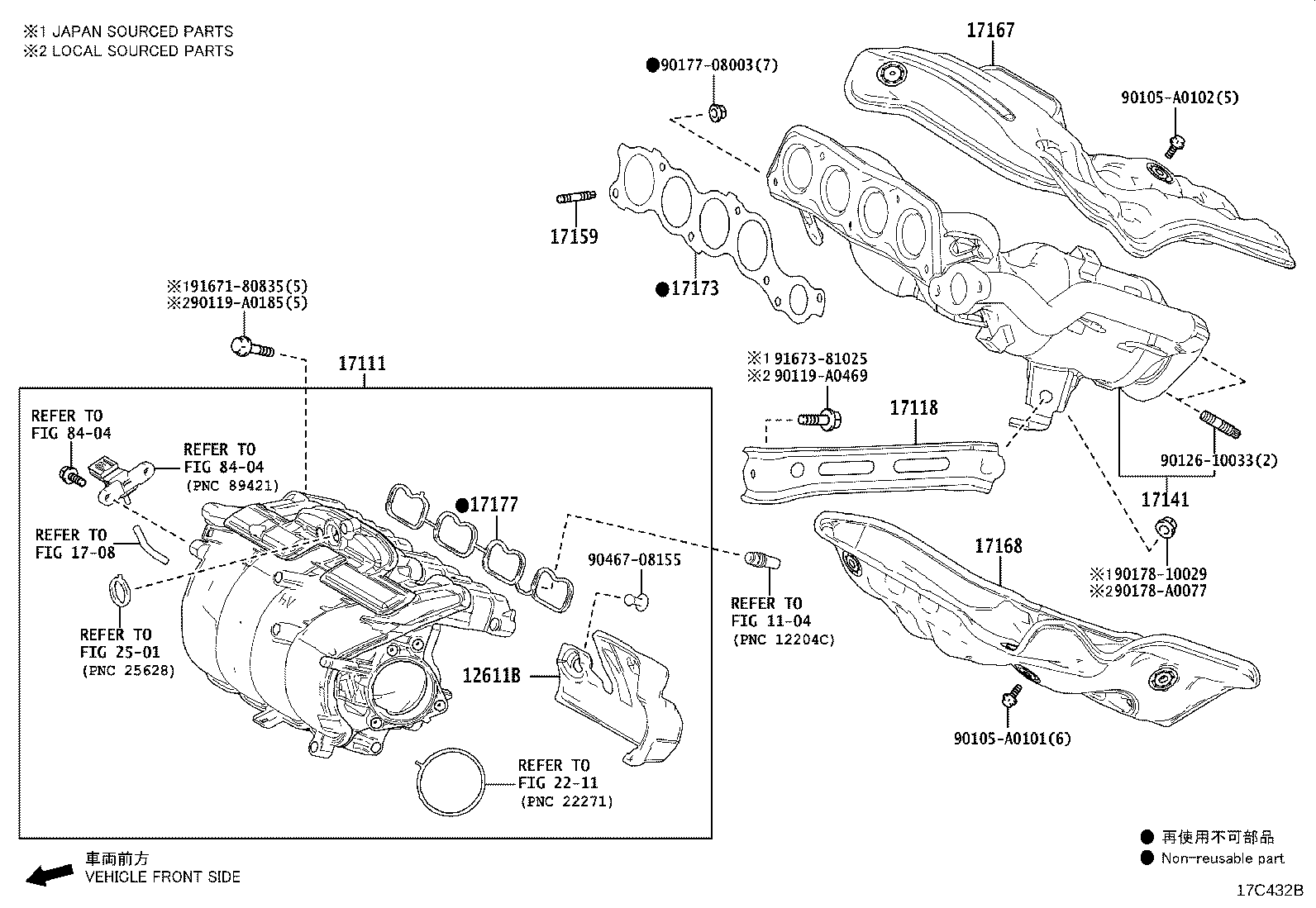

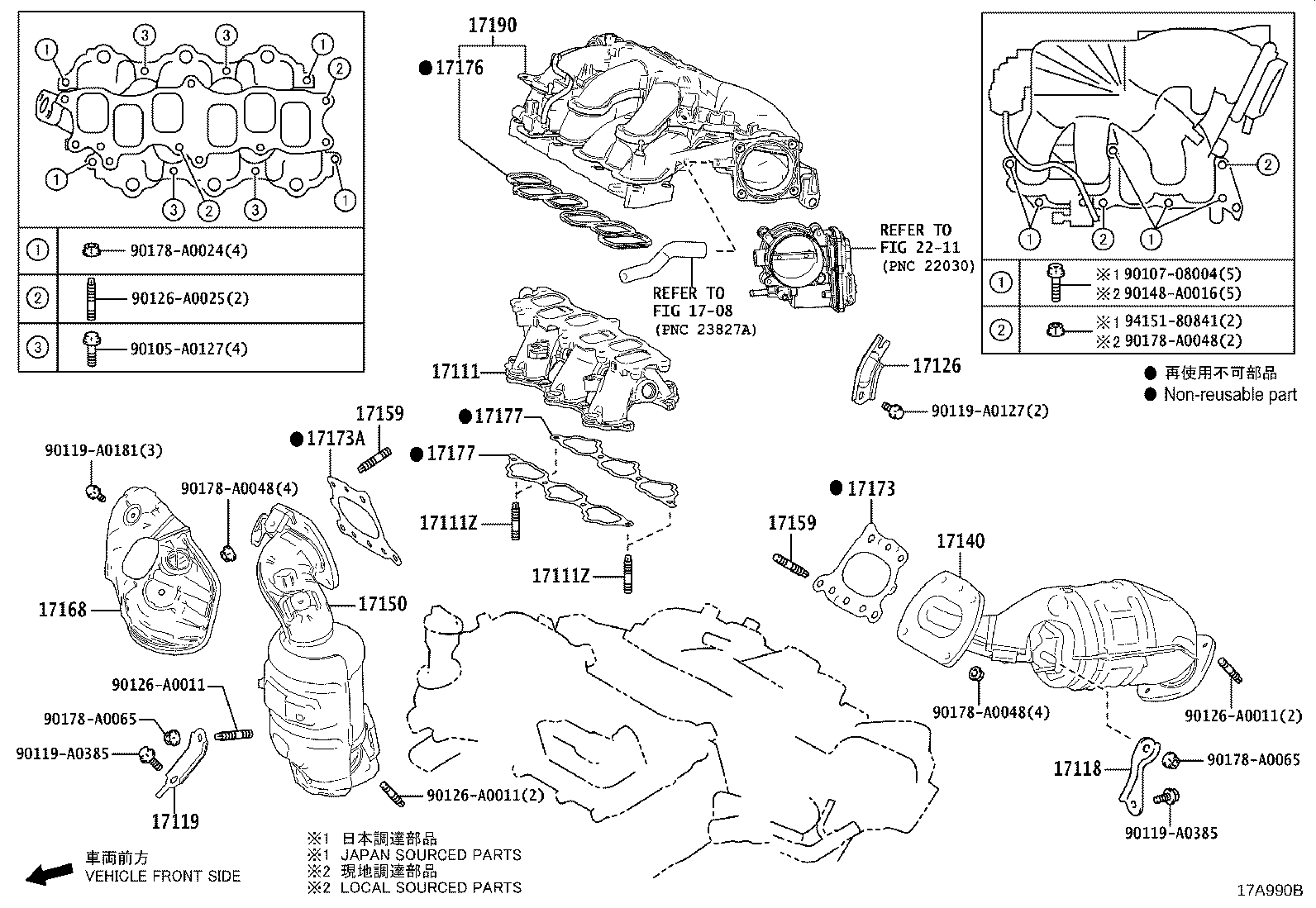

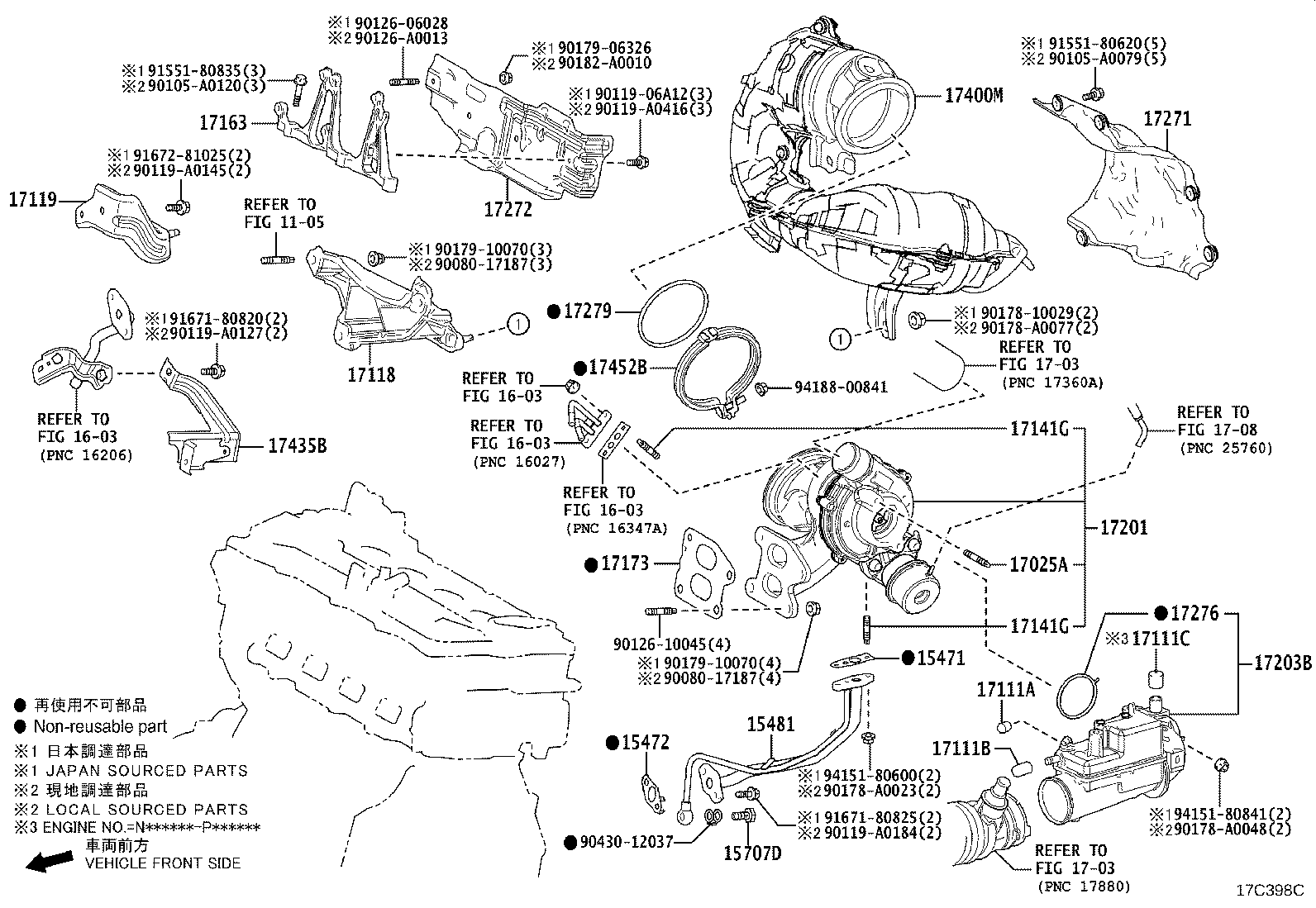

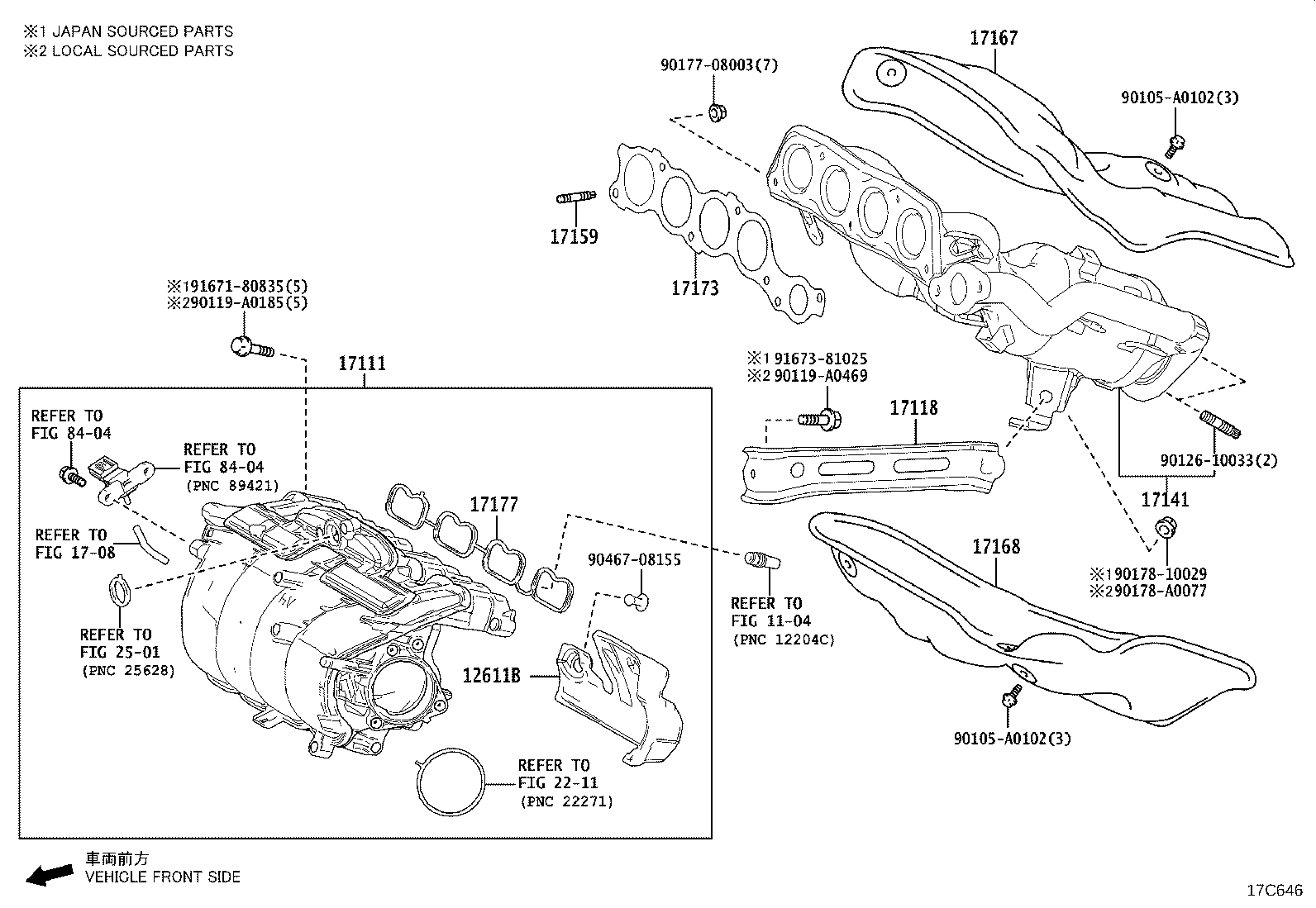

Figure 17A977H 17A977H 2020-02 → 2022-10 Figure 17C432B 17C432B 2022-10 → 2023-03 Figure 17C646 17C646 2023-03 → — Figure 17A990B 17A990B 2019-12 → — Figure 17C397A 17C397A 2022-10 → — Figure 17C398C 17C398C 2022-10 → — Figure 17C399 17C399 2022-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12611B Cover, Engine, NO.1
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15481 Pipe, Turbo Oil, NO.1
15707D Bolt, Union(FOR OIL PIPE)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17126 Stay, Surge Tank, NO.2
17140 Manifold Assy, Exhaust, RH
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17150 Manifold Assy, Exhaust, LH
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17276 Gasket, Compressor Inlet
17279 Gasket, Turbine Outlet Elbow
17400M Converter Assy, W/Catalyst, RH
17435B Insulator, Exhaust Pipe Heat
17452B Clamp, Exhaust Pipe
22271A Gasket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
