Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10
Air Cleaner

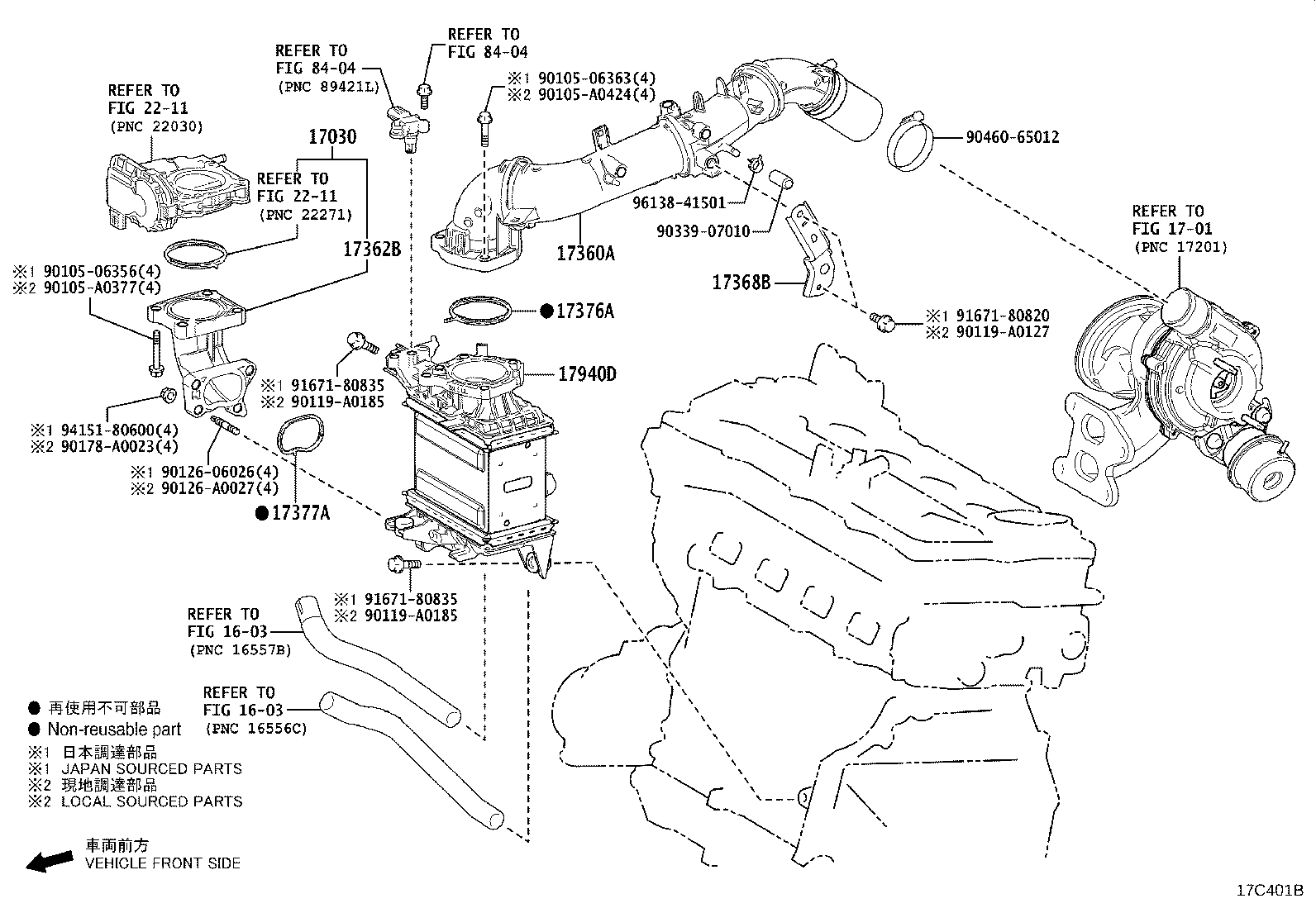

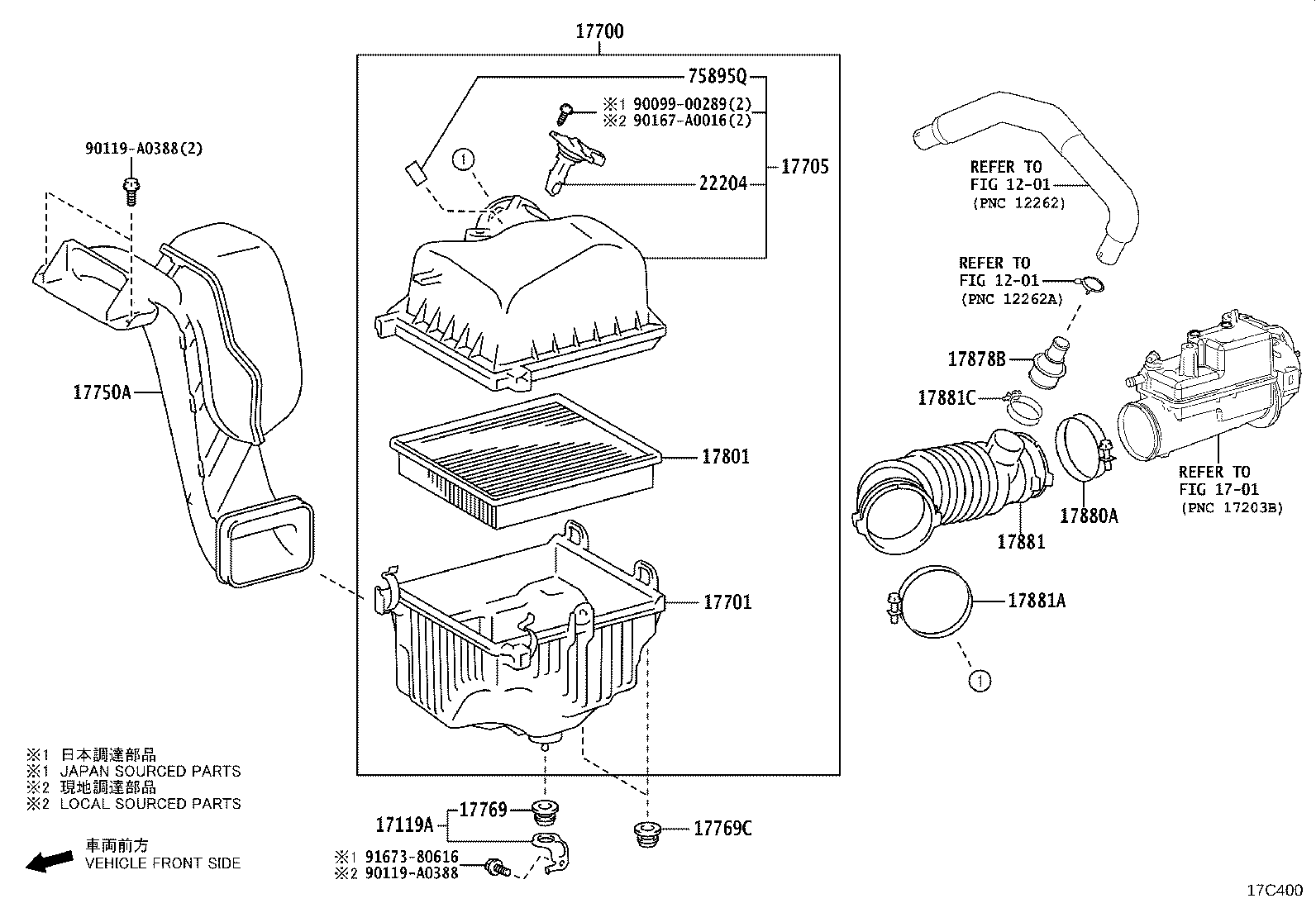

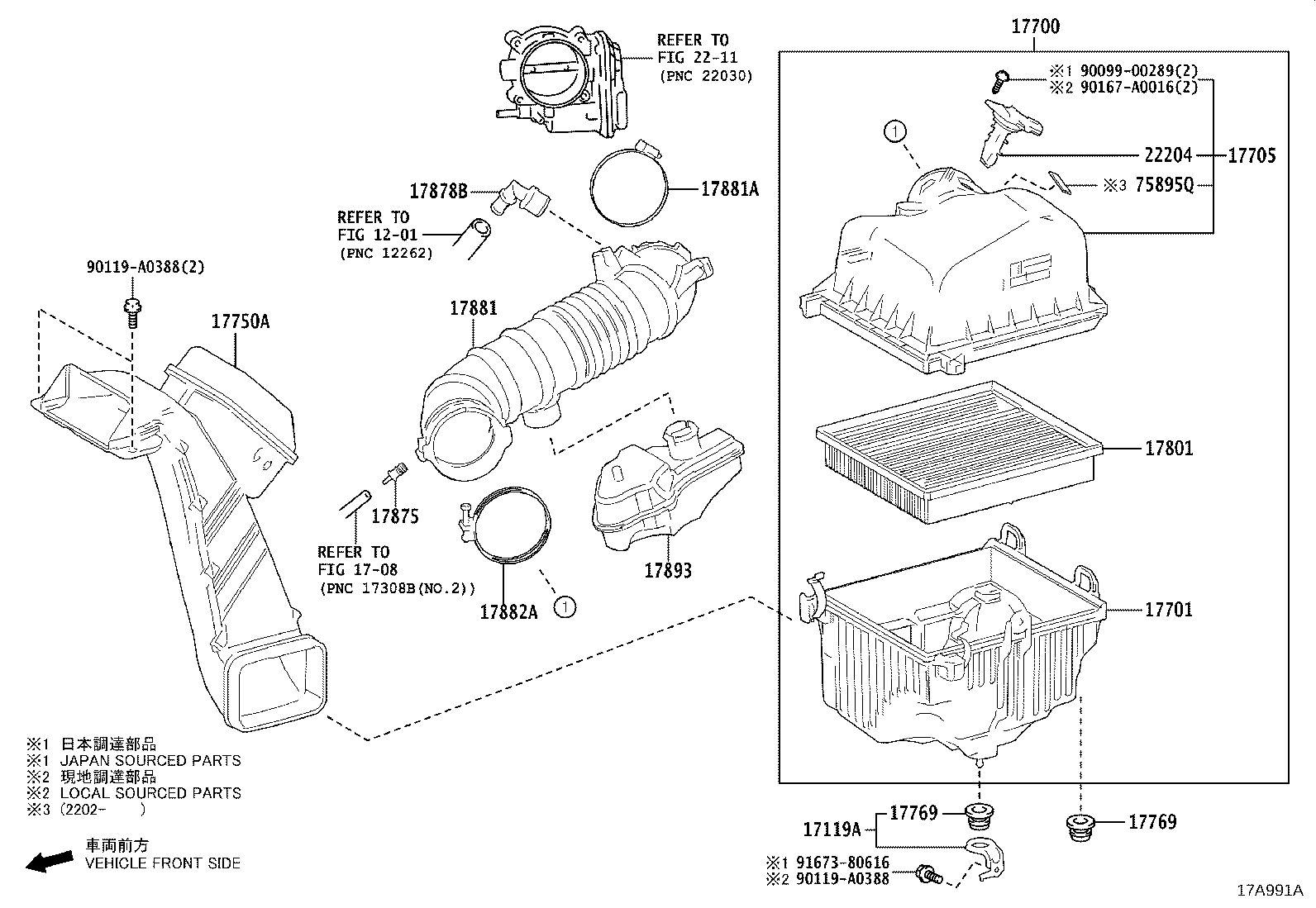

27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17030 | Hose Assy, Air |
| 17119A | Bracket, Air Cleaner |
| 17360A | Tube Assy, Air |
| 17362B | Tube, Air, NO.2 |
| 17368B | Support, Air Tube |
| 17376A | Gasket, Air Tube |
| 17377A | Gasket, Air Tube, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17765A | Stay, Air Cleaner, NO.1 |
| 17769 | Support, Air Cleaner |
| 17769C | Support, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17875 | Pipe, Intake Air Connector |
| 17878B | Tube, Ventilation |
| 17880A | Clamp, Hose |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17940D | Intercooler Assy |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 75895Q | Tape, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
