Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 2 illustrations

Illustrations

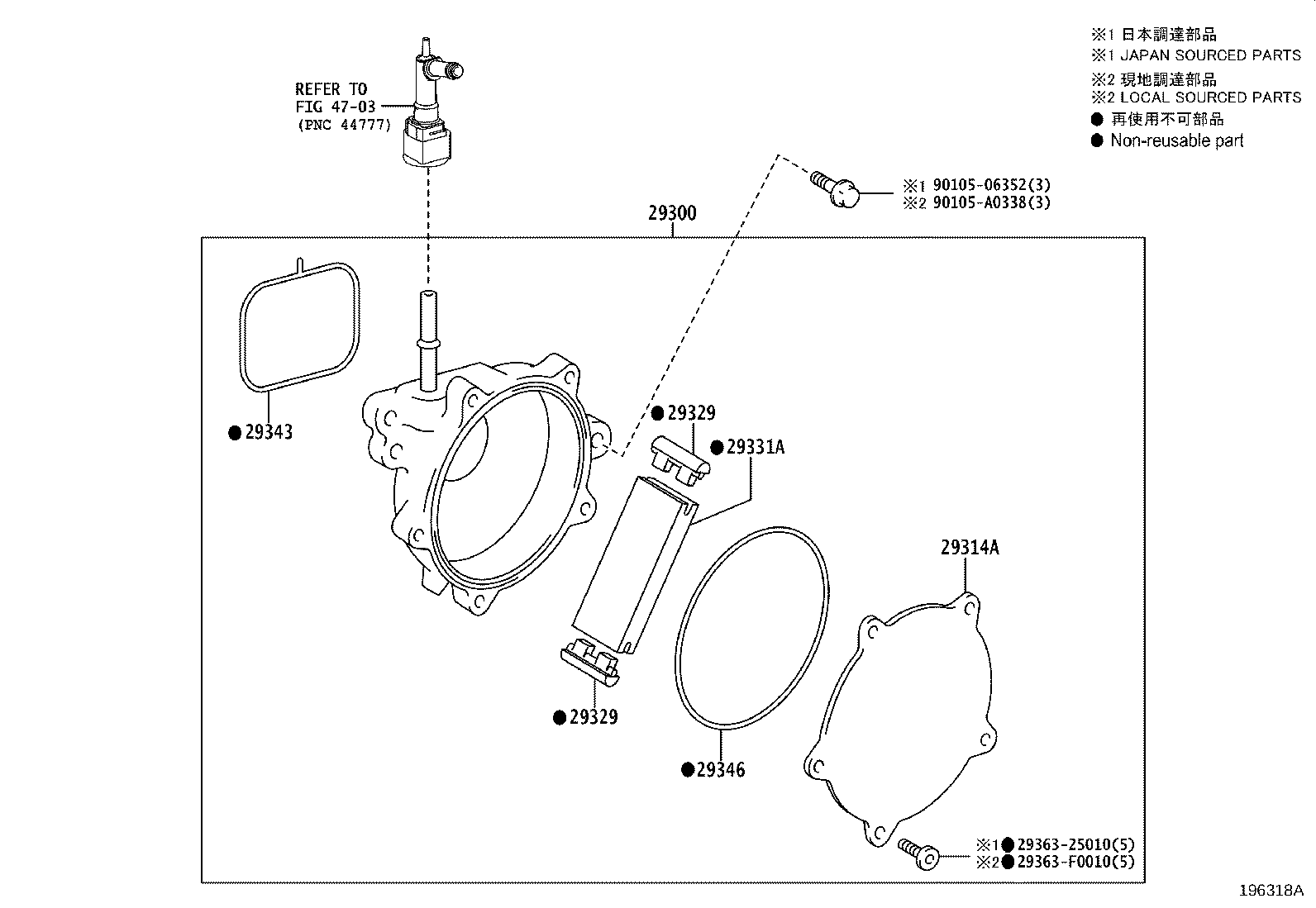

Figure 195666A 195666A 2019-12 → — Figure 196318A 196318A 2022-10 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29314A Cover, End
29329 Cap, Vacuum Pump Vane
29331A Vane, Vacuum Pump
29343 Ring, O Vacuum Pump, NO.1
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29346 Ring, O Vacuum Pump Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
