Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10

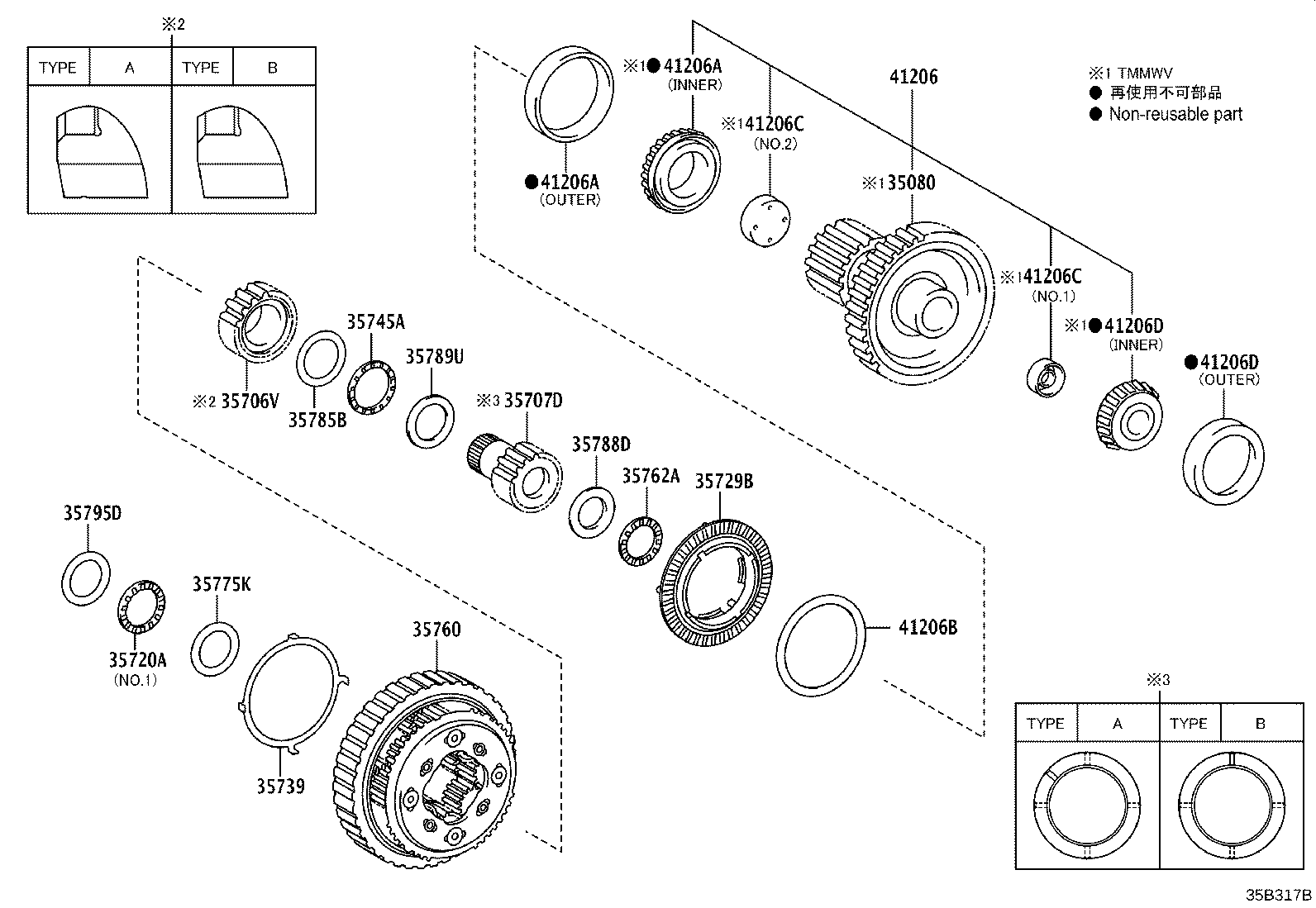

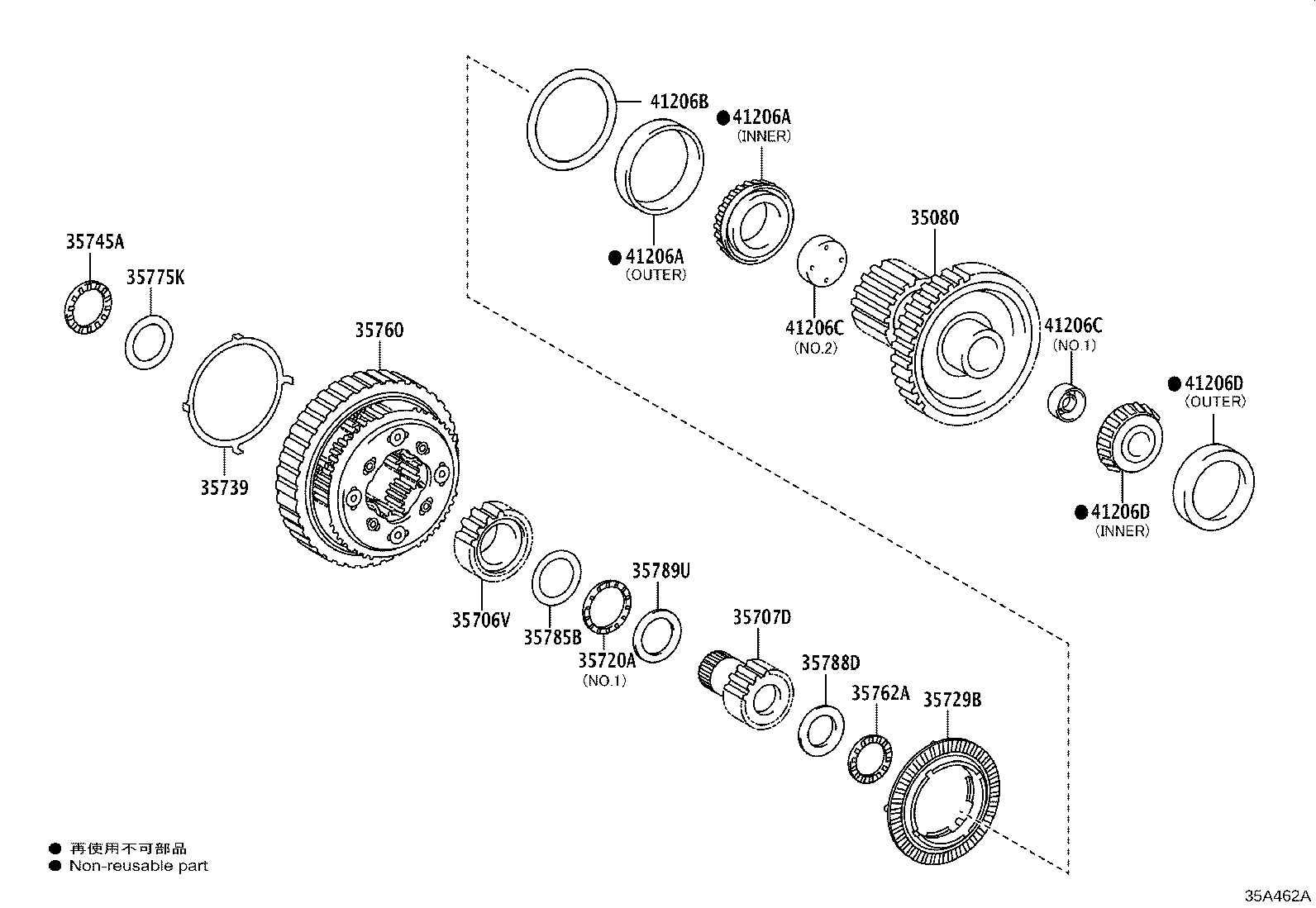

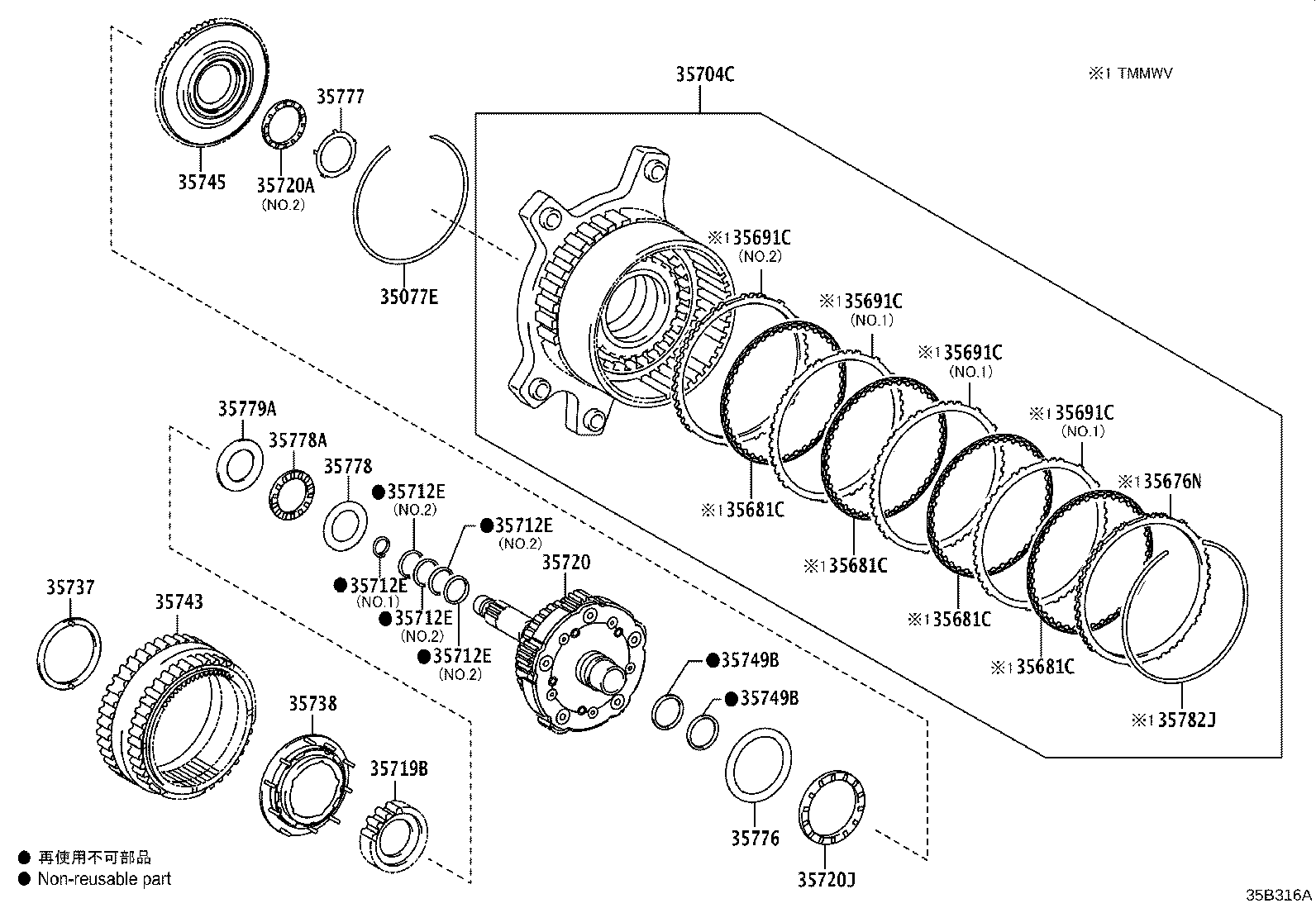

Planetary Gear, Reverse Piston & Counter Gear(ATM)

39 part groups · 4 illustrations

PNC	Description
35077E	Ring, Snap (FOR REAR PLANETARY RING GEAR FLANGE)
35080	Gear Assy, Counter Driven & Differential Pinion
35676N	Flange, Brake, NO.1
35681C	Disc, Brake, NO.1
35691C	Plate, Brake, NO.1
35704C	Gear Sub-assy, Counter Drive
35706V	Gear Sub Assy, Planetary Sun
35707D	Gear Sub-assy, Rear Planetary Sun
35712E	Ring, Input Shaft Oil Seal
35719B	Gear, Planetary Sun
35720	Gear Assy, Front Planetary
35720A	Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR)
35720J	Bearing, Thrust Needle Roller(FOR PLANETARY GEAR FRONT)
35729B	Washer, Planetary Carrier Thrust, NO.4
35737	Washer, Planetary Carrier Thrust
35738	Washer, Planetary Carrier Thrust, NO.2
35739	Washer, Planetary Carrier Thrust, NO.3
35743	Gear, Front Planetary Ring
35745	Flange, Front Planetary Ring Gear
35745A	Brg, Thrust Needle Roller(FOR FRONT PLNT RING GEAR FLANGE)
35749B	Ring, Input Shaft Oil Seal, Rear
35760	Gear Assy, Rear Planetary
35762A	Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE)
35775K	Race, Thrust Bearing, NO.5
35776	Gear, Primary Reduction Driven
35777	Race, Thrust Bearing, NO.7
35778	Race, Thrust Bearing, NO.8
35778A	Bearing, Thrust Needle Roller
35779A	Race, Thrust Bearing, NO.9
35782J	Ring, Snap
35785B	Race, Thrust Bearing, NO.4
35788D	Race, Thrust Bearing, NO.3
35789U	Race, Thrust Bearing
35795D	Race, Thrust Bearing, NO.10
41206	Gear Sub-assy, Pinion & Counter Driven
41206A	Bearing, Tapered Roller, NO.2
41206B	Shim(FOR PINION & COUNTER DRIVEN GEAR)
41206C	Plug, Tight(FOR DIFFERENTIAL DRIVE PINION)
41206D	Bearing, Tapered Roller, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
