Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10
Oil Cooler & Tube (ATM)
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

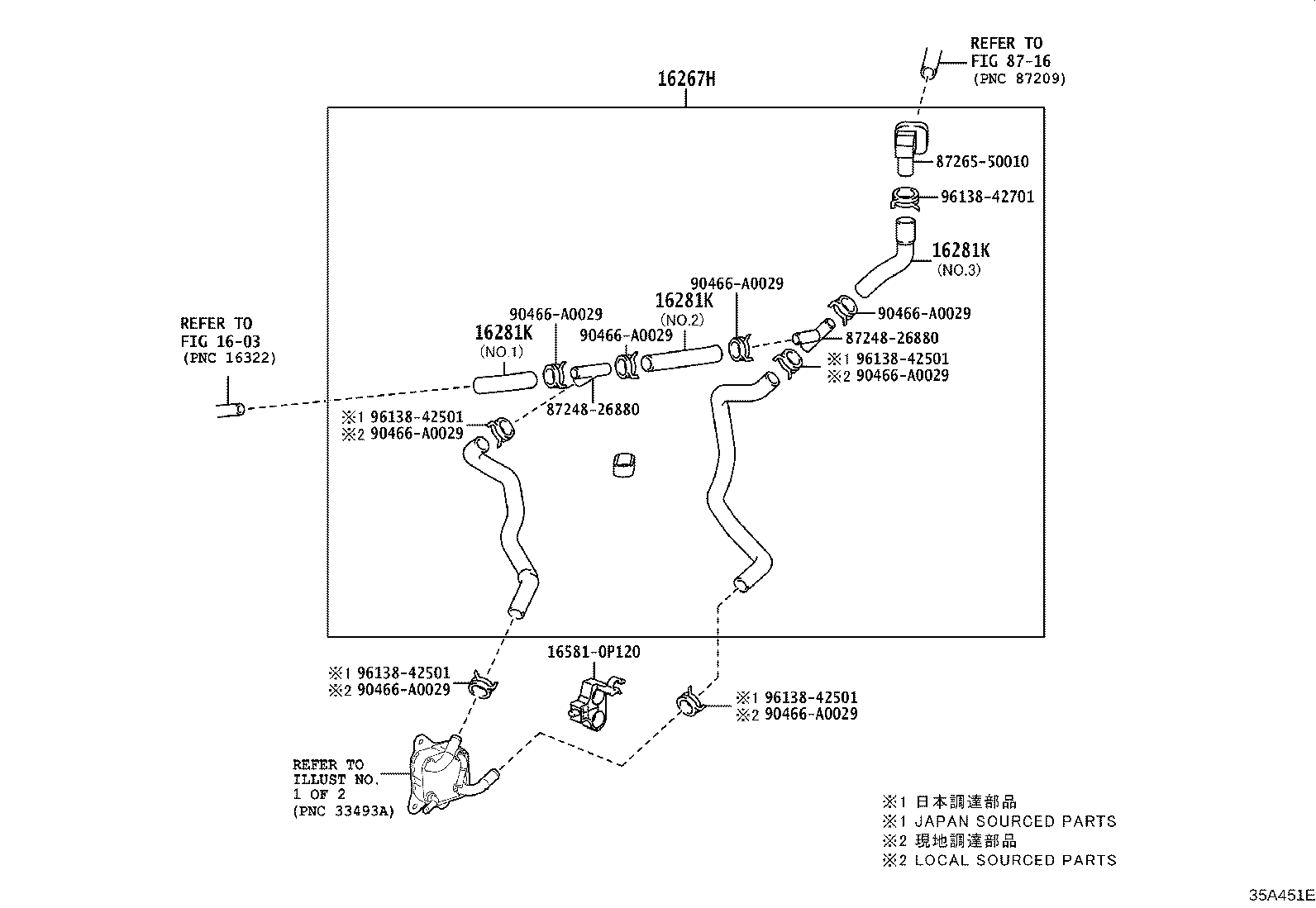

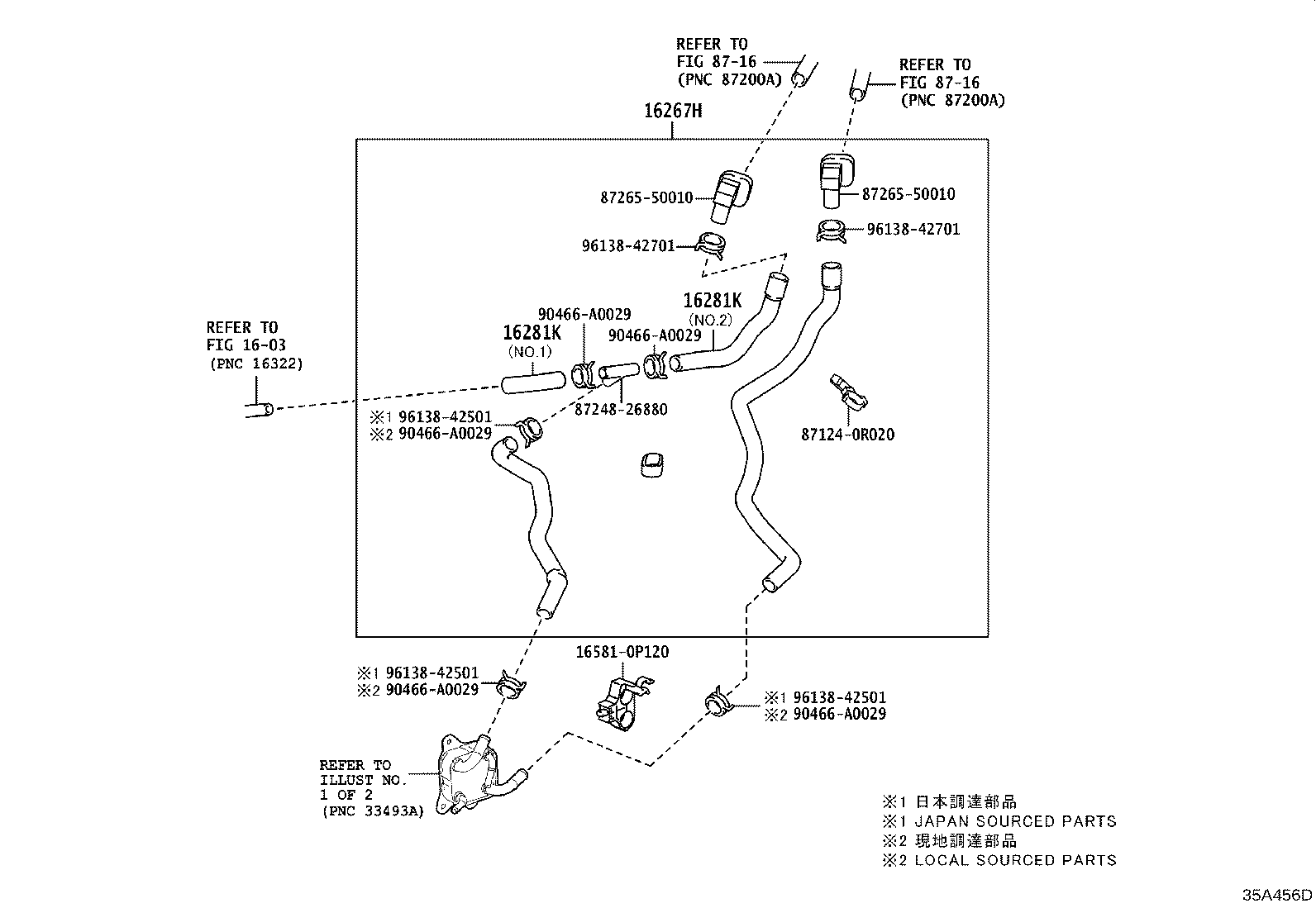

| 16267H | Hose, Water By-pass, NO.3 |
| 16281K | Hose, Water By-pass, NO.4 |

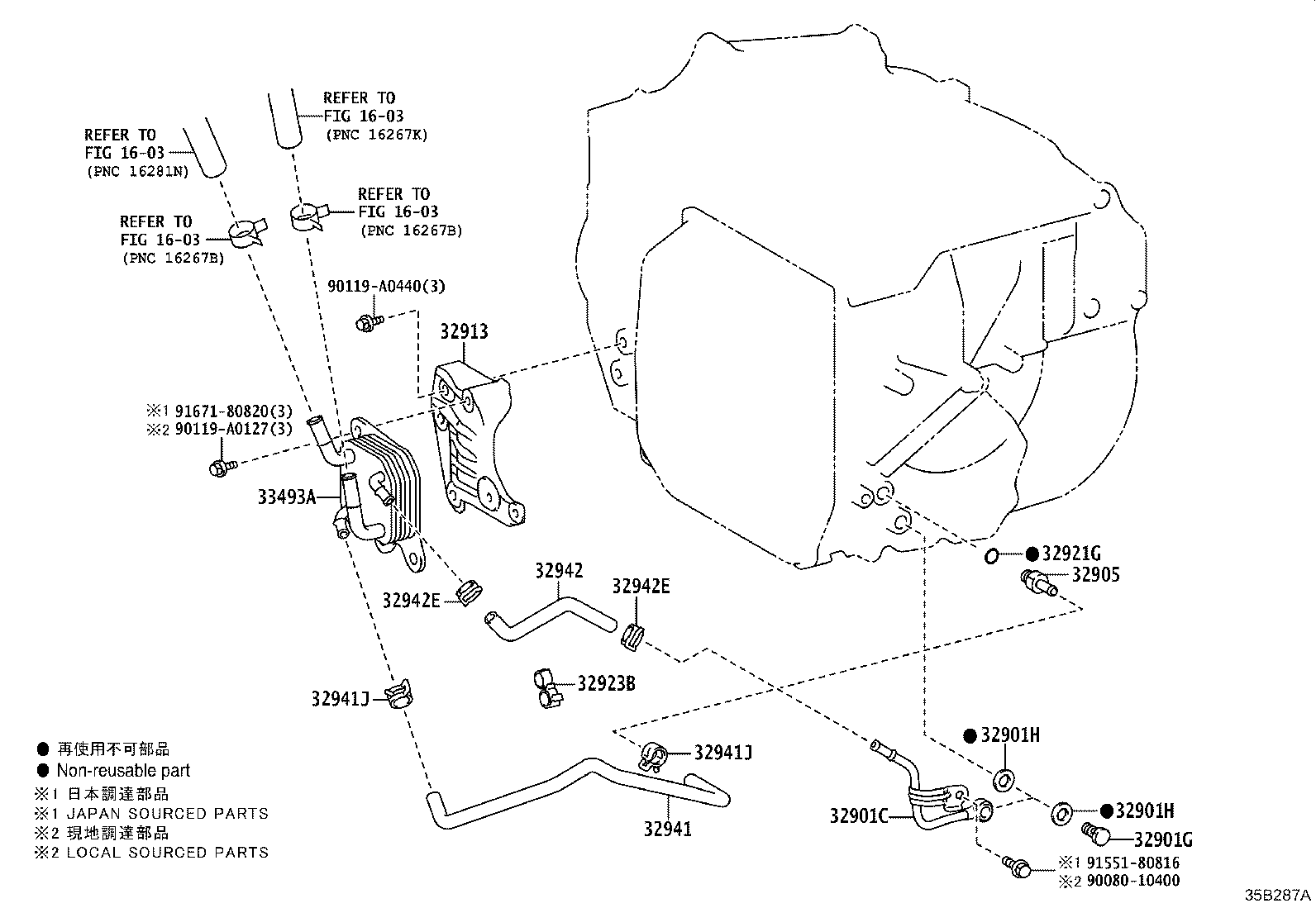

| 32901C | Union Sub-assy, Oil Cooler |
| 32901G | Bolt, Union(FOR OIL COOLER) |
| 32901H | Gasket(FOR OIL COOLER UNION) |
| 32905 | Tube Sub-assy, Oil Cooler Outlet, NO.1 |
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32910 | Cooler Assy, Oil |
| 32913 | Bracket, Oil Cooler |
| 32917 | Duct, Transmission Oil Cooler Air |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32922D | Union OR Elbow, Oil Cooler Outlet |
| 32923B | Clamp, Automatic Transmission Oil Cooler Tube, NO.1 |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941A | Hose, Oil Cooler Inlet, NO.2 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32941W | Clip,NO.5(FOR OIL COOLER TUBE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942B | Hose, Oil Cooler Outlet, NO.3 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32942S | Clip, NO.6(FOR OIL COOLER TUBE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
| 32943C | Hose, Transmission Oil Cooler, NO.3 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32943H | Clip, NO.4(FOR OIL COOLER HOSE) |
| 32943X | Clip, NO.7(FOR OIL COOLER TUBE) |
| 32971 | Thermostat, Transmission Oil |
| 33493A | Cooler, Transmission Oil(ATF WARMER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
