Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

9 part groups · 3 illustrations

Illustrations

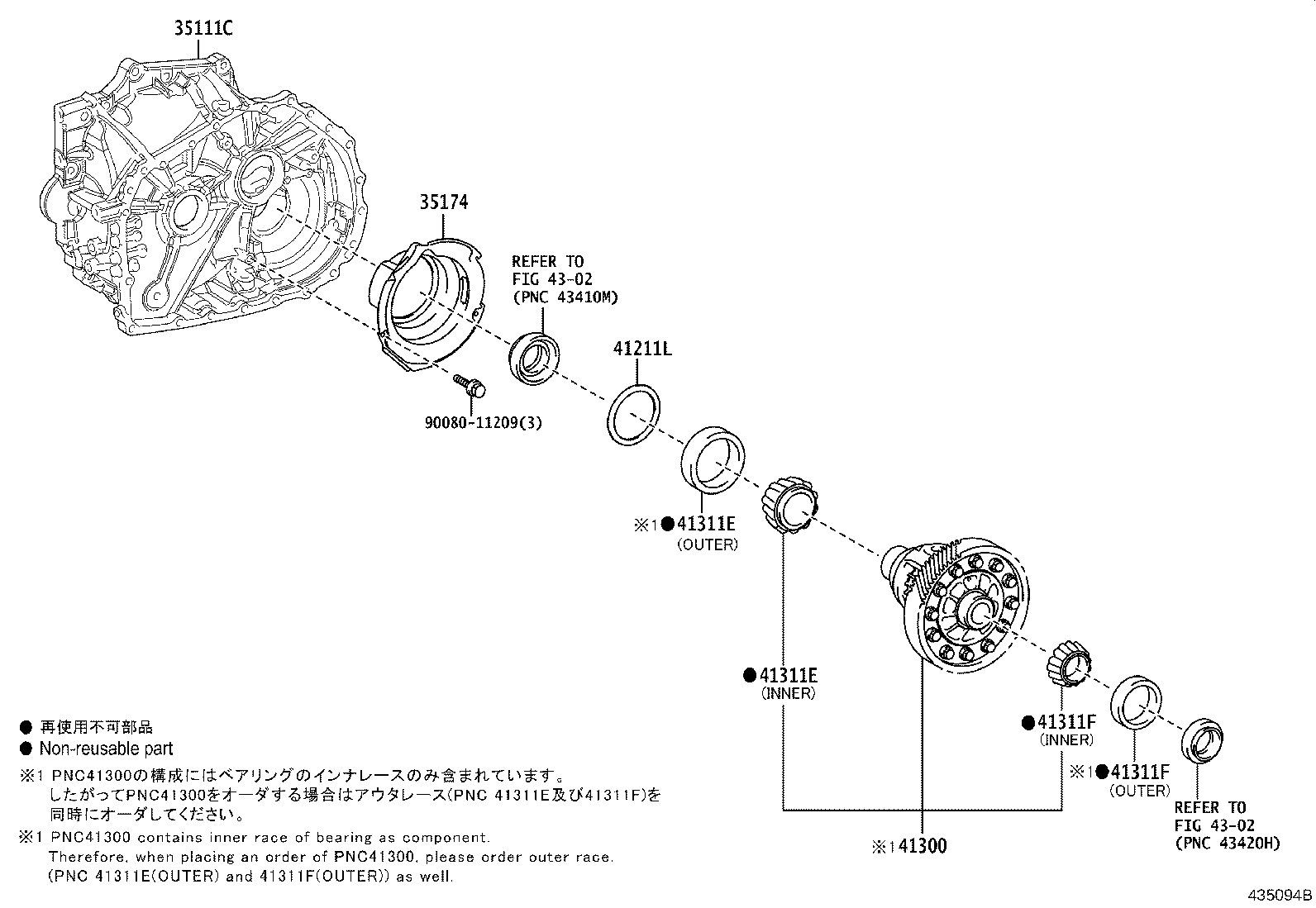

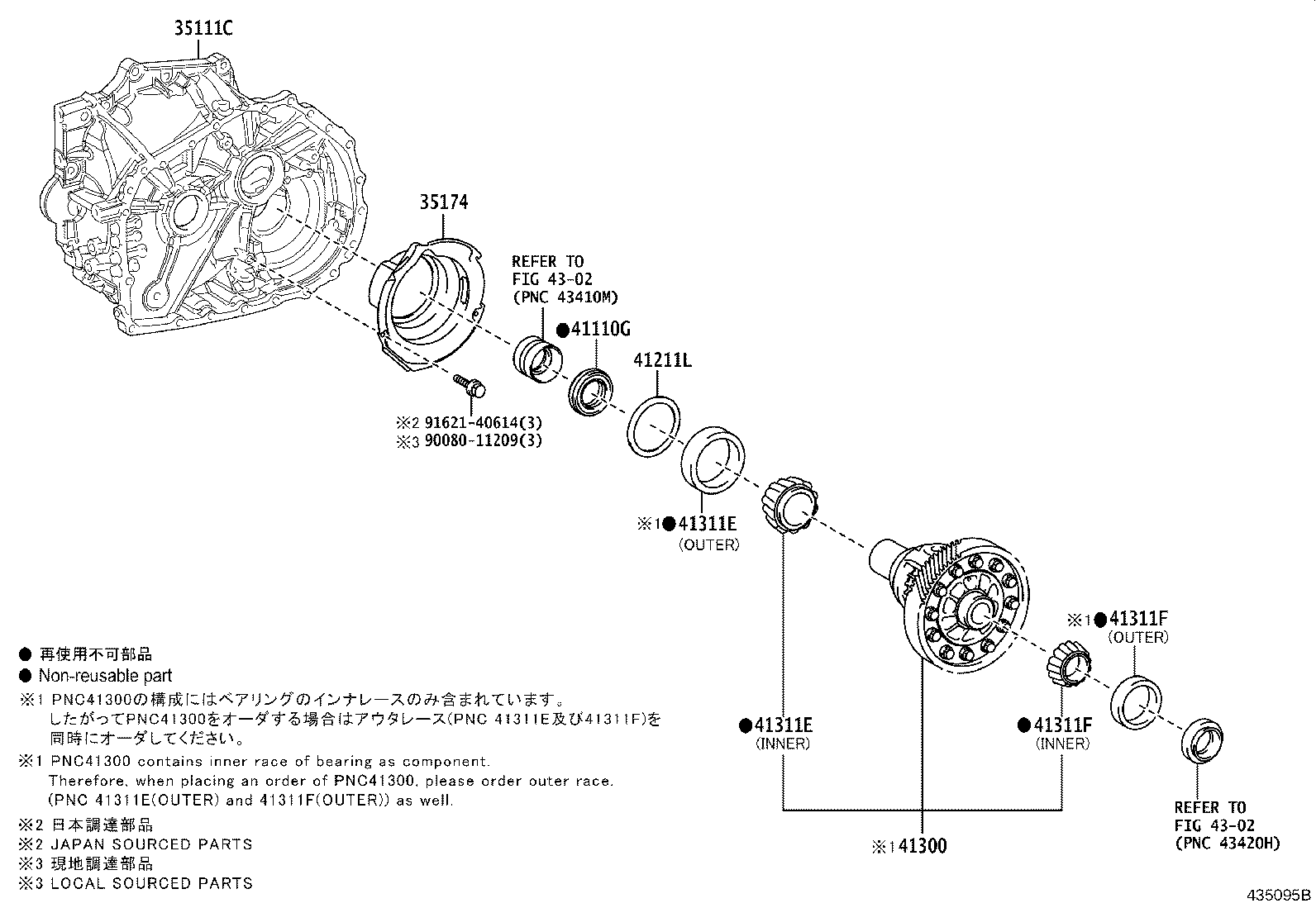

Figure 434272C 434272C 2019-12 → — Figure 435094B 435094B 2022-10 → — Figure 435095B 435095B 2022-10 → —

Part groups

PNCDescription
31105H Seal, Oil, NO.2(FOR TRANSAXLE CASE)
33621D Label, Transaxle Oil Information
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
