Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

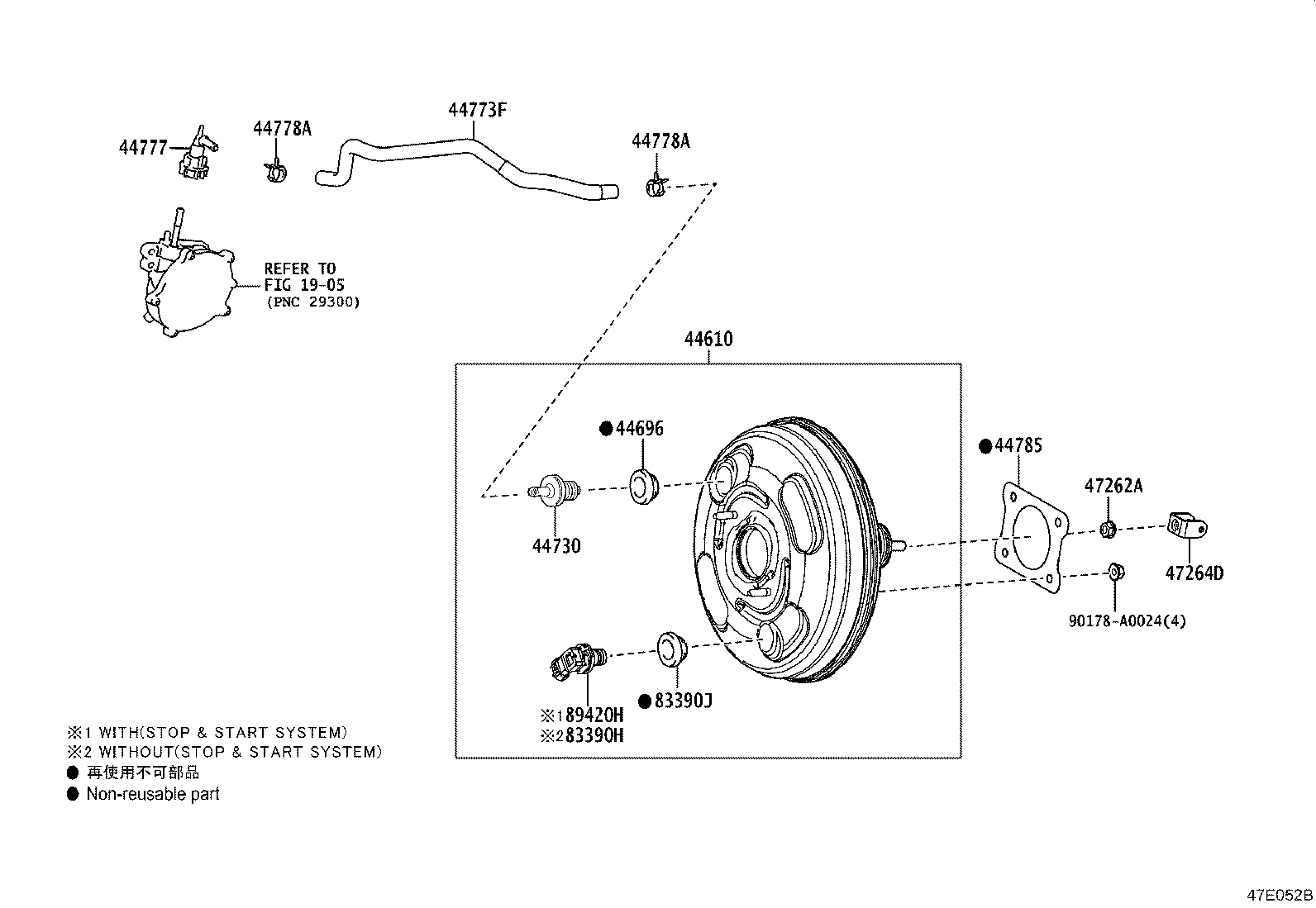

Brake Booster & Vacuum Tube
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44753 | Clamp, Vacuum Reservoir, NO.2 |
| 44773F | Hose, Union TO Check Valve |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
| 44778A | Clip(FOR CONNECTOR TO CHECK VALVE HOSE) |
| 44779 | Hose, Union TO Connector |
| 44781 | Bracket, Hose |
| 44785 | Gasket, Brake Booster |
| 44799 | Way, Brake Vacuum Hose |
| 47262A | Nut, Master Cylinder Push Rod Clevis Lock |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
| 89420H | Sensor Assy, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
