Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

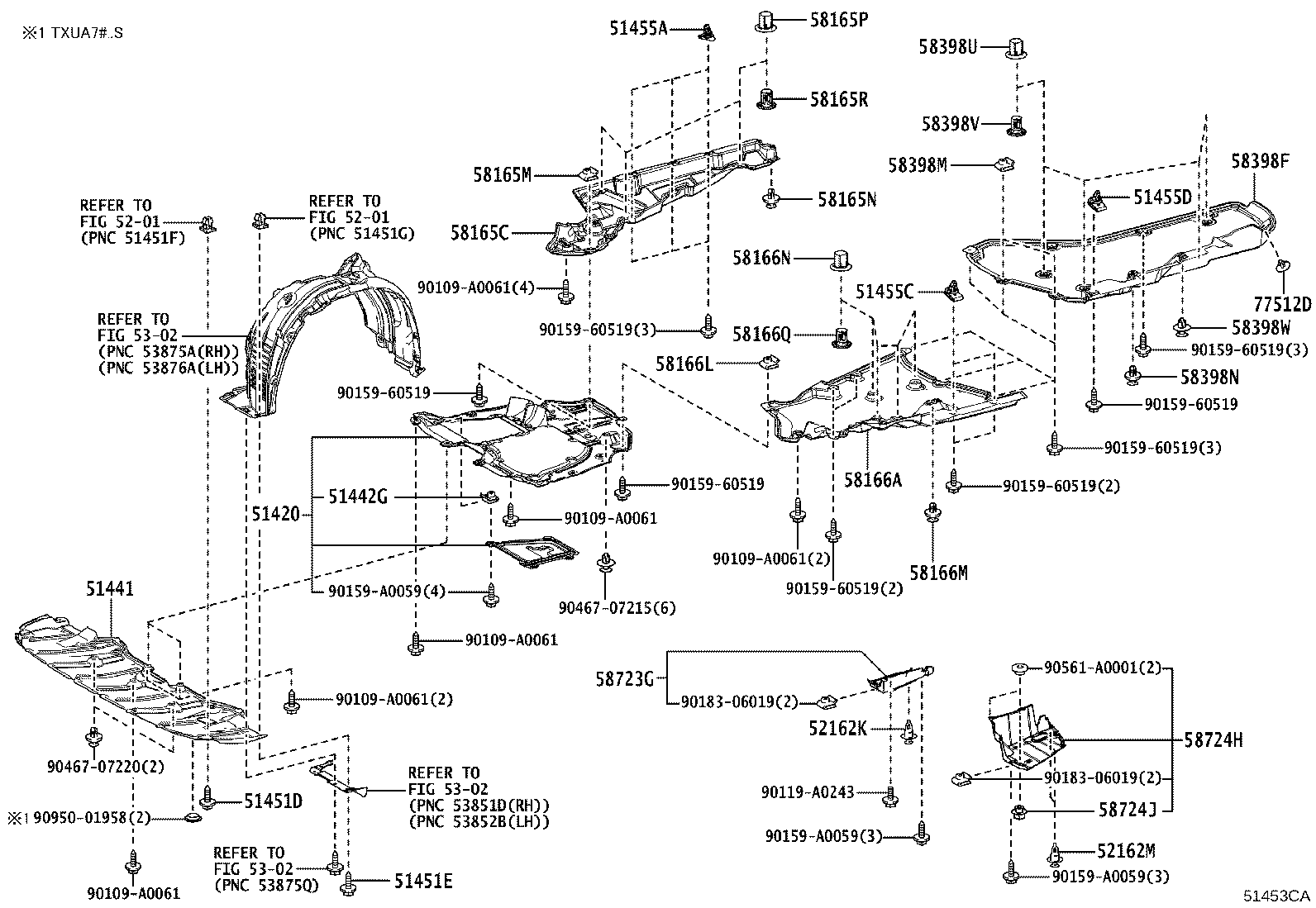

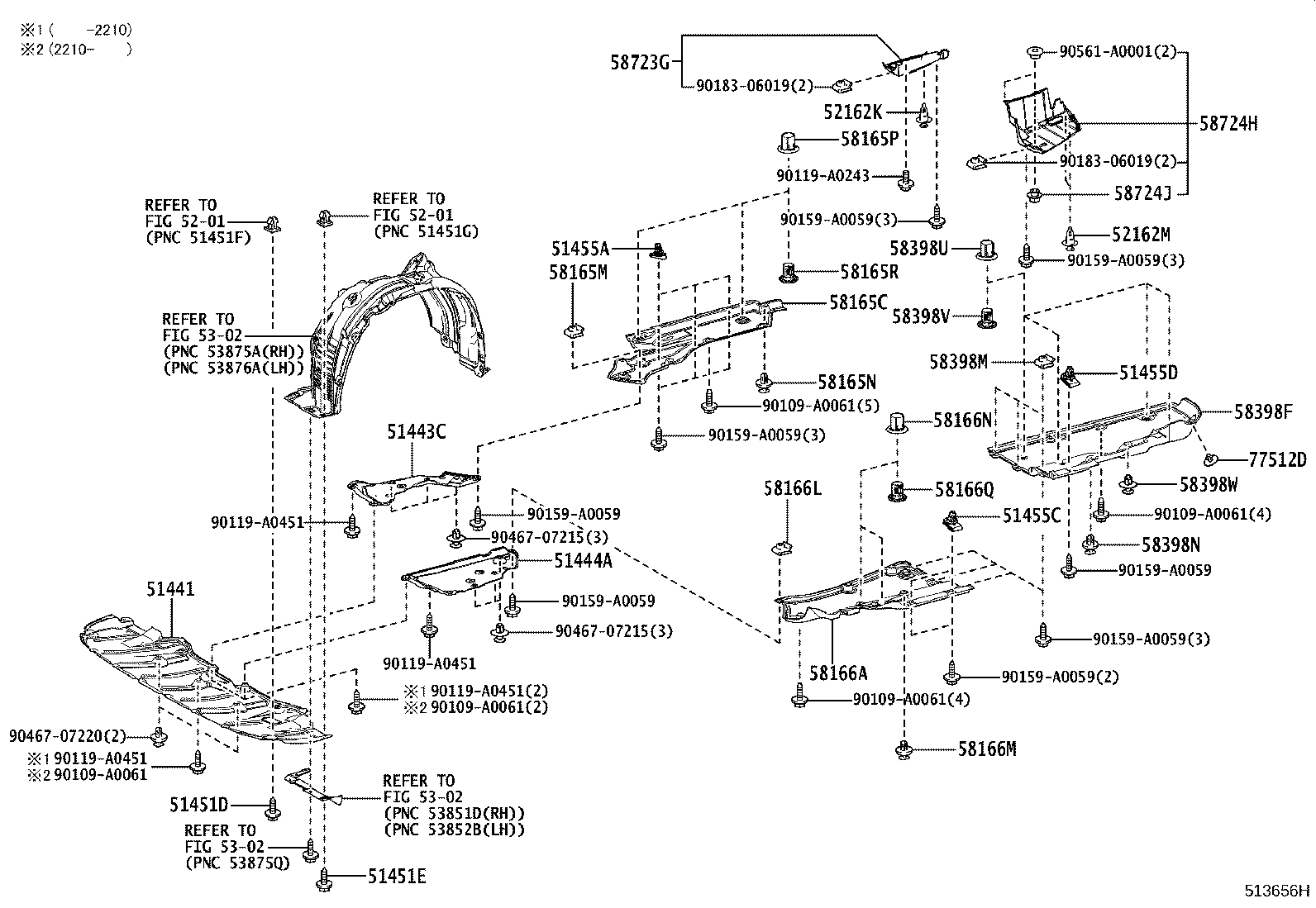

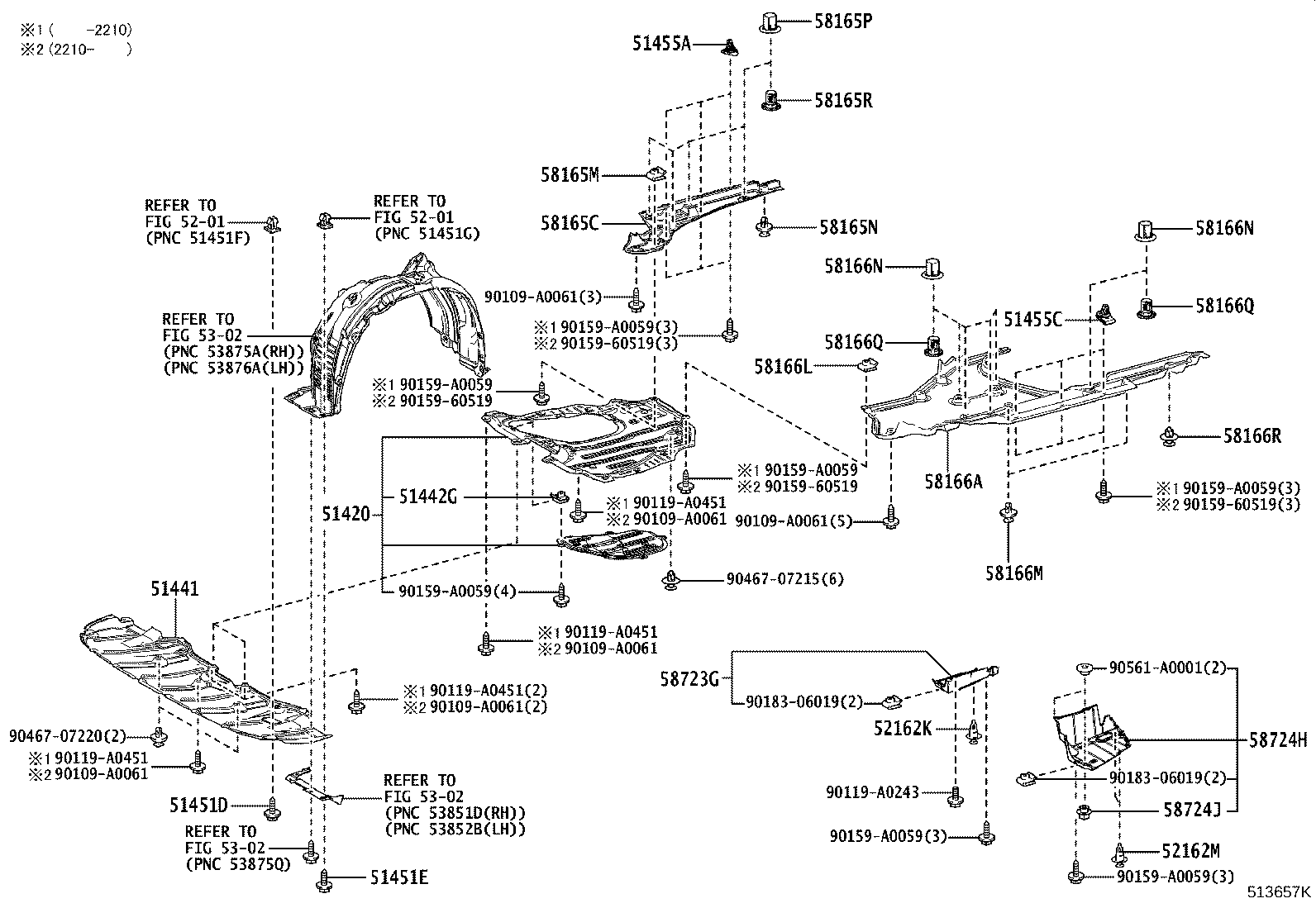

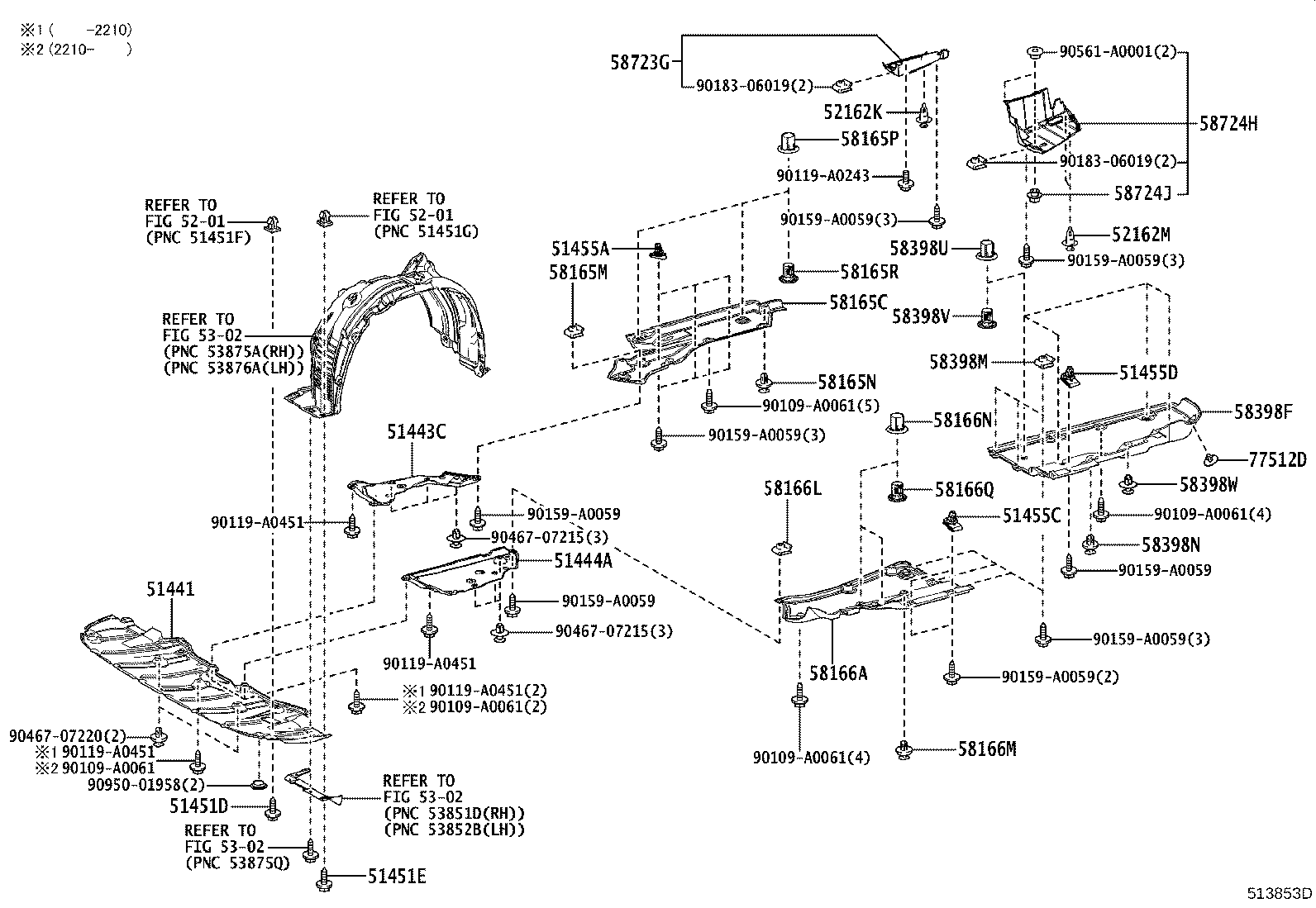

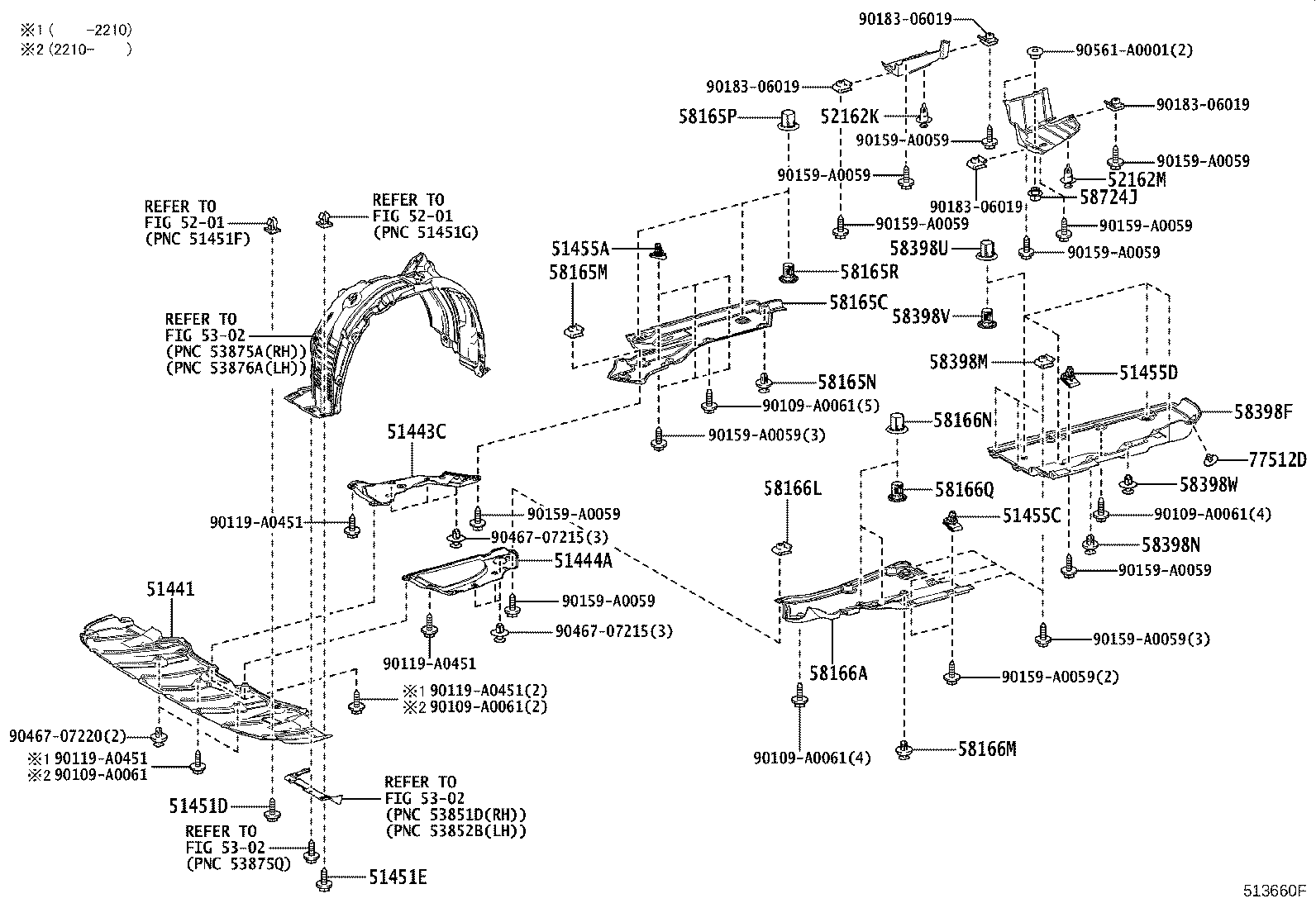

Suspension Crossmember & Under Cover
47 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

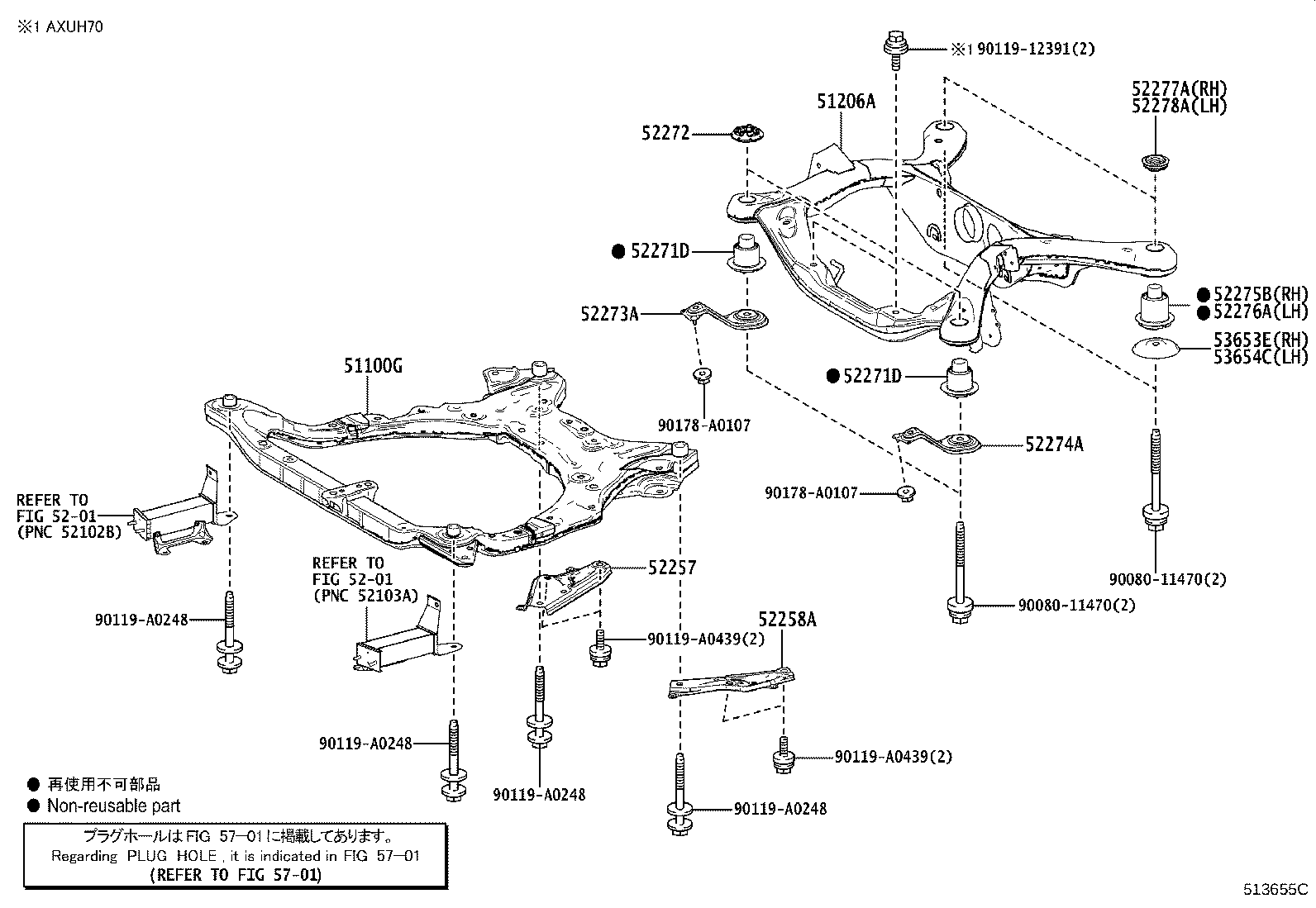

| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 51455C | Seal, Engine Under Cover, NO.2 |
| 51455D | Seal, Engine Under Cover, NO.3 |
| 52162K | Piece, Rear Bumper |
| 52162M | Piece, Rear Bumper |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52277A | Retainer, Rear Suspension Member Lower Stopper, RH |
| 52278A | Retainer, Rear Suspension Menber Lower Stopper, LH |
| 53653E | Brace, Rear Suspension, Lower RH |
| 53654C | Brace, Rear Suspension, Lower LH |
| 58165C | Cover, Front Floor, RH |
| 58165M | Clip, Front Floor Cover, NO.1 |
| 58165N | Clip, Front Floor Cover, NO.2 |
| 58165P | Clip, Front Floor Cover, NO.3 |
| 58165R | Clip, Front Floor Cover, NO.4 |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 58166N | Clip, Front Floor Cover, NO.3 |
| 58166Q | Clip, Front Floor Cover, NO.4 |
| 58166R | Clip, Front Floor Cover, NO.5 |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58398U | Clip, Floor Under Cover, NO.3 |
| 58398V | Clip, Floor Under Cover, NO.4 |
| 58398W | Clip, Floor Under Cover, NO.5 |
| 58723G | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724H | Protector, Luggage Compartment Side Cover, NO.2 |
| 58724J | Clip, Luggage Compartment Side Cover Protector |
| 77512D | Bracket, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
