Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

21 part groups · 2 illustrations

Illustrations

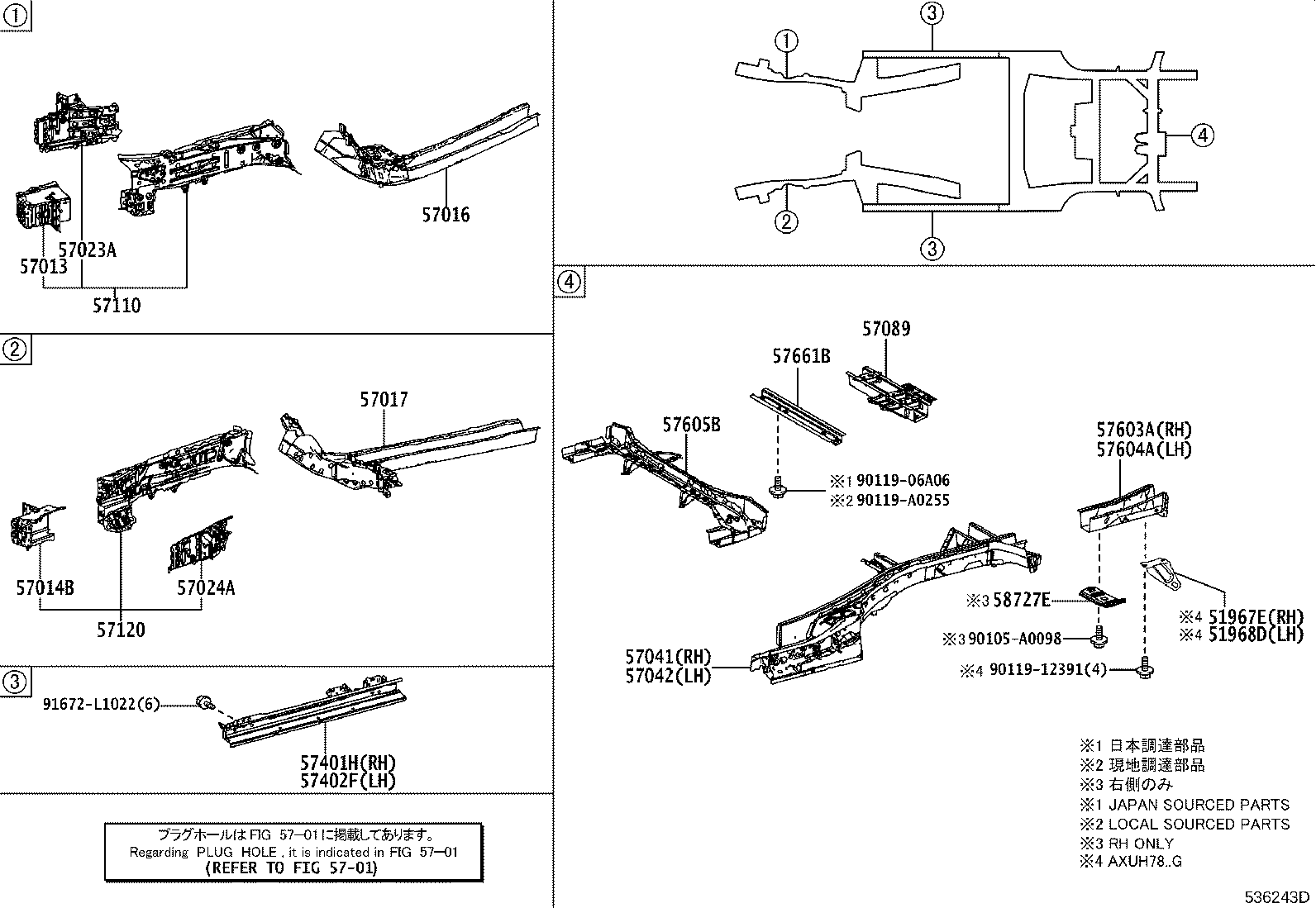

Figure 536207D 536207D 2019-12 → — Figure 536243D 536243D 2020-02 → —

Part groups

PNCDescription
51967E Hook, Transport, Rear RH
51968D Hook, Transport, Rear LH
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57023A Member Sub-assy, Rear Side, RH
57024A Member Sub-assy, Rear Side, LH
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57089 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.6
57110 Member Assy, Front Side, RH
57120 Member Assy, Front Side, LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57603F Gusset Sub-assy, Rear Floor Crossemember
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57661B Member, Rear Floor Cross, Front
58727E Plate, Engine Service Cover, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
