Toyota Highlander

2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 3 illustrations

Illustrations

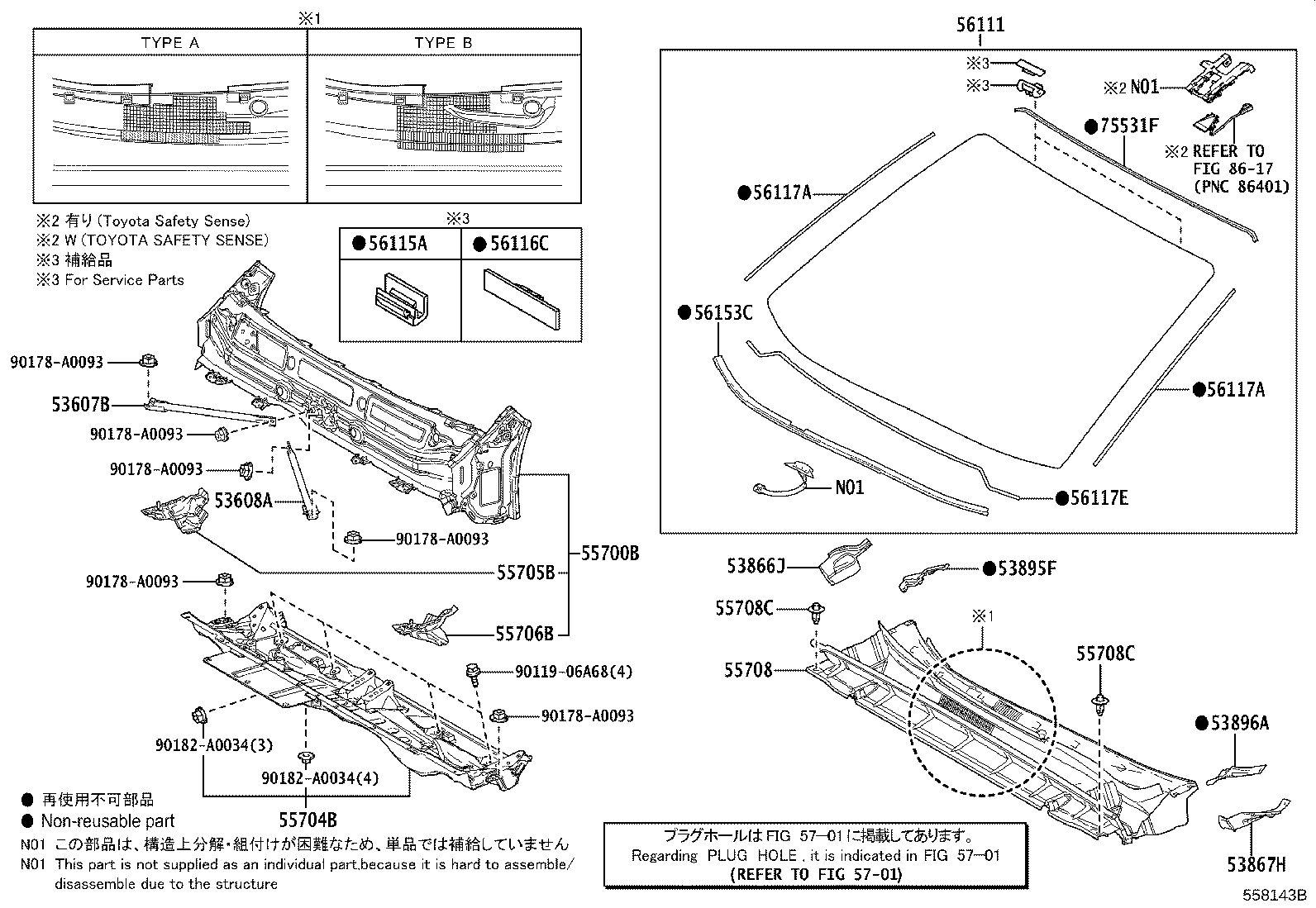

Figure 554554D 554554D 2019-12 → 2022-10 Figure 554554D 554554D 2022-10 → — Figure 558143B 558143B 2022-10 → —

Part groups

PNCDescription
53607B Brace Sub-assy, Front Suspension Upper TO Cowl, RH
53608A Brace Sub-assy, Front Suspension Upper TO Cowl, LH
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
53895F Shield, Front Fender Splash, Front RH
53896A Shield, Front Fender Splash, Front LH
55700B Cowl Assy
55704B Panel Sub-assy, Cowl Ventilator
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55708 Louver Sub-assy, Cowl Top Ventilator
55708C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56117E Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75531F Moulding, Windshield, Outside Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
