Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10
Roof Panel & Back Window Glass
64 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 61715D | Extension, Roof Side, Inner Front RH |
| 61716D | Extension, Roof Side, Inner Front LH |

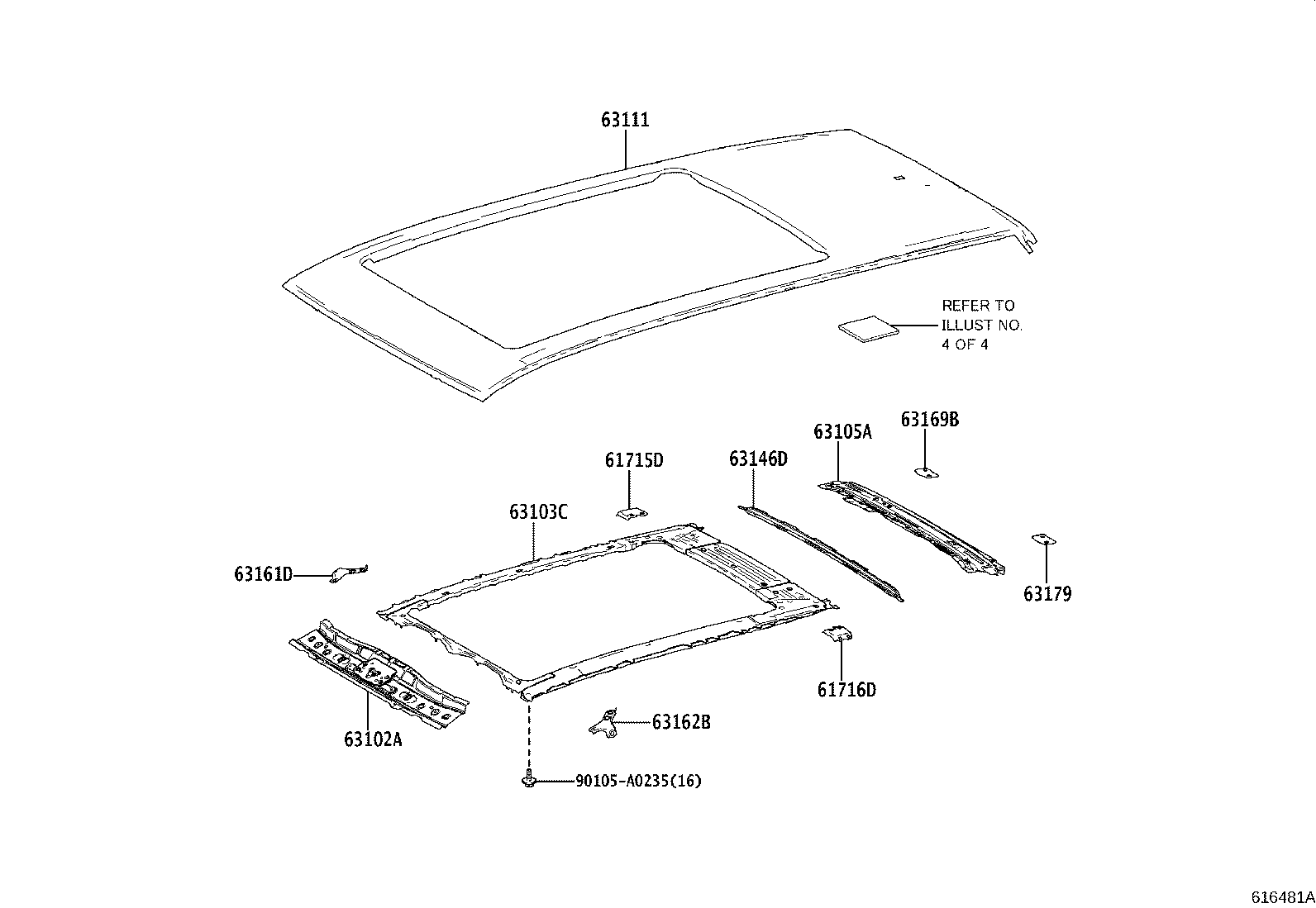

| 63102A | Panel Sub-assy, Windshield Header |
| 63103C | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |

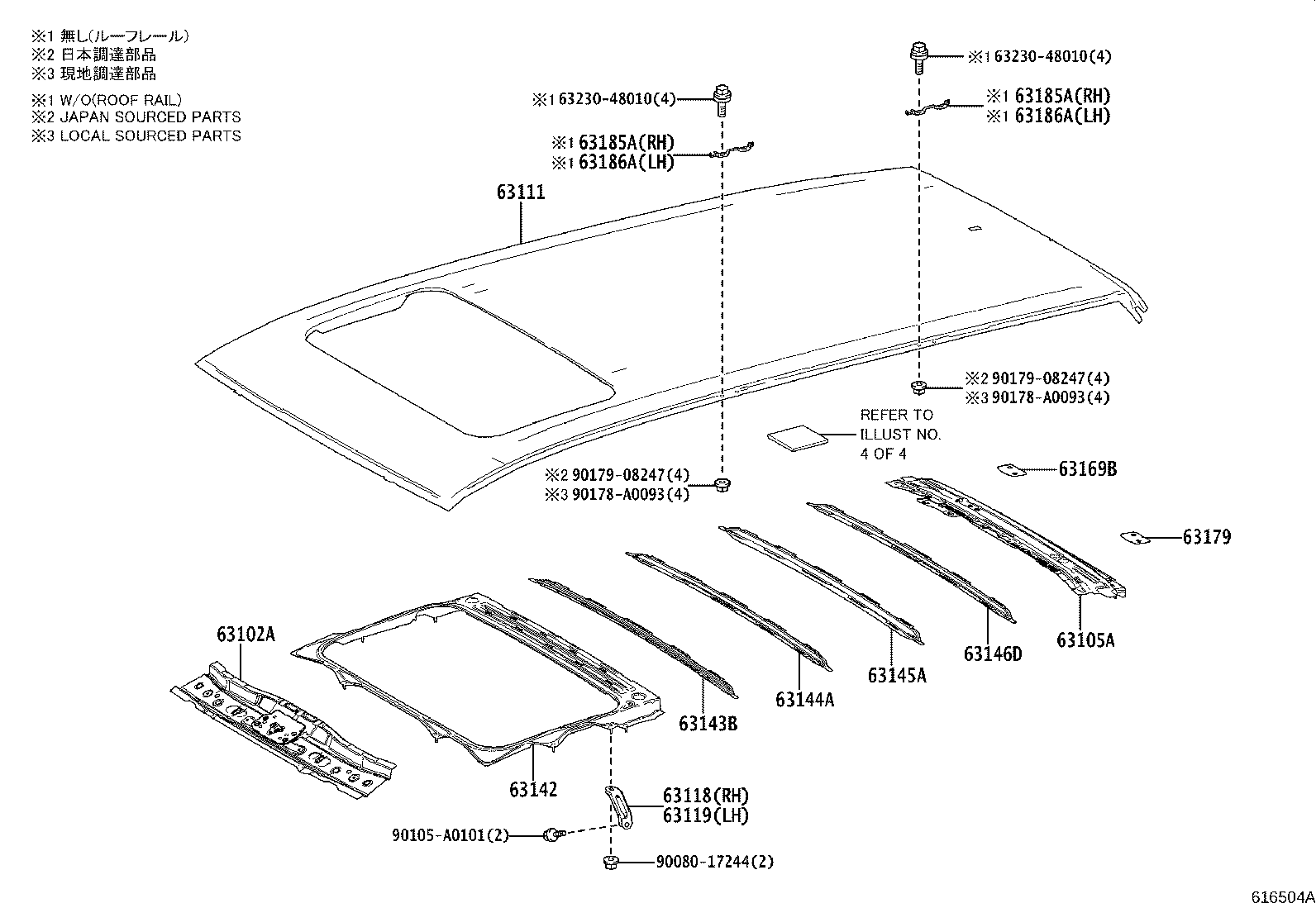

| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145A | Reinforcement, Roof Panel, NO.5 |
| 63146D | Reinforcement, Roof Panel, NO.6 |
| 63161D | Plate, Roof Header Panel, NO.1 |
| 63162B | Plate, Roof Header Panel, NO.2 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |

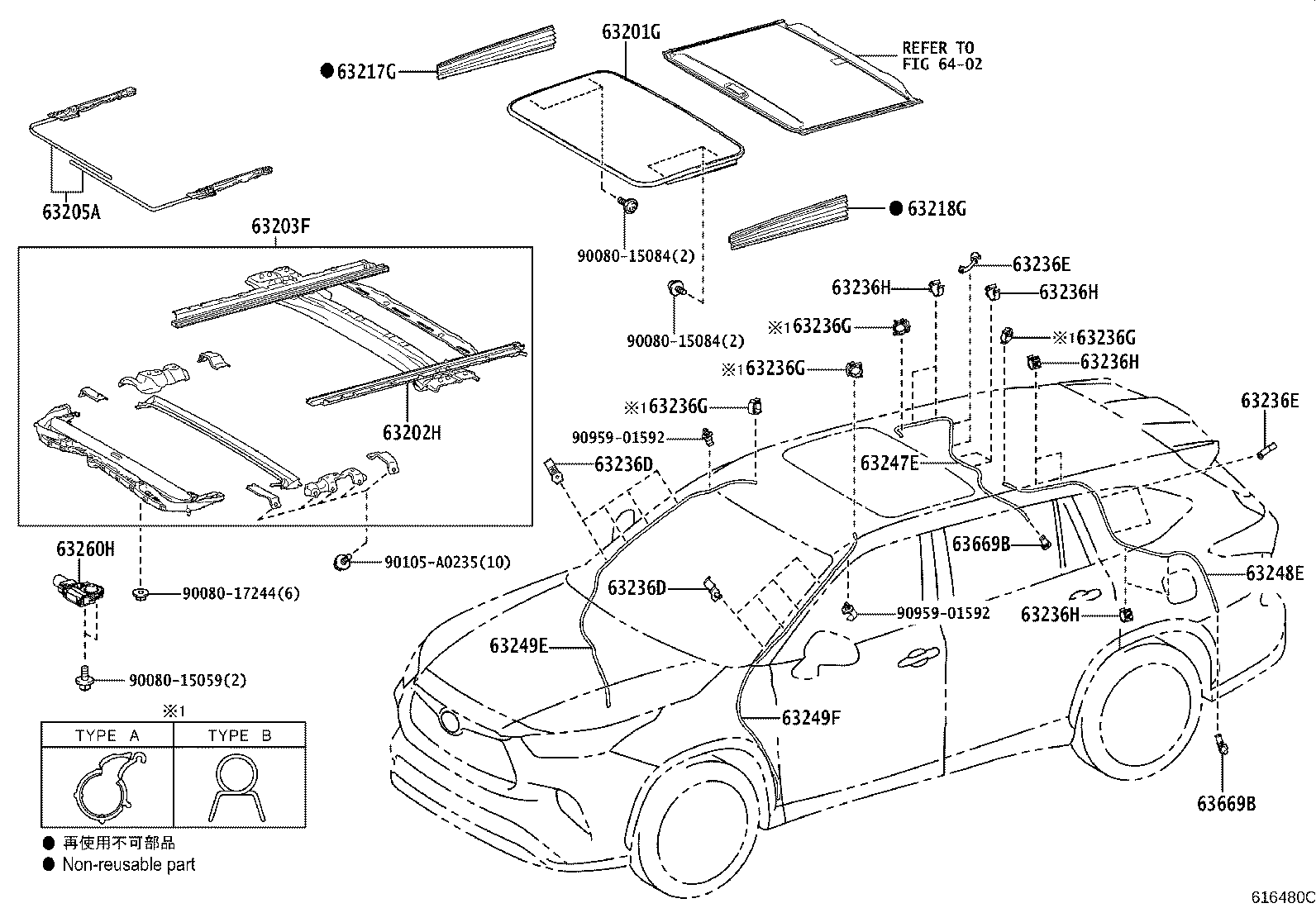

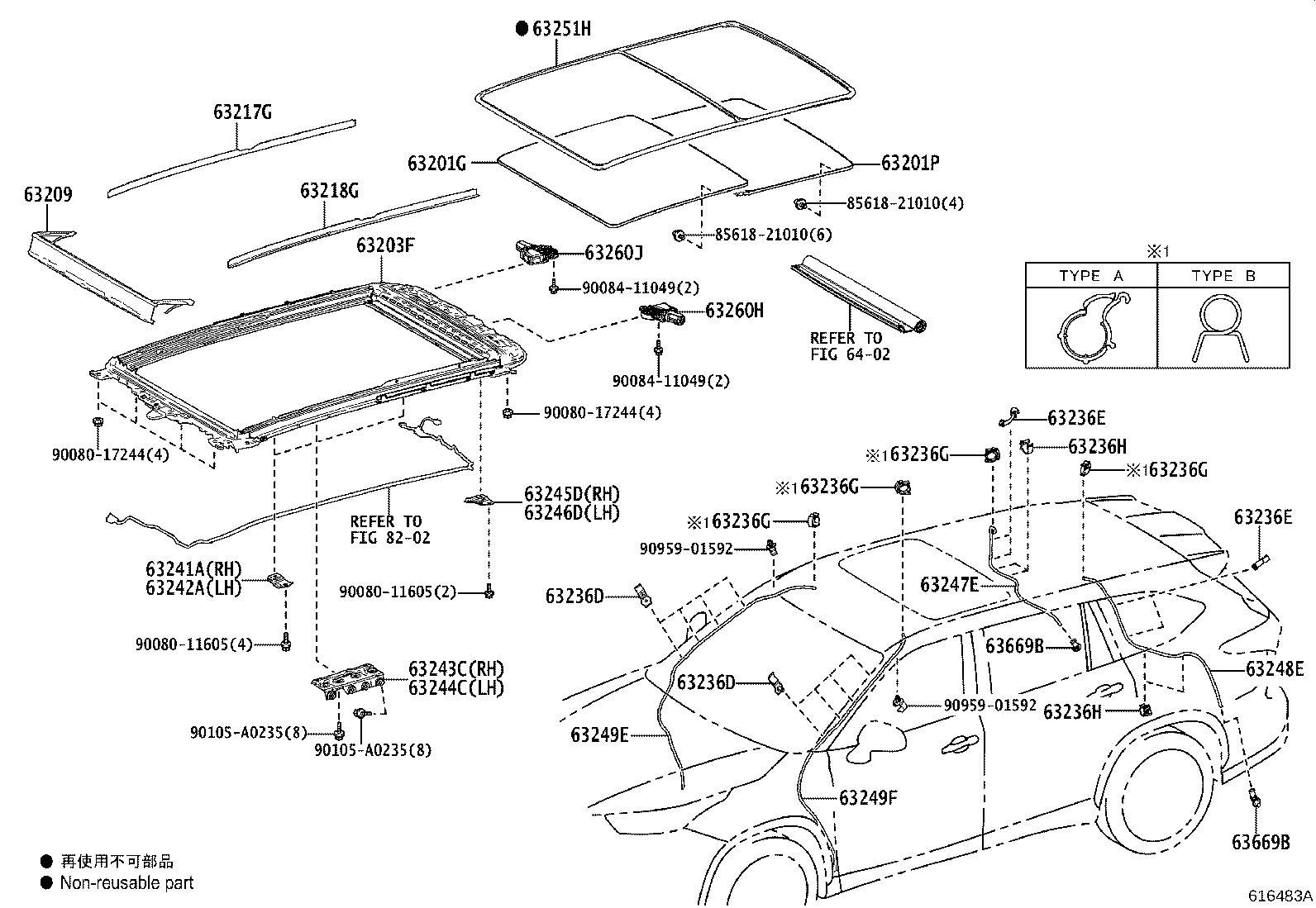

| 63201G | Glass Sub-assy, Sliding Roof |
| 63201P | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63236G | Clamp, Sliding Roof Drain Hose |
| 63236H | Clamp, Sliding Roof Drain Hose |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63260J | Gear Assy, Sliding Roof Drive |
| 63435C | Seal, Roof Carrier, NO.1 RH |
| 63436B | Seal, Roof Carrier, NO.1 LH |
| 63437B | Seal, Roof Carrier, NO.2 RH |
| 63437D | Seal, Roof Carrier, NO.2 LH |
| 63438B | Seal, Roof Carrier, NO.3 RH |
| 63438G | Seal, Roof Carrier, NO.4 RH |
| 63439A | Seal, Roof Carrier, NO.3 LH |
| 63439E | Seal, Roof Carrier, NO.4 LH |
| 63451C | Retainer, Roof Rack, Front RH |
| 63453F | Retainer, Roof Rack, Front LH |

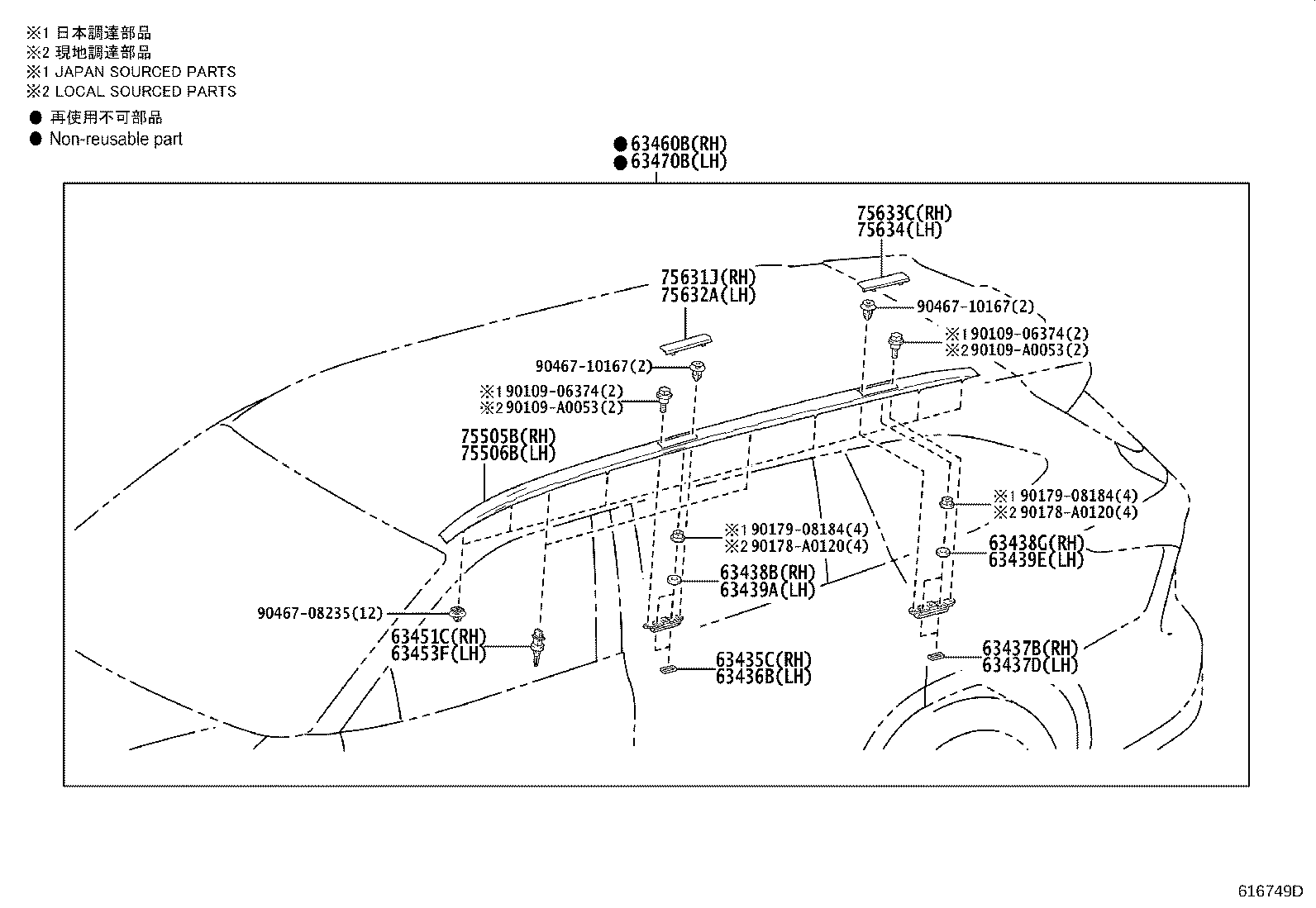

| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63669B | Grommet, Sliding Roof Drain |
| 75505B | Garnish Sub-assy, Roof Side, Front RH |
| 75506B | Garnish Sub-assy, Roof Side, Front LH |
| 75631J | Lid, Roof Side Garnish, NO.1 RH |
| 75632A | Lid, Roof Side Garnish, NO.1 LH |
| 75633C | Lid, Roof Side Garnish, NO.2 RH |
| 75634 | Lid, Roof Side Garnish, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
