Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

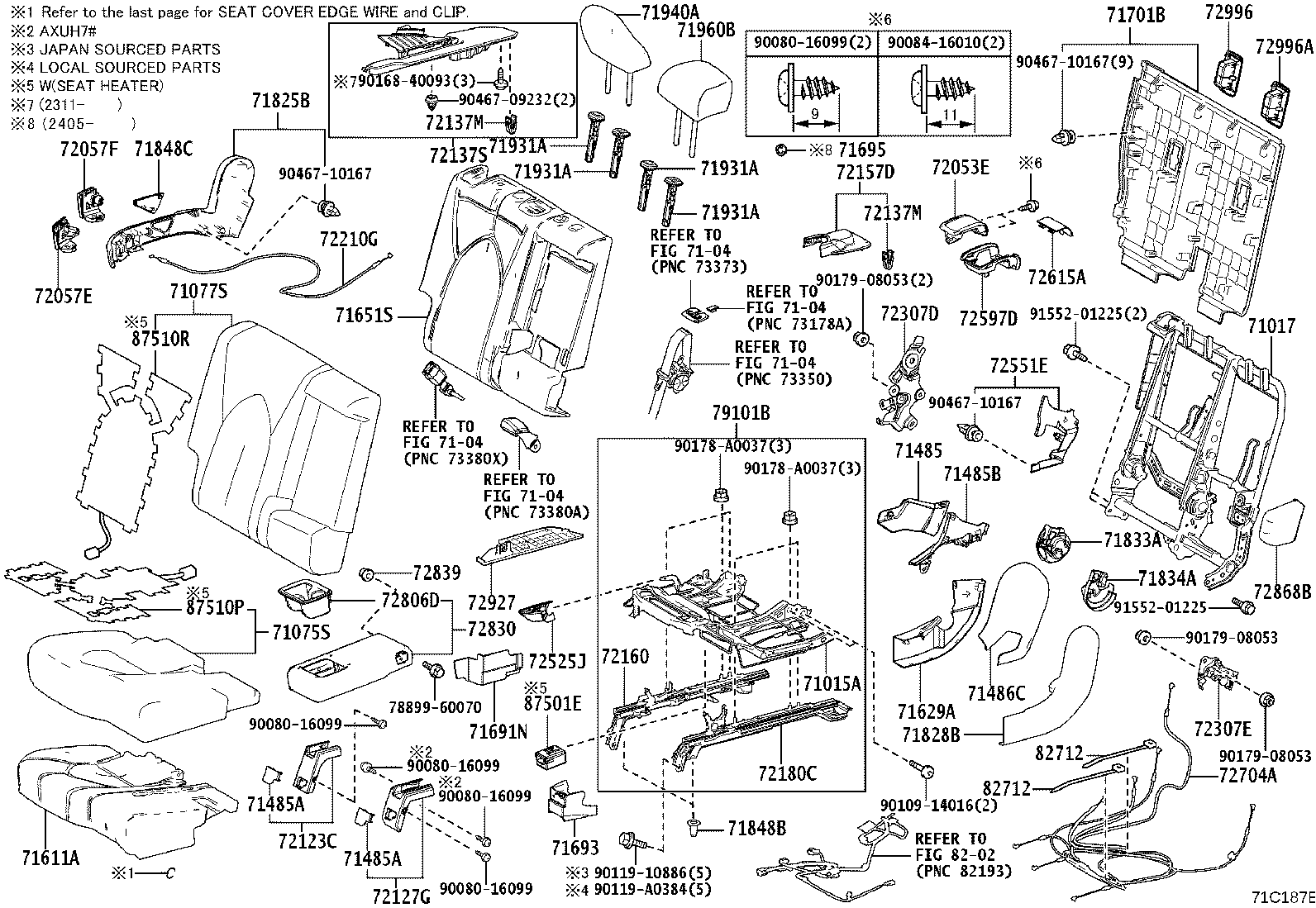

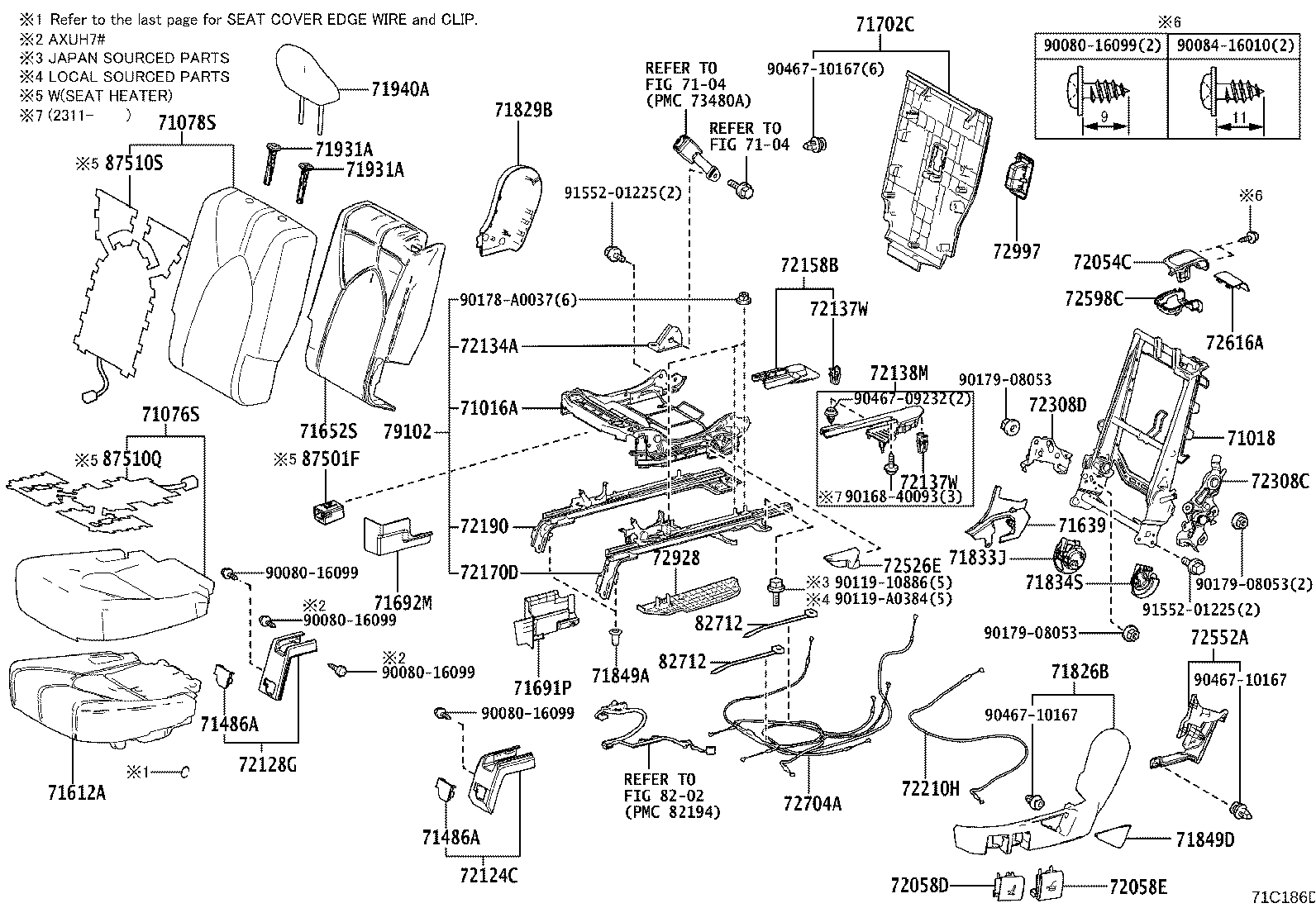

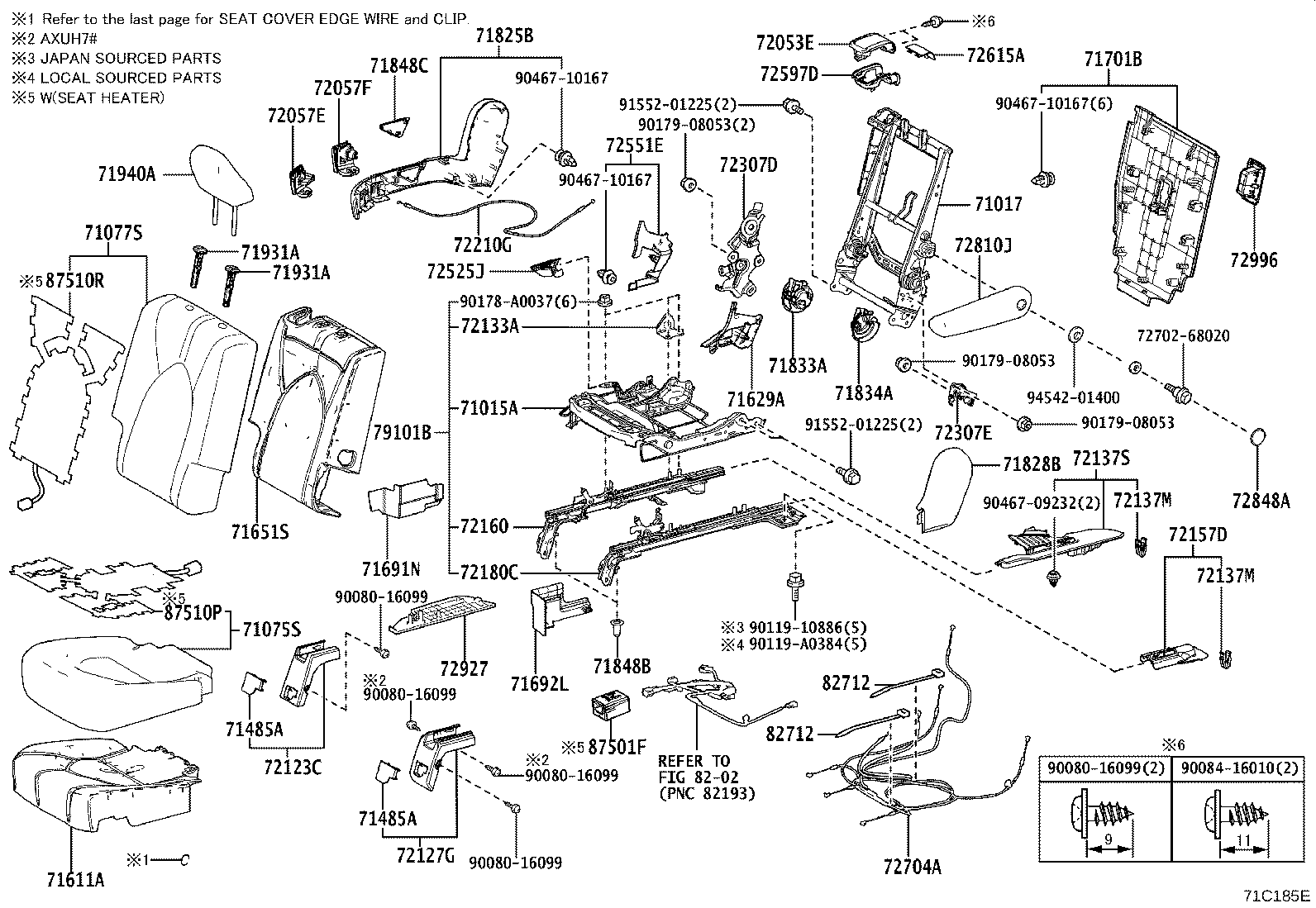

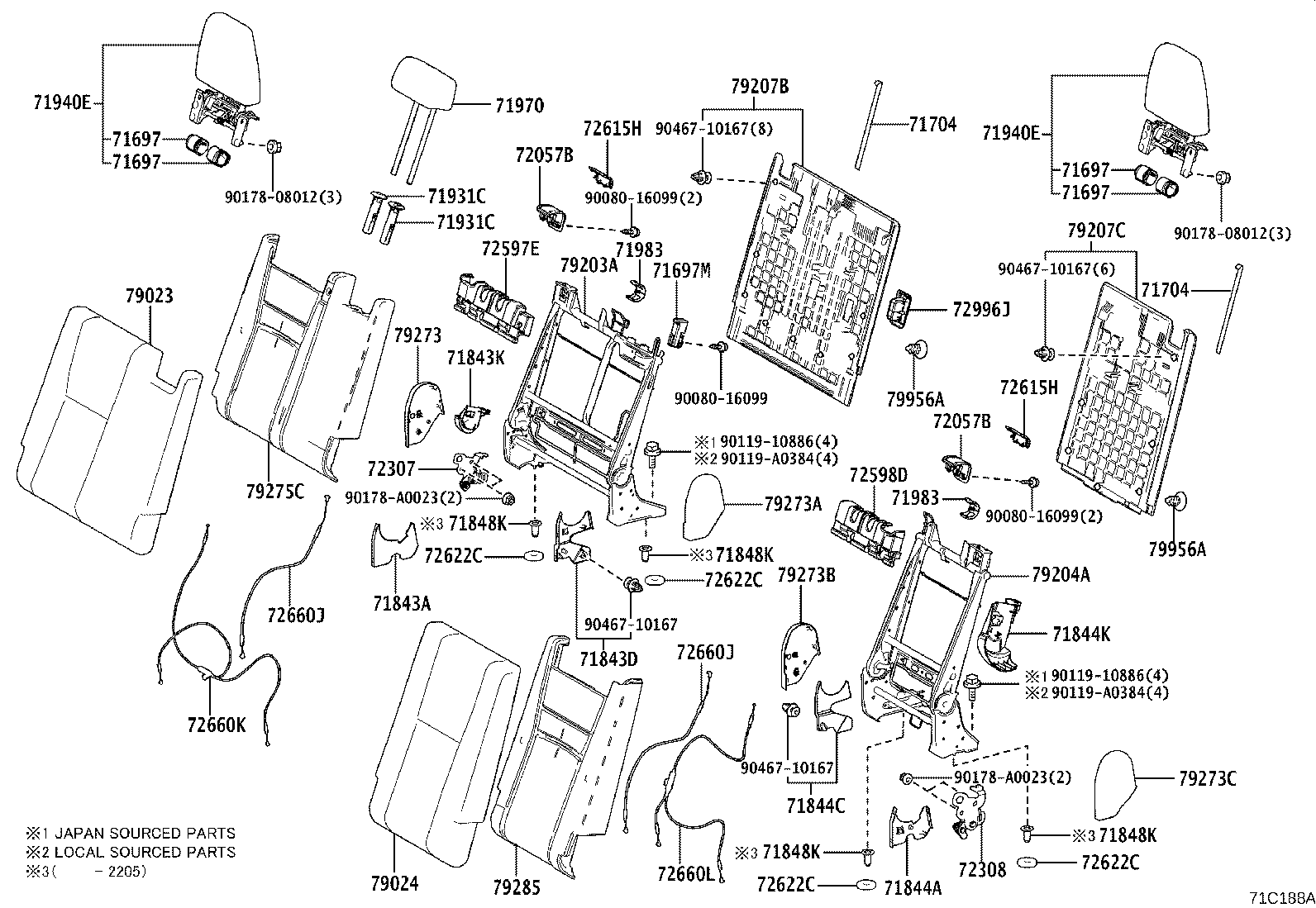

Rear Seat & Seat Track
142 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71485 | Cover, Rear Seat Hinge |
| 71485A | Cover, Rear Seat Hinge, NO.2 RH |
| 71485B | Cover, Rear Seat Hinge |
| 71486A | Cover, Rear Seat Hinge, NO.2 LH |
| 71486C | Cover, Rear Seat Hinge, LH |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71691N | Cover, Rear Seat Cushion Hinge, Upper RH NO.1 |
| 71691P | Cover, Rear Seat Cushion Hinge, Upper RH NO.2 |
| 71692L | Cover, Rear Seat Cushion Hinge, Upper LH NO.1 |
| 71692M | Cover, Rear Seat Cushion Hinge, Upper LH NO.2 |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71695 | Protector, Rear Seatback |
| 71697 | Protector, Rear Seatback Edge |
| 71697M | Protector, Rear Seatback |
| 71701B | Board Sub-assy, Rear Seatback, RH |
| 71702C | Board Sub-assy, Rear Seatback, LH |
| 71704 | Band Sub-assy, Rear Side Seat |
| 71825B | Moulding, Rear Seat Cushion, RH |
| 71826B | Moulding, Rear Seat Cushion, LH |
| 71828B | Moulding, Rear Seat Cushion, Rear RH |
| 71829B | Moulding, Rear Seat Cushion, Rear LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833J | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834S | Cover, Rear Seat Reclining, NO.1 LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71843D | Cover, Rear Seat Reclining, NO.2 RH |
| 71843K | Cover, Rear NO.2 Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71844C | Cover, Rear Seat Reclining, NO.2 LH |
| 71844K | Cover, Rear NO.2 Seat Reclining, NO.2 LH |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71848C | Cap, Seat Adjuster Cover, RH |
| 71848K | Cap, Seat Adjuster Cover |
| 71849A | Cap, Seat Adjuster Cover, LH |
| 71849D | Cap, Seat Adjuster Cover, LH |
| 71931A | Support, Rear Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940E | Headrest Assy, NO.2 Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 71970 | Headrest Assy, Rear Seat |
| 71983 | Guide, Rear Seat Headrest |
| 72053E | Lever Sub-assy, Reclining Remote Control, RH |
| 72054C | Lever Sub-assy, Reclining Remote Control, LH |
| 72057B | Lever Sub-assy, Rear Seat Lock Control |
| 72057E | Lever Sub-assy, Rear Seat Lock Control, RH NO.1 |
| 72057F | Lever Sub-assy, Rear Seat Lock Control, RH NO.2 |
| 72058D | Lever Sub-assy, Rear Seat Lock Control, RH NO.1 |
| 72058E | Lever Sub-assy, Rear Seat Lock Control, RH NO.2 |
| 72123C | Cover, Seat Track Bracket, Outer Front RH |
| 72124C | Cover, Seat Track Bracket, Outer Front LH |
| 72127G | Cover, Seat Track Bracket, Inner Front RH |
| 72128G | Cover, Seat Track Bracket, Inner Front LH |
| 72133A | Bracket, Front Inner Seat Track Upper Rail, RH |
| 72134A | Bracket, Front Inner Seat Track Upper Rail, LH |
| 72137M | Clip (FOR SEAT TRACK COVER RH) |
| 72137S | Cover, Seat Track Bracket, Outer Rear RH |
| 72137W | Clip (FOR SEAT TRACK COVER LH) |
| 72138M | Cover, Seat Track Bracket, Outer Rear LH |
| 72157D | Cover, Seat Track Bracker, Inner RH |
| 72158B | Cover, Seat Track Bracket, Inner LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170D | Track Assy, Rear Seat, Outer LH |
| 72180C | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72210G | Cable Assy, Rear NO.1 Seat Track Control, RH |
| 72210H | Cable Assy, Rear NO.1 Seat Track Control, LH |
| 72307 | Link Sub-assy, Reclining Control, RH |
| 72307D | Link Sub-assy, Reclining Control, RH NO.1 |
| 72307E | Link Sub-assy, Reclining Control, RH NO.2 |
| 72308 | Link Sub-assy, Reclining Control, LH |
| 72308C | Link Sub-assy, Reclining Control, LH NO.1 |
| 72308D | Link Sub-assy, Reclining Control, LH NO.2 |
| 72525J | Handle, Reclining Adjuster Release, RH |
| 72526E | Handle, Reclining Adjuster Release, LH |
| 72551E | Cover, Reclining Hinge, RH |
| 72552A | Cover, Reclining Hinge, LH |
| 72597D | Bezel, Reclining Remote Control, RH |
| 72597E | Bezel, Reclining Remote Control, RH NO.2 |
| 72598C | Bezel, Reclining Remote Control, LH |
| 72598D | Bezel, Reclining Remote Control, LH NO.2 |
| 72615A | Cover, Rear Seatback Lock Striker, RH |
| 72615H | Cover, Rear Seatback Lock Striker, NO.1 |
| 72616A | Cover, Rear Seatback Lock Striker, LH |
| 72622C | Bush, Rear Seatback Protector Shaft |
| 72660J | Cable Assy, Rear NO.2 Seat Cushion Lock |
| 72660K | Cable Assy, Rear NO.2 Seat Cushion Lock, RH |
| 72660L | Cable Assy, Rear NO.2 Seat Cushion Lock, LH |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72704A | Cable, Rear Seat Reclining Control |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72810J | Armrest Assy, Seat, RH |
| 72820B | Armrest Assy, Seat, LH |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72849B | Cap, Seat Armrest, NO.1 |
| 72868B | Cover, Center Armrest Hinge |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 72996 | Cover, Rear Seatback, RH |
| 72996A | Cover, Rear Seatback |
| 72996J | Cover, Rear Seatback, NO.2 |
| 72997 | Cover, Rear Seatback, LH |
| 79021A | Cover Sub-assy, NO.2 Seat Cushion |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79207B | Board Sub-assy, NO.2 Seatback, RH |
| 79207C | Board Sub-assy, NO.2 Seatback, LH |
| 79273 | Cover, NO.2 Seat Hinge |
| 79273A | Cover, NO.2 Seat Hinge, NO.2 |
| 79273B | Cover, NO.2 Seat Hinge, NO.3 |
| 79273C | Cover, NO.2 Seat Hinge, NO.4 |
| 79275C | Pad, NO.2 Seatback, RH |
| 79285 | Pad, NO.2 Seatback, LH |
| 79956A | Clip (FOR REAR SEAT LEG BRACKET COVER) |
| 82712 | Clamp, Wiring Harness |
| 87501E | Control Sub-assy, Seat Heater, RH |
| 87501F | Control Sub-assy, Seat Heater, LH |
| 87510P | Heater Assy, Seat |
| 87510Q | Heater Assy, Seat |
| 87510R | Heater Assy, Seat |
| 87510S | Heater Assy, Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
