Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

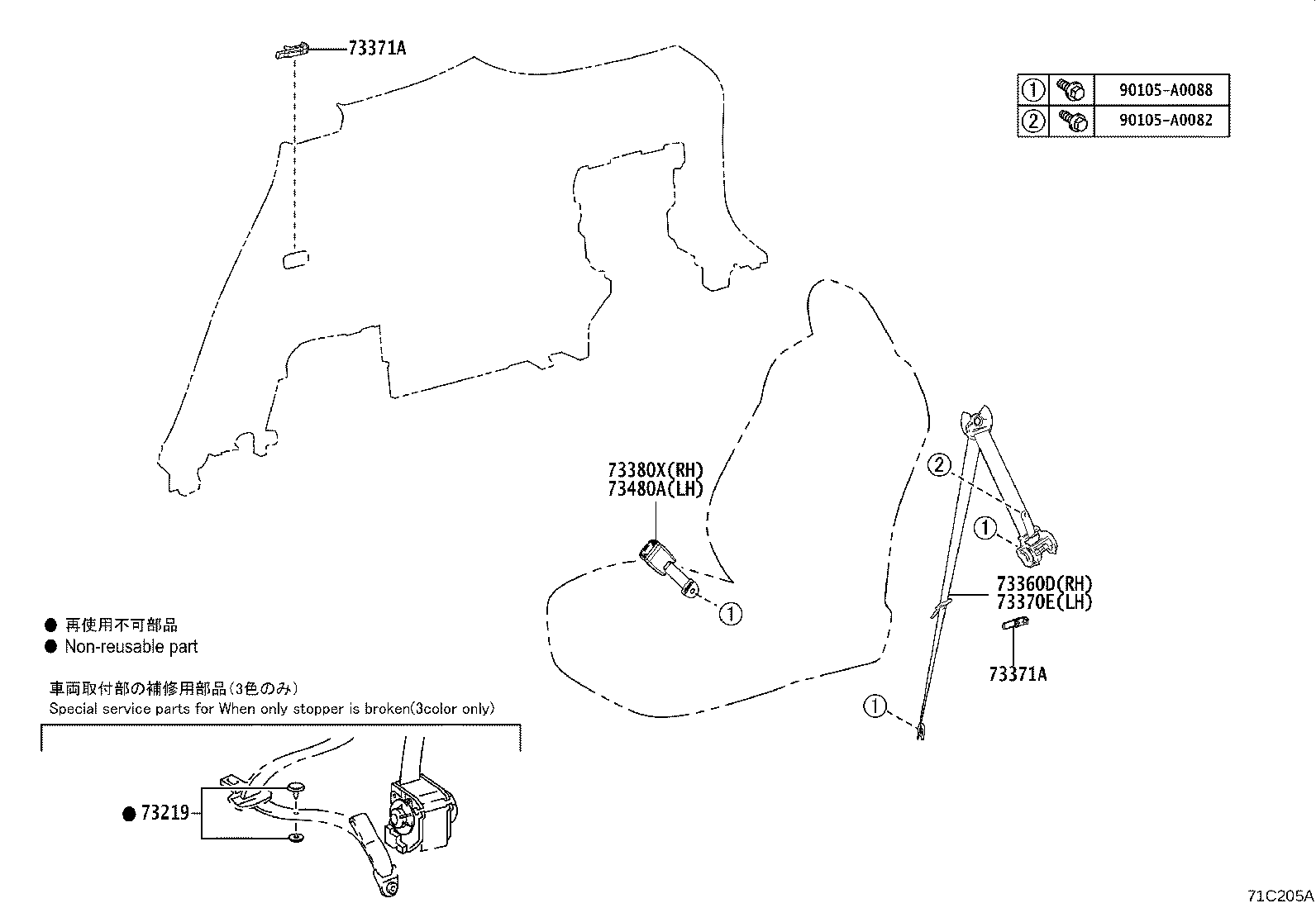

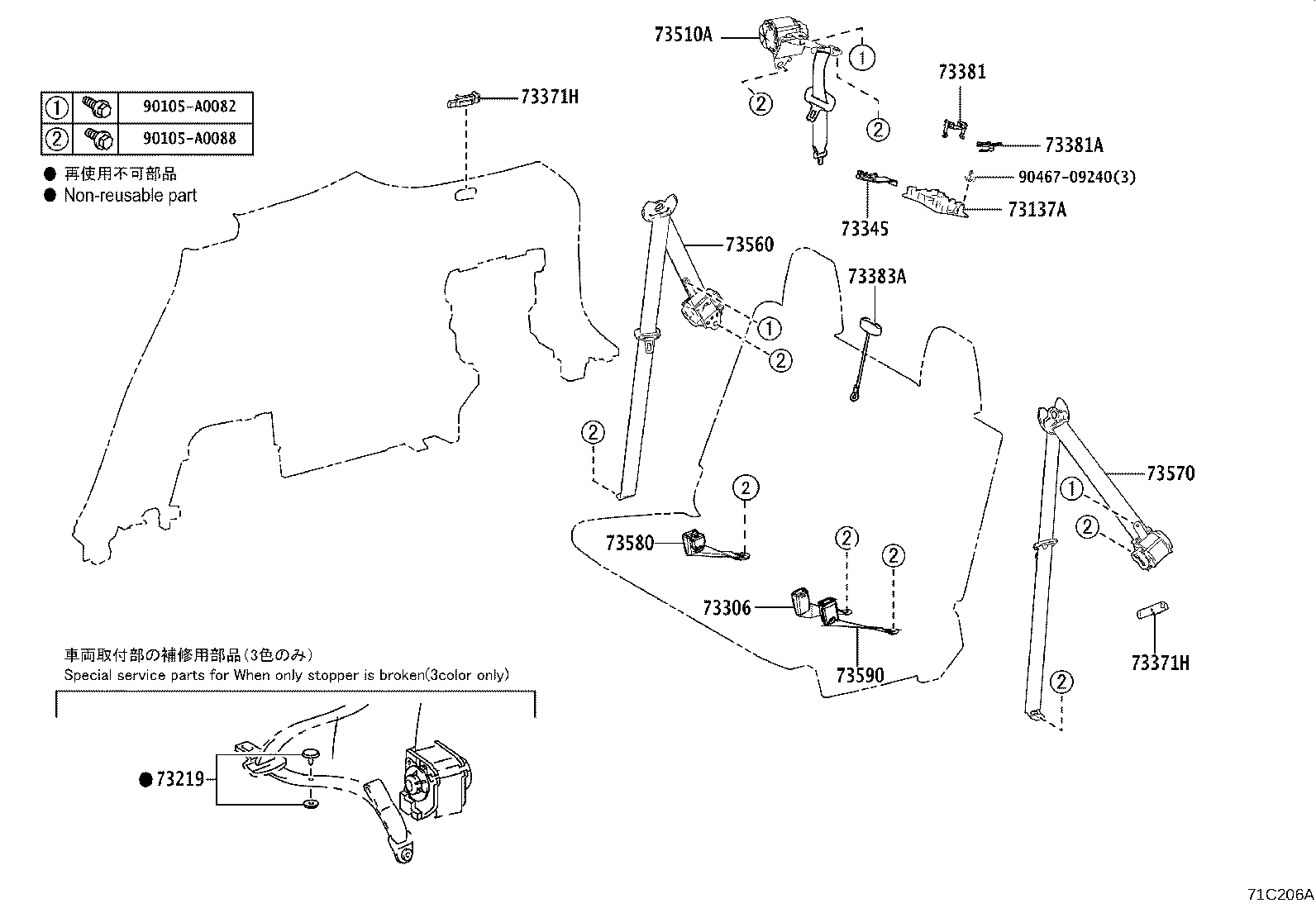

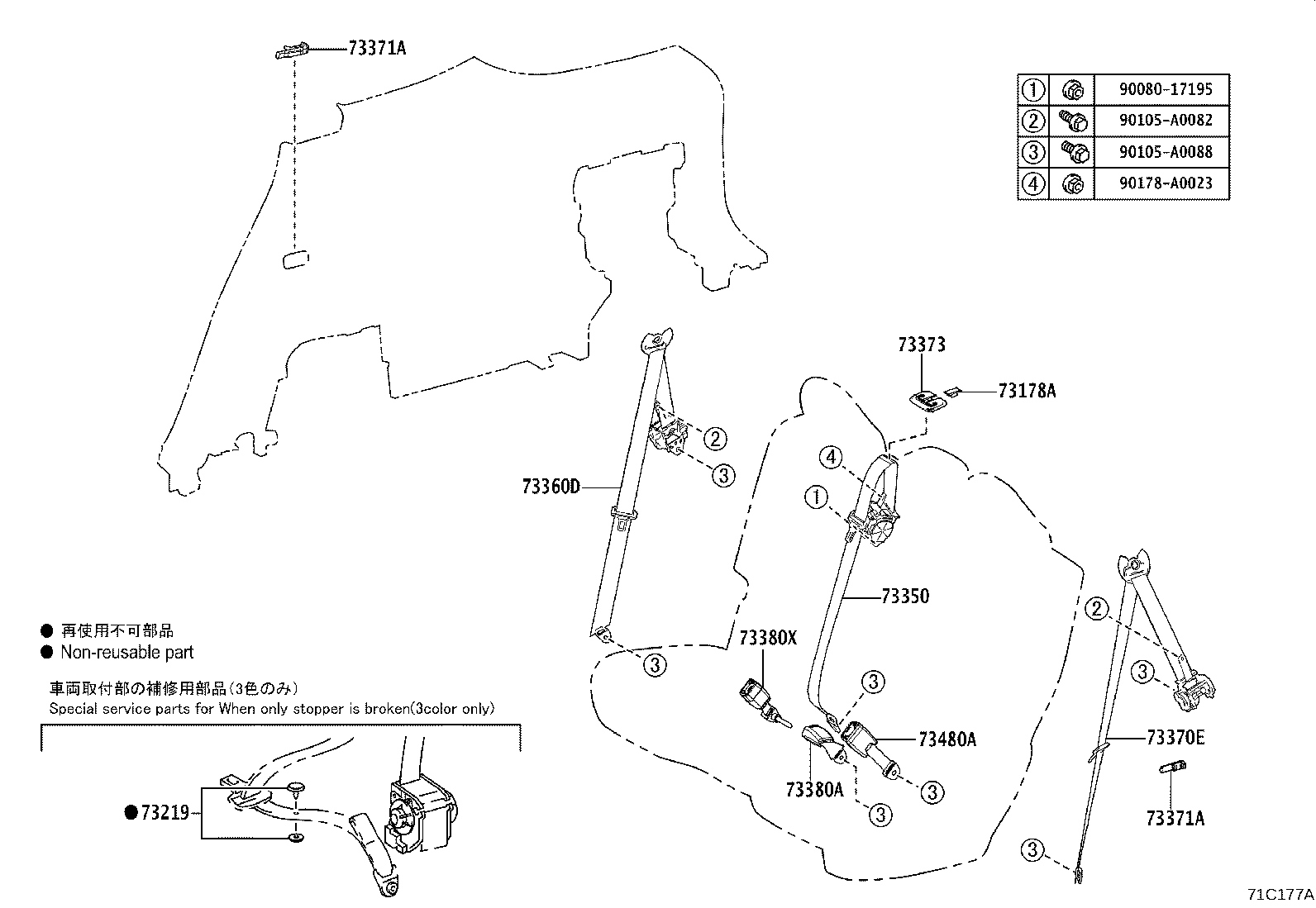

Seat Belt & Child Restraint Seat
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73137A | Cover, Shoulder Belt Anchor, Upr |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73306 | Belt Sub-assy Seat, Inner |
| 73345 | Guide, Rear Seat Shoulder Belt, Center |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360D | Belt Assy, Rear Seat, Outer RH |
| 73370E | Belt Assy, Rear Seat, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73371H | Hanger, Rear NO.2 Seat Shoulder Belt |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380X | Belt Assy, Rear Seat, Inner RH |
| 73381 | Holder, Rear Seat Belt |
| 73381A | Holder, Rear Seat Belt NO.2 |
| 73383A | Hook, RR Seat Belt |
| 73480A | Belt Assy, Rear Seat, Inner LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
