Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10
Interior Lamp
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 63652E | Cover, Roof Console Box, NO.1 |
| 63661C | Base, Roof Console |
| 63662C | Plate, Roof Console |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230M | Lamp Assy, Courtesy, RH |
| 81230N | Lamp Assy, Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240L | Bulb, Room Lamp |
| 81252 | Packing, Room Lamp |
| 81260 | Lamp Assy, Glove Box |

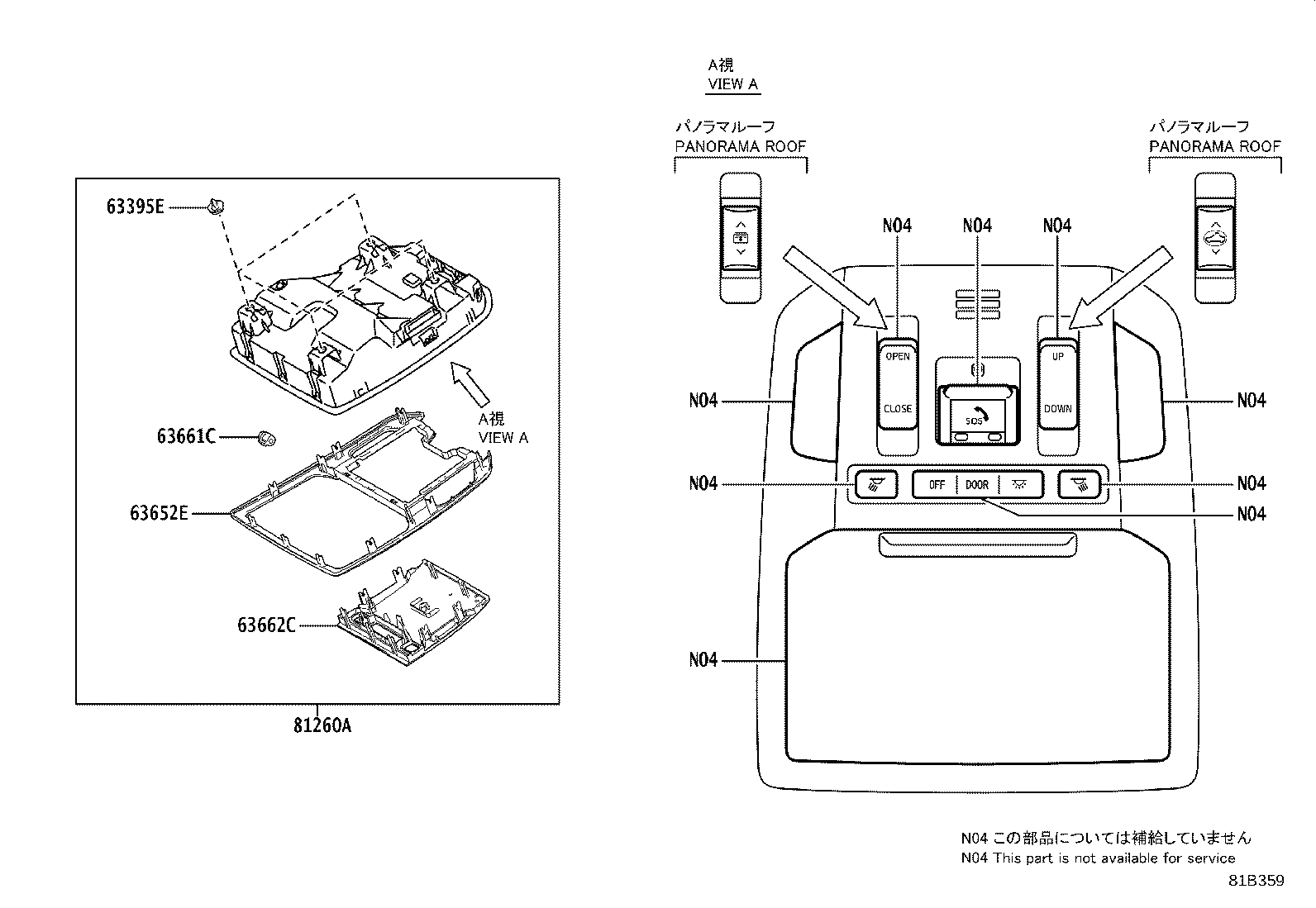

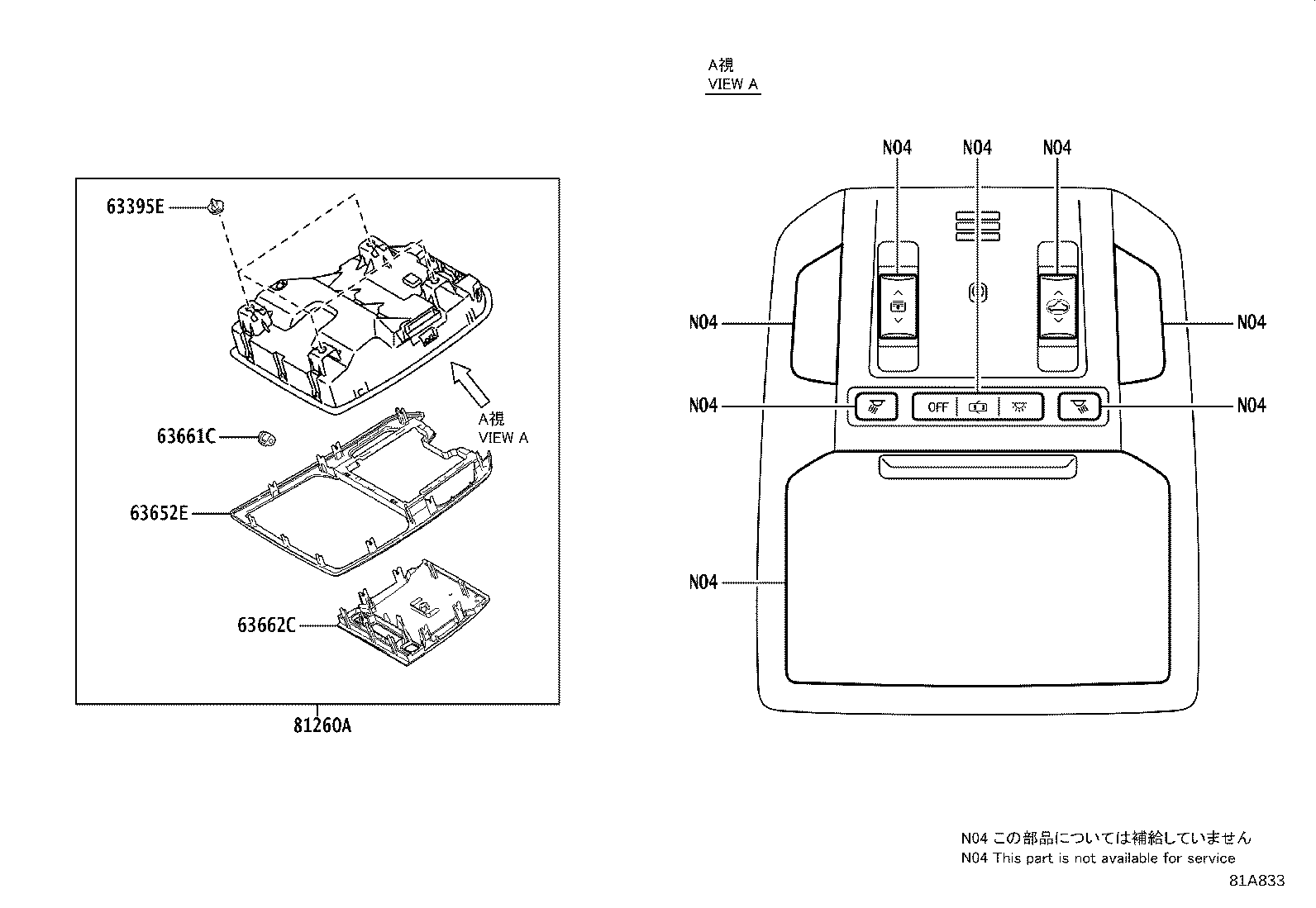

| 81260A | Lamp Assy, Map |
| 81269 | Switch, Map Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 81361D | Lens, Spot Lamp |
| 81361E | Lens, Spot Lamp, NO.2 |
| 81362B | Lens, Interior Illumination Lamp |
| 81390C | Lamp Assy, Spot, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
