Toyota Highlander
2019-12 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526430 · United States
Supported model
Data version 2023-10

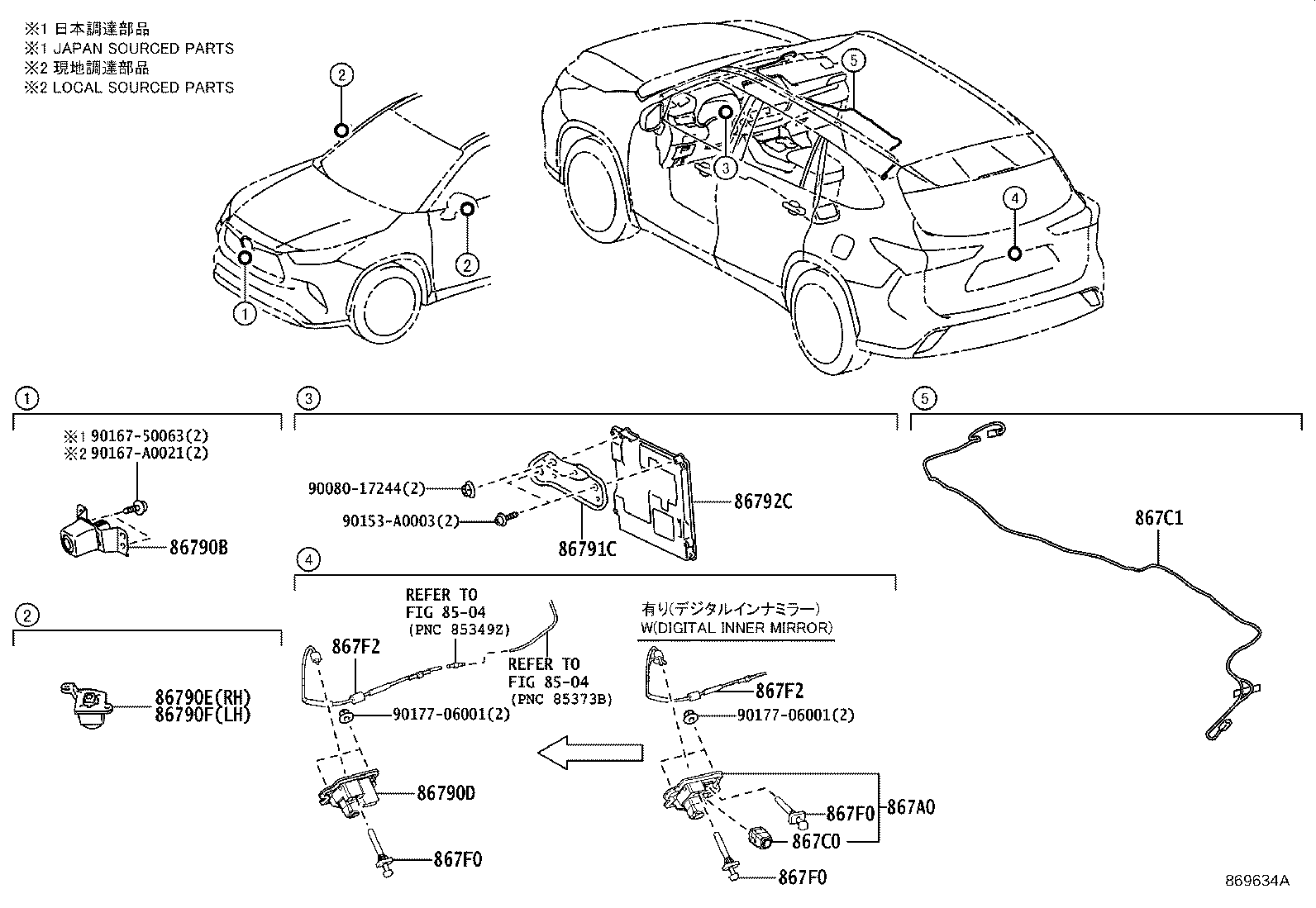

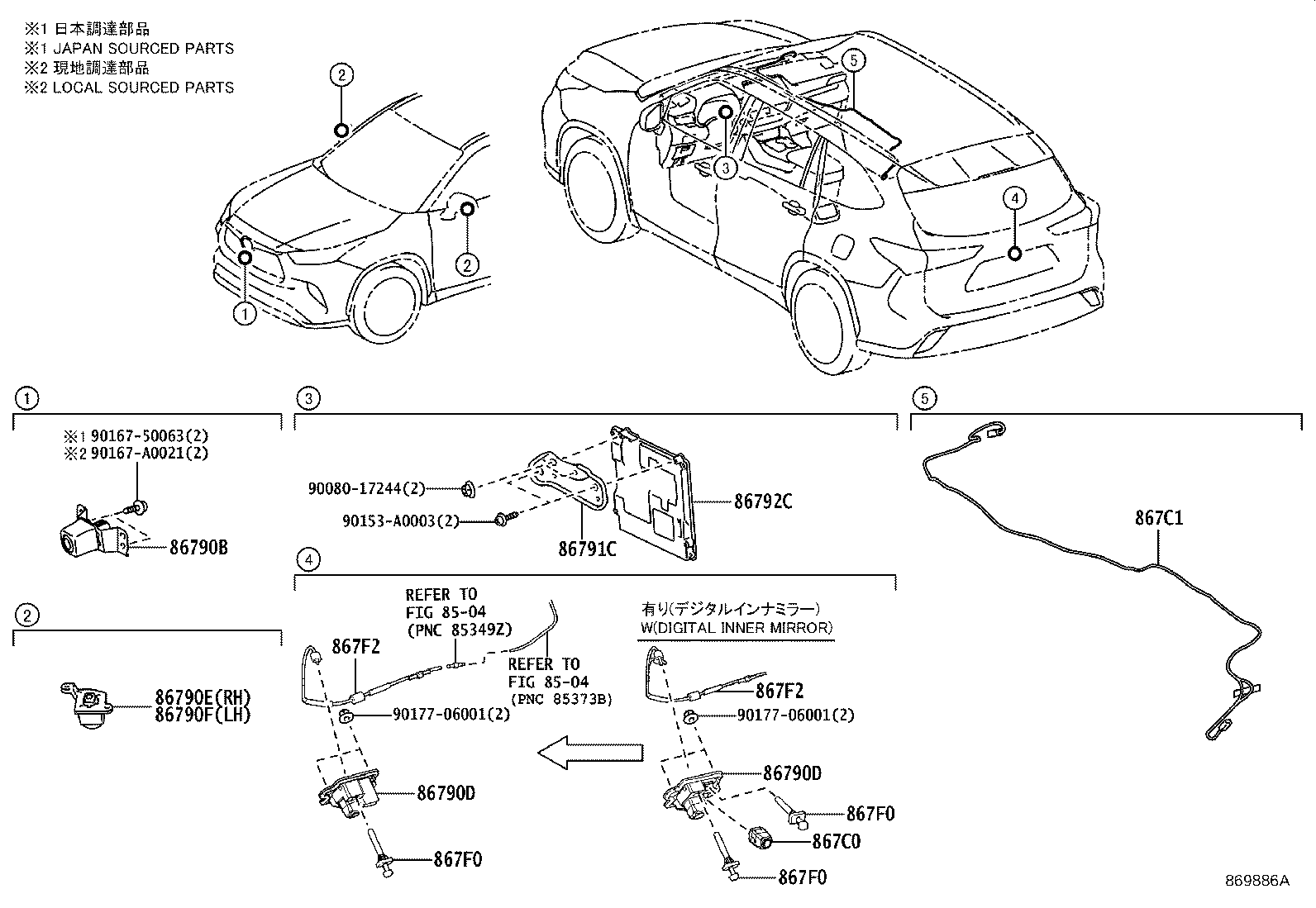

Camera & Rear Monitor Display
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86170U | Switch & Volume Assy, Rear |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86456C | Cover, Multi-media Module |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86791C | Bracket, Computer Parking Assist, NO.1 |
| 86792C | Computer, Parking Assist |
| 867A0 | Camera Assy, Television & Inner Rear View Mirror |
| 867C0 | Camera Assy, Inner Mirror |
| 867C1 | Wire, Mirror Camera |
| 867F0 | Nozzle Assy, Camera Cleaner |
| 867F2 | Hose, Camera Cleaner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
