Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States
Supported model
Data version 2022-11

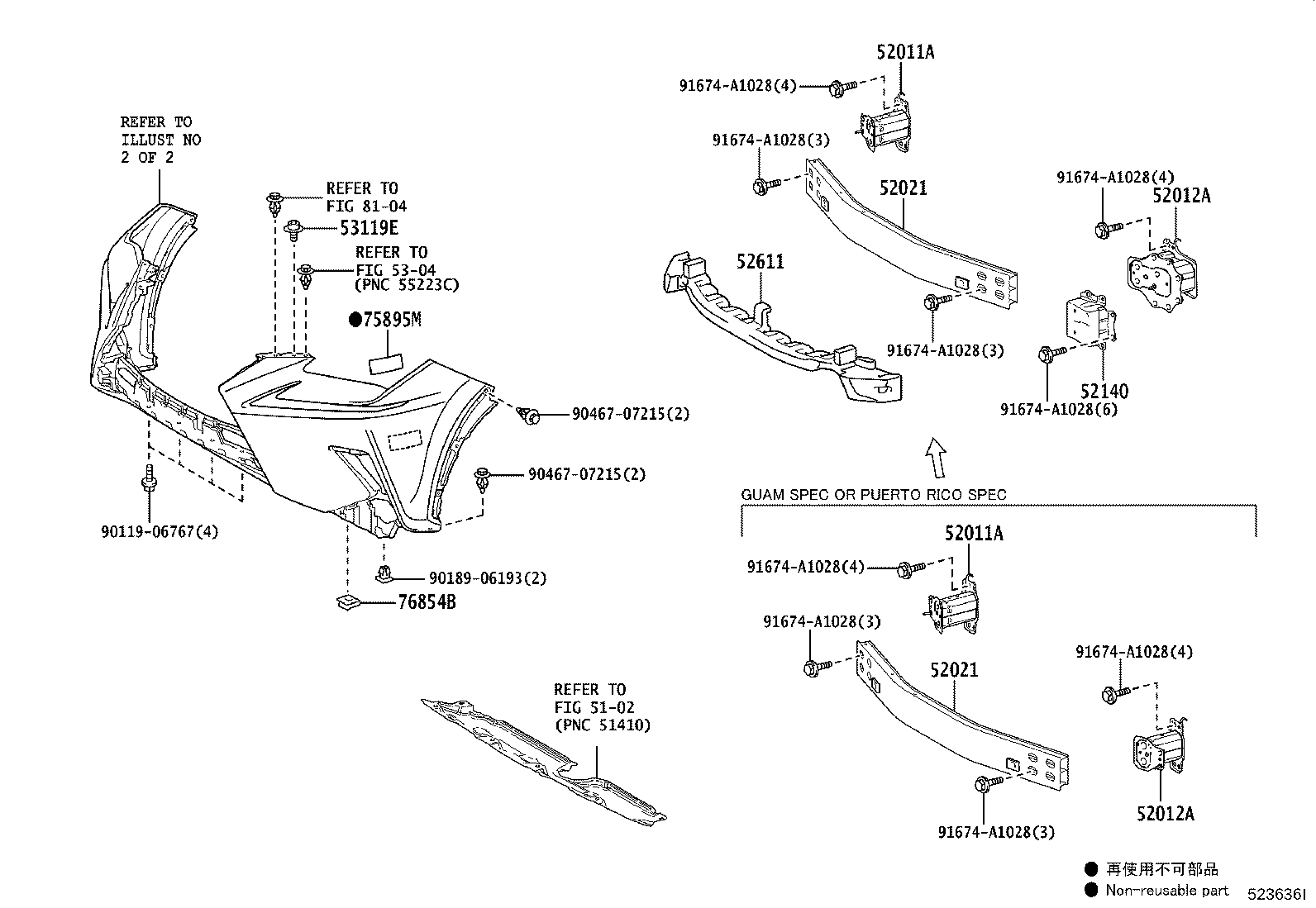

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52011A — Arm Sub-assy, Front Bumper, RH | ||||
| 52011-78020 |
Arm Sub-assy, Front Bumper, RH
2014-07 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52011-78020 |
Arm Sub-assy, Front Bumper, RH
2014-07 → 2016-08
ended
|
AYZ10 | — | |
| 52011-78020 |
Arm Sub-assy, Front Bumper, RH
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 52012A — Arm Sub-assy, Front Bumper, LH | ||||
| 52012-78030 note |
Arm Sub-assy, Front Bumper, LH
2014-10 → 2016-08
ended
|
AYZ10 | — | |
| 52012-78030 note |
Arm Sub-assy, Front Bumper, LH
2014-10 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52012-78040 |
Arm Sub-assy, Front Bumper, LH
2014-07 → 2016-08
ended
|
AYZ10 | — | |
| 52012-78040 |
Arm Sub-assy, Front Bumper, LH
2014-07 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52012-78030 note |
Arm Sub-assy, Front Bumper, LH
2017-09 → 2019-05
ended
|
AGZ1#,AYZ15 | — | |
| 52012-78030 note |
Arm Sub-assy, Front Bumper, LH
2017-09 → 2019-05
ended
|
AGZ1#,AYZ15 | — | |
| 52012-78040 |
Arm Sub-assy, Front Bumper, LH
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-78020 note |
Reinforcement Sub-assy, Front Bumper
2014-07 → 2016-08
ended
|
AYZ10 | — | |
| 52021-78020 note |
Reinforcement Sub-assy, Front Bumper
2014-07 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52021-78040 |
Reinforcement Sub-assy, Front Bumper
2014-10 → 2016-08
ended
|
AYZ10 | — | |
| 52021-78040 |
Reinforcement Sub-assy, Front Bumper
2014-10 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52021-78020 |
Reinforcement Sub-assy, Front Bumper
2017-09 → 2021-09
ended
|
AGZ1#,AYZ15 | — | |
| 52140 — Bracket Assy, Front Bumper Side Mounting, LH | ||||
| 52140-78010 |
Bracket Assy, Front Bumper Side Mounting, LH
2014-07 → 2016-08
ended
|
AYZ10 | — | |
| 52140-78010 |
Bracket Assy, Front Bumper Side Mounting, LH
2014-07 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52140-78010 |
Bracket Assy, Front Bumper Side Mounting, LH
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 52140-78020 note |
Bracket Assy, Front Bumper Side Mounting, LH
2017-09 → —
|
AGZ15,AYZ15 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52614-78020 |
Absorber, Front Bumper Energy
2014-10 → 2016-08
ended
|
AYZ10 | — | |
| 52614-78020 |
Absorber, Front Bumper Energy
2014-10 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 52614-78030 note |
Absorber, Front Bumper Energy
2014-07 → 2017-09
ended
|
AGZ15,AYZ15 | — | |
| 52614-78030 note |
Absorber, Front Bumper Energy
2014-10 → 2017-09
ended
|
AGZ15 | — | |
| 52614-78050 |
Absorber, Front Bumper Energy
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 52614-78060 note |
Absorber, Front Bumper Energy
2017-09 → —
|
AGZ15,AYZ15 | — | |
| 52614-78060 note |
Absorber, Front Bumper Energy
2017-09 → —
|
AGZ15 | — | |
| 53119E — Protector, Radiator Grille | ||||
| 53119-33141 |
Protector, Radiator Grille
2014-10 → 2017-09
ended
|
AGZ1#,AYZ15 | — | |
| 53119-33141 |
Protector, Radiator Grille
2014-10 → 2016-08
ended
|
AYZ10 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 note |
Protector, Radiator Grille
2014-07 → 2014-10
ended
|
AYZ15 | — | |
| 53119-33141 |
Protector, Radiator Grille
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 75895M — Tape, Moulding, NO.2 | ||||
| 75895-53010 |
Tape, Moulding, NO.2
2019-05 → —
|
AGZ1#,AYZ15 | — | |
| 75895-78030 |
Tape, Moulding, NO.2
2017-09 → 2019-05
ended
|
AGZ1#,AYZ15 | — | |
| 76854B — Retainer, Front Spoiler,NO.2 | ||||
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AYZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AYZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AYZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AYZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AGZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2020-07 → —
|
AGZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ15 | — | |
| 76854-44010 |
Retainer, Front Spoiler,NO.2
2017-09 → —
|
AGZ1#,AYZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → 2020-07
ended
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → 2020-07
ended
|
AGZ1# | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → 2020-07
ended
|
AGZ15 | — | |
| 76854-44010 note |
Retainer, Front Spoiler,NO.2
2017-09 → 2020-07
ended
|
AGZ15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
