Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11

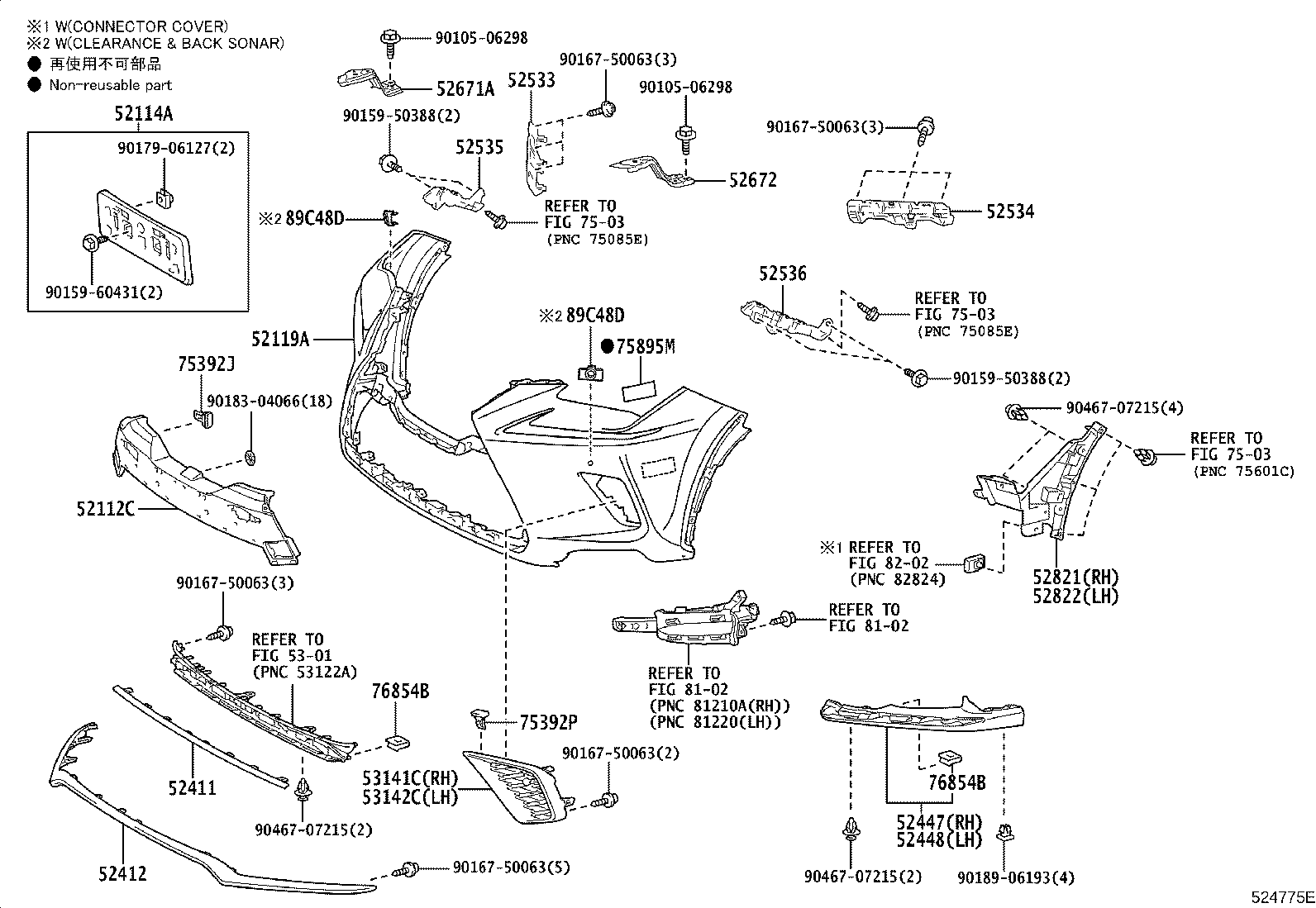

Exploded illustration 524775E 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (10 parts) 9015960431 — not listed in this catalogue 9017906127 — not listed in this catalogue 8102 — not listed in this catalogue 8202 — not listed in this catalogue 8102 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 52112C — EXTENSION, FRONT BUMPER (70 parts) 52119A — COVER, FRONT BUMPER (130 parts) 52533 — BRACKET, FRONT BUMPER RETAINER, NO.1 (33 parts) 52534 — BRACKET, FRONT BUMPER RETAINER, NO.2 (33 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (11 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (11 parts) 52671A — EXTENSION, FRONT BUMPER ARM, RH (3 parts) 52672 — EXTENSION, FRONT BUMPER ARM, LH (3 parts) 53141C — GARNISH, RADIATOR GRILLE (12 parts) 53142C — GARNISH, RADIATOR GRILLE, NO.2 (12 parts) 75392J — RETAINER, OUTSIDE MOULDING (3 parts) 75895M — TAPE, MOULDING, NO.2 (2 parts) 9010506298 — not listed in this catalogue 9010506298 — not listed in this catalogue 9015950388 — not listed in this catalogue 9015950388 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9018304066 — not listed in this catalogue 52447 — PAD, FRONT BUMPER GUARD, NO.2 RH (22 parts) 52448 — PAD, FRONT BUMPER GUARD, NO.2 LH (22 parts) 9018906193 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 52411 — GUARD, FRONT BUMPER (41 parts) 52412 — GUARD, FRONT BUMPER, NO.2 (31 parts) 75392P — RETAINER, OUTSIDE MOULDING, NO.3 (16 parts) 76854B — RETAINER, FRONT SPOILER,NO.2 (17 parts) 76854B — RETAINER, FRONT SPOILER,NO.2 (17 parts) 52821 — DUCT, AIR INTAKE, RH (37 parts) 52822 — DUCT, AIR INTAKE, LH (37 parts) 5301 — not listed in this catalogue 9016750063 — not listed in this catalogue 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (26 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (26 parts)
524775E · 24 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
582 parts on this figure
Part number Description Fitment Price
52112C — Extension, Front Bumper
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78020 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52102-78050 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78070 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78070 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78080 note Extension, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52112-78130 note Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52112-78160 Extension, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52112-78160 Extension, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52112-78210 note Extension, Front Bumper
2017-09 → —
AGZ15,AYZ15 —
52112-78270 note Extension, Front Bumper
2017-09 → —
AGZ1#,AYZ15 —
52112-78300 Extension, Front Bumper
2017-09 → —
AGZ1#,AYZ15 —
52112-78310 note Extension, Front Bumper
2017-09 → —
AGZ15,AYZ15 —
52112-78320 note Extension, Front Bumper
2017-09 → —
AGZ15 —
52112-78320 note Extension, Front Bumper
2020-07 → —
AYZ15 —
52112-78320 note Extension, Front Bumper
2020-07 → —
AYZ15 —
52112-78320 note Extension, Front Bumper
2017-09 → —
AGZ1# —
52112-78320 note Extension, Front Bumper
2017-09 → —
AGZ1# —
52112-78320 note Extension, Front Bumper
2017-09 → —
AGZ15 —
52114A — Bracket, Front Bumper Extension Mounting
52114-78080 note Bracket, Front Bumper Extension Mounting
2014-10 → 2017-09 ended
AGZ1# —
52114-78090 Bracket, Front Bumper Extension Mounting
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52114-78090 note Bracket, Front Bumper Extension Mounting
2014-10 → 2017-09 ended
AGZ15 —
52114-78090 note Bracket, Front Bumper Extension Mounting
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52114-78090 Bracket, Front Bumper Extension Mounting
2014-10 → 2016-08 ended
AYZ10 —
52114-78170 note Bracket, Front Bumper Extension Mounting
2017-09 → —
AGZ1# —
52114-78170 note Bracket, Front Bumper Extension Mounting
2020-07 → —
AYZ15 —
52114-78210 note Bracket, Front Bumper Extension Mounting
2017-09 → 2021-09 ended
AGZ15 —
52114-78210 Bracket, Front Bumper Extension Mounting
2017-09 → —
AGZ1#,AYZ15 —
52114-78210 note Bracket, Front Bumper Extension Mounting
2017-09 → 2021-09 ended
AGZ15,AYZ15 —
52119A — Cover, Front Bumper
52119-78901 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52119-78901 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52119-78901 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52119-78901 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78901 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78901 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78901 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78902 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78903 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78903 note Cover, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78905 note Cover, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52119-78905 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78907 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
52119-78907 note Cover, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52119-78908 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78908 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78908 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78908 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78908 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78912 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78912 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78912 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78912 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78912 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78912 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78912 note Cover, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52119-78918 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52119-78918 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52119-78918 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78918 note Cover, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52119-78922 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15,AYZ15 —
52119-78922 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15,AYZ15 —
52119-78923 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15,AYZ15 —
52119-78923 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15,AYZ15 —
52119-78924 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15 —
52119-78924 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15 —
52119-78925 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15 —
52119-78925 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ15 —
52119-78926 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78926 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78926 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78927 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78927 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78927 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1# —
52119-78928 Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78929 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78929 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78930 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78931 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78931 note Cover, Front Bumper
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
52119-78932 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ15,AYZ15 —
52119-78932 note Cover, Front Bumper
2019-06 → 2020-07 ended
AGZ15,AYZ15 —
52119-78932 note Cover, Front Bumper
2020-07 → 2021-09 ended
AGZ15,AYZ15 —
52119-78934 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ15 —
52119-78934 note Cover, Front Bumper
2020-07 → 2021-09 ended
AGZ15 —
52119-78934 note Cover, Front Bumper
2019-06 → 2020-07 ended
AGZ15 —
52119-78936 note Cover, Front Bumper
2020-07 → 2021-09 ended
AYZ15 —
52119-78936 note Cover, Front Bumper
2020-07 → 2021-09 ended
AYZ15 —
52119-78936 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ1# —
52119-78936 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ1# —
52119-78936 note Cover, Front Bumper
2019-06 → 2020-07 ended
AGZ1# —
52119-78937 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ1#,AYZ15 —
52119-78938 note Cover, Front Bumper
2019-06 → 2021-09 ended
AGZ1#,AYZ15 —
52119-78938 note Cover, Front Bumper
2019-06 → 2020-07 ended
AGZ1#,AYZ15 —
52119-78942 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ15,AYZ15 —
52119-78942 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ15,AYZ15 —
52119-78943 note Cover, Front Bumper
2019-05 → 2020-07 ended
AGZ15,AYZ15 —
52119-78943 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ15,AYZ15 —
52119-78943 note Cover, Front Bumper
2020-07 → 2021-09 ended
AGZ15,AYZ15 —
52119-78944 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ15 —
52119-78944 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ15 —
52119-78945 note Cover, Front Bumper
2020-07 → 2021-09 ended
AGZ15 —
52119-78945 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ15 —
52119-78945 note Cover, Front Bumper
2019-05 → 2020-07 ended
AGZ15 —
52119-78946 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1# —
52119-78946 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1# —
52119-78946 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1# —
52119-78947 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1#,AYZ15 —
52119-78948 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1#,AYZ15 —
52119-78948 note Cover, Front Bumper
2019-05 → 2019-06 ended
AGZ1#,AYZ15 —
52119-78949 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ1#,AYZ15 —
52119-78950 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ1#,AYZ15 —
52119-78950 note Cover, Front Bumper
2019-05 → 2020-07 ended
AGZ1#,AYZ15 —
52119-78951 note Cover, Front Bumper
2020-07 → 2021-09 ended
AYZ15 —
52119-78951 note Cover, Front Bumper
2020-07 → 2021-09 ended
AYZ15 —
52119-78951 note Cover, Front Bumper
2019-05 → 2020-07 ended
AGZ1# —
52119-78951 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ1# —
52119-78951 note Cover, Front Bumper
2019-05 → 2021-09 ended
AGZ1# —
52411 — Guard, Front Bumper
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78010 note Guard, Front Bumper
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ15 —
52411-78020 note Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1# —
52411-78030 Guard, Front Bumper
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52411-78030 Guard, Front Bumper
2014-10 → 2016-08 ended
AYZ10 —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ1# —
52411-78040 note Guard, Front Bumper
2020-07 → —
AYZ15 —
52411-78040 note Guard, Front Bumper
2020-07 → —
AYZ15 —
52411-78040 note Guard, Front Bumper
2020-07 → —
AYZ15 —
52411-78040 note Guard, Front Bumper
2020-07 → —
AYZ15 —
52411-78040 note Guard, Front Bumper
2020-07 → —
AGZ15 —
52411-78040 note Guard, Front Bumper
2020-07 → —
AGZ15 —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ1# —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ1# —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ1# —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ15 —
52411-78040 note Guard, Front Bumper
2017-09 → —
AGZ15 —
52411-78040 note Guard, Front Bumper
2017-09 → 2020-07 ended
AGZ1# —
52411-78040 note Guard, Front Bumper
2017-09 → 2020-07 ended
AGZ1# —
52411-78040 note Guard, Front Bumper
2017-09 → 2020-07 ended
AGZ15 —
52411-78040 note Guard, Front Bumper
2017-09 → 2020-07 ended
AGZ15 —
52412 — Guard, Front Bumper, NO.2
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ15 —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ15 —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ15 —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ15 —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ15 —
52412-78010 note Guard, Front Bumper, NO.2
2014-10 → 2017-09 ended
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AYZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AYZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AYZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AYZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2020-07 → —
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → 2020-07 ended
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → 2020-07 ended
AGZ1# —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → 2020-07 ended
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → 2020-07 ended
AGZ15 —
52412-78020 note Guard, Front Bumper, NO.2
2017-09 → —
AGZ1# —
52447 — Pad, Front Bumper Guard, NO.2 RH
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AGZ15,AYZ15 —
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AGZ15,AYZ15 —
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ15,AYZ15 —
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ15,AYZ15 —
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52447-78010 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AYZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AYZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AYZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AYZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2020-07 → —
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ1# —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ1# —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ1# —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ15 —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ1# —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → —
AGZ1# —
52447-78020 note Pad, Front Bumper Guard, NO.2 RH
2017-09 → 2020-07 ended
AGZ1# —
52448 — Pad, Front Bumper Guard, NO.2 LH
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AGZ15,AYZ15 —
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AGZ15,AYZ15 —
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ15,AYZ15 —
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ15,AYZ15 —
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52448-78010 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AYZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AYZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AYZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AYZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AGZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2020-07 → —
AGZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → —
AGZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ1# —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ15 —
52448-78020 note Pad, Front Bumper Guard, NO.2 LH
2017-09 → 2020-07 ended
AGZ15 —
52533 — Bracket, Front Bumper Retainer, NO.1
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 Bracket, Front Bumper Retainer, NO.1
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52533-78010 Bracket, Front Bumper Retainer, NO.1
2014-10 → 2016-08 ended
AYZ10 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78010 note Bracket, Front Bumper Retainer, NO.1
2014-07 → 2014-10 ended
AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ1# —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2020-07 → —
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ1# —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ1# —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ1# —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → 2020-07 ended
AGZ1# —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ15,AYZ15 —
52533-78020 note Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ1# —
52533-78030 Bracket, Front Bumper Retainer, NO.1
2017-09 → —
AGZ1#,AYZ15 —
52534 — Bracket, Front Bumper Retainer, NO.2
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 Bracket, Front Bumper Retainer, NO.2
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52534-78010 Bracket, Front Bumper Retainer, NO.2
2014-10 → 2016-08 ended
AYZ10 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78010 note Bracket, Front Bumper Retainer, NO.2
2014-07 → 2014-10 ended
AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AGZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2020-07 → —
AGZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ1# —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52534-78020 note Bracket, Front Bumper Retainer, NO.2
2017-09 → 2020-07 ended
AGZ15 —
52534-78030 Bracket, Front Bumper Retainer, NO.2
2017-09 → —
AGZ1#,AYZ15 —
52535 — Retainer, Front Bumper Side, RH
52535-78010 Retainer, Front Bumper Side, RH
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52535-78010 Retainer, Front Bumper Side, RH
2014-10 → 2016-08 ended
AYZ10 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 note Retainer, Front Bumper Side, RH
2014-07 → 2014-10 ended
AYZ15 —
52535-78010 Retainer, Front Bumper Side, RH
2017-09 → —
AGZ1#,AYZ15 —
52536 — Retainer, Front Bumper Side, LH
52536-78010 Retainer, Front Bumper Side, LH
2014-10 → 2016-08 ended
AYZ10 —
52536-78010 Retainer, Front Bumper Side, LH
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 note Retainer, Front Bumper Side, LH
2014-07 → 2014-10 ended
AYZ15 —
52536-78010 Retainer, Front Bumper Side, LH
2017-09 → —
AGZ1#,AYZ15 —
52671A — Extension, Front Bumper Arm, RH
52671-78010 Extension, Front Bumper Arm, RH
2014-07 → 2016-08 ended
AYZ10 —
52671-78010 Extension, Front Bumper Arm, RH
2014-07 → 2017-09 ended
AGZ1#,AYZ15 —
52671-78010 Extension, Front Bumper Arm, RH
2017-09 → —
AGZ1#,AYZ15 —
52672 — Extension, Front Bumper Arm, LH
52672-78010 Extension, Front Bumper Arm, LH
2014-07 → 2016-08 ended
AYZ10 —
52672-78010 Extension, Front Bumper Arm, LH
2014-07 → 2017-09 ended
AGZ1#,AYZ15 —
52672-78010 Extension, Front Bumper Arm, LH
2017-09 → —
AGZ1#,AYZ15 —
52821 — Duct, Air Intake, RH
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ15 —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ15 —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1# —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ15 —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52821-78010 note Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ15 —
52821-78020 Duct, Air Intake, RH
2014-10 → 2016-08 ended
AYZ10 —
52821-78020 Duct, Air Intake, RH
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52821-78030 note Duct, Air Intake, RH
2017-09 → —
AGZ1# —
52821-78030 note Duct, Air Intake, RH
2020-07 → —
AYZ15 —
52821-78030 note Duct, Air Intake, RH
2020-07 → —
AYZ15 —
52821-78030 note Duct, Air Intake, RH
2020-07 → —
AGZ15,AYZ15 —
52821-78030 note Duct, Air Intake, RH
2020-07 → —
AGZ15 —
52821-78030 note Duct, Air Intake, RH
2017-09 → —
AGZ1# —
52821-78030 note Duct, Air Intake, RH
2017-09 → —
AGZ15 —
52821-78030 note Duct, Air Intake, RH
2017-09 → —
AGZ15,AYZ15 —
52821-78030 note Duct, Air Intake, RH
2017-09 → 2020-07 ended
AGZ1# —
52821-78030 note Duct, Air Intake, RH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52821-78030 note Duct, Air Intake, RH
2017-09 → 2020-07 ended
AGZ15 —
52821-78040 Duct, Air Intake, RH
2017-09 → —
AGZ1#,AYZ15 —
52822 — Duct, Air Intake, LH
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ15 —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ15 —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1# —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ15 —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
52822-78010 note Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ15 —
52822-78020 Duct, Air Intake, LH
2014-10 → 2016-08 ended
AYZ10 —
52822-78020 Duct, Air Intake, LH
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
52822-78030 note Duct, Air Intake, LH
2020-07 → —
AYZ15 —
52822-78030 note Duct, Air Intake, LH
2020-07 → —
AYZ15 —
52822-78030 note Duct, Air Intake, LH
2020-07 → —
AGZ15,AYZ15 —
52822-78030 note Duct, Air Intake, LH
2020-07 → —
AGZ15 —
52822-78030 note Duct, Air Intake, LH
2017-09 → —
AGZ1# —
52822-78030 note Duct, Air Intake, LH
2017-09 → —
AGZ15 —
52822-78030 note Duct, Air Intake, LH
2017-09 → —
AGZ15,AYZ15 —
52822-78030 note Duct, Air Intake, LH
2017-09 → 2020-07 ended
AGZ1# —
52822-78030 note Duct, Air Intake, LH
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
52822-78030 note Duct, Air Intake, LH
2017-09 → 2020-07 ended
AGZ15 —
52822-78030 note Duct, Air Intake, LH
2017-09 → —
AGZ1# —
52822-78040 Duct, Air Intake, LH
2017-09 → —
AGZ1#,AYZ15 —
53141C — Garnish, Radiator Grille
53141-78010 note Garnish, Radiator Grille
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
53141-78010 note Garnish, Radiator Grille
2020-07 → —
AGZ15,AYZ15 —
53141-78020 note Garnish, Radiator Grille
2017-09 → —
AGZ15,AYZ15 —
53141-78030 note Garnish, Radiator Grille
2020-07 → —
AGZ15 —
53141-78030 note Garnish, Radiator Grille
2020-07 → —
AYZ15 —
53141-78030 note Garnish, Radiator Grille
2017-09 → —
AGZ1# —
53141-78030 note Garnish, Radiator Grille
2017-09 → 2020-07 ended
AGZ1# —
53141-78030 note Garnish, Radiator Grille
2017-09 → 2020-07 ended
AGZ15 —
53141-78040 note Garnish, Radiator Grille
2020-07 → —
AYZ15 —
53141-78040 note Garnish, Radiator Grille
2017-09 → —
AGZ15 —
53141-78040 note Garnish, Radiator Grille
2017-09 → —
AGZ1# —
53141-78050 Garnish, Radiator Grille
2017-09 → —
AGZ1#,AYZ15 —
53142C — Garnish, Radiator Grille, NO.2
53142-78070 note Garnish, Radiator Grille, NO.2
2017-09 → 2020-07 ended
AGZ15,AYZ15 —
53142-78070 note Garnish, Radiator Grille, NO.2
2020-07 → —
AGZ15,AYZ15 —
53142-78080 note Garnish, Radiator Grille, NO.2
2017-09 → —
AGZ15,AYZ15 —
53142-78090 note Garnish, Radiator Grille, NO.2
2017-09 → 2020-07 ended
AGZ15 —
53142-78090 note Garnish, Radiator Grille, NO.2
2020-07 → —
AYZ15 —
53142-78090 note Garnish, Radiator Grille, NO.2
2020-07 → —
AGZ15 —
53142-78090 note Garnish, Radiator Grille, NO.2
2017-09 → —
AGZ1# —
53142-78090 note Garnish, Radiator Grille, NO.2
2017-09 → 2020-07 ended
AGZ1# —
53142-78100 note Garnish, Radiator Grille, NO.2
2017-09 → —
AGZ1# —
53142-78100 note Garnish, Radiator Grille, NO.2
2017-09 → —
AGZ15 —
53142-78100 note Garnish, Radiator Grille, NO.2
2020-07 → —
AYZ15 —
53142-78110 Garnish, Radiator Grille, NO.2
2017-09 → —
AGZ1#,AYZ15 —
75392J — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2014-10 → 2017-09 ended
AGZ1#,AYZ15 —
75392-35220 Retainer, Outside Moulding
2014-10 → 2016-08 ended
AYZ10 —
75392-35220 Retainer, Outside Moulding
2017-09 → —
AGZ1#,AYZ15 —
75392P — Retainer, Outside Moulding, NO.3
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AYZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AYZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AYZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AYZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2020-07 → —
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ1# —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ1# —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ1# —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → 2020-07 ended
AGZ1# —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → 2020-07 ended
AGZ1# —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → 2020-07 ended
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → 2020-07 ended
AGZ15 —
75392-35220 note Retainer, Outside Moulding, NO.3
2017-09 → —
AGZ1# —
75895M — Tape, Moulding, NO.2
75895-53010 Tape, Moulding, NO.2
2019-05 → —
AGZ1#,AYZ15 —
75895-78030 Tape, Moulding, NO.2
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
76854B — Retainer, Front Spoiler,NO.2
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AYZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AYZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AYZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AYZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AGZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2020-07 → —
AGZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ1# —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ1# —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ1# —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ15 —
76854-44010 Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ1#,AYZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → 2020-07 ended
AGZ1# —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → 2020-07 ended
AGZ1# —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → 2020-07 ended
AGZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → 2020-07 ended
AGZ15 —
76854-44010 note Retainer, Front Spoiler,NO.2
2017-09 → —
AGZ1# —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-78020 note Retainer, Ultrasonic Sensor, Front Corner
2014-10 → 2017-09 ended
AGZ15 —
89348-78020 note Retainer, Ultrasonic Sensor, Front Corner
2014-10 → 2017-09 ended
AGZ1#,AYZ1# —
89348-78020 note Retainer, Ultrasonic Sensor, Front Corner
2014-10 → 2017-09 ended
AGZ1# —
89348-78020 note Retainer, Ultrasonic Sensor, Front Corner
2014-07 → 2017-09 ended
AGZ15,AYZ15 —
89348-78040-A0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-A0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-B0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-B0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-B1 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
89348-78040-B1 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2019-05 ended
AGZ1#,AYZ15 —
89348-78040-B2 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-B2 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-C0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-C0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-C1 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-C1 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-D0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-D0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → —
AGZ1#,AYZ15 —
89348-78040-E0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-E0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-E1 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-E1 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
AGZ1#,AYZ15 —
89348-78040-G0 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
AGZ1#,AYZ15 —
89348-78040-J0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-J0 note Retainer, Ultrasonic Sensor, Front Corner
2017-09 → 2020-07 ended
AGZ1#,AYZ15 —
89348-78040-J1 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
AGZ1#,AYZ15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
