Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 2 illustrations

Illustrations

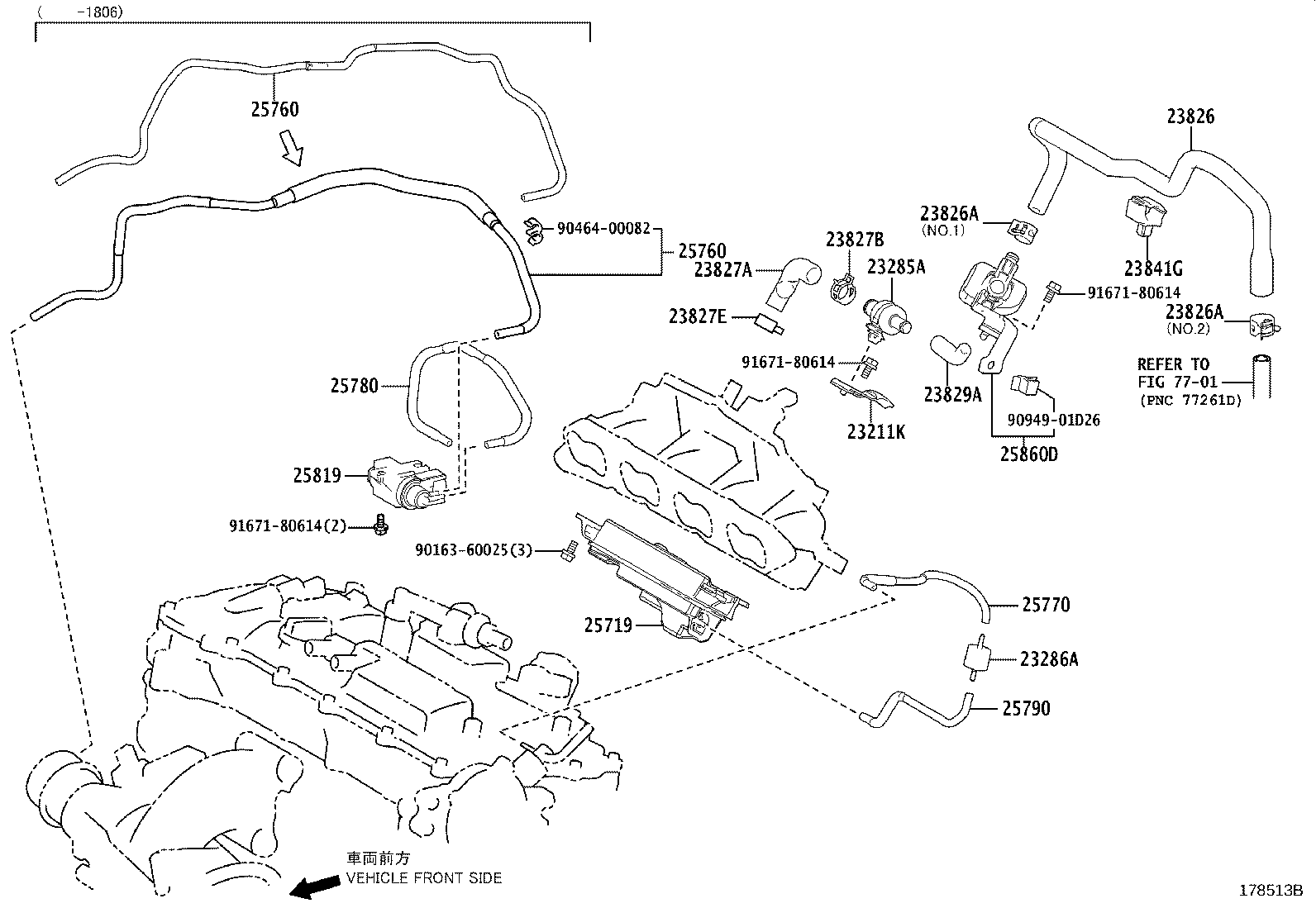

Figure 178519B 178519B 2014-07 → — Figure 178513B 178513B 2014-10 → —

Part groups

PNCDescription
23211K Bracket
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23830 Hose Assy, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25819 Valve Assy, Vacuum Regulating
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
