Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

21 part groups · 2 illustrations

Illustrations

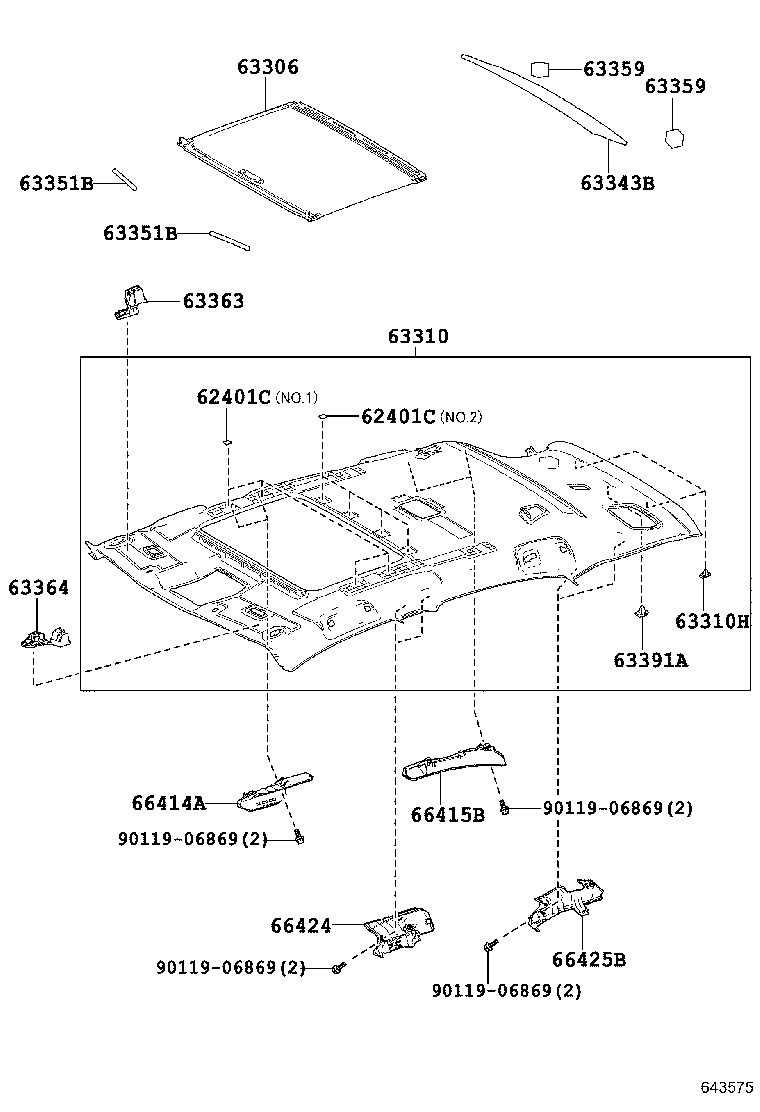

Figure 643574 643574 2014-07 → — Figure 643575 643575 2014-07 → —

Part groups

PNCDescription
62401C Fastener, Hook
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63343B Pad, Roof Silencer, Rear
63344H Pad, Roof Silencer, NO.4
63351B Pad, Roof Headlining
63354C Pad, Roof Headlining Front Side
63359 Pad, Roof Headlining End
63361A Support, Roof Headlining
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63391A Clip(FOR ROOF HEADLINING TRIM)
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
