Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

28 part groups · 3 illustrations

Illustrations

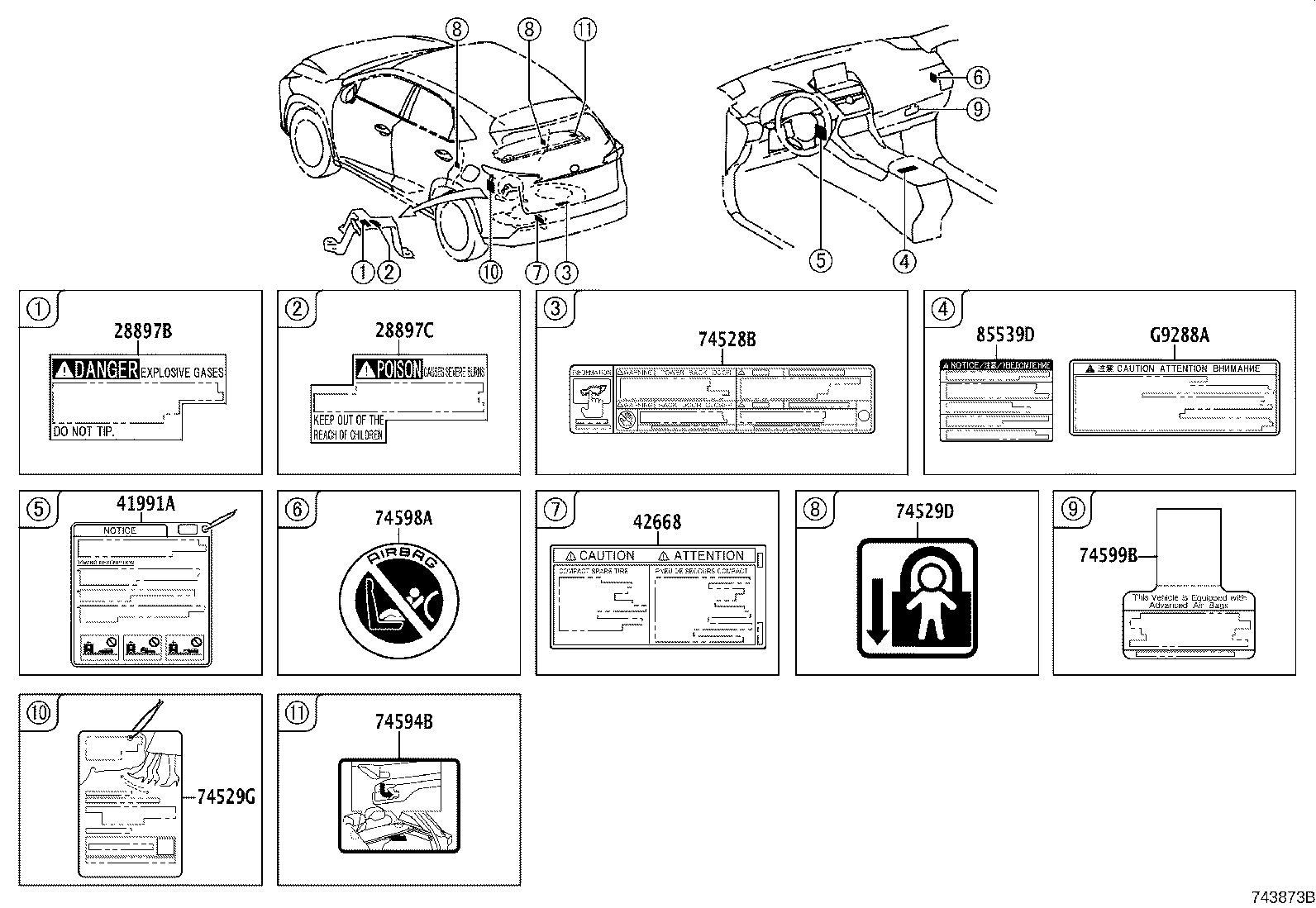

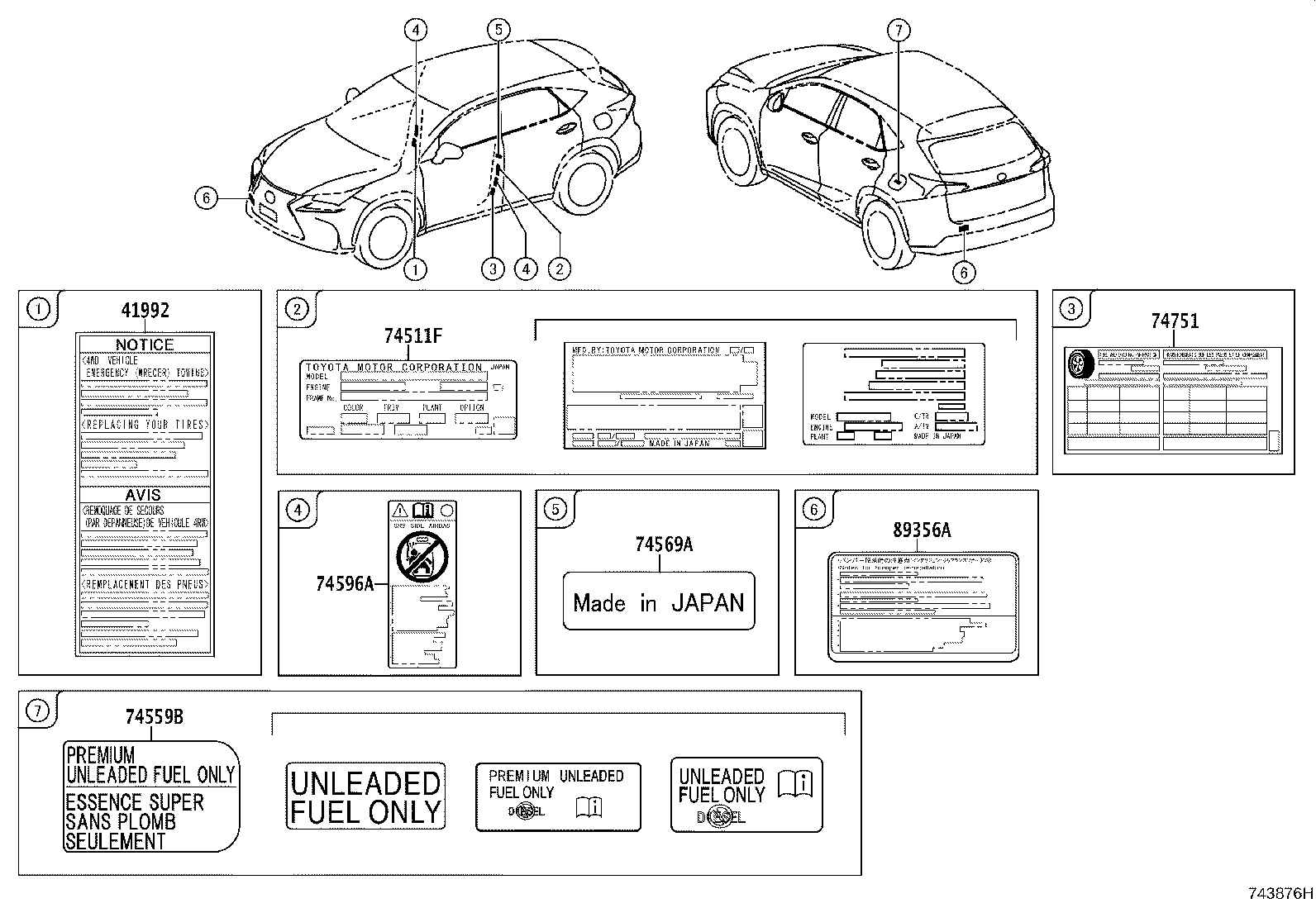

Figure 743870F 743870F 2014-07 → — Figure 743876H 743876H 2014-07 → — Figure 743873B 743873B 2014-07 → —

Part groups

PNCDescription
11282B Label, Loaded Testing Caution
11285A Label, Coolant System Notice
11286B Plate, Engine Specification
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
28897B Label, Battery Caution, NO.1
28897C Label, Battery Caution, NO.2
41991A Plate, Caution
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528B Label, Back Door Caution
74529D Plate, Child Protector Lock Caution
74529G Label, Back Door Caution
74559B Label, Fuel Information
74569A Plate, Vehicle Information
74594B Label, Package Tray Trim Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
85539D Label, Power Outlet Notice
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
