Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

9 part groups · 2 illustrations

Illustrations

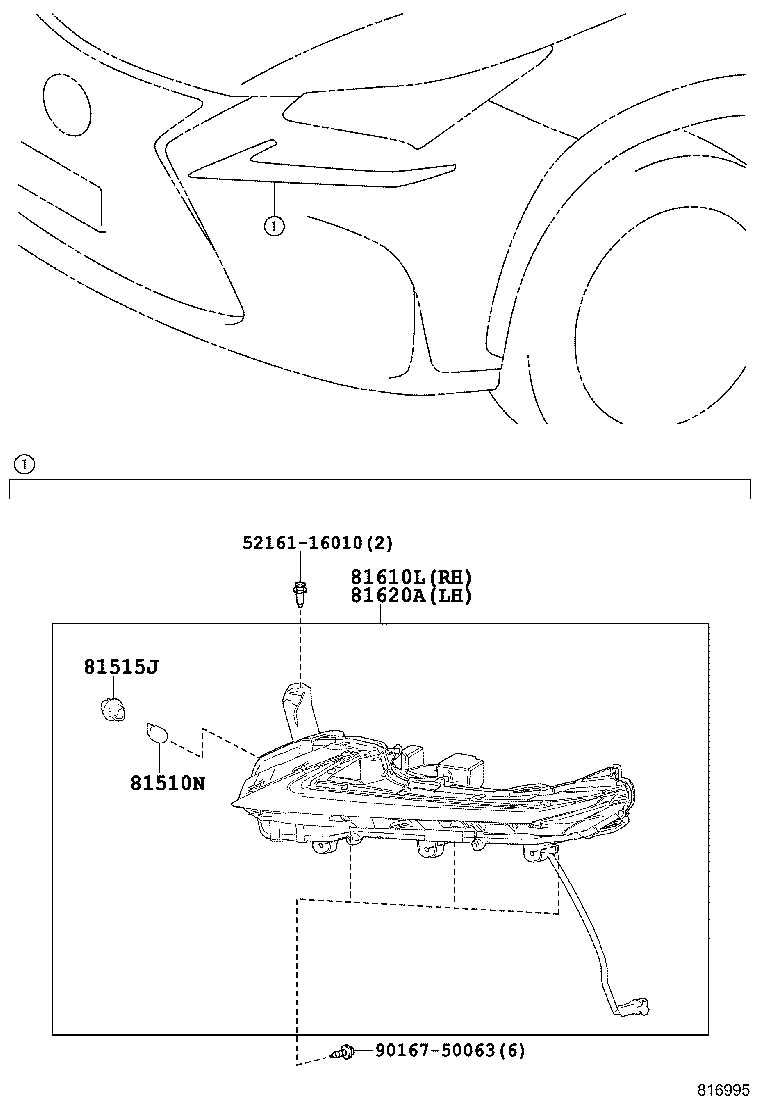

Figure 817016B 817016B 2014-07 → — Figure 816995 816995 2014-10 → —

Part groups

PNCDescription
81510N Bulb, Front Turn Signal Lamp
81515J Socket Plug, Front Turn Signal Lamp
81610L Lamp Assy, Clearance, RH
81611 Lens, Parking & Clearance Lamp, RH
81613 Unit Assy, Clearance Lamp Led, RH
81614E Gasket, Clearance Lamp
81620A Lamp Assy, Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81623 Unit Assy, Clearance Lamp Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
