Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527410 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

15 part groups · 2 illustrations

Illustrations

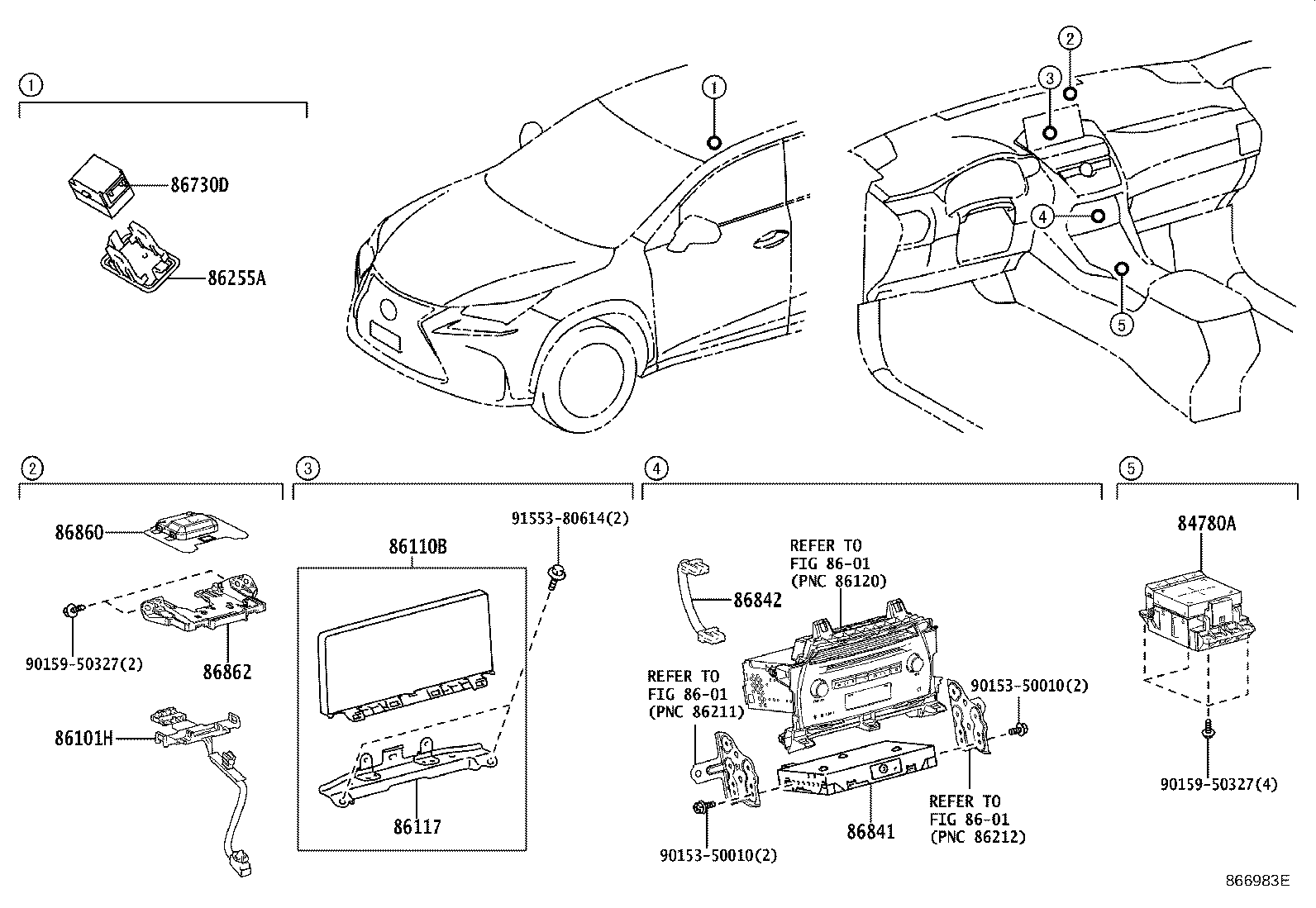

Figure 865812D 865812D 2014-07 → 2017-09 Figure 866983E 866983E 2017-09 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86117 Bracket, Multi-display Controller, A
86134A Parts, Multi-display
861A2A Bracket, Multi-media Interface, NO.1
861A3A Bracket, Multi-media Interface, NO.2
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
