Toyota Lexus NX Series(JPP)

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527420 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

1 part groups · 2 illustrations

Illustrations

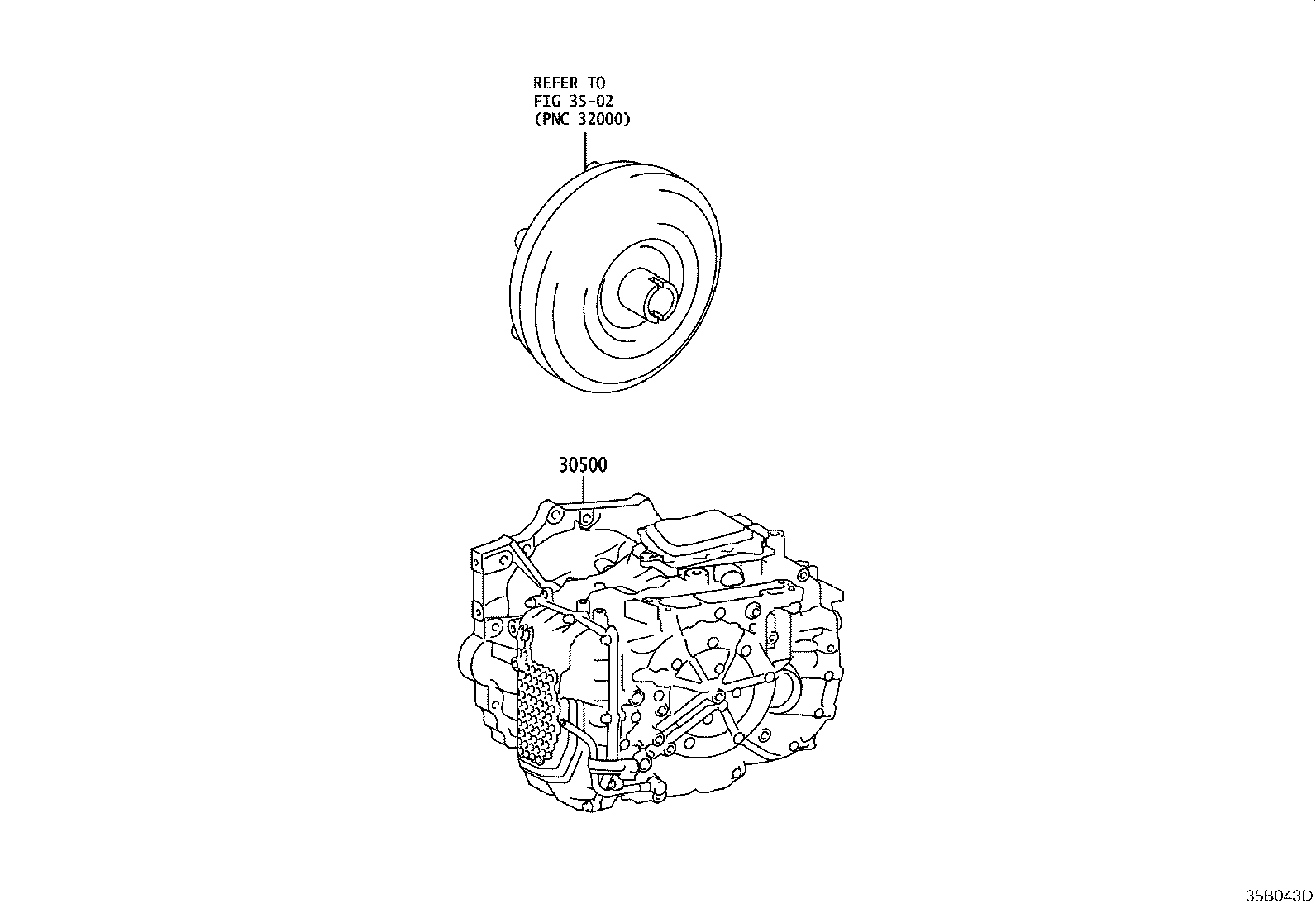

Figure 35B041A 35B041A 2021-11 → — Figure 35B043D 35B043D 2021-11 → —

Part groups

PNCDescription
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
