Toyota Lexus NX Series(JPP)
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527420 · United States
Supported model
Data version 2024-03

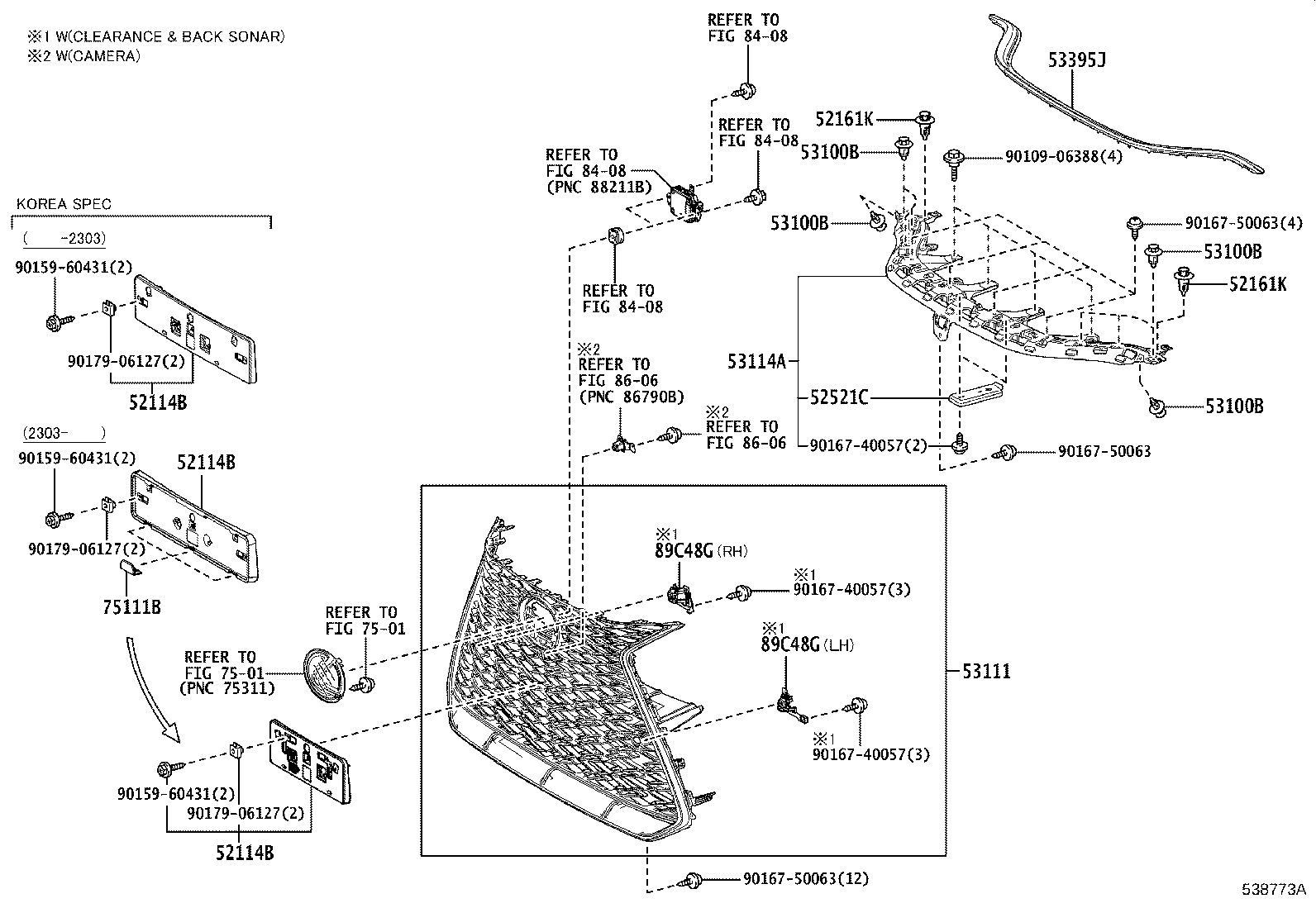

Radiator Grille
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52161K | Piece, Front Bumper |
| 52521C | Retainer, Front Bumper, Upper |
| 53100B | Clip, Radiator Grille |
| 53111 | Grille, Radiator |
| 53114A | Grille, Radiator, Inner |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53285N | Seal, Radiator Side Air, RH |
| 53286F | Seal, Radiator Side Air, LH |
| 53395J | Seal, Hood TO Front End Panel |
| 75111B | Bracket, Front License Plate |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
