Toyota Lexus NX Series(JPP)
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527420 · United States
Supported model
Data version 2024-03

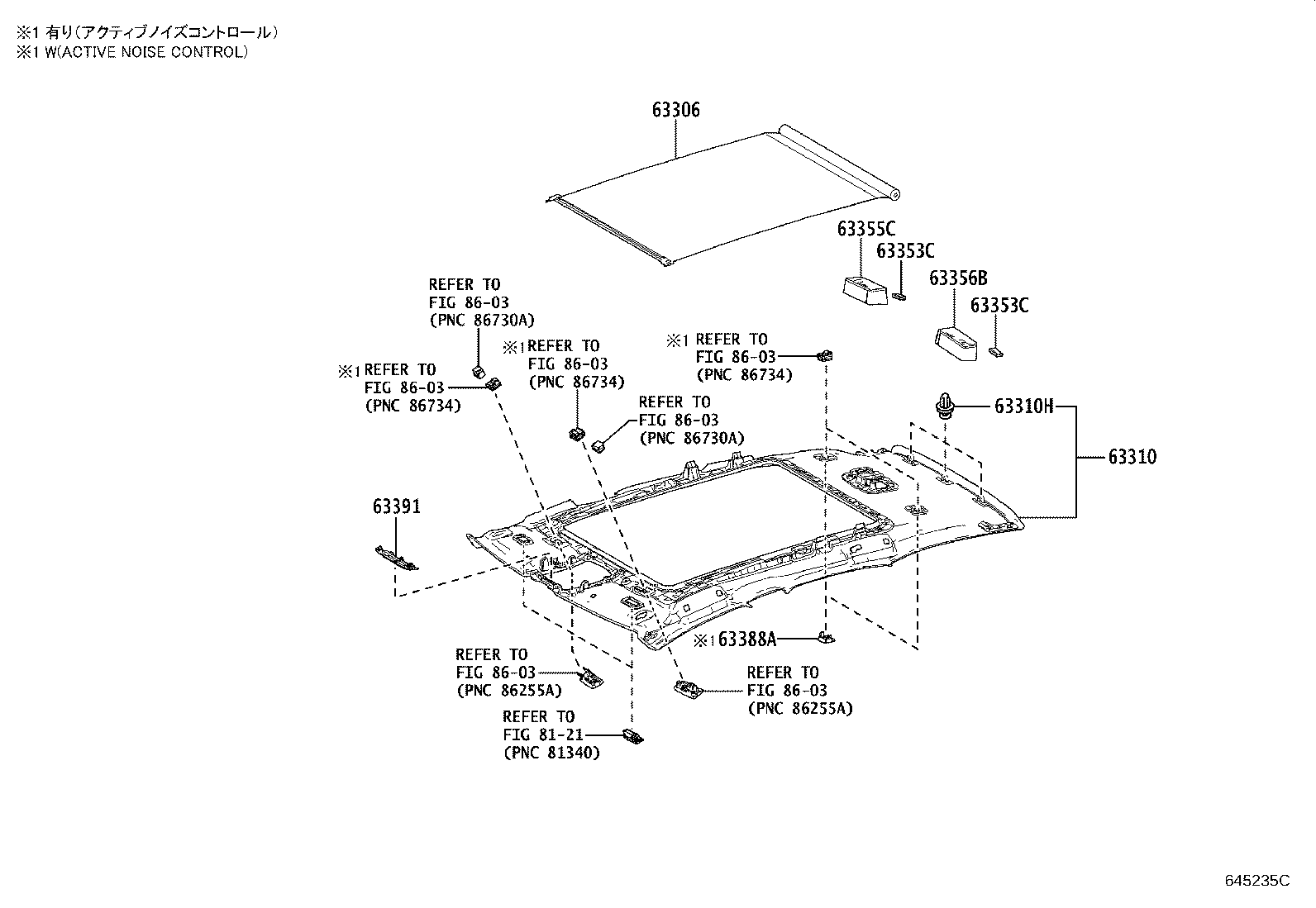

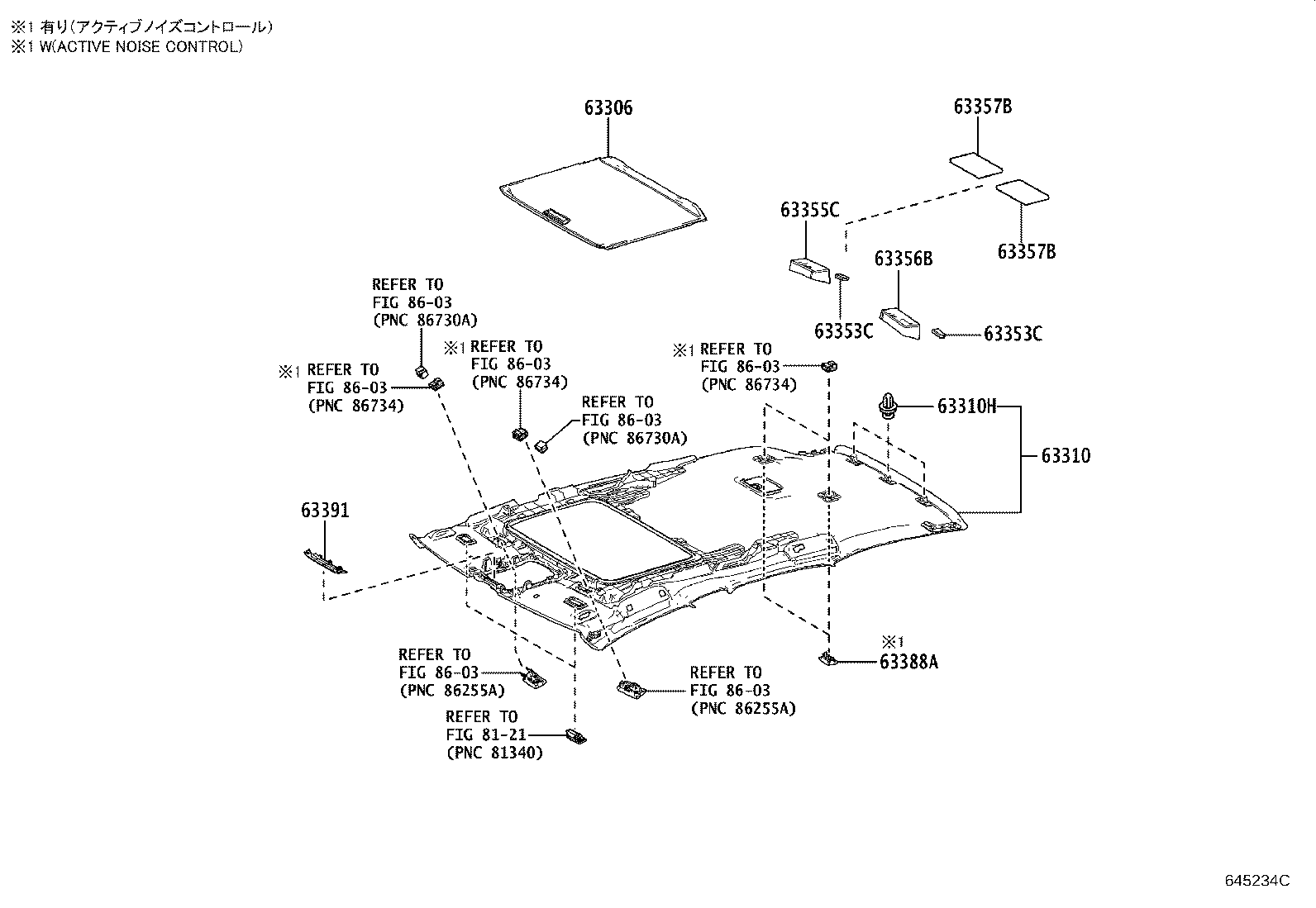

Roof Headlining & Silencer Pad
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63327E | Fastener, Roof Headlining, NO.1 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351B | Pad, Roof Headlining |
| 63353C | Pad, Roof Headlining, Center |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63357B | Silencer, Roof |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63388A | Cover, Roof Headlining Holder |
| 63391 | Trim, Roof Headlining, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
