Toyota Lexus NX Series(JPP)
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527420 · United States
Supported model
Data version 2024-03

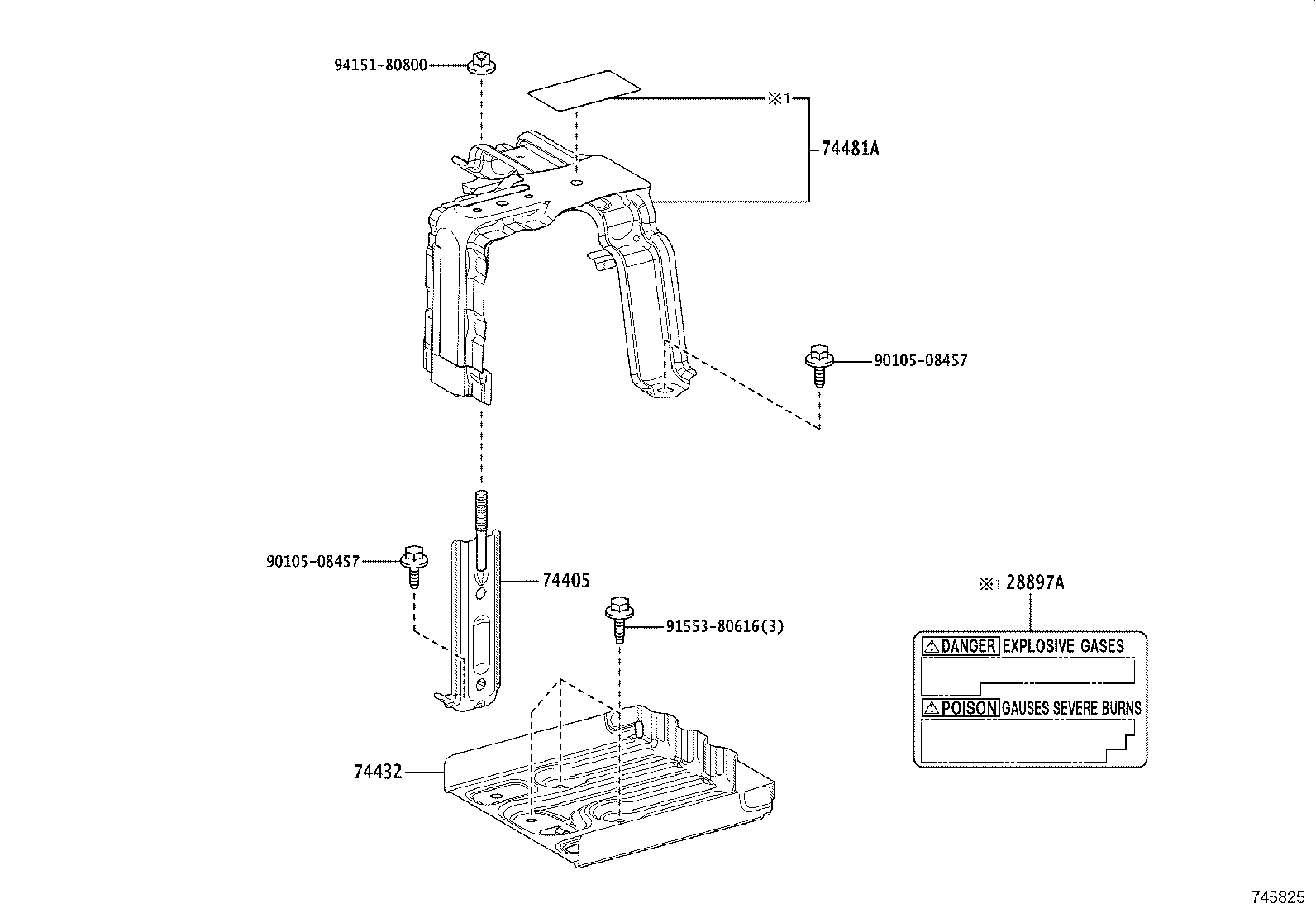

Battery Carrier
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28897A | Plate, Battery Caution |
| 74401B | Bracket Sub-assy, Battery Carrier |
| 74404B | Clamp Sub-assy, Battery |
| 74405 | Clamp Sub-assy, Battery, NO.2 |
| 74432 | Tray, Battery, NO.2 |
| 74481A | Clamp, Battery |
| 74482 | Clamp, Battery, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
