Toyota Lexus NX Series(JPP)
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527420 · United States
Supported model
Data version 2024-03
Interior Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080R | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080T | Lamp Assy, Interior Illumination, NO.2 RH |
| 81080U | Lamp Assy, Interior Illumination, NO.2 LH |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81080W | Lamp Assy, Interior Illumination, NO.3 |
| 81081C | Lamp Sub-assy, Interior Illumination, NO.4 |
| 81230 | Lamp Assy, Courtesy |
| 81240 | Lamp Assy, Room, NO.1 |
| 81260 | Lamp Assy, Glove Box |

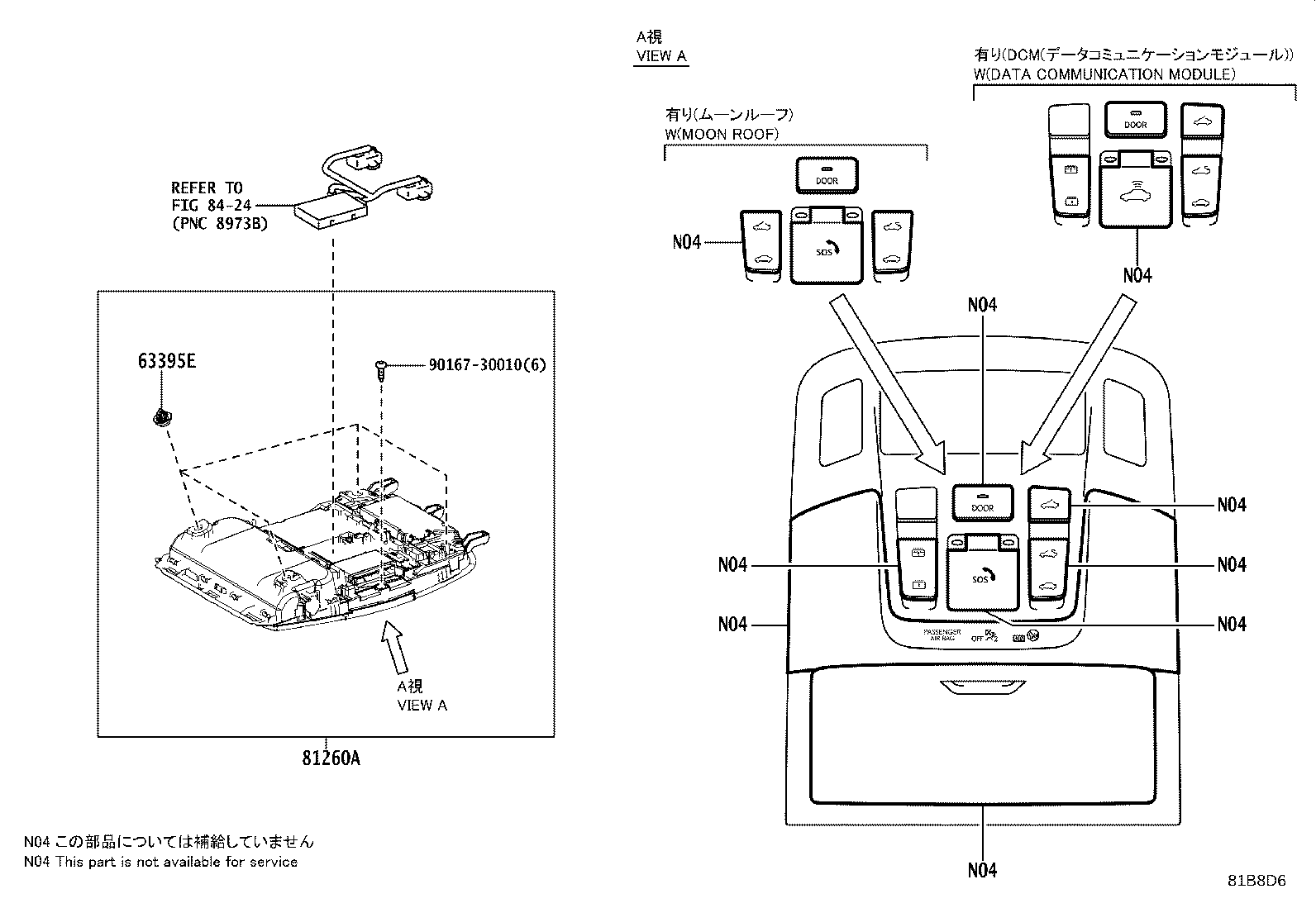

| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
| 81380F | Lamp Assy, Console Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
