Toyota C-hr (TUP)

2017-02 → present · chassis ZGX10 · catalogue 528410 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

12 part groups · 1 illustrations

Illustrations

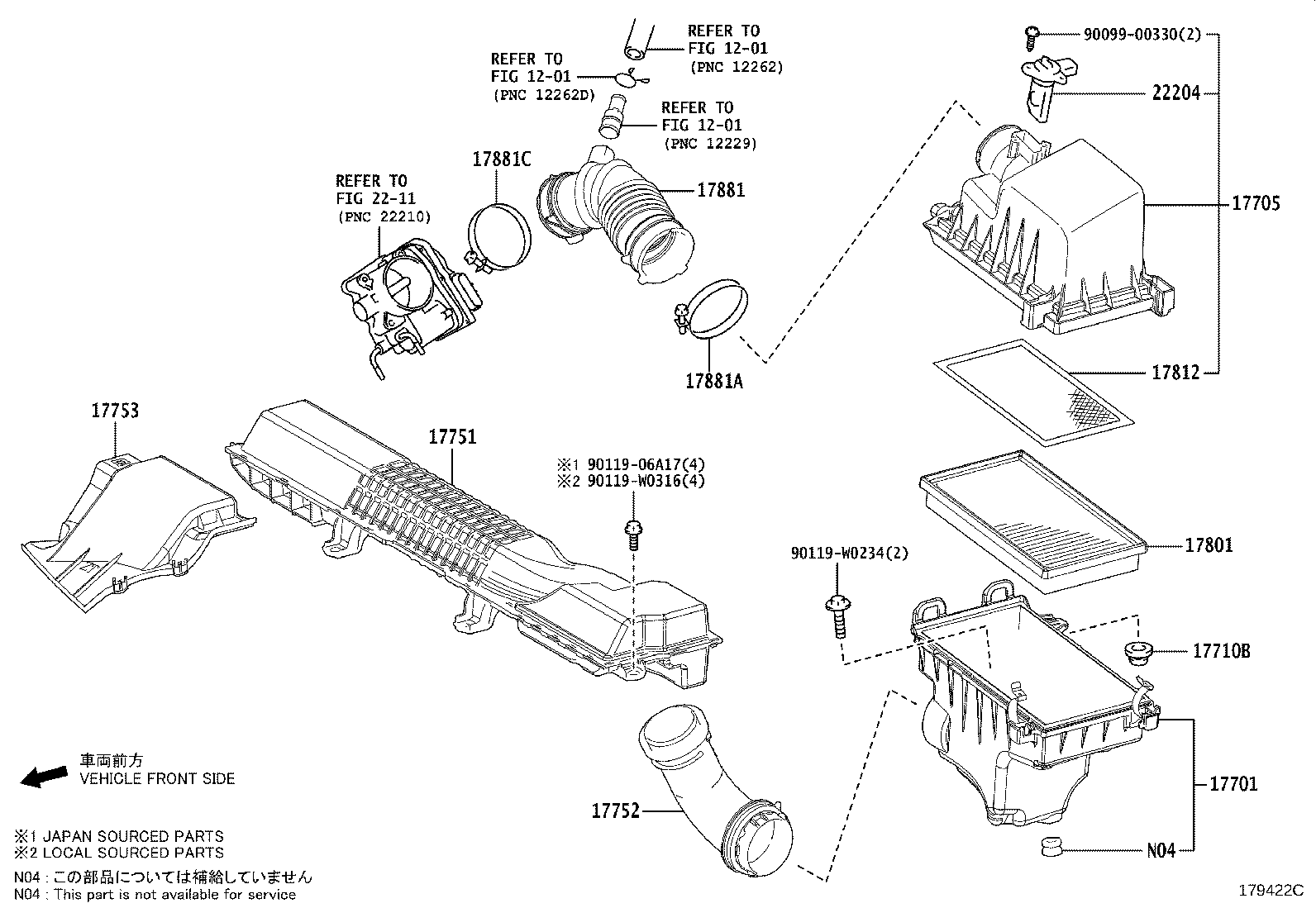

Figure 179422C 179422C 2017-02 → —

Part groups

PNCDescription
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17801 Element Sub-assy, Air Cleaner Filter
17812 Filter, Air Cleaner, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
