Toyota C-hr (TUP)
2017-02 → present · chassis ZGX10 · catalogue 528410 · United States
Supported model
Data version 2019-09
Rear Bumper & Bumper Stay
26 part groups · 1 illustrations

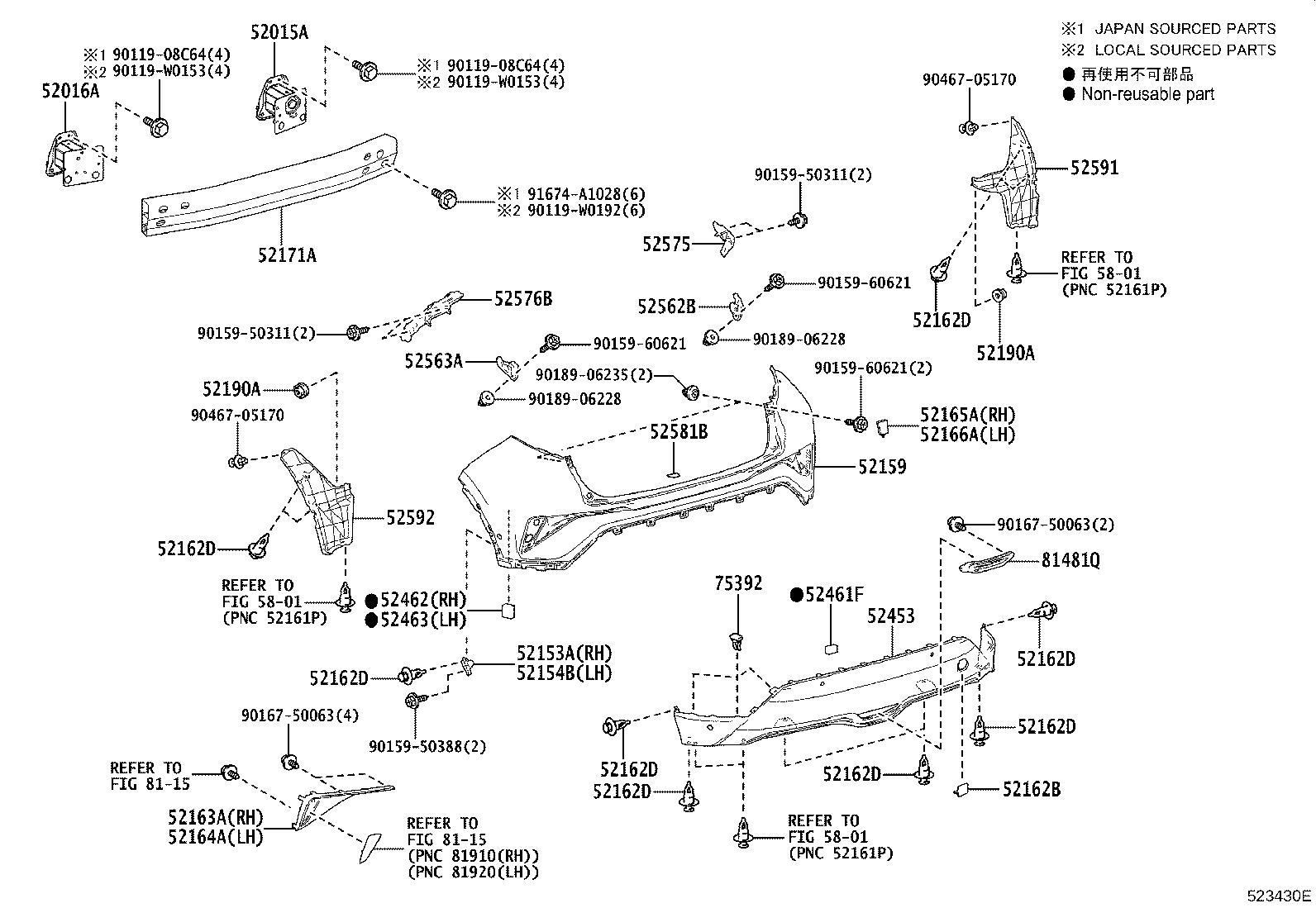

Illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52153A | Stay, Rear Bumper Side, RH |
| 52154B | Stay, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52162D | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52190A | Clip |
| 52453 | Guard, Rear Bumper, Center |
| 52461F | Pad, Rear Bumper |
| 52462 | Pad, Rear Bumper, RH |
| 52463 | Pad, Rear Bumper, LH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576B | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 75392 | Retainer, Outside Moulding |
| 81481Q | Bracket, Fog Lamp |
