Toyota C-hr (TUP)
2017-02 → present · chassis ZGX10 · catalogue 528410 · United States
Supported model
Data version 2019-09

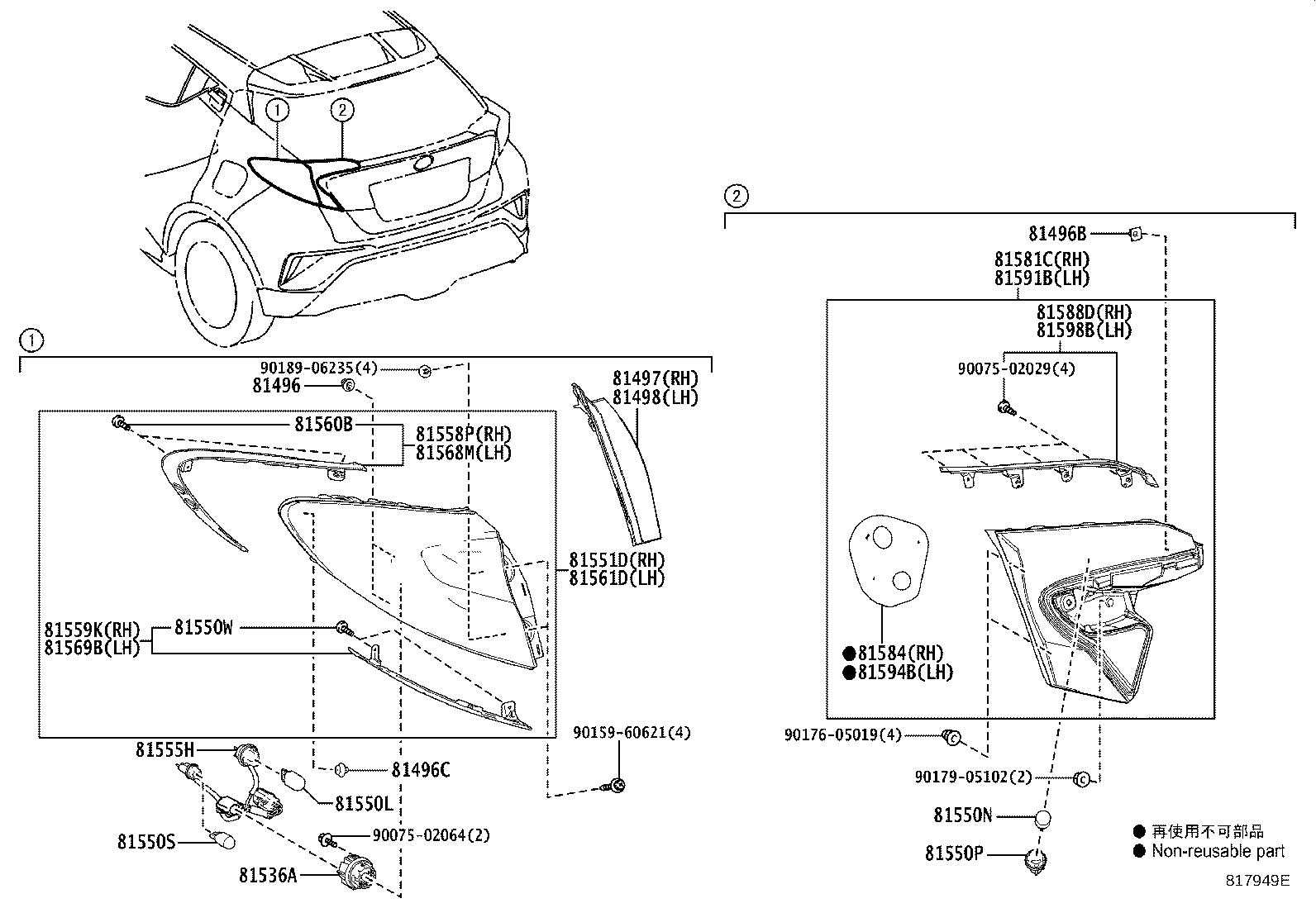

Rear Combination Lamp
25 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536A | Led, Rear Combination Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550S | Bulb, Rear Side Marker Lamp |
| 81550W | Screw(FOR RR COMBINATION LAMP) |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555H | Socket & Wire, Rear Combination Lamp |
| 81558P | Garnish NO.1, Rear Combination Lamp, RH |
| 81559K | Garnish NO.2, Rear Combination Lamp, RH |
| 81560B | Screw(FOR RR COMBINATION LAMP) |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81568M | Garnish NO.1, Rear Combination Lamp, LH |
| 81569B | Garnish NO.2, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81588D | Garnish, Rear Lamp, RH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594B | Packing, Rear Lamp LH |
| 81598B | Garnish, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
